Side 1/24

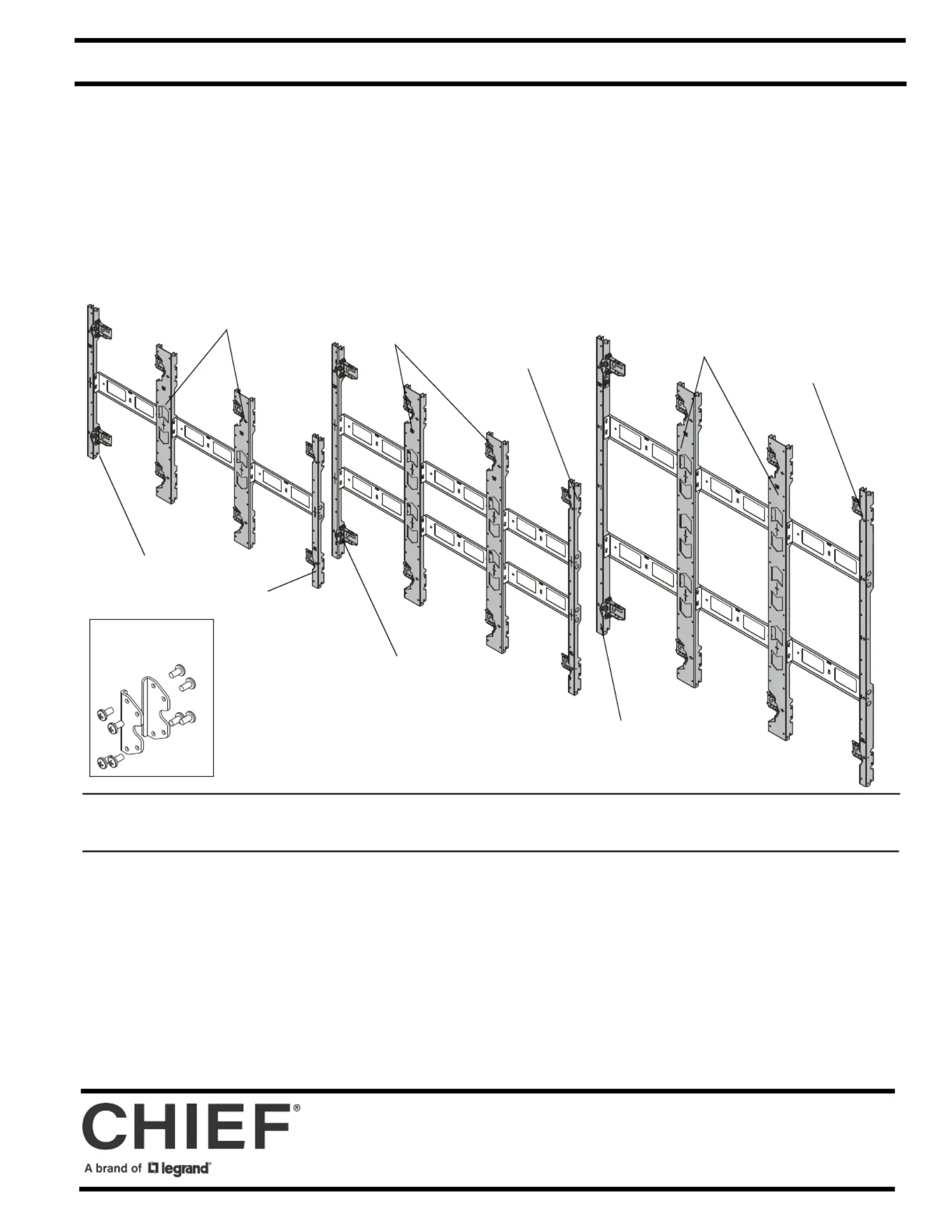

I N S T A L L A T I O N I N S T R U C T I O N S

TILD1X4NE1-L

TILD1X3NE1-L

TILVAB2

Accessory

(Standard three-upright configuration shown for each model.

Configuration will vary based on application)

TILD1X3NE1-M

TILD1X3NE1-R

TILD1X4NE1-M

TILD1X4NE1-R

TILD1X5NE1-L

TILD1X5NE1-M

TILD1X5NE1-R

Nanolumens LED Wall Mounts / Accessory

Spanish Product Description

German Product Description

Portuguese Product Description

Italian Product Description

Dutch Product Description

French Product Description

TILD1xXNE1 Series

TILD1xXNE1 Series Installation Instructions

DISCLAIMER

Legrand AV and its affiliated corporations and subsidiaries

(collectively “Legrand AV”), intend to make this manual |

accurate and complete. However, Legrand AV makes no claim |

that the information contained herein covers all details,

conditions or variations, nor does it provide for every possible

contingency in connection with the installation or use of this

product. The information contained in this document is subject

to change without notice or obligation of any kind. Legrand AV

makes no representation of warranty, expressed or implied,

regarding the information contained herein. Legrand AV

assumes no responsibility for accuracy, completeness or

sufficiency of the information contained in this document.

Chief® is a registered trademark of Legrand AV Inc.

DEFINITIONS

MOUNTING SYSTEM: A MOUNTING SYSTEM is the

primary Chief product to which an accessory and/or component

is attached.

ACCESSORY: AN ACCESSORY is the secondary Chief

product which is attached to a primary Chief product, and may

have a component attached or setting on it.

COMPONENT: A COMPONENT is an audiovisual item

designed to be attached or resting on an accessory or mounting

system such as a video camera, CPU, screen, display,

projector, etc.

WARNING: A WARNING alerts you to the possibility of

serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of

damage or destruction of equipment if you do not follow the

corresponding instructions.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: Failure to read, thoroughly understand, and

follow all instructions can result in serious personal injury,

damage to equipment, or voiding of factory warranty! It is the

installer’s responsibility to make sure all mounting systems

are properly assembled and installed using the instructions

provided.

WARNING: Failure to provide adequate structural strength

for this mounting system can result in serious personal injury

or damage to equipment! It is the installer’s responsibility to

make sure the structure to which this mounting system is

attached can support five times the combined weight of all

equipment. Reinforce the structure as required before

installing the mounting system. The wall to which the

mounting system is being attached may have a maximum

drywall thickness of 5/8” (1.6cm). Do not install drywall

anchors into the seam between drywall pieces.

WARNING: The TILD1xXNE1 Series LED wall mounts are

designed for use with LED panels only. Exceeding the weight

capacity (listed) can result in serious personal injury or

damage to equipment! Do NOT attach LED panels to

TILD1xXNE1 Series LED video wall mounts that exceed 20

lbs (9.07 kg) regardless of the size or design of the

configuration. See figure below for examples.

WARNING: Use this mounting system only for its intended

use as described in these instructions. Do not use

attachments not recommended by the manufacturer.

WARNING: Never operate this mounting system if it is

damaged. Return the mounting system to a service center for

examination and repair.

WARNING: Do not use this mounting system outdoors.

IMPORTANT ! : The TILD1xXNE1 Series LED wall mounts

are designed to be mounted to:

• a bare 8" concrete or 8"x8"x16" concrete block wall; or

• a 3/4" thickness plywood-backed, 2" x 4" wood studs

(16" on center minimum) wall with a maximum drywall

thickness of 5/8"; or

• a 3/4" thickness plywood-backed, steel stud wall

covered with drywall having a maximum thickness of

5/8".

--SAVE THESE INSTRUCTIONS--

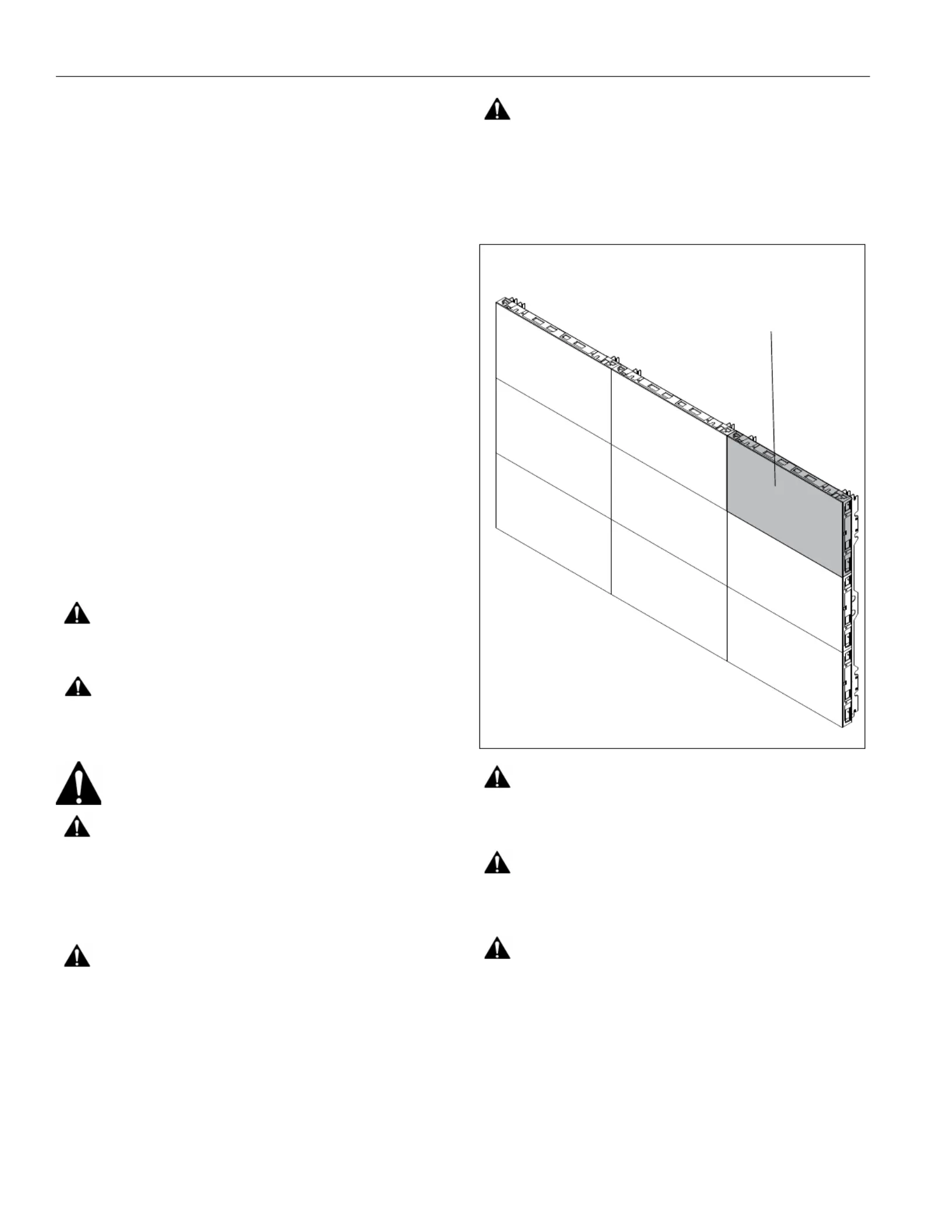

ONE LED PANEL

20 lbs (9.07 kg)

maximum

TILD1X4NE1 shown (example)

Produkt Specifikationer

Mærke:	Chief
Kategori:	Flad panel støtte
Model:	TILD1X3NE1-M
Vægt:	11300 g
Antal pr. pakke:	1 stk
Brugervejledning:	Ja
Produktfarve:	Sort
Certificering:	UL Listed
Monteringstype:	Væg
Nem at installere:	Ja
Maksimal vægtkapacitet:	- kg
Maksimal skærmstørrelse kompatibilitet:	- "
Orientering:	Landskab
Antal understøttede skærme:	3
Minimal skærmstørrelse kompatibilitet:	- "
Montering interface kompatibilitet (min.):	- mm
Montering interface kompatibilitet (maks.):	- mm
