Side 1/7

russ

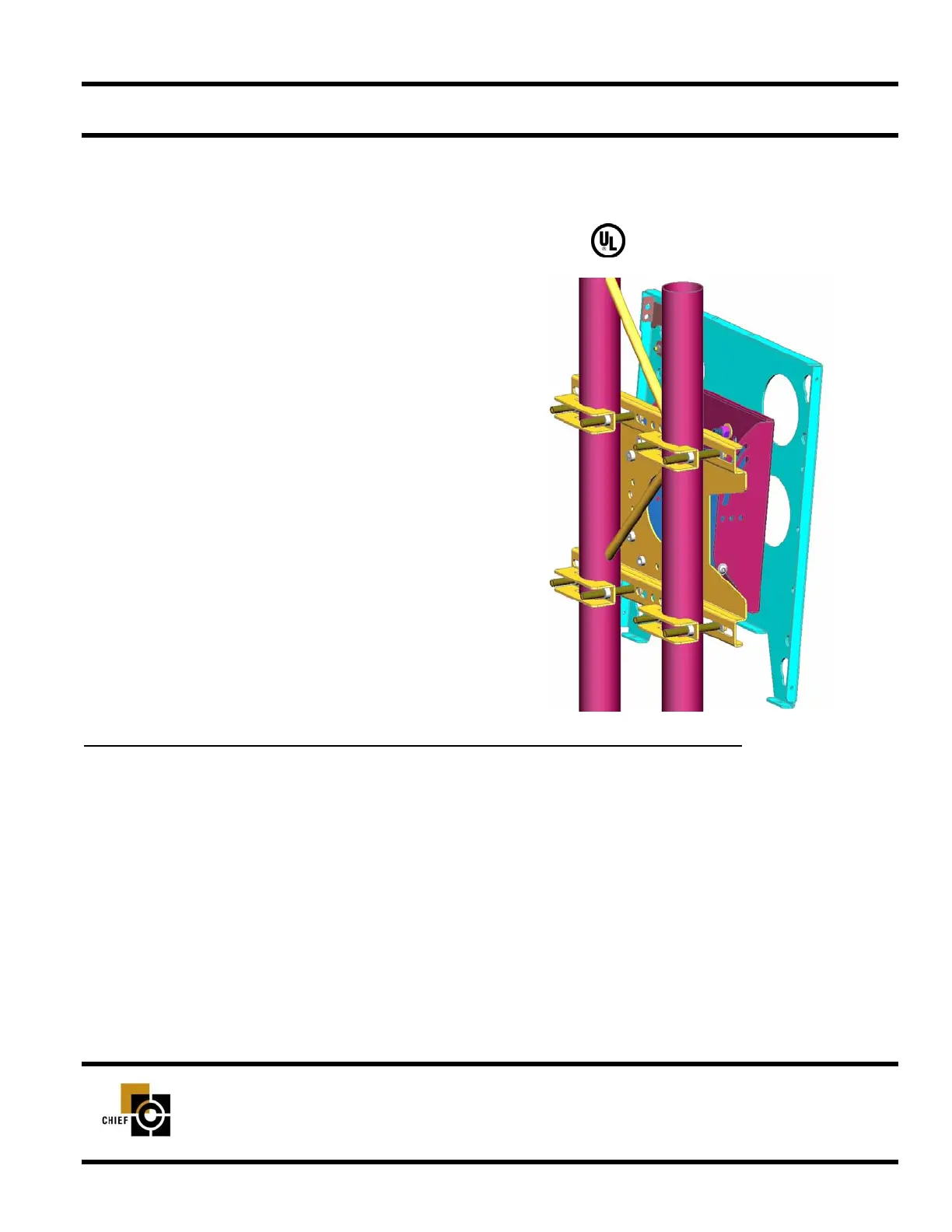

Pitch-Adjustable (TPP) Mount

BEFORE YOU BEGIN

•WARNING: TO PREVENT PERSONAL INJURY, THOROUGHLY STUDY ALL INSTRUCTIONS AND ILLUS-

TRATIONS BEFORE YOU BEGIN TO INSTALL THE UNIT. PAY PARTICULAR ATTENTION TO THE “IMPOR-

TANT WARNINGS AND CAUTIONS” ON PAGE 1.

•CAUTION: To prevent damage to the mount, which could affect or void the Factory warranty, thoroughly

study all instructions and illustrations before you begin to install the unit. Pay particular attention to the

“IMPORTANT WARNINGS AND CAUTIONS” on Page 1.

• The maximum weight to be installed on the TPP is 150 pounds (68.04 Kg).

• If you have any questions about this assembly, contact Chief Manufacturing at 1-800-582-6480 or 952-582-6480.

I N S T R U C T I O N M A N U A L

The Truss Pitch-Adjustable (TPP) mount is a perfect

solution exhibit, retail and digital signage applications.

The mount is quick, easy and versatile.

The TPP accommodates a large range of truss dimen-

sions (up to 14” O.D.), includes security options and pro-

vides flexible feature to achieve a custom installation

installation. The exclusive Q-Latch™ Mounting System

secures the LArge Flat Panel Display with a lockable

latch to confirm mount stability and integrated security

allows the display to be locked to the mount by adding a

padlock.

Your display can be mounted portrait or landscape and

four pitch adjustments, up or down, are available as pre-

set, locking positions (0, 5, 10 or 15 degrees).

LOGO

CHIEF MANUFACTURING INC.

1-800-582-6480 952-894-6280 FAX 952-894-6918

8401 EAGLE CREEK PARKWAY

SAVAGE, MINNESOTA 55378 USA

PART NO. 8804-000010 (Rev. B)

www.chiefmfg.com

Printed in USA 05-04

Instruction Manual TPP

IMPORTANT WARNINGS AND CAUTIONS!

• WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

• CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corre-

sponding instructions.

• WARNING: Improper installation can result in serious personal injury! Make sure that the structural members can

support a redundant weight factor five times the total weight of the equipment. If the structural members

can not support this weight, reinforce the structural members before installing the mount.

•WARNING: The installer is responsible for verifying that the structure to which the TPP is anchored will safely sup-

port the combined load of all attached components or other equipment.

•WARNING: The weight of the display must not exceed 150 lbs. (68.04 kg), the maximum load capacity of the TPP.

• WARNING: Be aware during the installation that there are no pinch points for people and for electrical wiring.

• WARNING: Be aware of the potential for personal injury or damage to the mount if it is not adequately mounted.

•CAUTION: Check the unit for shipping damage before you begin the installation.

• CAUTION: Changes or modifications not approved by Chief Manufacturing could void user’s warranty.

TOOLS REQUIRED FOR INSTALLATION

•Socket set with extension

•Open wrenches

NOTE: Other tools may be required depending on the

method of installing the lift in the ceiling.

CONTENTS

PARTS ........................................................................ 2

INSPECT THE MOUNT BEFORE INSTALLING ....... 3

TPP INSTALLATION ................................................. 3

Assembly ................................................................... 3

Mount the Display ....................................................... 5

Tilt Adjustment ........................................................... 5

Remove the Display ................................................... 6
