Americas Headquarters:

Cisco Systems, Inc., 170 West Tasman Drive, San Jose, CA 95134-1706 USA

Cisco Aironet Dual-Band Omnidirectional

Antenna (AIR-ANT2547V-N)

This document describes the Cisco Aironet AIR-ANT2547V-N Dual-Band Omnidirectional Antenna

and provides instructions for mounting it. The antenna is designed for outdoor use with Cisco Aironet

Outdoor Access Points (hereafter referred to as access points) with radios operating in the 2.4-GHz and

5-GHz frequency bands.

The following information is provided in this document:

•Technical Specifications, page 2

•System Requirements, page 4

•Safety Precautions, page 4

•Installation Notes, page 5

•Obtaining Documentation and Submitting a Service Request, page 6

Cisco Aironet Dual-Band Omnidirectional Antenna (AIR-ANT2547V-N)

78-19962-01

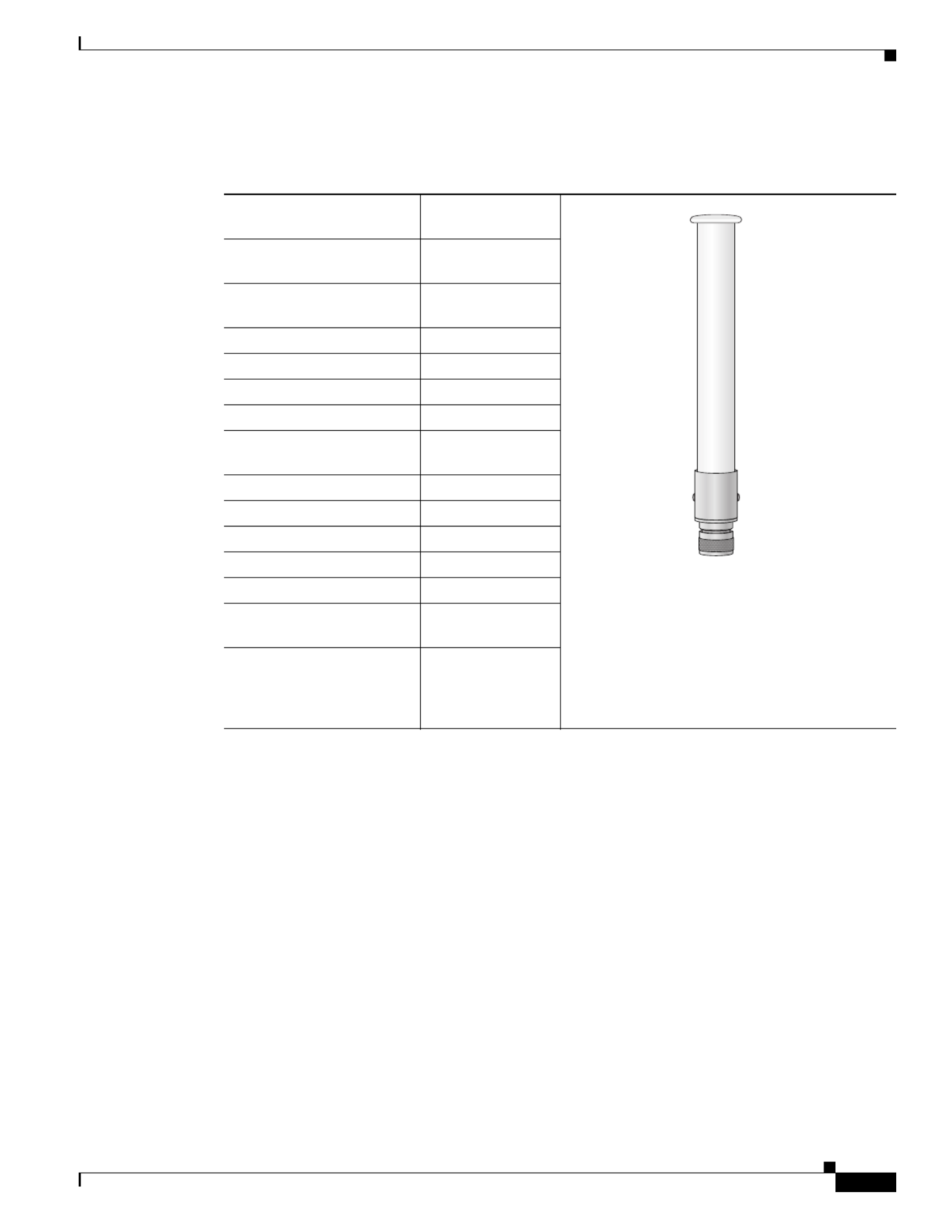

Technical Specifications

Antenna type Omnidirectional

colinear array

Operating frequency range 2400–2483 MHz;

5150–5875 MHz

2:1 VSWR bandwidth 2400–2483 MHz;

5150–5875 MHz

Nominal input impedance 50Ω

Gain (2400–2483 MHz) 4-dBi

Gain (5250–5875 MHz) 7-dBi

Polarization Linear

E-plane 3-dB beamwidth 30° for 2.4-GHz;

14° for 5-GHz

H-plane 3-dB bandwidth Omnidirectional

Length 11.1 in. (28.2 cm)

Diameter 1.25 in. (3.17 cm)

Weight 6.0 oz. (170.0 g)

Connector type N-Male

Operating temperature –22°F to 185°F

(–40°C to 85°C)

Wind rating 100 mph (161 kph)

operational

165 mph (265 kph)

survival

231296

Produkt Specifikationer

Mærke:	Cisco
Kategori:	Wifi antenne
Model:	AIR-ANT2547V-N
Bredde:	3.17 mm
Dybde:	3.17 mm
Højde:	282 mm
Vægt:	170 g
Produktfarve:	Sølv
Driftstemperatur (T-T):	-40 - 85 °C
Dimensioner (BxDxH):	3.17 x 3.17 x 282 mm
Frekvensområde:	2.4 - 2.483GHz, 5.15 - 5.875GHz
Impedens:	50 ohm (Ω)
Diameter:	3.17 mm
Formål:	Udendørs
Frekvensbånd:	2.4/5 GHz
Antenne type:	Omniretningsbestemt antenne
Niveau for antennestyrke (maks.):	7 dBi
Stik køn:	Hanstik
Antennestik type:	N-type
Antenneforstærkning (2,4 GHz):	4 dBi
Antenneforstærkning (5 GHz):	7 dBi
Vandret strålebredde (2.4 GHz):	30 °
Vandret strålebredde (5 GHz):	14 °
Stående spændingsbølgeforhold (VSWR):	2:1
