CITIZEN QUARTZ

ECO-DRIVE

Model No. EP4XXX/EP3XXX

Cal. No. B02/B03

• INSTRUCTION MANUAL

A. BEFORE USING

This watch is not powered by an ordinary battery,

but by converting photo energy into electric energy.

A secondary battery is used in this watch to store

electrical energy. This secondary battery is a

clean energy battery which does not use any

toxic substances such as mercury. Once fully

charged, the two-hand model will continue to

run for about 5 months, while the three-hand

model will continue to run for about 2 months,

without further charging.

To use this watch comfortably, make sure that the

watch is always recharged before it stops.

There is no risk of overcharging this watch.

(Overcharge prevention function is included.)

B. SETTING THE TIME

 Setting the time

1. Pull the crown out to the time setting position (the

second hand will stop when the crown is pulled

out in the case of the three-hand model).

2. Turn the crown to set the time.

3. After setting the time, firmly push the crown back

in to the normal position.

C. FUNCTIONS OF SOLAR POWERED WATCH

If the charge becomes insufficient, a warning

function will be activated that causes the display to

change as shown below.

Refer to the explanations of each function on the

following page for further details.

 Insufficient Charge Warning Function

In the case of the two-hand model, the minute hand

moves by one minute interval movement, and in the case

of the three-hand model, the second hand moves by two

second interval movement to indicate the insufficient

charging. Although the watch keeps the correct time when

this happens, the watch will stop after about 5 days in the

case of the two-hand model or about one day in the case

of the three-hand model, after the start of the one minute

interval movement or two second interval movement.

Recharge the watch by exposing to light. The watch will

then begin to run normally again.

Before using, expose to light and make sure

the watch is fully charged.

Since it takes time to recharge the watch until

it starts running again once it has stopped, try

to make sure the watch is charged every day.

When the watch is stopped, the watch hands

will begin to move when the watch is charged

for about 5 hours in the case of the two-hand

model or about 1 hour in the case of the

three-hand model at 3000Lux (under a

fluorescent light at a distance of about 20 cm

(8 inch)).

Three-Hand Model

(One second interval

movement)

: Second hand moves

once every second.

Two Hand Model

(20 second interval

movement)

: Minute hand moves

once every 20 seconds.

Three-Hand Model

(Two second interval

movement)

: Second hand moves

once every two seconds.

Two Hand Model

(One minute interval

movement)

: Minute hand moves

regularly in three steps

once every minute

Three-Hand Model

(Irregular two second

interval movement)

: Second hand moves

irregularly once every

two seconds.

Two Hand Model

(Irregular one minute

interval movement)

: Minute hand moves

irregularly in three steps

once every minute

If sufficiently

charged

If charged

Normal time

display Insufficient charge

warning display

Time setting

warning display

If sufficiently

charged and

time is set

If sufficient

charge

continues

Recharge by

exposing to

light

If insufficiently

charged and

time is set

Stop

 Time Setting Warning Function

Although the watch hands will begin to move when

the watch is charged after stopping, since the time

is incorrect, the minute hand will move by irregular

one minute interval movement in the case of the

two-hand model, or the second hand will move by

irregular two second time interval movement in the

case of the three-hand model to indicate that the

time is incorrect. When this happens, fully charge

the watch and reset the time. The watch will

continue to run by the irregular interval movement

until the time is reset even if fully charged.

 Overcharge Prevention Feature

You can recharge without worry

Once the secondary battery is fully recharged, the

overcharging prevention feature comes into

operation and prevents over-recharging.

D. CARE AND HANDLING DURING CHARGING

 Notes on use

Take care to charge your watch during use.

Please note that if you wear long sleeves, the watch

can easily become insufficiently charged because it

is hidden and not exposed to light.

• When you take the watch off, place it in as bright a

place as possible, and it will always continue to

run properly.

 Notes on recharging

• Avoid recharging at high temperatures (over about

60C/140F), otherwise the watch will be damaged

during recharging.

(eg) Charging the watch near a light source that

easily becomes hot, such as an incandescent

lamp or a halogen lamp.

Charging in a place that easily becomes hot such

as a dashboard.

When you charge the watch by an incandescent

lamp, take a distance about 50cm (20in) from the

light source to prevent extremely high temperature.

E. REPLACING THE SECONDARY BATTERY

Unlike ordinary batteries, the secondary battery

used in this watch doesn’t have to be

periodically replaced due to repeated charging

and discharging.

CAUTION

Never use another battery different from the

secondary battery used in this watch.

The watch structure is so designed that a different

kind of battery other than that specified cannot be

used to operate it. In case a different battery such

as a silver battery is used by some chance, there is

a danger that it will be overcharged to burst, causing

damage to the watch and even the human body.

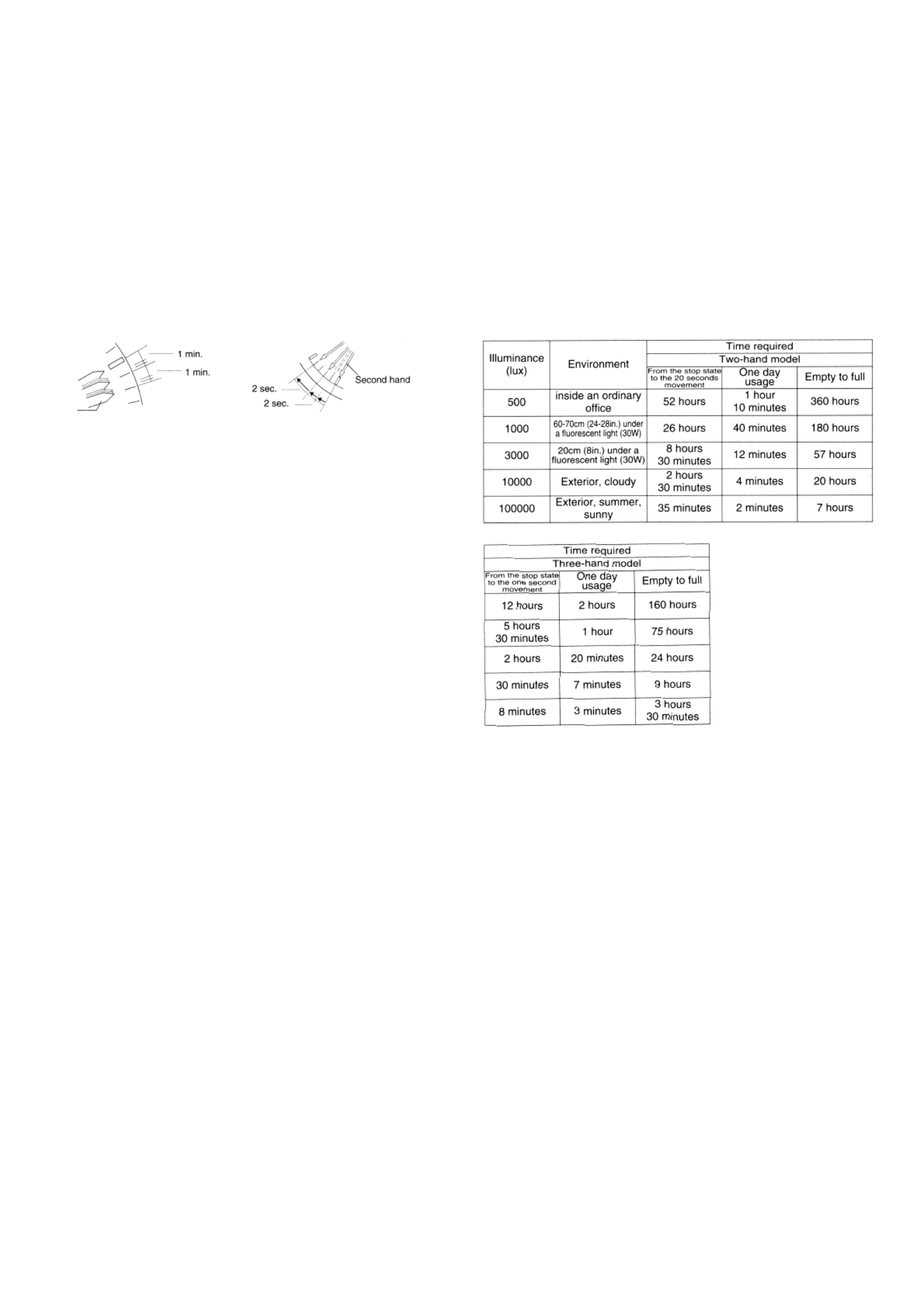

F. TIME REQUIRED FOR CHARGING

Time required for recharging may vary according to

the design (colour of the dial, etc.) and operating

environment. The following table will serve you as a

rough reference.

Full recharging time (Empty to full):The time for fully

recharge from stopped.

One day usage: The time required for the watch to

run for one day with one second interval movement

for 20 seconds interval movement.

*The recharging time is the time when the watch is

continuously exposed to radiation.

[Irregular one minute

interval movement]

[Irregular two second

interval movement]
