CM-series compact mixing consoles

CM4-LIVE (170.800) CM4-STUDIO (170.810)

CM6-LIVE (170.801)

CM8-LIVE (170.802) CM8-STUDIO (170.812)

CM10-LIVE (170.803)

User Manual

Features:

 4 “ ”LIVE models with USB/SD player and delay eﬀect

 2 “ ”STUDIO models with audio input/output USB

 3-band EQ per channel

 +48V phantom power

 8 and 10 channel models are rack-mountable

 Channel inserts for mono inputs

 AUX feed from each channel

www.citronic.com

Introduction:

Thank you for choos a Citronic CM series mixer. This product has been designed to oﬀer reliable, high quality mixing for ing

stage and/or studio applications with unfailing consistency. In order to gain the best results from this equipment and avoid

damage through misuse, please read and follow these instructions and retain for future reference.

Warning:

To prevent the risk of ﬁre or electric shock, do not expose any of the components to rain or moisture.

If liquids are spilled on the surface, stop using immediately, allow unit to dry out and have checked by qualiﬁed personnel before

further use.

Avoid impact, extreme pressure or heavy vibration to the unit.

There are no user serviceable parts inside the mixer refer all servicing to qualiﬁed service personnel. –

Safety

 Check that the supplied adapter and connectors are in good condition and the mains supply voltage is correct.

 Ensure signal leads are of good condition without shorted connections (especially when using phantom power)

 Do not use the USB connector as a general purpose power source or charger.

 Do not allow any foreign particles to enter the console through connectors or control apertures

Placement

 Keep out of direct sunlight and away from heat sources.

 Keep away from damp or dusty environments.

 When rack-mounting, (CM8-LIVE, CM10-LIVE, CM8-STUDIO) use rack ears supplied, securing ﬁrmly.

 Ensure adequate access to controls and connections, including USB/SD player on rear panel (CM-LIVE)

Cleaning

 Use a soft cloth with a neutral detergent to clean the casing as required

 Use a soft brush to clear debris from the control surface

 Do not use strong solvents for cleaning the unit.

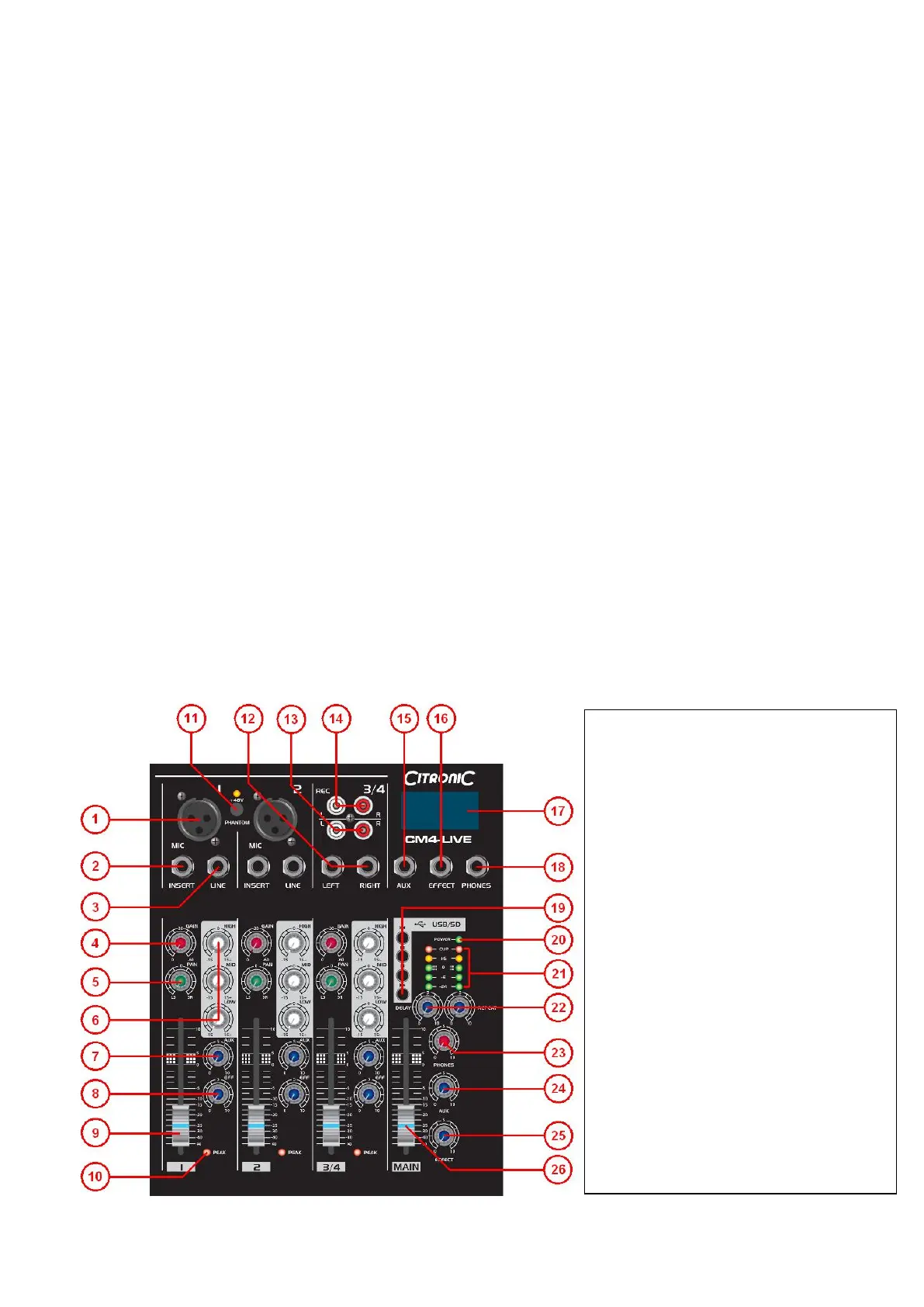

Control Panel

1. XLR MIC input

2. Channel INSERT TRS 6.3mm jack –

3. LINE input 6.3mm jack

4. Channel GAIN rotary

5. PAN (L-R balance) control

6. 3-band EQ (HIGH/MID/LOW) controls

7. Channel AUX output level

8. EFF rotary internal delay or EFFECT out (CM-LIVE) –

9. Channel volume fader

10. Channel PEAK LED

11. +48V phantom power switch

12. Stereo channel line input 2 x 6.3mm jack –

13. Stereo channel line input 2 x RCA –

14. REC output – record out on 2 x RCA

15. AUX output 6.3mm jack –

16. EFFECT output 6.3mm jack (overrides Delay eect) –

17. USB/SD player display (CM-LIVE)

18. PHONES output stereo 6.3mm jack –

19. USB/SD player transport controls (CM-LIVE)

20. Power LED

21. VU and CLIP LEDs for L + R output

22. DELAY and REPEAT controls (CM-LIVE)

23. PHONES output level

24. AUX output level

25. EFFECT output level (CM-LIVE)

26. MAIN fader master volume control –
