Side 1/5

www.club-3d.com

How do I setup 3D Vision Surround?

Follow these steps to set up 3D

Vision Surround:

1. Open the NVIDIA Control

Panel (Figure 10) through the

Windows Control Panel or by

right-clicking on the desktop.

2. From the NVIDIA Control

Panel navigation tree pane, under

3D Settings Configure , select

SLI, PhysX, Surround to open

the associated page.

3. Select Span displays with

Surround, and then click the

Configure button to launch the

wizard.

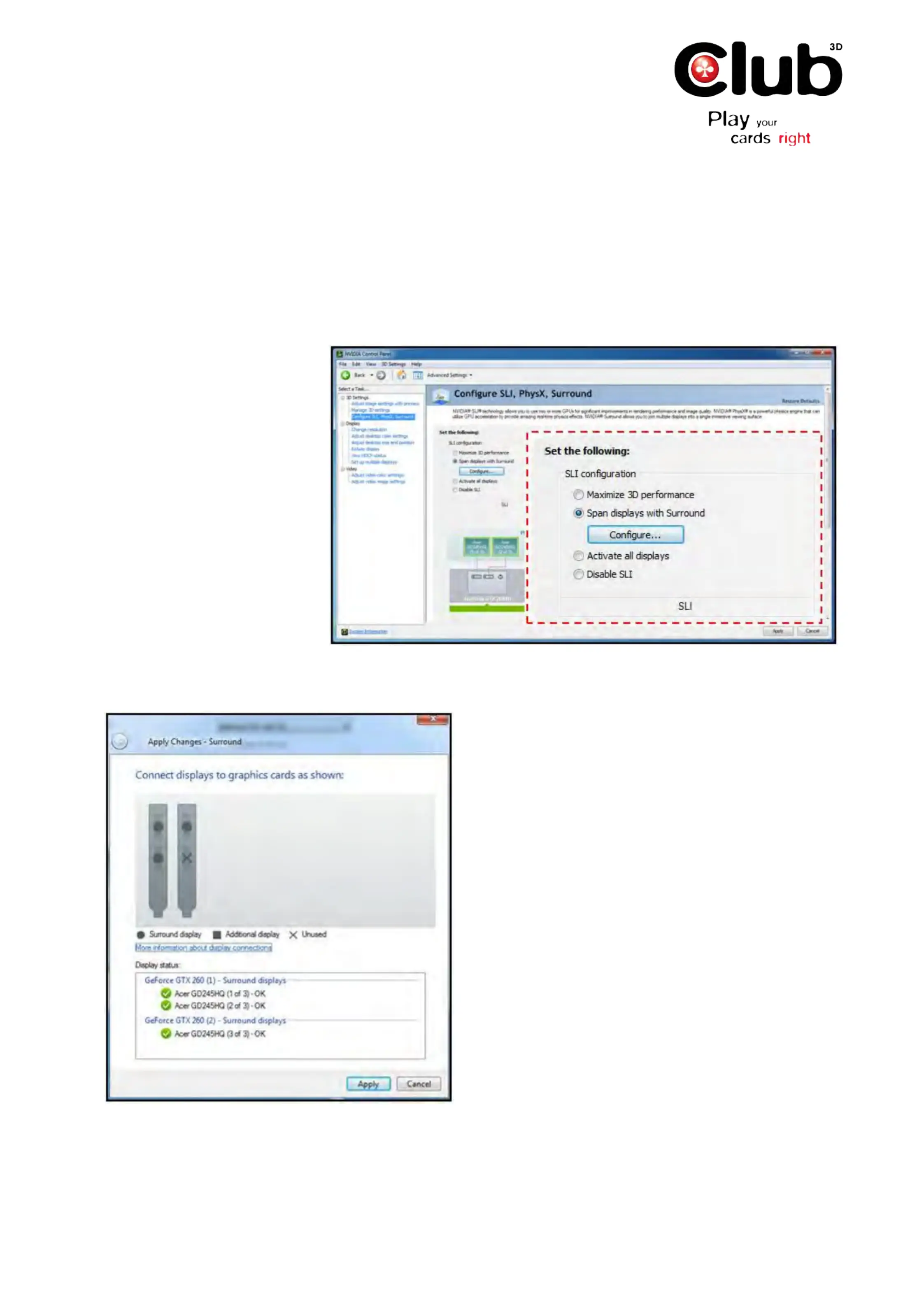

Figure 1: Select Span displays with Surround to start the configuration proc-

ess.

4. The Display status (Figure 2) dialog checks the

connectors on the cards to determine if the displays are

connected properly.

5. If the displays need to be moved, do it at this time.

The interface will automatically detect the change and

show it on this screen.

6. Once all three displays are connected properly,

press the button to continue the setup procedure.Apply

Figure 2:!Connect the displays to the graphic cards

using the diagram in this dialog. The Display status

shows if a display is properly connected to the GPUs.

www.club-3d.com

7. In the Arrange displays dialog (Figure3), select the Orientation of the displays (either Landscape or

Portrait). Please note if you intend to run 3D Vision Surround, Portrait mode is only supported with 3D Vision

Projectors. 3D Vision LCDs do not support Portrait mode.

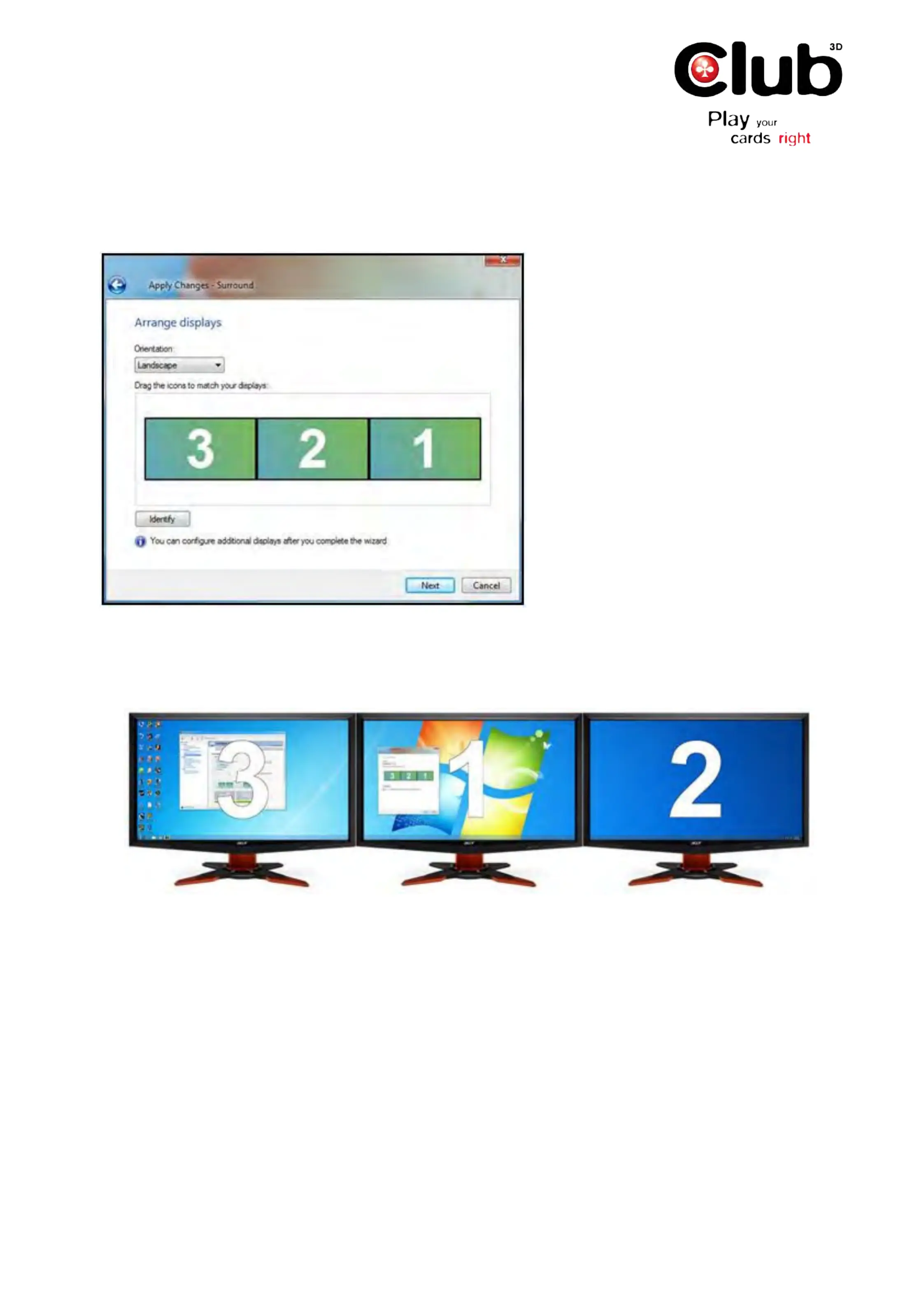

Figure 3: Click the Identify but-

ton to determine the correct num-

bered order for your displays.

8. Click the button to determine the number order of the displays.Identify

9. You should see numbers appear on all three screens as shown in .Figure 3

Figure 4: You will see numbers appear on all three displays when the Identify button is pressed. This is the num-

bered arrangement you need to make your desktop work correctly.

10. Arrange the Surround display order to match your displays by dragging the icons to match the numbers on

displays.

FOR$EXAMPLE: Figure$3 !"#$%"!&#'!"()''*"!+",*-!.!/!0!1!($*2-+).3$*4!5).6!&#'!,($*!%,&#!&#'!0!.*7!

8$9'!,&!,*:6'&%''*!,($*"!/!.*7!1!;."!"#$%*!,*!<,-+)'!=>4

NOTE:

?#'!7,"@A.B!*+86'),*-!+"'7!#')'!,"!*$&!&#'!".8'!*+86'),*-!+"'7!,*!&#'!C,*7$%"!@.*'A4

Produkt Specifikationer

Mærke:	CLUB3D
Kategori:	Videokort
Model:	GeForce GTX 550Ti CoolStream Super OC Edition
Bredde:	215 mm
Dybde:	120 mm
Højde:	36 mm
Vægt:	469 g
Pakkedybde:	209 mm
Pakkebredde:	262 mm
Pakkehøjde:	72 mm
Formfaktor:	Full-Height/Full-Length (FH/FL)
HDCP:	Ja
Strømforbrug (typisk):	116 W
Maksimal opløsning:	2560 x 1600 pixel
Certificering:	CE, RoHS, FCC
Full HD:	Ja
HDMI:	Ja
Mac kompabilitet:	Ingen
Processorfrekvens:	940 MHz
Hukommelsesur hastighed:	4300 MHz
Kompatible operativsystemer:	Microsoft Windows XP 32/64-Bit\nMicrosoft Windows Vista 32/64-Bit\nMicrosoft Windows 7 32/64-Bit
Understøttede Windows-operativsystemer:	Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Grænsefladetype:	PCI Express 2.0
HDMI-version:	1.4a
TV-tuner, integreret:	Ingen
Minimum plads på lagerdisk:	200 MB
Maksimal digital opløsning:	2560 x 1600 pixel
Minimum systemkrav:	400 Watt power supply with one 6 pin PCI Express supplementary power connector
Antal DVI-I-porte:	2
Antal mini HDMI-porte:	1
Antal installerede processorer:	1
Kølingstype:	Aktiv
Minimum RAM:	1024 MB
Maksimal analog opløsning:	2048 x 1536 pixel
Grafikprocessor familie:	NVIDIA
Grafikprocessor:	GeForce GTX 550 Ti
Grafisk adapter, RAMDAC:	400 MHz
CUDA:	Ja
CUDA-kerner:	192
Diskret grafikadapterhukommelse:	1 GB
Hukommelsestype for grafikadapter:	GDDR5
Hukommelsesbus:	192 Bit
Antal DVI-porte:	2
DirectX-version:	11
Shader model version:	5.0
OpenGL-version:	4.1
DVI dobbelt link:	Ja
PhysX:	Ja
Video indgang:	Ingen
Minimum system strømføring:	600 W
Tv-udgang:	Ingen
Tv-indgangsport:	Ingen
Maksimalt antal skærme pr. grafikkort:	2
Beslagshøjde:	Full-Height (FH)
Stream processorer:	192
Shader ur:	1880 MHz
NVIDIA 3D Vision:	Ja
Dobbelt VGA:	Ja
