How do I setup 3D Vision Surround?

Follow these steps to set up 3D

Vision Surround:

1. Open the NVIDIA Control

Panel (Figure 10) through the

Windows Control Panel or by

right-clicking on the desktop.

2. From the NVIDIA Control

Panel navigation tree pane, under

3D Settings Configure , select

SLI, PhysX, Surround to open

the associated page.

3. Select Span displays with

Surround, and then click the

Configure button to launch the

wizard.

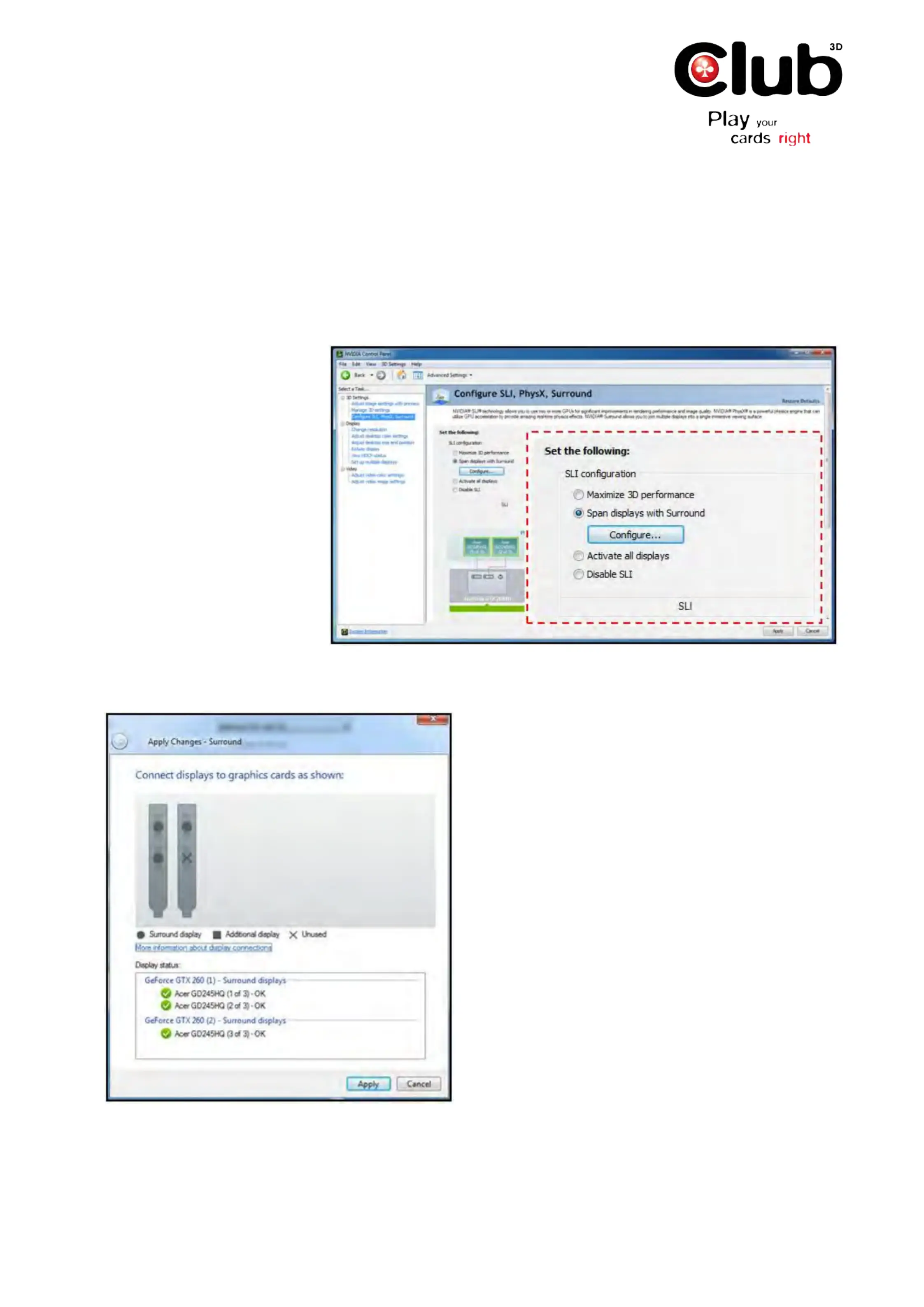

Figure 1: Select Span displays with Surround to start the configuration proc-

ess.

4. The Display status (Figure 2) dialog checks the

connectors on the cards to determine if the displays are

connected properly.

5. If the displays need to be moved, do it at this time.

The interface will automatically detect the change and

show it on this screen.

6. Once all three displays are connected properly,

press the button to continue the setup procedure.Apply

Figure 2:!Connect the displays to the graphic cards

using the diagram in this dialog. The Display status

shows if a display is properly connected to the GPUs.

www.club-3d.com

7. In the Arrange displays dialog (Figure3), select the Orientation of the displays (either Landscape or

Portrait). Please note if you intend to run 3D Vision Surround, Portrait mode is only supported with 3D Vision

Projectors. 3D Vision LCDs do not support Portrait mode.

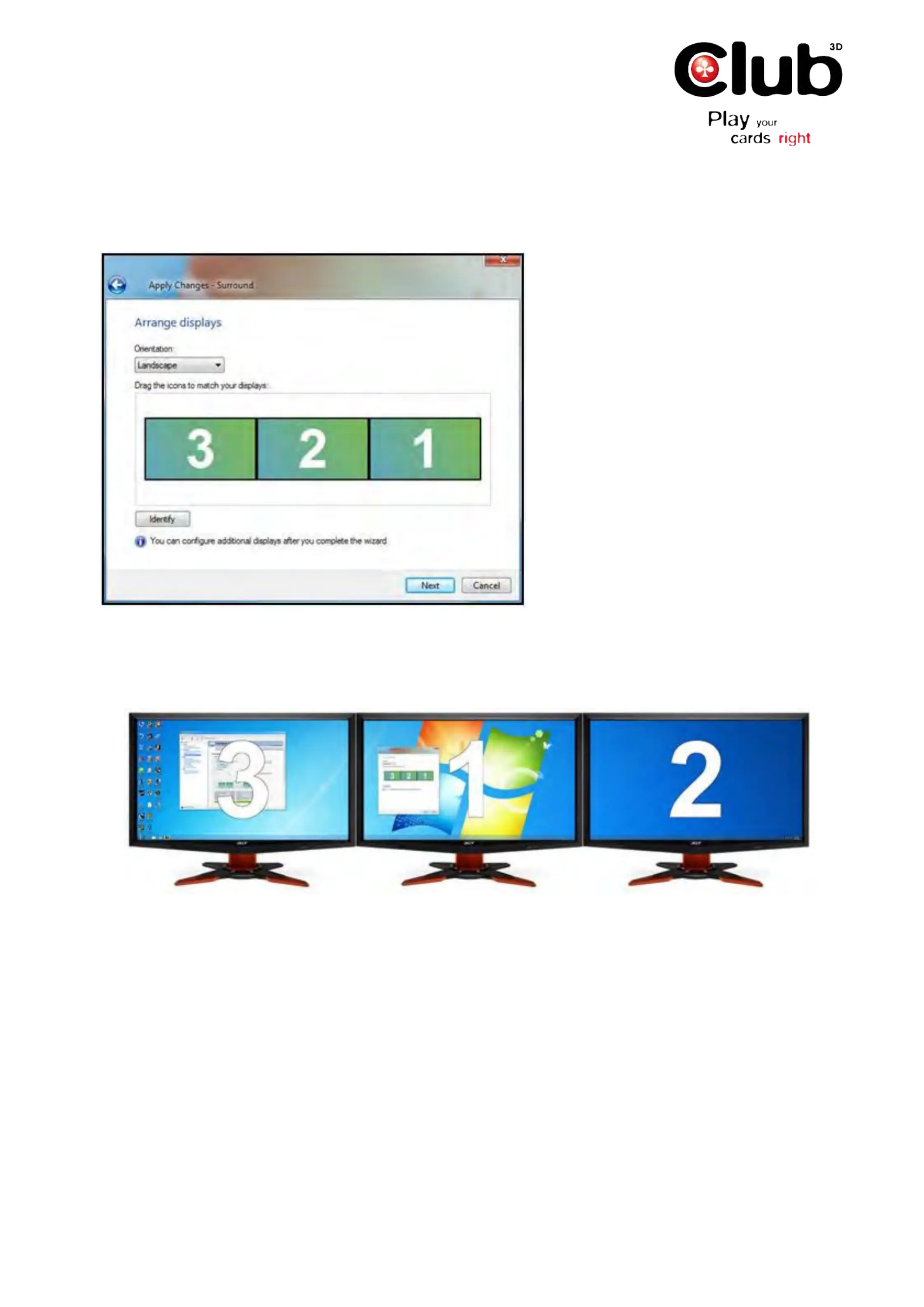

Figure 3: Click the Identify but-

ton to determine the correct num-

bered order for your displays.

8. Click the button to determine the number order of the displays.Identify

9. You should see numbers appear on all three screens as shown in .Figure 3

Figure 4: You will see numbers appear on all three displays when the Identify button is pressed. This is the num-

bered arrangement you need to make your desktop work correctly.

10. Arrange the Surround display order to match your displays by dragging the icons to match the numbers on

displays.

FOR$EXAMPLE: Figure$3 !"#$%"!&#'!"()''*"!+",*-!.!/!0!1!($*2-+).3$*4!5).6!&#'!,($*!%,&#!&#'!0!.*7!

8$9'!,&!,*:6'&%''*!,($*"!/!.*7!1!;."!"#$%*!,*!<,-+)'!=>4

NOTE:

?#'!7,"@A.B!*+86'),*-!+"'7!#')'!,"!*$&!&#'!".8'!*+86'),*-!+"'7!,*!&#'!C,*7$%"!@.*'A4
