How do I setup 3D Vision Surround?

Follow these steps to set up 3D

Vision Surround:

1. Open the NVIDIA Control

Panel (Figure 10) through the

Windows Control Panel or by

right-clicking on the desktop.

2. From the NVIDIA Control

Panel navigation tree pane, under

3D Settings Configure , select

SLI, PhysX, Surround to open

the associated page.

3. Select Span displays with

Surround, and then click the

Configure button to launch the

wizard.

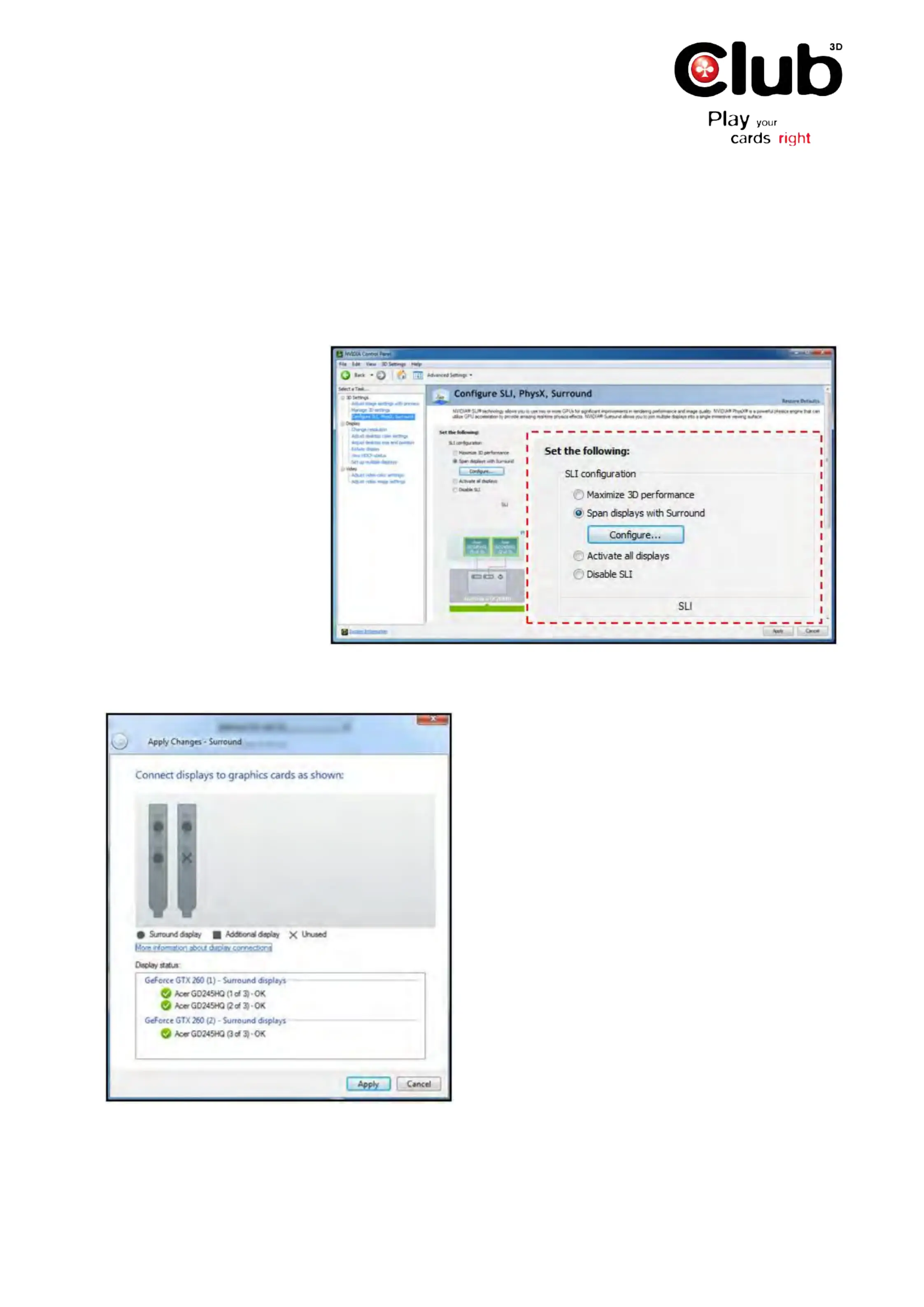

Figure 1: Select Span displays with Surround to start the configuration proc-

ess.

4. The Display status (Figure 2) dialog checks the

connectors on the cards to determine if the displays are

connected properly.

5. If the displays need to be moved, do it at this time.

The interface will automatically detect the change and

show it on this screen.

6. Once all three displays are connected properly,

press the button to continue the setup procedure.Apply

Figure 2:!Connect the displays to the graphic cards

using the diagram in this dialog. The Display status

shows if a display is properly connected to the GPUs.

www.club-3d.com

7. In the Arrange displays dialog (Figure3), select the Orientation of the displays (either Landscape or

Portrait). Please note if you intend to run 3D Vision Surround, Portrait mode is only supported with 3D Vision

Projectors. 3D Vision LCDs do not support Portrait mode.

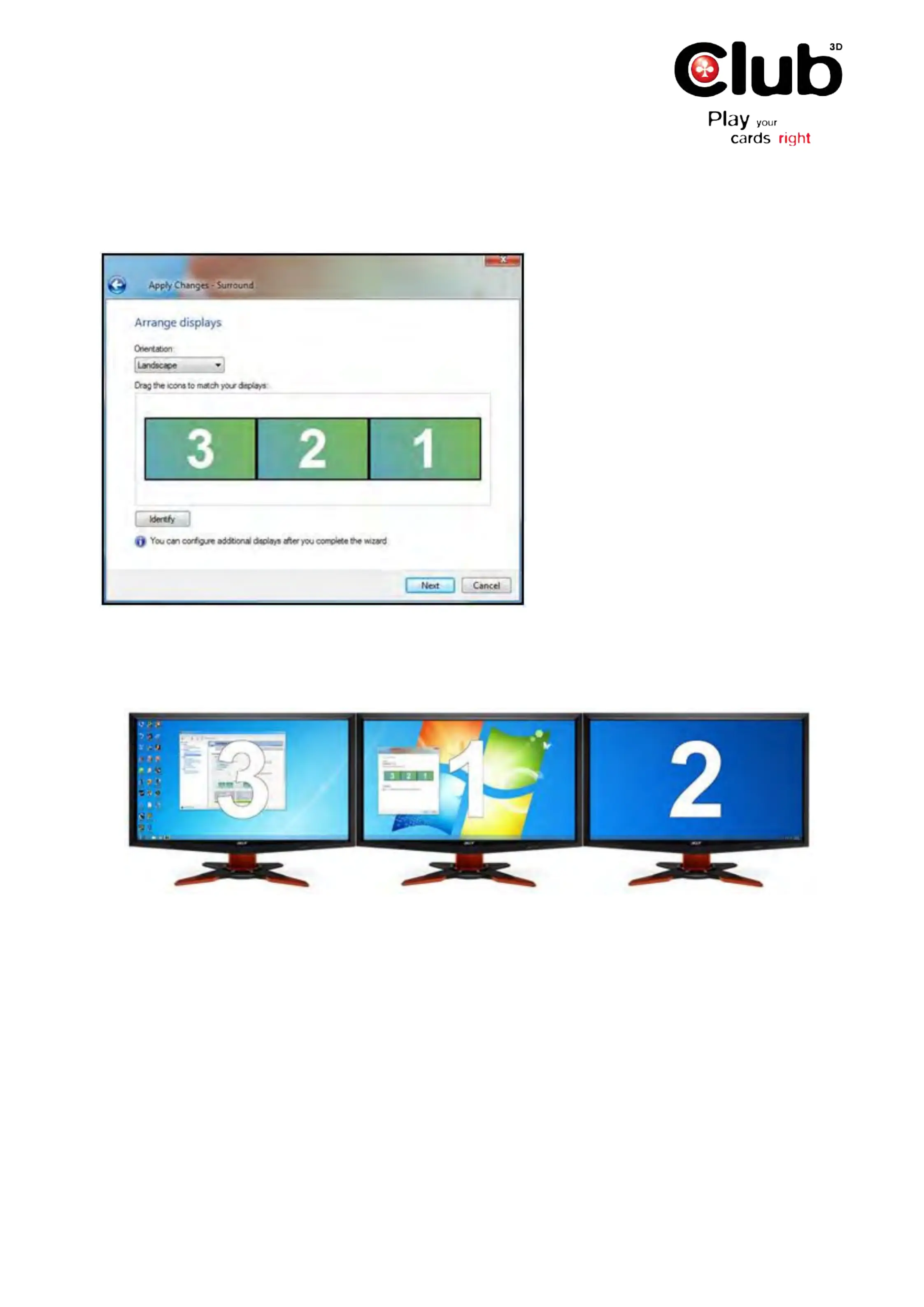

Figure 3: Click the Identify but-

ton to determine the correct num-

bered order for your displays.

8. Click the button to determine the number order of the displays.Identify

9. You should see numbers appear on all three screens as shown in .Figure 3

Figure 4: You will see numbers appear on all three displays when the Identify button is pressed. This is the num-

bered arrangement you need to make your desktop work correctly.

10. Arrange the Surround display order to match your displays by dragging the icons to match the numbers on

displays.

FOR$EXAMPLE: Figure$3 !"#$%"!&#'!"()''*"!+",*-!.!/!0!1!($*2-+).3$*4!5).6!&#'!,($*!%,&#!&#'!0!.*7!

8$9'!,&!,*:6'&%''*!,($*"!/!.*7!1!;."!"#$%*!,*!<,-+)'!=>4

NOTE:

?#'!7,"@A.B!*+86'),*-!+"'7!#')'!,"!*$&!&#'!".8'!*+86'),*-!+"'7!,*!&#'!C,*7$%"!@.*'A4

Produkt Specifikationer

Mærke:	CLUB3D
Kategori:	Videokort
Model:	GeForce GTX 570 Battlefield 3 Limited Edition
Bredde:	232 mm
Dybde:	116 mm
Højde:	37 mm
Vægt:	702 g
Formfaktor:	Full-Height/Full-Length (FH/FL)
HDCP:	Ja
Strømforbrug (typisk):	219 W
Maksimal opløsning:	2560 x 1600 pixel
Dimensioner (BxDxH):	232 x 116 x 37 mm
Certificering:	CE, FCC, RoHS
Full HD:	Ja
HDMI:	Ja
Mac kompabilitet:	Ingen
Processorfrekvens:	732 MHz
Hukommelsesur hastighed:	3800 MHz
Understøttede Windows-operativsystemer:	Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Grænsefladetype:	PCI Express 2.0
HDMI-version:	1.4a
TV-tuner, integreret:	Ingen
Minimum plads på lagerdisk:	200 MB
Maksimal digital opløsning:	2560 x 1600 pixel
Antal DVI-I-porte:	2
Minimum processor:	Intel Pentium 4, AMD Athlon
Antal mini HDMI-porte:	1
Kølingstype:	Aktiv
Minimum RAM:	2048 MB
Maksimal analog opløsning:	2048 x 1536 pixel
Grafikprocessor familie:	NVIDIA
Grafikprocessor:	GeForce GTX 570
Grafisk adapter, RAMDAC:	400 MHz
Understøttelse af parallel behandlingsteknologi:	3-Way SLI
CUDA:	Ja
CUDA-kerner:	480
Diskret grafikadapterhukommelse:	1.25 GB
Hukommelsestype for grafikadapter:	GDDR5
Hukommelsesbus:	320 Bit
Hukommelsesbåndbredde (maks.):	152 GB/sek.
Antal DVI-porte:	2
DirectX-version:	11
Shader model version:	5.0
OpenGL-version:	4.1
DVI dobbelt link:	Ja
PhysX:	Ja
Antal porte:	2
Minimum system strømføring:	600 W
Maksimalt antal skærme pr. grafikkort:	2
Beslagshøjde:	Full-Height (FH)
Shader ur:	1464 MHz
NVIDIA 3D Vision:	Ja
Supplerende strømkontakter:	2x 6-pin
Chipsæt:	GF110
