Side 1/2
MWE 600 BRONZE 230V V2
MPE- -ACABW-B 6001
POWER UP
The MWE Bronze V2 offers 80 PLUS Bronze certification,
guaranteeing an average efficiency of 88% at typical load.
The DC-to-DC + LLC circuit design allows the unit to convert
power from the single +12V rail reliably, efficiently, and
safely for a better overall user experience. The thermally
sensitive HDB fan cools based on temperature, adjusting
constantly as the system’s needs change. Not only does this
waste less power but it also creates a quieter overall user
experience by not running the fan at maximum noise level
when not needed. For a great mid-tier computing
experience, choose the MWE Bronze V2.
FEATURES
SPECIFICATIONS
Single +12V Rail : All power comes from a single +12V source,
ensuring consistent output through all connected cables.
120mm HDB Fan : The 120mm HDB fan employs responsive
fanspeed control, limiting noise to specific cooling requirements
during use.
DC- -DC Technology :to The DC- -DC + LLC circuit design offers to
reliable, stable output to all connected components.
Flat Black Cables : The flat cables take up less space and are easier
to manipulate within the chassis.
80 PLUS Bronze 230V EU Efficiency : This certification guarantees a
typical efficiency of 88% under normal operating conditions.
5 Year Warranty : This unit comes with a standard limited
manufacturing warranty of 5 years from the date of purchase.
PACKAGE INFORMATION
Cable Type
EAN
BUS
4719512104217
BUK
4719512104224
BEU
4719512104231
BST
4719512104248
BAU
4719512104255
BBR
4719512104262
BKR
4719512104279
BTW
4719512104286
BJP
4719512104293
BIN
4719512104309
BWO
4719512104316
Nett Weight
1.272 kg / 2.804 lb
Gross Weight
1.67 kg / 3.682 lb
Package Dimensions
245 x 190 x 110mm (9.65 x 7.48 x 4.33")
Carton Dimensions
570 x 260 x 215mm (22.44 x 10.24 x 8.46")
Unit / Carton
5 pcs
Carton / Pallet
32 pcs
Product Name
MWE 600 Bronze 230V V2
Item Code
MPE-6001-ACABW-B
ATX Version
Intel ATX 12V V2.52
PFC
Active PFC
Input Voltage
200-240V
Input Current
5A
Input Frequency
50-60Hz
Dimensions (L x W x H)
140 x 150 x 86mm
Fan Size
120mm
Fan Bearing
HDB
Fan Speed
1500 RPM
Noise @ 20%
13.8dB-A
Noise @ 50%
22.1dB-A
Noise @ 100%
35.5dB-A
Efficiency
88% Typically
80 PLUS Rating
80 PLUS Bronze EU 230V
ErP 2014 Lot 3
Yes
Power Good Signal
100 - 500ms
Hold Up Time
>14ms at 100% full load@230Vac
MTBF
>100,000 hours
Protections
OVP / OPP / SCP / UVP / OTP
Regulatory
CCC, CE, TUV-RH, RCM, EAC, cTUVus,
FCC, BSMI, KC, CB
Connectors
ATX 24 Pin
x1
EPS 4+4 Pin
x1
EPS 8 Pin
x1
SATA
x6
Peripheral 4 Pin
x3
PCI-e 6+2 Pin
x4
AC INPUT
200-240V~ 5A 50-60Hz
DC OUTPUT
+3.3V
+5V
+12V
- 12V
+5Vstb
18A
18A
49A
0.3A
3A
TOTAL POWER
120W
588W
3.6W
15W
600W

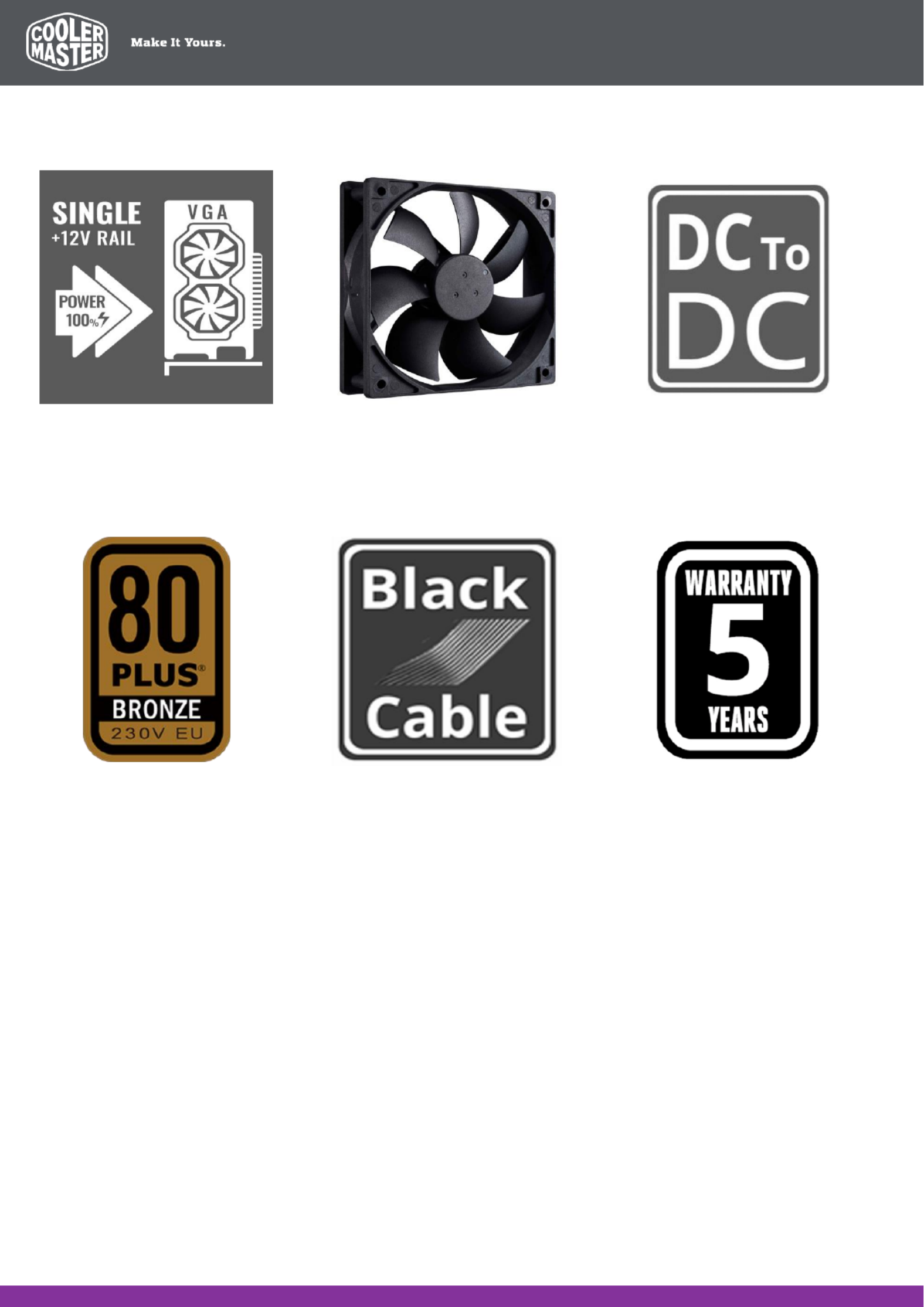

FEATURES
All power comes from a single +12V
source, ensuring consistent output
through all connected cables.
The 120mm HDB fan employs
responsive fanspeed control, limiting
noise to specific cooling requirements
during use.
The DC-to-DC + LLC circuit design offers
reliable, stable output to all connected
components.
This certification guarantees a typical
efficiency of 88% under normal
operating conditions.
The flat cables take up less space and
are easier to manipulate within the
chassis.
This unit comes with a standard limited
manufacturing warranty of 5 years from
the date of purchase.
