MWE 750 WHITE V2

MPE-7501-ACAAW

POWER UP

MWE White offers 80 Plus Standard certification,

guaranteeing an average efficiency of 80% at typical load.

The DC-to-DC + LLC circuit design allows the unit to convert

power from the single +12V rail reliably, efficiently, and

safely for a better overall user experience. The thermally

sensitive HDB fan cools based on temperature, adjusting

constantly as the system’s needs change. Not only does this

waste less power but it also creates a quieter overall user

experience by not running the fan at maximum noise level

when not needed. For a great entry level computing

experience, choose the MWE White.

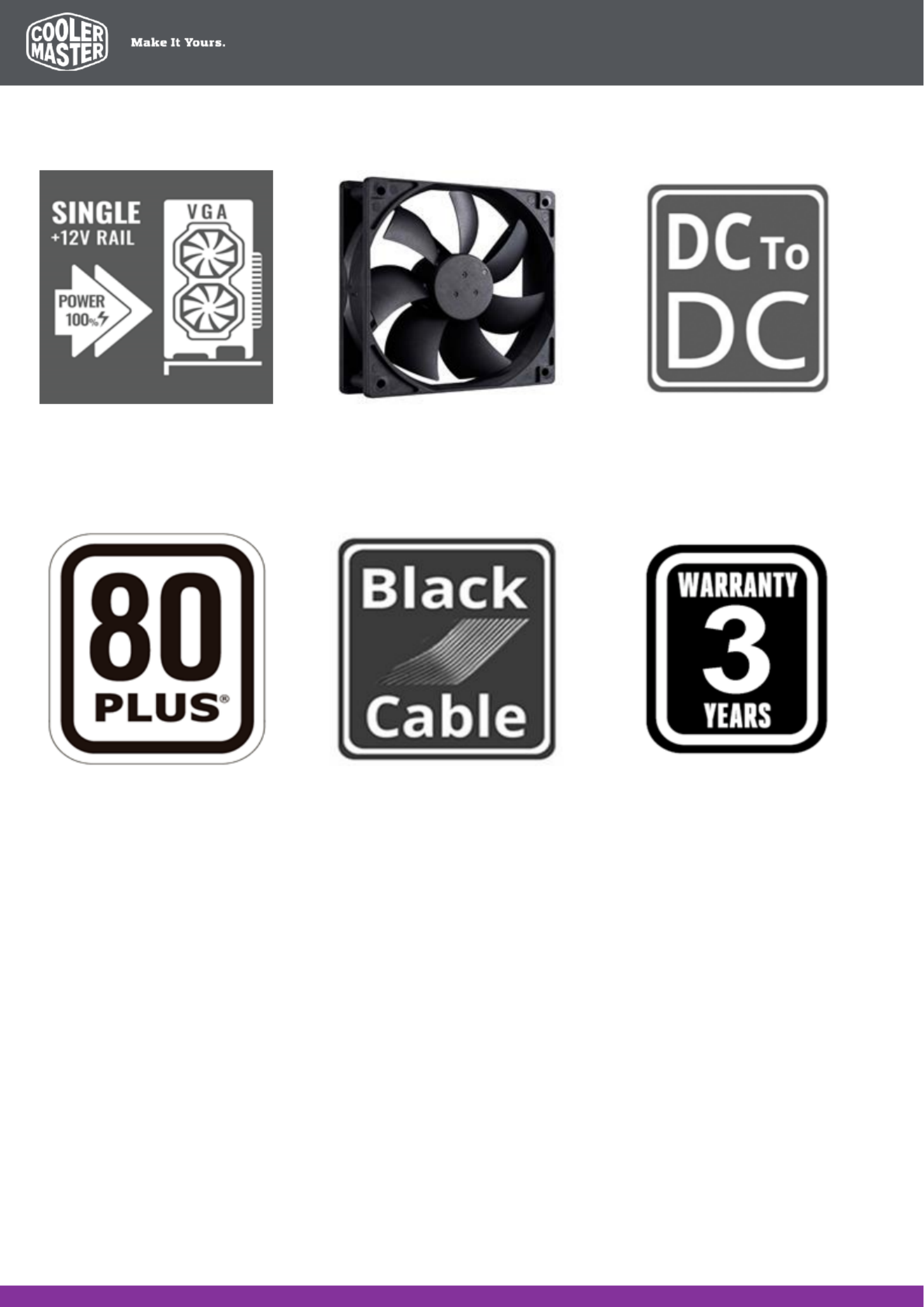

FEATURES

SPECIFICATIONS

Single +12V Rail : All power comes from a single +12V source,

ensuring consistent output through all connected cables.

120mm HDB Fan : The 120mm HDB fan employs responsive

fanspeed control, limiting noise to specific cooling requirements

during use.

DC- -DC Technology :to The DC- -DC + LLC circuit design offers to

reliable, stable output to all connected components.

Silent Mode : The fan will not spin under lower loads or in standby

mode, ensuring a quiet user experience during casual operation.

Flat Black Cables : The flat cables take up less space and are easier

to manipulate within the chassis.

3 Year Warranty : This unit comes with a standard limited

manufacturing warranty of 3 years from the date of purchase.

PACKAGE INFORMATION

Cable Type

EAN

UPC

4719512081105

884102053597

4719512081112

884102053603

4719512081129

884102053610

4719512081136

884102053627

4719512081143

884102053634

4719512081150

884102053641

4719512081167

884102053658

4719512081174

884102053665

4719512081181

884102053672

4719512081198

884102053689

4719512081204

884102053696

Nett Weight

1.603 kg / 3.534 lb

Gross Weight

2.001 kg / 4.411 lb

Package Dimensions

245 x 190 x 110mm (9.65 x 7.48 x 4.33")

Carton Dimensions

570 x 260 x 215mm (22.44 x 10.24 x 8.46")

Unit / Carton

5 pcs

Carton / Pallet

24 pcs

Product Name

MWE 750 White V2

Item Code

MPE-7501-ACAAW

ATX Version

Intel ATX 12V V2.52

PFC

Active PFC

Input Voltage

100-240V

Input Current

10 6A-

Input Frequency

50 - 60Hz

Dimensions (L x W x H)

140 x 150 x 86mm

Fan Size

120

Fan Bearing

HDB

Fan Speed

2400 RPM

Noise @ 20%

11.69dB-A

Noise @ 50%

21.6dB-A

Noise @ 100%

40.2dB-A

Efficiency

80% Typically

80 PLUS Rating

80 PLUS Standard

ErP 2014 Lot 3

Yes

Operating Temperature

40°C

Power Good Signal

100 - 500 ms

Hold Up Time

>14ms at 100% full load@230Vac

MTBF

>100,000 hours

Protections

OVP / OPP / OTP / SCP / UVP

Regulatory

CB / TUV / cTUVus / CE / FCC / CCC /

RCM / EAC / BSMI / KC

Connectors

ATX 24 Pin

EPS 4+4 Pin

EPS 8 Pin

SATA

Peripheral 4 Pin

PCI-e 6+2 Pin

AC INPUT

100-240V~ 10 - 6A 50 - 60Hz

DC OUTPUT

+3.3V

+5V

+12V

- 12V

+5Vstb

20A

62A

0.3A

TOTAL POWER

120W

744W

3.6W

15W

750W

FEATURES

All power comes from a single +12V

source, ensuring consistent output

through all connected cables.

The 120mm HDB fan employs

responsive fanspeed control, limiting

noise to specific cooling requirements

during use.

The DC-to-DC + LLC circuit design offers

reliable, stable output to all connected

components.

This certification guarantees a typical

efficiency of 80% under normal

operating conditions.

The flat cables take up less space and

are easier to manipulate within the

chassis.

This unit comes with a standard limited

manufacturing warranty of 3 years from

the date of purchase.
