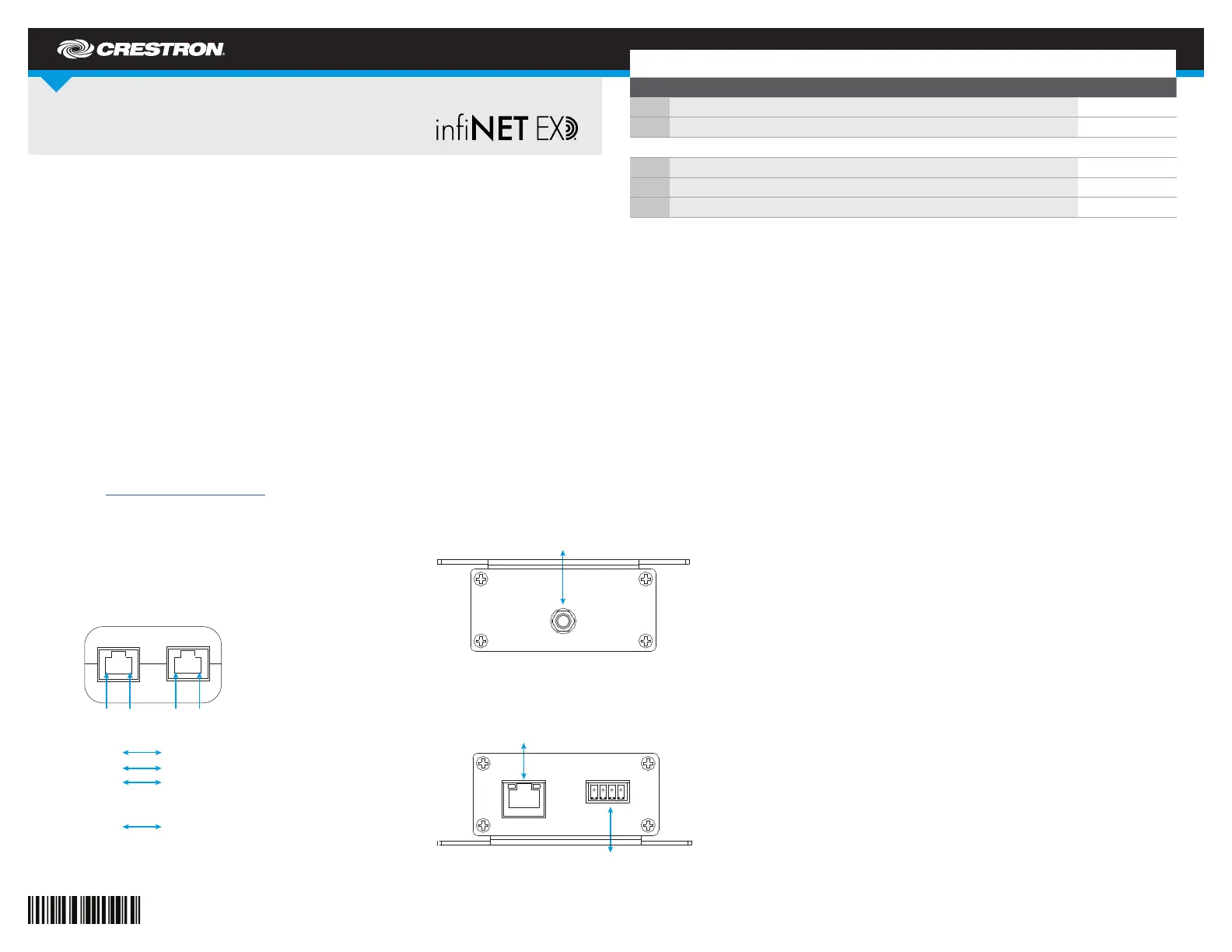

DO GUIDE

CEN-RFGW-EX

inNET EX® & ER Wireless Gateway

DO Choose an Installation Location

For optimum performance when installing a CEN-RFGW-EX

near another CEN-RFGW-EX, keep the following in mind:

• Do not place multiple gateways on the same channel.

• Gateways on adjacent channels should be at least 12 feet

(3.7 meters) apart.

• Gateways on nonadjacent channels should be at least

3 feet (0.9 meters) apart.

For optimum performance when installing a CEN-RFGW-EX,

keep the following in mind:

• Gateways should be placed at least 12 feet (3.7 meters)

from the nearest Wi-Fi® access point.

• Gateways should be located at least 6 feet (1.8 meters)

from the nearest Bluetooth® device.

For more information, refer to the Best Practices for Installation

and Setup of Crestron® RF Products Reference Guide (Doc.

6689) at www.crestron.com/manuals.

DO Connect the PoE Injector

If using a CEN-RFGW-EX-PWE, use the following procedure

to connect the power injector. Otherwise, proceed to “DO

Connect the Device.”

LAN PoE and LAN Connector Pin Assignments

Pin 8 Pin 8 Pin 1Pin 1

LAN PoE Pins

1. Data Pair 1

2. Data Pair 1

3. Data Pair 2

4. +Vdc

5. +Vdc

6. Data Pair 2

7. –Vdc

8. –Vdc

LAN Pins

1. Data Pair 1

2. Data Pair 1

3. Data Pair 2

4. No Connection

5. No Connection

6. Data Pair 2

7. No Connection

8. No Connection

NOTE: In the listing of LAN

PoE and LAN pins in the

previous image, arrows denote

internal pin connections.

1. Attach the supplied ac power cord to the IEC 320

connector on the PoE (Power over Ethernet) injector.

2. Insert the other end of the power cord into an active ac

outlet.

3. Use a CAT5 cable to connect the LAN port of the PoE

injector to the LAN.

4. Use a CAT5 cable to connect the LAN PoE port of the PoE

injector to the PoE port of the CEN-RFGW-EX.

DO Connect the Device

Make the necessary connections as called out in the

illustrations that follow. Apply power after all connections have

been made.

Hardware Connections for the CEN-RFGW-EX (Top View)

Antenna:

For Included Antenna

Hardware Connections for the CEN-RFGW-EX (Bottom View)

LAN PoE:

10BASE-T / 100BASE-TX

Ethernet to LAN

NET:

To Control System and

Other Cresnet Devices

NOTE: If PoE is not available, use the NET port for power only.

When making connections to the CEN-RFGW-EX, use Crestron

power supplies for Crestron equipment.

NOTE: The antenna must be attached directly to the antenna

connector. It can be extended with an optional ANT-EXT-5 or

ANT-EXT-10 Antenna Extender (both sold separately).

DO Congure the Device

Assign the Operating Channel

The operating channel of the CEN-RFGW-EX must be set prior

to operation using Crestron Toolbox™. The CEN-RFGW-EX can

operate on one of 16 channels. The default RF channel is 15.

For optimum performance when installing a CEN-RFGW-EX

in a Wi-Fi environment, do not set the CEN-RFGW-EX to a

channel within a Wi-Fi channel band. Crestron recommends

channel 15 or channel 20.

• Gateway channels 11 through 14 are within the Wi-Fi

channel 1 band.

• Gateway channel 15 is adjacent to Wi-Fi channels 1 and 6.

• Gateway channels 16 through 19 are within the Wi-Fi

channel 6 band.

• Gateway channel 20 is adjacent to Wi-Fi channels 6 and

11.

• Gateway channels 21 through 24 are within the Wi-Fi

channel 11 band.

• Gateway channel 25 is adjacent to Wi-Fi channel 11.

• Gateway channel 26 is neither within nor adjacent to any

Wi-Fi band.

DO Check the Box

QTY PRODUCT COLOR PART NUM.

1 Antenna, 2.4 GHz, 1/4 Wave, Reverse Polarity, Female 2001016

1 Connector, 4-Pin 2003576

Items for the CEN-RFGW-EX-PWE only

1 Cable, Ethernet, CAT5e, 5' (1.52 m) Black 2022311

1 PoE Injector, PWE-4803RU 2021163

1 Power Cord, 6'7" (2 m) 2001134

DO GUIDE DOC. 7745C (2042962) 10.15

Specications subject t o change without notice.

Assign the RF Channel

Each gateway can communicate with up to 100 devices on the same channel. Crestron’s RF

devices can be divided into two categories: inNET EX® devices and Crestron Extended Range

(ER) devices. With inNET EX devices, RF channel assignment is automatic. Each ER device

must have an RF channel assignment that matches the RF channel assignment of the gateway.

There are 16 possible channels ranging from 11 to 26.

Set the RF channel from a PC via Crestron Toolbox. To set an RF channel in Crestron Toolbox,

select > > ). Refer Functions inNET EX Gateway (or Functions High Power RF Gateway

to the Crestron Toolbox Help le and search for “inNET EX Gateway” (or “High Power RF

Gateway”) for more details.

Acquire the Device

Crestron inNET EX devices and Crestron ER devices can communicate with a CEN-RFGW-EX

only if they have been acquired by that CEN-RFGW-EX. Acquire mode can be activated using

Crestron Toolbox (recommended) or the ACQUIRE button on the CEN-RFGW-EX.

NOTE: Use Crestron Toolbox to set the RF channel before starting the acquire process. The

default RF channel is 15. (ER devices must be congured to match the channel setting on the

gateway.)

NOTE: Acquire mode can be activated approximately 15 seconds after power is applied to the

CEN-RFGW-EX.

NOTE: In an environment with multiple gateways, only one gateway should be in Acquire mode

at a time.

NOTE: The CEN-RFGW-EX must be placed in Acquire mode before an inNET EX device is

placed in Acquire mode.

To acquire an inNET EX device or an ER device via the button on the ACQUIRE

CEN-RFGW-EX, perform the following procedure:

1. Press ACQUIRE on the CEN-RFGW-EX to enter Acquire mode. The accompanying LED

illuminates to indicate the unit is ready to link to inNET EX devices and ER devices.

NOTE: Acquire mode automatically deactivates after 1 hour. This default timeout period

can be changed from Crestron Toolbox.

2. Bring the inNET EX device or the ER device within range of the gateway and place it

in Acquire mode as described in its manual. Once it enters Acquire mode, the device is

automatically acquired by the gateway within 2 minutes.

3. Repeat step 2 for each inNET EX device and each ER device to be acquired.

4. Press on the CEN-RFGW-EX to exit Acquire mode. The LED turns off.ACQUIRE

DO Learn More

Visit the website for additional information and the latest rmware updates. To learn

more about this product, use a QR reader application on your mobile device to scan

the QR image.

Crestron Electronics

15 Volvo Drive, Rockleigh, NJ 07647

888.CRESTRON | www.crestron.com

As of the date of manufacture, the product has been tested and found to comply with specications for CE marking.

Federal Communications Commission (FCC) Compliance Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions:

(1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference

that may cause undesired operation.

CAUTION: Changes or modications not expressly approved by the manufacturer responsible for compliance could void the

user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Industry Canada (IC) Compliance Statement

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference and (2) this device must accept any interference, including interference that may cause

undesired operation of the device.

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser)

gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and

its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful

communication.

Industrie Canada (IC) Déclaration de conformité

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation

est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit

accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d’un type et

d’un gain maximal (ou inférieur) approuvé pour l’émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage

radioélectrique à l’intention des autres utilisateurs, il faut choisir le type d’antenne et son gain de sorte que la puissance isotrope

rayonnée équivalente (p.i.r.e.) ne dépasse pas l’intensité nécessaire à l’établissement d’une communication satisfaisante.

To satisfy RF exposure requirements, this device and its antenna must operate with a separation distance of at least 20 centimeters

from all persons and must not be colocated in conjunction with any other antenna or transmitter.
