Top-Freezer Refrigerators Owner’s Manual
and Installation
Instructions
Contents
Safety Information
.................
3
Using the Refrigerator
Temperature Control
..............
5
Shelves
. . . . . . . . . . . . . . . . . . . . . . . .
5
Drawers
. . . . . . . . . . . . . . . . . . . . . . . .
6
Automatic Ice Maker
..............
7
Care And Cleaning
................
8
Installation Instructions
Preparing to Install the Refrigerator
...
9
Water Line Installation
............
10
Installing the Door Handle
.........
13
Reversing the Door Swing
.........
14
Troubleshooting Tips
Normal Operating Sounds
.........
18
Limited Warranty
.................
21
Consumer Support
...............
22
Models: XPS15BTH, XTS18GSH, XTS18GTH, XTE18GTH
49-1000109 Rev. 0 08-18 GEA
Write the model and serial numbers here:
Model # _______________________________
Serial # _______________________________
Find these numbers on a label on the left side, near
the middle of the refrigerator compartment.
Español
Para consultar una version
en español de este manual
de instrucciones,visite sitio
de internet crosley.com.
49-1000109 3
CAUTION To reduce the risk of injury when using your refrigerator, follow these basic safety
precautions.
■ Donotcleanglassshelvesorcoverswithwarm
water when they are cold. Glass shelves and
covers may break if exposed to sudden temperature
changes or impact, such as bumping or dropping.
Tempered glass is designed to shatter into many
small pieces if it breaks.
■ Keepfingersoutofthe“pinchpoint”areas;
clearances between the doors and between the
doors and cabinet are necessarily small. Be careful
closing doors when children are in the area.
■ Donottouchthecoldsurfacesinthefreezer
compartment when hands are damp or wet, skin
may stick to these extremely cold surfaces.
■ Donotrefreezefrozenfoodswhichhavethawed
completely.
■ Inrefrigeratorswithautomaticicemakers,avoid
contact with the moving parts of the ejector
mechanism, or with the heating element that
releases the cubes. Do not place fingers or hands
on the automatic ice making mechanism while the
refrigerator is plugged in.
SAFETY INFORMATION
READ AND SAVE THESE INSTRUCTIONS
WARNING To reduce the risk of fire, explosion, electric shock, or injury when using your
refrigerator, follow these basic safety precautions:
■ Thisrefrigeratormustbeproperlyinstalled
and located in accordance with the Installation
Instructions before it is used.
■ Unplugtherefrigeratorbeforemakingrepairs,
replacing a light bulb, or cleaning.
NOTE: Power to the refrigerator cannot be
disconnected by any setting on the control panel.
NOTE: Repairs must be performed by a qualified
Service Professional.
■ Replaceallpartsandpanelsbeforeoperating.
■ Donotuseanextensioncord.
■ Donotstoreorusegasolineorotherflammable
vapors and liquids in the vicinity of this or any other
appliance.
■ Donotstoreexplosivesubstancessuchasaerosol
cans with a flammable propellant in this appliance.
■ Topreventsuffocationandentrapmenthazards
to children, remove the fresh food and freezer
doors from any refrigerator before disposing of it or
discontinuing its use.
■ Toavoidseriousinjuryordeath,childrenshouldnot
stand on, or play in or with the appliance.
■ Childrenandpersonswithreducedphysical,sensory
or mental capabilities or lack of experience and
knowledge can use this appliance only if they are
supervised or have been given instructions on safe
use and understand the hazards involved.
■ Thisapplianceisintendedtobeusedinhousehold
and similar applications such as: staff kitchen areas
inshops,officesandotherworkingenvironments;
farmhouses;byclientsinhotels,motels,bed
&breakfastandotherresidentialenvironments;
catering and similar non-retail applications.
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
INSTALLATION
WARNING EXPLOSION HAZARD
Keepflammablematerialsandvapors,suchasgasoline,awayfromrefrigerator.Failuretodosocanresultinfire,
explosion, or death.
4 49-1000109
PROPER DISPOSAL OF YOUR OLD REFRIGERATOR
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For
personal safety, this appliance must be properly grounded.
The power cord of this appliance is equipped with a
3-prong (grounding) plug which mates with a standard
3-prong (grounding) wall outlet to minimize the
possibility of electric shock hazard from this appliance.
Have the wall outlet and circuit checked by a qualified
electrician to make sure the outlet is properly
grounded.
Where a standard 2-prong wall outlet is encountered, it
is your personal responsibility and obligation to have it
replaced with a properly grounded 3-prong wall outlet.
Do not use an adapter.
The refrigerator should always be plugged into its own
individual electrical outlet which has a voltage rating
that matches the rating plate.
A 115 Volt AC, 60 Hz, 15- or 20-amp fused, grounded
electrical supply is required. This provides the best
performance and also prevents overloading house
wiring circuits which could cause a fire hazard from
overheated wires.
Never unplug your refrigerator by pulling on the power
cord. Always grip plug firmly and pull straight out from
the outlet.
Immediately discontinue use of a damaged supply
cord. If the supply cord is damaged, it must be
replaced by a qualified service professional with an
authorized service part from the manufacturer.
When moving the refrigerator away from the wall, be
careful not to roll over or damage the power cord.
CONNECTING ELECTRICITY
WARNING ELECTRICAL SHOCK HAZARD
Plug into a grounded 3-prong outlet
Do not remove the ground prong
Do not use an adapter
Do not use an extension cord.
Failure to follow these instructions can result in death, fire, or electrical shock.
SAFETY INFORMATION
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
READ AND SAVE THESE INSTRUCTIONS
WARNING SUFFOCATION AND ENTRAPMENT HAZARD
Failure to follow these disposal instructions can result in death or serious injury
IMPORTANT: Child entrapment and suffocation
are not problems of the past. Junked or abandoned
refrigerators are still dangerous even if they will sit
for“justafewdays.”Ifyouaregettingridofyourold
refrigerator, please follow the instructions below to help
prevent accidents.
Before You Throw Away Your Old Appliance
■Takeoffthefreshfoodandfreezerdoors.
■ Leave the shelves in place so that children may not
easily climb inside.
Refrigerant and Foam Disposal:
Dispose of appliance in accordance with Federal and Local Regulations. Flammable insulation material used
requires special disposal procedures. Contact your local authorities for the environmentally safe disposal of your
appliance.
49-1000109 5
The temperature control adjusts the refrigerator from its
warmest to coldest settings.
Your refrigerator will come with the recommended
factorysettingon“Colder”.Forcoldertemperature,turn
theknobclockwisetosetting“Coldest”.Forwarmer
temperature, turn the dial counter-clockwise to setting
“Cold”.Toturnoffthecoolinginbothcompartments,turn
theknobcounter-clockwisetosetting“Off”.Notethatthis
does not shut off power to the refrigerator.
Temperature Control
Fresh Food Compartment Shelves
Freezer Compartment Shelves
USING THE REFRIGERATOR: Temperature Control / Shelves
Shelf supports at various levels allow you to custom-space your shelves. Not all features are on all models.
Full-Width Shelves
Some models have a stationary tempered glass shelf,
a spillproof shelf or two steel wire stationary shelves.
These shelves can be moved to another place in the
fresh food compartment.
When placed correctly on the shelf supports, the shelf
will stop before coming completely out of the refrigerator
and will not tilt when you place food on it or remove food
from it.
CAUTION Do not clean glass shelves or covers
with warm water when they are cold. Glass shelves and
covers may break if exposed to sudden temperature
changes or impact such as bumping or dropping.
Tempered glass is designed to shatter into many small
pieces if it breaks.
When placed correctly on the
shelf supports, the two steel
wire stationary shelves will
stop before coming completely
out of the freezer and will not
tilt when you place food on it
or remove food from it.
Some models have glass shelves.
CAUTION Do not clean glass shelves or covers
with warm water when they are cold. Glass shelves and
covers may break if exposed to sudden temperature
changes or impact such as bumping or dropping.
Tempered glass is designed to shatter into many small
pieces if it breaks.
To remove the full-width shelves
Pull forward
6 49-1000109
USING THE REFRIGERATOR: Drawers
Humidity Controlled Drawer and Cover (on some models)
Slide the control all the way to the HIGH setting
to provide high humidity recommended for most
vegetables.
Slide the control all the way to the LOW setting to
provide lower humidity levels recommended for most
fruits.
Drawer Removal
Drawers can be removed easily by grasping the sides
and lifting up slightly while pulling drawers past the stop
location.
Cover Removal
1. Remove the drawers.
2. Reach in, push the back of glass cover up, and at the
same time, pull it backward as far as it will come.
Tilt it and take it out. Avoid cleaning the cold
glass cover with hot water because the extreme
temperature difference may cause it to break.
3. Remove the drawer frame. (Always remove the glass
cover before you take out the drawer frame.)
Lift the frame off the supports at each side and back,
pull it forward, tilt it and take it out.
To replace:
1. Lower the frame until it rests on the supports at each
side and back.
2. Replace the glass cover, pushing
its front edge firmly into the
front frame channel and gently
lowering the back into place.
3. Replace the drawers.
Storage Drawers
Not all features are on all models.
Snack Drawer
The snack drawer can be moved to the most useful
location for your family’s needs.
Fruit and Vegetable Drawers
Excess water that may accumulate in the bottom of the
drawers should be emptied and the drawers wiped dry.
8 49-1000109
Cleaning the Outside
The door handles and trim (on some models). Clean with
a cloth dampened with soapy water. Dry with a soft cloth.
Keeptheoutsideclean.Wipewithacleanclothlightly
dampened with kitchen appliance wax or mild liquid dish
detergent. Dry and polish with a clean, soft cloth.
Do not wipe the refrigerator with a soiled dish cloth or
wet towel. These may leave a residue that can erode
the paint. Do not use scouring pads, powdered cleaners,
bleach or cleaners containing either bleach or ammonia
because these products can scratch and weaken the
paint finish.
The stainless steel doors and door handles (on some
models) can be cleaned with a commercially available
stainless steel cleaner. Cleaners with oxalic acid such as
BarKeepersFriendSoftCleanser™willremovesurface
rust, tarnish and small blemishes. Use only a liquid
cleanser free of grit and rub in the direction of the brush
lines with a damp soft sponge. Do not use appliance wax
or polish on the stainless steel.
Cleaning the Inside
To help prevent odors, leave an open box of baking soda
in the fresh food and freezer compartments.
Unplug the refrigerator before cleaning. If this is not
practical, wring excess moisture out of sponge or cloth
when cleaning around switches, lights or controls.
Use warm water and baking soda solution—about a
tablespoon (15 ml) of baking soda to a quart (1 liter) of
water. This both cleans and neutralizes odors. Rinse and
wipe dry.
After cleaning the door gaskets, apply a thin layer of
petroleum jelly to the door gaskets at the hinge side.
This helps keep the gaskets from sticking and bending
out of shape.
CAUTION Do not clean glass shelves or covers
with warm water when they are cold. Glass shelves and
covers may break if exposed to sudden temperature
changes or impact such as bumping or dropping.
Tempered glass is designed to shatter into many small
pieces if it breaks. Do not wash any plastic refrigerator
parts in the dishwasher.
Moving the Refrigerator
Be careful when moving the refrigerator away from
the wall. All types of floor coverings can be damaged,
particularly cushioned coverings and those with
embossed surfaces.
Turn the leveling legs at each front corner of the
refrigerator counterclockwise until the rollers support
the refrigerator. Pull the refrigerator straight out and
return it to position by pushing it straight in. Moving the
refrigerator in a side direction may result in damage to
the floor covering or refrigerator.
When pushing the refrigerator back, make sure you don’t
roll over the power cord or ice maker supply line (on
some models).
After rolling the refrigerator back into place, turn the legs
clockwise until the legs again bear the weight of the
refrigerator.
Light Bulb Replacement
WARNING Before replacing a burned-out light
bulb, the refrigerator should be unplugged in order to
avoid contact with a live wire filament. (A burned-out light
bulb may break when being replaced.)
Turning the control to the OFF position does not remove
power to the light circuit.
Preparing for Vacation
For long vacations or absences, remove food and unplug
the refrigerator. Move the temperature control dial to the
OFF position, and clean the interior with a baking soda
solution of one tablespoon (15 ml) of baking soda to one
quart (1 liter) of water. Leave the doors open.
Move the switch to the OFF position on the power switch
model, and shut off the water supply to the refrigerator.
If the temperature can drop below freezing, have a
qualified servicer drain the water supply system (on
some models) to prevent serious property damage due
to flooding.
Preparing to Move
Secure all loose items such as grille, shelves and
drawers by taping them securely in place to prevent
damage. To prevent the doors from opening while
moving, secure them to the case with tape. Be sure the
refrigerator stays in an upright position during moving.
Care And Cleaning
CARE AND CLEANING
49-1000109 9

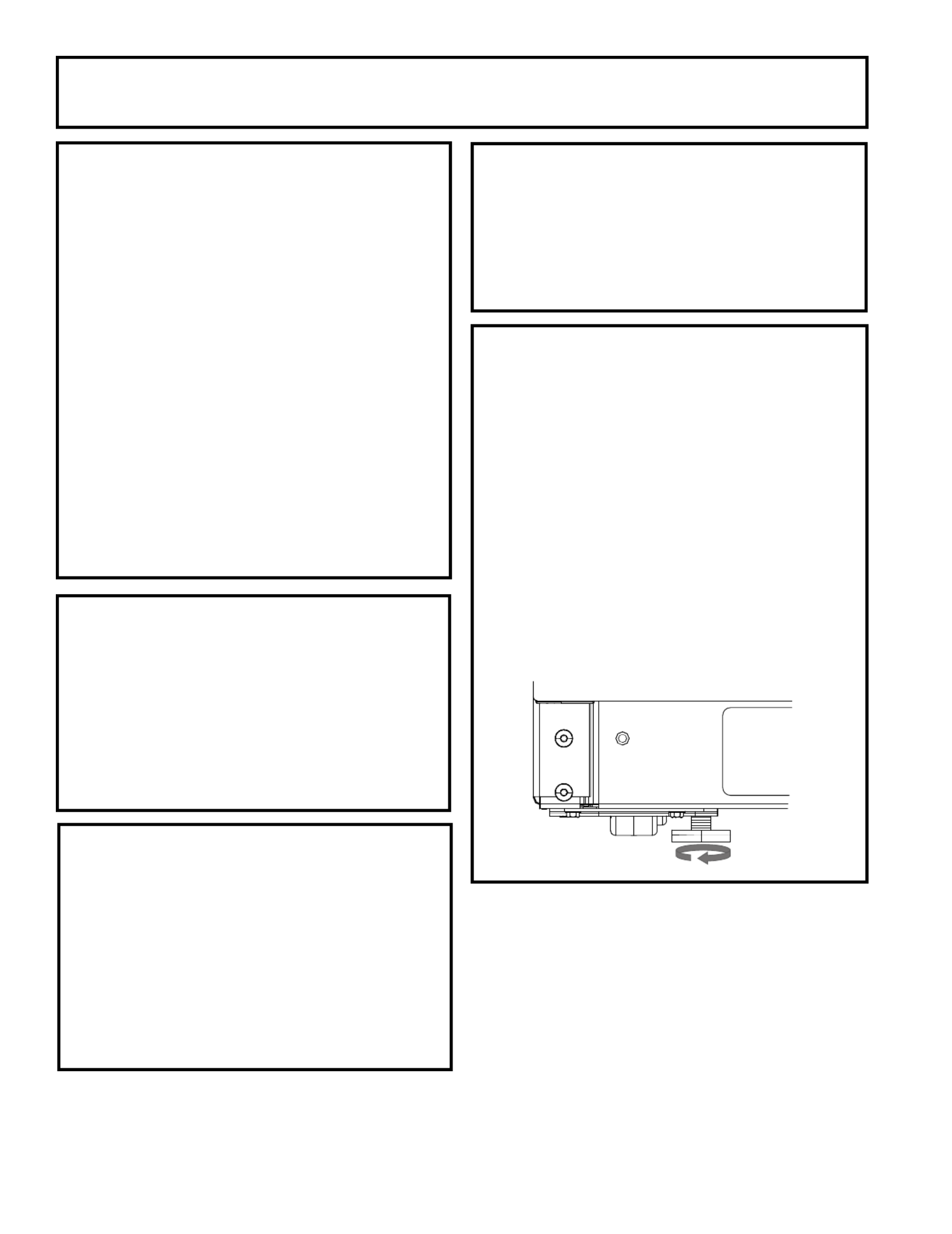

ROLLERS AND LEVELING LEGS
Leveling legs near each front corner of the refrigerator
are adjustable. They firmly position the refrigerator
and prevent it from moving when the doors are
opened. Leveling legs should be set so the front of
the refrigerator is raised just enough that the doors
close easily when opened about halfway.
Turn the leveling legs clockwise to raise the
refrigerator, counterclockwise to lower it.
Rollers next to the leveling legs allow you to move the
refrigerator away from the wall for cleaning.
Turn the legs counterclockwise until the weight of the
refrigerator is transferred from them to the rollers.
After rolling the refrigerator back into place, turn the
legs clockwise until the legs again bear the weight of
the refrigerator.
Installation Instructions Models 15, 18
CLEARANCES
Allow the following clearances for ease of installation,
proper air circulation and plumbing and electrical
connections.
•Sides3/4”(19mm)
•Top1”(25mm)
•Back2”(50mm)
BEFORE YOU BEGIN
Read these instructions completely and carefully.
• IMPORTANT – Save these instructions for
local inspector’s use.
• IMPORTANT – Observe all governing codes
and ordinances.
•
Note to Installer – Be sure to leave these
instructions with the Consumer.
•
Note to Consumer – Keeptheseinstructions
for future reference.
• Skill level – Installation of this appliance requires
basic mechanical skills.
• Completion time – Refrigerator Installation
15 minutes
Reversing the Door Swing
15 minutes
• Proper installation is the responsibility of the
installer.
• Product failure due to improper installation is not
covered under the Warranty.
REFRIGERATOR LOCATION
• Do not install the refrigerator where the temperature
will go below 55°F (12.7°C) because it will not run
often enough to maintain proper temperatures.
• Do not install the refrigerator where the
temperature will go above 100°F (37°C) because
it will not perform properly.
• Do not install the refrigerator in a location exposed
to water (rain, etc.) or direct sunlight.
• Install it on a floor strong enough to support it fully
loaded.
WATER SUPPLY TO THE ICE
MAKER
(on some models)
If the refrigerator has an ice maker, it will have to
be connected to a cold water line. A water supply
kit (containing copper tubing, shutoff valve, fittings
and instructions) is available at extra cost from your
dealer, by visiting or calling GEAppliances.com
1.877.959.8688. See instructions Installing the Water
Line.
INSTALLATION INSTRUCTIONS
49-1000109 11
INSTALLATION INSTRUCTIONS
Installation Instructions
INSTALLING THE WATER LINE (Cont.)
1 SHUT OFF THE MAIN WATER
SUPPLY AND UNPLUG
REFRIGERATOR
Turn on the nearest faucet (counterclockwise)
long enough to clear the line of water.
2 CHOOSE THE VALVE LOCATION
Choose a location for the valve that
is easily accessible. It is best to
connect into the side of a vertical
water pipe. When it is necessary
to connect into a horizontal water
pipe, make the connection to the
top or side, rather than at the
bottom, to avoid drawing off any
sediment from the water pipe.
5 ROUTE THE TUBING
Route the tubing between the cold water line and
the refrigerator.
Route the tubing through a hole drilled in the wall
or floor (behind the refrigerator or adjacent base
cabinet) as close to the wall as possible.
NOTE: Be sure there is sufficient extra tubing
(about 6 feet [1.82 m] coiled into 2 turns of about
10”[25cm]diameter)toallowtherefrigeratorto
move out from the wall after installation.
6 CONNECT THE TUBING TO THE
VALVE
Place the compression nut and ferrule (sleeve)
for copper tubing onto the end of the tubing and
connect it to the shutoff valve.
Make sure the tubing is fully inserted into the
valve. Tighten the compression nut securely.
ForplastictubingfromaSmartConnect™
Refrigerator Tubing kit, insert the molded end
of the tubing into the shutoff valve and tighten
compression nut until it is hand tight, then tighten
one additional turn with a wrench. Overtightening
may cause leaks.
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle
valves are illegal and use is not permitted in
Massachusetts. Consult with your licensed plumber.
3 DRILL THE HOLE FOR THE VALVE
Drilla1/4”holeinthewaterpipe(evenifusinga
self-piercing valve), using a sharp bit. Remove any
burrs resulting from drilling
the hole in the pipe. Take
care not to allow water to
drain into the drill. Failure to
drilla1/4”holemayresult
in reduced ice production or
smaller cubes.
4 FASTEN THE SHUTOFF VALVE
Fasten the shutoff valve to the cold water pipe
with the pipe clamp.
Tighten the clamp screws until the sealing washer
begins to swell.
NOTE: Do not overtighten or you may crush the
tubing.
4 FASTEN THE SHUTOFF VALVE
(Cont.)
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle
valves are illegal and use is not permitted in
Massachusetts. Consult with your licensed plumber.
Washer
Inlet End
Clamp
Screw
Vertical Cold
Water Pipe
Saddle-Type
ShutoValve
Pipe Clamp
Saddle-Type
ShutoValve
Compression
Nut
SmartConnect™
Tubing
Packing Nut
Outlet Valve Ferrule (sleeve)
7 FLUSH OUT THE TUBING
Turn the main water supply on
(counterclockwise) and flush out the
tubing until the water is clear.
Shut the water off at the water valve
after about one quart (1 liter) of water
has been flushed through the tubing.
BEFORE YOU BEGIN
Read these instructions completely and carefully.
WARNING To reduce the risk of
electric shock or injury during installation,
you must first unplug the refrigerator
before proceeding.
12 49-1000109
Installation Instructions
INSTALLING THE WATER LINE (Cont.)
8 CONNECT THE TUBING TO THE
REFRIGERATOR
NOTES:
• Before making the connection to the
refrigerator, be sure the refrigerator power cord
is not plugged into the wall outlet.
• We recommend installing a water filter
(GXRLQ, available on gewaterfilters.com
or 877.959.8688) if your water supply has
sand or particles that could clog the screen
of the refrigerator’s water valve. Install it in
the water line near the refrigerator. If using
SmartConnect™RefrigeratorTubingkit,you
will need an additional tube (WX08X10002)
to connect the filter. Do not cut plastic tube to
install filter.
WARNING To reduce the risk of death
or electric shock, you must follow these
instructions:
■ Unplug the refrigerator before removing
any panels.
■ Do not damage any wiring while the panel
is removed.
■ Replace all parts and panels before
plugging the refrigerator back in.
• Remove the access
cover.
• Remove the plastic
flexible or screw cap
from the water valve
(refrigerator connection) and
discard.
• Place the compression nut and
ferrule (sleeve) onto the end
of the tubing as shown. On
SmartConnect™RefrigeratorTubingkit,the
nuts are already assembled to the tubing.
• Insert the end of the tubing into the water valve
connection as far as possible. While holding
the tubing, tighten the fitting.
• ForplastictubingfromaSmartConnect™
Refrigerator Tubing kit, insert the molded
end of the tubing into the shutoff valve and
tighten compression nut until it is hand tight,
then tighten one additional turn with a wrench.
Overtightening may cause leaks.
• Fasten the tubing into the clamp provided to hold
it in a vertical position. You may need to pry open
the clamp.
9 TURN THE WATER ON AT THE
SHUTOFF VALVE
Tighten any connections that
leak.
8 CONNECT THE TUBING TO THE
REFRIGERATOR (Cont.)
• Reattach the access
cover.
Tubing
Clamp
1/4”
Compression
Nut
Ferrule
(sleeve)
SmartConnect™
Tubing
Refrigerator
Connection
1/4”
Copper
Tubing
10 INSTALLING THE
REFRIGERATOR
Plug in the refrigerator.
Arrange the coil of tubing so that it
does not vibrate against the back of
the refrigerator or against the wall.
Push the refrigerator back to the
wall.
11 START THE ICE MAKER
Set the ice maker power switch to the 0N
position. The ice maker will not begin to operate
until it reaches its operating temperature of 15°F
(–9°C) or below. It will then begin operation
automatically.
ON OFF
Power
switch
Power switch model
WARNING ELECTRIC SHOCK
HAZARD
Attach tubing clamp using existing hole only.
DO NOT drill into the refrigerator.
INSTALLATION INSTRUCTIONS
49-1000109 13
INSTALLATION INSTRUCTIONS
Installation Instructions
INSTALLING THE DOOR HANDLE
1 INSTALL FASTENER
Install the handle
fastener into the hole
on the freezer and
fresh food doors. The
fasteners correspond
with the handle side
(the side opposite the
hinge).
2A PLASTIC HANDLE
1. Attach handle to freezer door by sliding
handle up onto fastener and with screws at
the bottom of the handle.
2. Attach handle to fresh food door by sliding
handle down onto fastener and with screws at
top of handle.
2 STAINLESS STEEL HANDLE
1. Attach handle to freezer door with screws at
thebottomofthehandle.Usetheincluded1/8”
allen wrench to tighten the set screw at the top
of the handle. Tighten until handle is locked
firmly into position.
2. Attach handle to fresh food door with screws
atthetopofthehandle.Usetheincluded1/8”
allen wrench to tighten the set screw at the
bottom of the handle. Tighten until handle is
locked firmly into position. 3 BADGE AND PLUG BUTTON
INSTALLATION
1. Place a plug button on the opposite side of the
fresh food door across from the handle.
2. Remove the backing on the Crosley badge and
carefully place it covering the hole opposite the
handle on the freezer door. Be sure the badge
is oriented the correct way before applying it to
the door.
Handle Fastener
NOTE: Be sure to
removelmbefore
handle installation,
if applicable
NOTE: Be sure to remove
lmbeforehandleinstallation,
if applicable)
Plug
button
Badge
14 49-1000109
REVERSING THE DOOR SWING
Installation Instructions
1 BEFORE YOU START
1.1 Unplug the refrigerator from its electrical
outlet.
1.2 Empty all door shelves, including the dairy
compartment.
CAUTION Do not let either door drop to the
floor. To do so could damage the door stop.
2 REMOVE THE FREEZER DOOR
2.1 Tape the
door shut with
masking tape.
2.2 Remove the
screws that
hold the top
hinge to the
cabinet.
2.3 Lift the hinge
straight up to free
the hinge pin from
the socket in the top
of the door and set
it aside, along with
its screws.
2.4 Remove the tape.
Lift it off the center
hinge pin.
2.5 Set the door on a non-scratching surface with
the outside up.
2.6 Transfer the 2 screws from the opposite side
of the cabinet to the screw holes vacated by
the top hinge removal.
TOOLS REQUIRED
IMPORTANT NOTES:
When reversing the door swing:
• Read the instructions all the way through before
starting.
• Handle parts carefully to avoid scratching paint.
• Set screws down by their related parts to avoid
losing them.
• Provide a non-scratching work surface for the doors.
IMPORTANT: Once you begin, do not move the
cabinet until door-swing reversal is completed.
These instructions are for changing the hinges from
the right side to the left side—if you ever want to
change the hinges back to the right side, follow these
same instructions and reverse all references to left
and right.
CAUTION Lifting Hazard
The fresh food and freezer doors are heavy Use both
hands to secure the doors before lifting.
Phillips screwdriver Masking tape
3/8”hex-head
socket driver
(optional)
7/16”open-end
wrench (optional)
Putty knife or
thin-blade screwdriver
(optional)
Allen wrench (Stainless
Steel Handle Models)
Top Hinge
WARNING Follow all steps when reversing
the door swing. Failure to follow these instructions,
leaving off parts, or overtightening screws, can lead
to the door falling off and result in injury and property
damage.
INSTALLATION INSTRUCTIONS
49-1000109 15
INSTALLATION INSTRUCTIONS
Installation Instructions
REVERSING THE DOOR SWING (Cont.)
3 REMOVE THE FRESH FOOD
DOOR
3.1 Tape the door shut
with masking tape.
3.2 Unscrew the center
hinge pin and remove
it from its socket. Be
careful not to lose
the center hinge and
washer.
3.3 Remove the tape and tilt the door away from
the cabinet. Lift the door from the pin in the
bottom hinge. (If the plastic washer sticks to
the door bottom, put it back on the hinge.)
3.4 Set the door outside-up on a non-scratching
surface.
4 REVERSING THE HARDWARE
4.1 Interchange the hinge and screws at top
right with screws at top left of cabinet. Do not
tighten screws on hinge side.
NOTE:
Some hinges have 4 holes. Which
holes you use for installing depends on which
side you install the hinge.
The outer edge of the hinge should be
parallel to the edge of the case for correct
installation.
4.2 Remove the three screws holding the center
hinge to the cabinet.
4.3 Transfer the three screws from the opposite
side of the cabinet to the screw holes vacated
by the center hinge removal.
4.4 Reattach the center hinge with all three
screws on the left side of the cabinet.
NOTE: The center hinge must be turned over
as shown when mounted on the left side.
4.5 Remove the screws holding the bottom hinge
to the cabinet. Move the bottom hinge from
the right to left side of the cabinet. Switch the
hinge pin to the opposite side of the hinge
and reinsert the screws.
Center
Hinge Pin
Washer
Plastic
Washer
Hinge
Pin
Hinge
Pin
Plastic
Washer
Hinge
Bracket
Hinge
Bracket
Switch the
hinge pin to the
opposite side of
the bracket.
WARNING Follow all steps when reversing
the door swing. Failure to follow these instructions,
leaving off parts, or overtightening screws, can lead
to the door falling off and result in injury and property
damage.
16 49-1000109
Installation Instructions
REVERSING THE DOOR SWING (Cont.)
5 REVERSING THE DOOR
HANDLES
STAINLESS STEEL HANDLE
5.1a. Remove handle screws from the top of
fresh food door. Remove handle screws
from the bottom of freezer door.
5.2a. Loosen set screw on handle with the
provided1/8”wrench.
5.3a. Remove door handle.
5.4a. Change places between the handle fastener
and plug button on door front.
5.5a. Move the plug buttons on top and front of
the door to fill the now vacant holes.
5.6a. Transfer the door stop on the bottom of the
door.
5.7a. Attach handle to fresh food door with
screwsattopofhandle.Use1/8”allen
wrench to tighten set screw at bottom of
handle.
5.8a. Attach handle to freezer door with screws
atbottomofhandle.Usetheprovided1/8”
allen wrench to tighten set screw at top of
handle.
5.9a. Attach badge on freezer door opposite the
handle.
5 REVERSING THE DOOR
HANDLES (Cont.)
PLASTIC HANDLE ASSEMBLY
5.1b. Remove handle screws from the top of
fresh food door. Remove handle screws
from the bottom of freezer door.
5.2b. Remove door handle on fresh food door
by sliding the handle up off of the fastener.
Remove door handle on freezer door by
sliding the handle down off of the fastener.
5.3b. Change places between the handle fastener
and plug button on door front.
5.4b. Move the plug buttons on top and front of
the door to fill the now vacant holes.
5.5b. Transfer the door stop on the bottom of the
door.
5.6b. Attach handle to fresh food door by sliding
handle down onto fastener and with screws
at top of handle.
5.7b. Attach handle to freezer door by sliding
handle up onto fastener and with screws at
bottom of handle.
5.8b. Attach badge on freezer door opposite the
handle.
Door
Stop
Door
Stop
INSTALLATION INSTRUCTIONS
49-1000109 17
INSTALLATION INSTRUCTIONS
Installation Instructions
REVERSING THE DOOR SWING (Cont.)
6 RE-HANGING THE DOORS
6.1 Re-hang the fresh food door
6.1.1 Lower the fresh food door onto the
bottom hinge pin. Be sure the washer is
in place on the pin.
6.1.2 Tilt the door towards the cabinet. As
the door is brought into position, align
the socket in the door with the hole
in the center hinge. Place the center
hinge pin into the hole in the center
hinge and tighten. Make sure the
washer is on the top of the hinge pin.
6 RE-HANGING THE DOORS (CO
6.1 Re-hang the fresh food door
6.2.1 Lower the freezer door onto the center
hinge pin. Be sure the washer is in
place on the pin.
6.2.2 Tilt the door towards the cabinet, lifting
the top hinge so the pin fits into the
socket on the top of the door.
6.2.3 Make sure the door is slightly above
the top of the cabinet and the gap
between the doors is even across the
front. Tighten the top hinge screws. Do
not over-tighten these screws. Tighten
them until they are just snug, and then
turn them another one-half turn.
Plastic
Washer
Hinge
Pin
Hinge
Pin with
Washer
Center
Hinge
Hinge
Pin
Plastic
Washer
Top
Hinge
Hinge Gap
18 49-1000109
Normal Operating Sounds
■ The new high
efficiency compressor
may run faster and
longer than your old
refrigerator and you may hear a high-pitched hum
or pulsating sound while it is operating.
■ You may hear a whooshing sound when the doors
close. This is due to pressure equalizing within the
refrigerator.
Newer refrigerators sound different from older refrigerators. Modern refrigerators have more features and use newer
technology.
■ You may hear the fans spinning at high
speeds.
This happens when the refrigerator
is first plugged in, when the doors
are opened frequently or when a
large amount of food is added to the
refrigerator or freezer compartments.
The fans are helping to maintain the
correct temperatures.
CLICKS,POPS,
CRACKSandCHIRPS
■ You may hear cracking or popping sounds when
the refrigerator is first plugged in. This happens as
the refrigerator cools to the correct temperature.
■ The compressor may cause a clicking or chirping
sound when attempting to restart (this could take
up to 5 minutes).
■ Expansion and contraction of cooling coils during
and after defrost can cause a cracking or popping
sound.
■ On models with an ice maker, after an ice making
cycle, you may hear the ice cubes dropping into the
ice bucket.
WATER SOUNDS
■ The flow of refrigerant through the freezer cooling coils
may make a gurgling noise like boiling water.
■ Water dropping on the defrost heater can cause a
sizzling, popping or buzzing sound during the defrost
cycle.
■ A water dripping noise may occur during the defrost
cycle as ice melts from the evaporator and flows into
the drain pan.
■ Closing the door may cause a gurgling sound due to
pressure equalization.
Do you hear what I hear? These sounds are normal.
HUMMM...
WHOOSH...
TROUBLESHOOTING TIPS: Normal Operating Sounds

Produkt Specifikationer

Mærke: Crosley
Kategori: Køleskab
Model: XPS15BTHLWW

Har du brug for hjælp?

Hvis du har brug for hjælp til Crosley XPS15BTHLWW stil et spørgsmål nedenfor, og andre brugere vil svare dig


Køleskab Crosley Manualer

Crosley

Crosley XNE25JSKSS Manual

7 December 2024
Crosley

Crosley CRSH232PW Manual

18 September 2024
Crosley

Crosley CFD28WIQB Manual

14 August 2024
Crosley

Crosley CRD2121NB Manual

2 August 2024
Crosley

Crosley CRT182HNB Manual

30 Juli 2024
Crosley

Crosley XSS23GSKSS Manual

30 Juli 2024
Crosley

Crosley XNE25JGKWW Manual

29 Juli 2024
Crosley

Crosley CFD28SDQS Manual

21 Juli 2024
Crosley

Crosley CRSH232PS Manual

18 Juli 2024
Crosley

Crosley CRT186QB Manual

18 Juli 2024

Køleskab Manualer

Nyeste Køleskab Manualer

Liebherr

Liebherr IKGS 51Vd02 Pure Manual

9 April 2025
Liebherr

Liebherr IKGBN 51Vd23i Plus Manual

9 April 2025
Liebherr

Liebherr IKGS 51Ve03 Pure Manual

9 April 2025
Sharp

Sharp SJ-FTA03ITXLE-EU Manual

9 April 2025
Arçelik

Arçelik 283613 EB Manual

6 April 2025
Siemens

Siemens KG39NAIAU Manual

6 April 2025
Bosch

Bosch KGN57PI31B Manual

6 April 2025
EAS Electric

EAS Electric EMR177ASI Manual

6 April 2025
Hotpoint

Hotpoint T 16 A2 D/HA 2 Manual

5 April 2025
Gorenje

Gorenje NRKI619EA3 Manual

5 April 2025
