P.I.P.-FXT

Welcome

Thank you for purchasing the Crown P.I.P.-FXT

accessory. PIP™ modules are designed to quickly

install in the rear panel of many Crown ampliﬁ ers.

PIP stands for “Plug-In Panel”. Their versatile fea-

tures expand the capabilities of your ampliﬁ er and

enable you to customize it for your particular needs.

FXT means Female XLRs and Transformers to signify

that the unit uses female XLR connectors for input

and provides balanced-to-balanced transformer iso-

lation from the source to the ampliﬁ er.

Features

• 1:1 transformer isolation of pins 2 (+) and 3 (–)

of the XLR inputs gives excellent isolation for

balanced input signals.

• Pin 1 (shield) of each XLR inputs is isolated from

the signal ground of the ampliﬁ er with a 100 ohm

resistor.

• The center taps of the transformers can be easily

accessed via pads P1–P4 on the circuit board.

(However, this may degrade the common mode

rejection since center tap symmetry is not guar-

anteed).

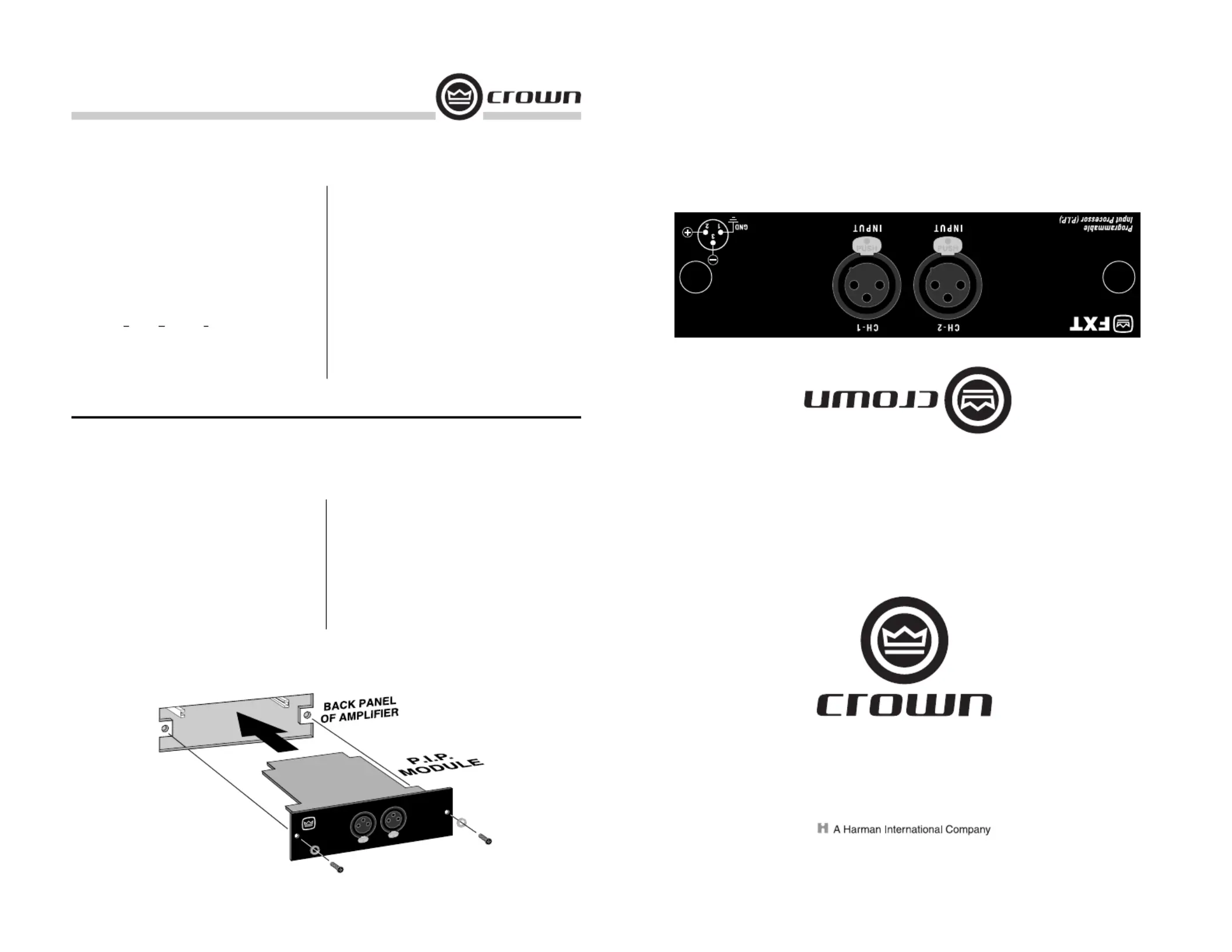

Installation

1. Turn down the level controls (full counterclock-

wise), turn off the ampliﬁ er and unplug it from the

AC power source.

2. Remove the existing PIP or panel (two screws) and

pull straight out with ﬁ rm pressure.

3. Align the edge of the P.I.P.-FXT circuit board in the

PIP card rails and ﬁ rmly push the unit in until it

is seated inside.

4. Secure the P.I.P.-FXT with the two thumbscrews

provided.

5. Connect input wiring according the instructions in

the of your ampliﬁ er.Operation Manual

6. Plug in the ampliﬁ er and turn it on. Adjust its level

controls to a desired setting.

135693-1

8/02

P.O. Box 1000, Elkhart, IN 46515-1000 U.S.A.

Telephone: 574-294-8000. Fax: 574-294-8329.

Trademark Notice: PIP is a trademark of Crown International.

P.I.P.-FXT

Programmable Input Processor

INSTALLATION MANUAL
