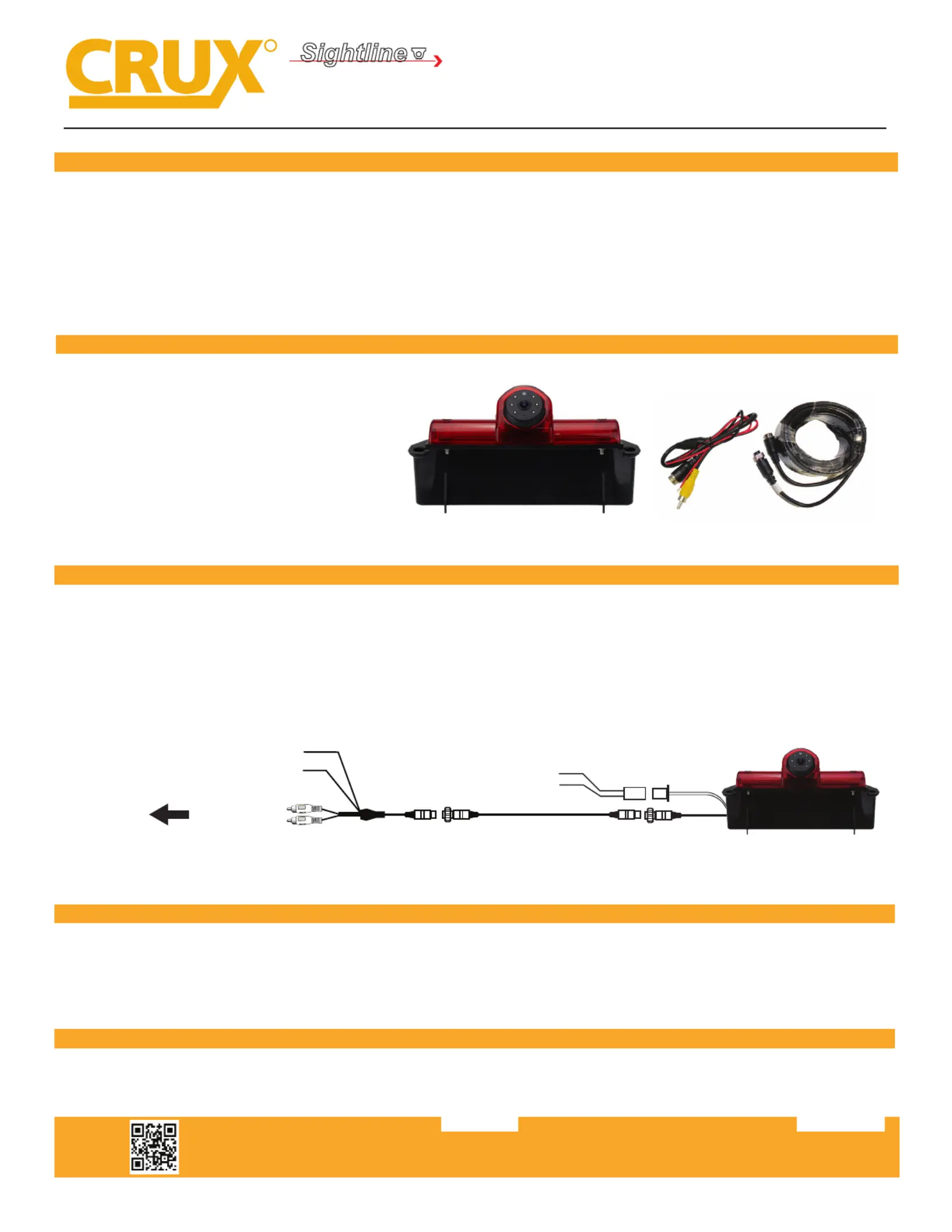

CGM-03EY

Third Brake Light Camera with 1/3” Sony CCD Sensor

for Select Chevrolet Express & GMC Savana Vans

- Uses 1/3” Sony CCD sensor. a

- Replaces the factory third brake light to maintains the OEM look.

- LED brake lights included.

- 6 Infra Red LEDs for night me use.

- With Built-in Microphone.

- Uses 4-pin aviaon type water resistant connectors.

PRODUCT FEATURES:

PARTS INCLUDED:

R

INTERFACING SOLUTIONS

Sightline

CAMERAS

1. Third Brake Light camera

2. 33’ extension cable

3. 4-pin aviaon connector to RCA adapter

4. Mounng screws

INSTALLATION INSTRUCTIONS:

1. Remove the factory third brake light.

2. Tap power and ground from the factory brake light harness to the red and black wires from the camera.

3. Run the extension cable provided towards the radio.

4. Plug the 4-pin aviaon connector of the extension cable to the camera cable.

5. Make the power and video connecons at the radio.

6. Test the camera prior to reinstalling in the third brake light locaon.

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.083020

VEHICLE APPLICATIONS:

CHEVROLET

2004 - Up Express

To Aftermarket Radio

Backup Camera Input

OR

Reverse Camera Interface

Backup Camera Input

Brake Light Power 12V

BLACK Wire Ground

Extension Cable

MIC Output

Video Input

RED wire camera Power +12V

Ground

1

SPECIFICATIONS:

Sensor: 1/3” SONY CCD sensor.

Pixels: 975H x 582V (NTSC)

Resoluon: 600TVL (horizonal)

Viewing Angle: 150°

Illuminaon: .01Lux (18 IR LEDs)

Connecon: G16 Aviaon 4pin connectors

GMC

2004 - 2016 Savana
