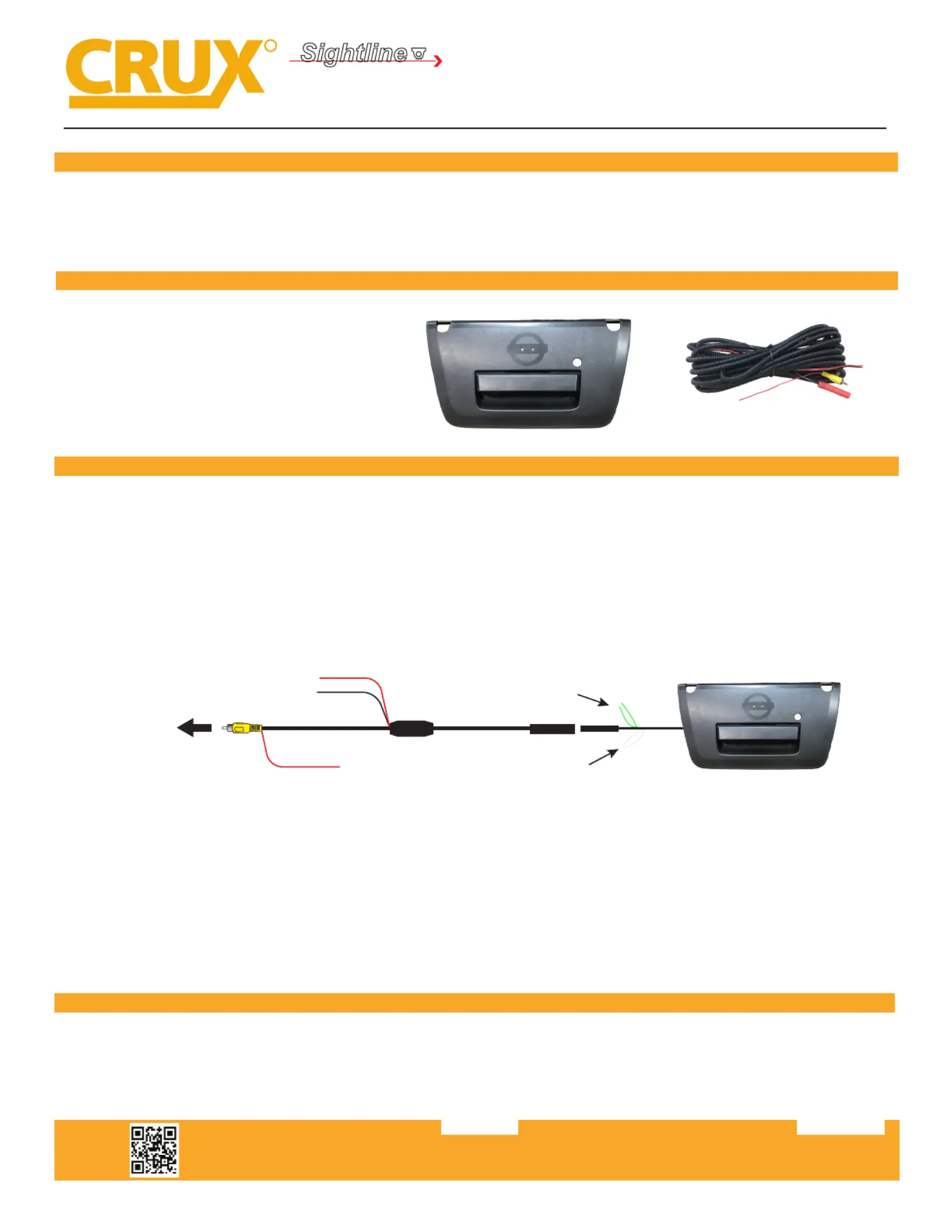

CNS-02F

Tailgate Handle Camera for

Nissan Frontier 2013-2017

- Replaces factory tailgate handle assembly.

- Selectable Parking Guide Line ON or OFF.

- Maintains the OEM look.

PRODUCT FEATURES:

PARTS INCLUDED:

*NOTE: To power the camera, use RED Wire A or B. If tapping power from the radio or RVC Interface, make sure to

insulate RED Wire A to avoid it from shorng. If you will be tapping power from the reverse light +12V, insulate RED

Wire B to avoid it from shorng. With either connecon the Black GROUND wire needs to be connected to a solid chassis

ground. For vehicles with manual transmission, we recommend tapping +12V power from the reverse light.

GREEN Wire: Connect to show parking guide line. Cut loop to remove guide lines. Insulate with tape to avoid from

shorng.

WHITE Wire: Not used, do not cut.

Note: Cycle the camera power aer connecng or disconnecng the GREEN control wire.

INTERFACING SOLUTIONS

Sightline

CAMERAS

1. Tailgate handle camera

2. 26 . extension cable

INSTALLATION INSTRUCTIONS:

1. Remove the factory tailgate handle and remove the emblem and key cylinder.

2. Run the camera cable to the inside of the cabin towards the radio.

3. Make the power and video connecons to the rear view camera integraon interface or the aermarket radio or the

reverse light.

4. Install the emblem and key cylinder to the CNS-02F tailgate handle assembly.

5. Test the camera for funconality. Decide whether the parking guide line will be used or not. See below for instrucons on

how to turn it ON/OFF.

6. Install the new tailgate handle camera.

26 Ft. Coax Cable

RED wire (B)*

Ground (Black wire)

RED wire (A)*

To Aftermarket Radio

Backup Camera Input

Reverse Camera Interface

Backup Camera Input

GREEN Wire

Parking Guideline

WHITE Wire

(not used, leave connected)

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.100819

VEHICLE APPLICATIONS:

NISSAN

2013 - 2016 Froner

NOTE: Nissan emblem and key cylinder not included.
