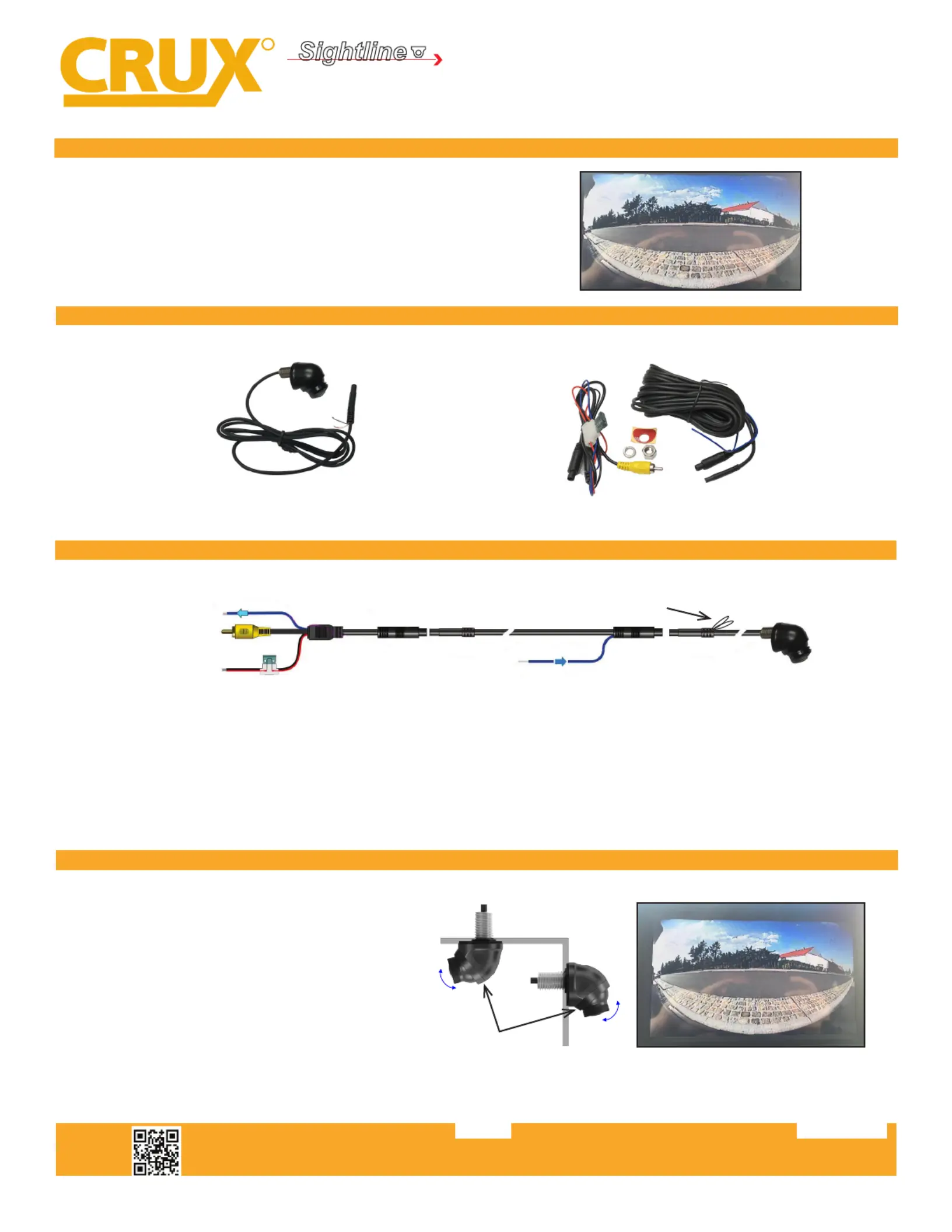

CTC-210

Cross Trac Camera System

Front or Backup Camera with 210 Degree Viewing Angle

1 of 1

INTERFACING SOLUTIONS

Sightline

CAMERAS

- For use as a front or backup camera.

- Wide angle lens for cross trac viewing.

- With parking guide lines (can be turned on/o).

- Horizontal ip image feature for front camera use.

- Top or lip mount.

PRODUCT FEATURES:

PARTS INCLUDED:

CTC-210 Camera Extension Cable and Accessories

*NOTE: To power the camera, tap the RED wire to +12V and the BLACK wire to ground.

1) If tapping power from the radio or a backup camera interface, tap the RED wire to the camera output wire of the radio or interface. The

BLUE wire is not used in this instance.

2) If you are tapping power from the backup light, tap the BLUE wire “B” to the +12V backup light wire then connect the BLUE wire “A” to

the RED wire. Connect the black wire to ground.

WIRING DIAGRAM:

The CTC-210 can be used as a backup camera or as a front

camera with wide angle cross trac viewing. The wide

angle viewing aids when backing up and the driver has

limited view of what’s on the le or right of the vehicle. It

can be top mounted or lip mounted and the viewing angle

is also adjustable both vercally and horizontally. Loosen

the camera lock ring and the ball camera can be turned 360

degrees. The CTC-210 has parking guide lines when used

as a backup camera. To deacvate the parking guide lines,

cut the thin GREEN wire on the 4 pin barrel connector. See

diagram above. To use the CTC-210 as a front camera, cut

the thin GREEN wire to remove the parking guide lines

and cut the thin RED wire to ip the image horizontally.

CROSS TRAFFIC VIEWING:

To Video Input

Power Extension Wire*

Power & Ground*

Red & Black wires

“B”

“A”

GREEN wire cut = deacvate Parking Guide Lines

RED wire cut = ip image horizontally for front camera use

Ball camera lock ring
