How to Install

Glass Sets

1. 93pcs glass 7 3/4”White

2. 8 pcs glass 9”White

3. 12pcs glass 11”White

Crystorama.com

ADD-319- -AG WH

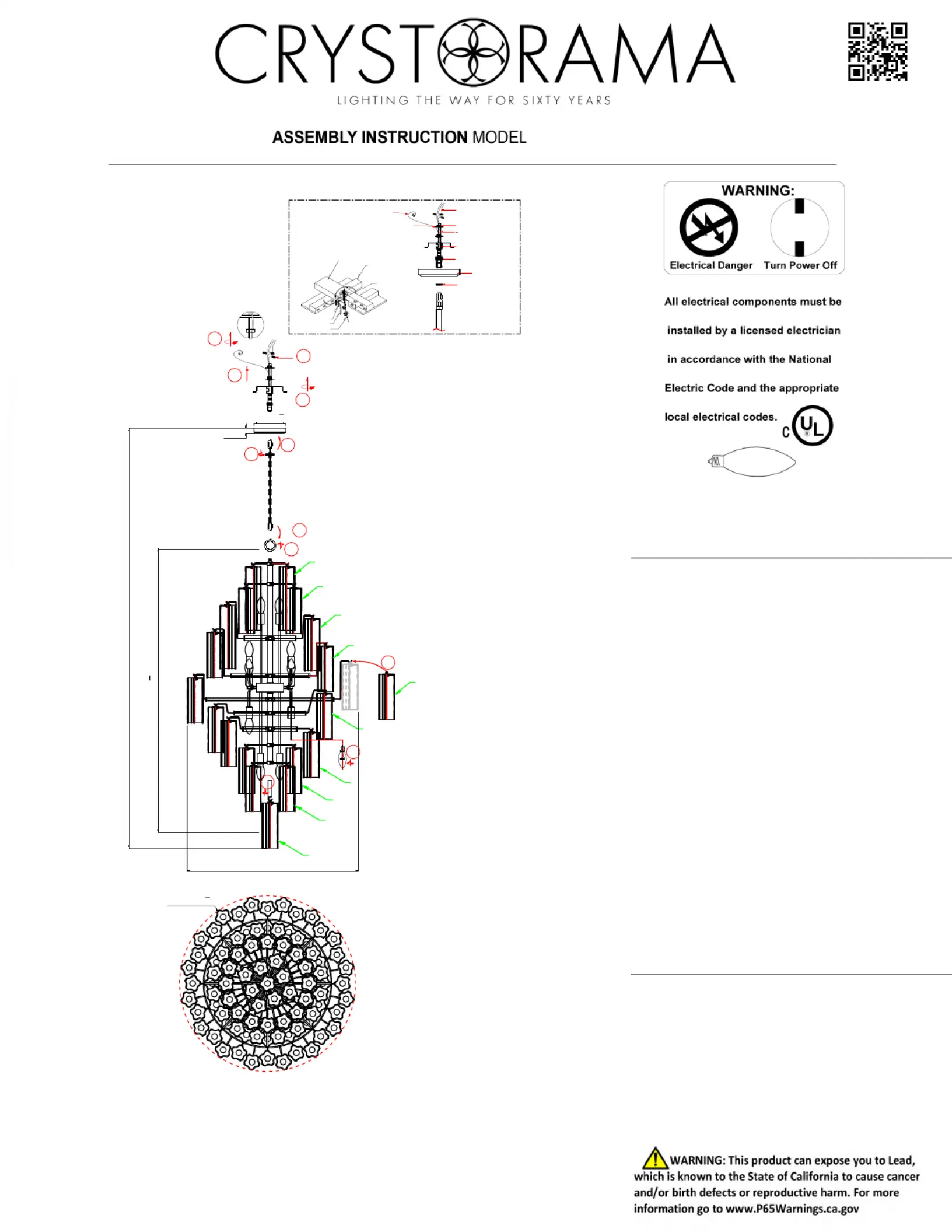

1. Decide the preferred hanging height and choose the

correct length of chain needed.

Screw the loop onto the fixture.

3. Attach one end of the 1/4 IPS threaded pipe provided onto

the ceiling joist and secure with hex nut.The other end

should protrude through the outlet box as shown.

4. Assemble the screw collar loop,nipple hex nut and hickey

to the 1/4 IPS threaded pipe and adjust overall length to

allow the collar ring to hold the canopy flush to ceiling.

5. Attach one end of the chain to the fixture loop by openin

the quick link. Slide the screw collar ring over the upper

end of the chain and through the canopy.Open the

opposite quick link and lift the fixture to attach the screw

collar loop to the quick link.Secure the link.

6. Feed the fixture wires, ground wires and safety cable

through the chain and screw collar loop, exiting through

the Hickey. Proceed with the wire connections. Wrap the

safety cable around the ceiling joist and secure the cable

with the clamp and set screws provided as shown.

After wires are connected,thread the screw collar loop

onto the nipple. Place the canopy up against the ceiling

and lock by tightening the screw collar loop ring.

7. After safely attaching fixture into junction box .Install the

short stem onto the bottom of the fixture.

8. Install bulbs and proceed to connecting the power.

9. Dress the glass as illustrated.

You will need 20 Candelabra Base Bulb

40 Watts Recommended 60 Watts Max.

USE LED BULBS FOR EXTENDED USE

( This fixture is Dry rated)

Tier#1 (11" 4pcs )

Tier#2 (7 3/4" 4pcs )

Tier#3 (9" 8pcs , 11" 8pcs )

Tier#4 (7 3/4" 16pcs )

Tier#5 (7 3/4" 32pcs )

Central (7 3/4" 1PC )

Ø140 [5

25 [1"]

Ø775 [Ø30

Ø775 [30 1/2"]

1248 [491

8"]

Tier#6 (7 3/4" 16pcs )

Tier#7 (7 3/4" 16pcs )

Tier#8 (7 3/4" 4pcs )

Tier#9 (7 3/4" 4pcs )

4330 [170.5"]

Assemble glass steps:

Tier#1 - Tier#2 - Tier#3 - Tier#4 - central - Tier#9 - Tier#8 - Tier#7 - Tier#6 - Tier#5

HOUSE SUPPLY WIRES

HEX NUT

WASHER

IP NIPPLE

SAFETY CABLE

HICKEY

CANOPY

SCREW COLLAR LOOP

COLLAR RING

STRUCTURAL MENBER

Ceiling Joist

Junction box

Supply Wire

Safety Cable

Crystorama.com

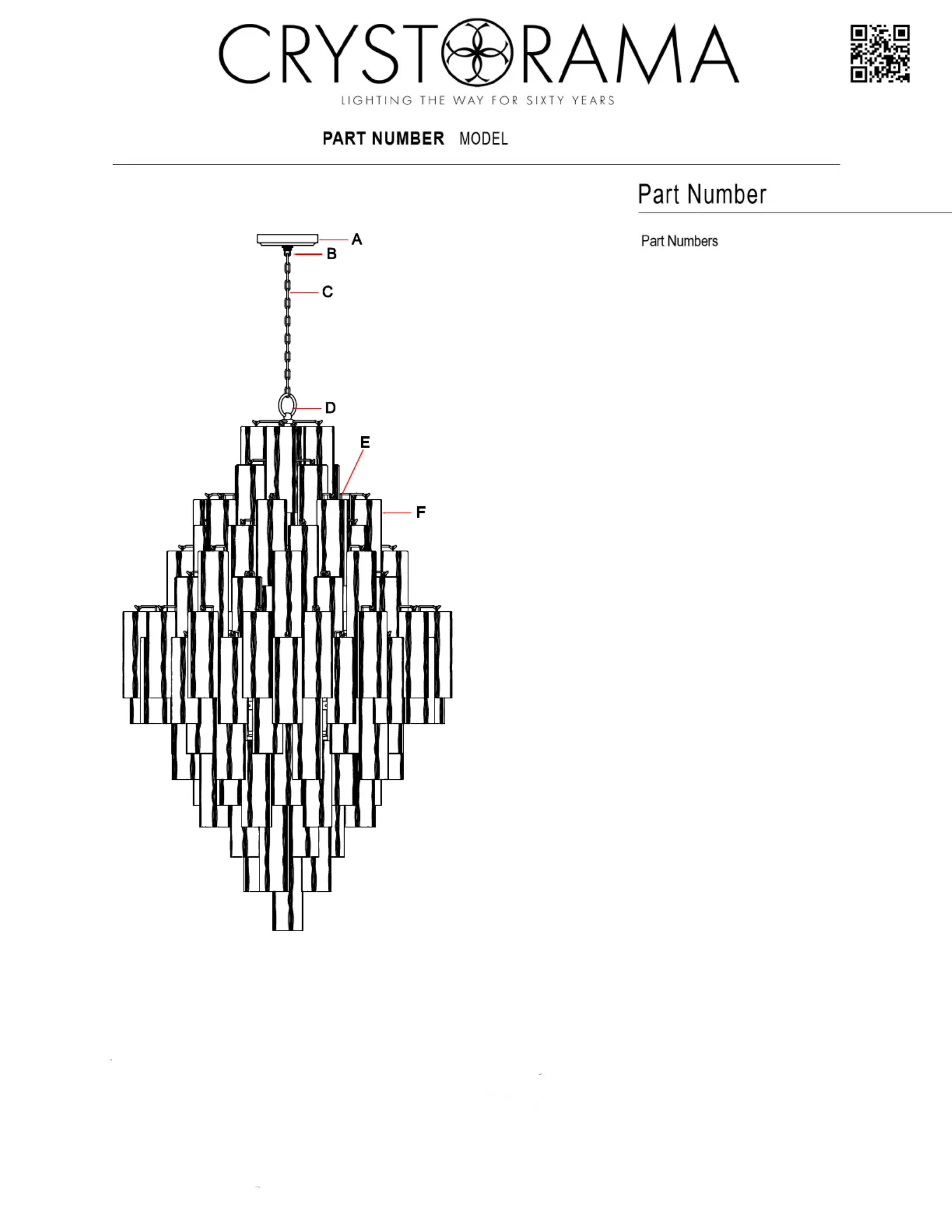

A. (1)-Canopy

ADD-319- -AG WH

D5.5*H1

( )93 - glass D2 3/4 x H7 3/4”White

(XBN319 CAN5IN)AG

B.(1)-Collar Loop

C. (1)-Chain D6mm*120”

(XBN319 CHA6MM)AG

D. (1)-Loop

E. (1)-Frame

(XBN300 GLA7.75IN)AGWH

( )- glass D2 3/4 x H 9”8White

(XBN319 GLA9IN)AGWH

( )- glass D2 3/4 x H 11” 12 White

(XBN319 GLA11IN)AGWH

Produkt Specifikationer

Mærke:	Crystorama
Kategori:	lampe
Model:	Addis ADD-319-AG-WH
