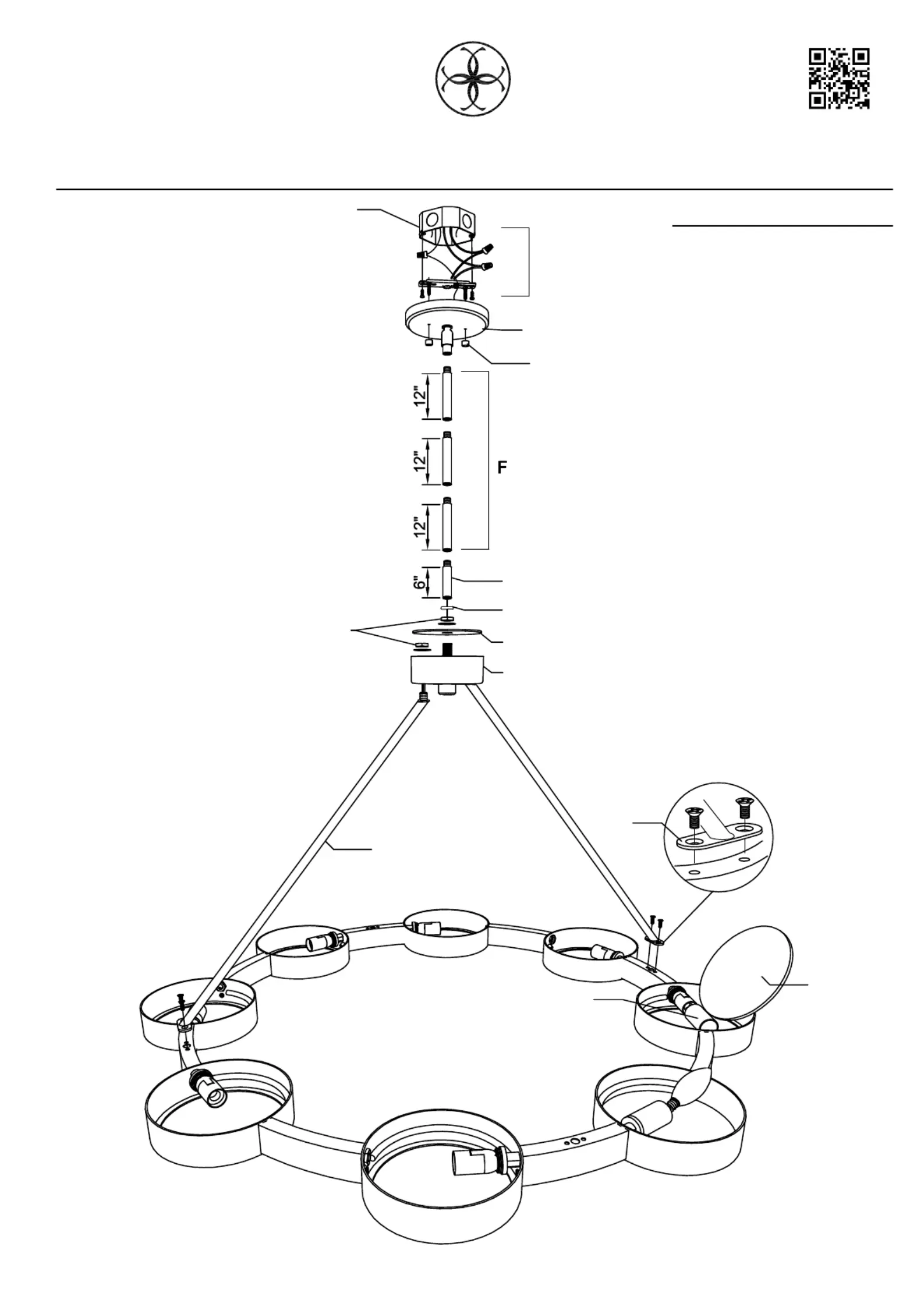

ASSEMBLY INSTRUCTION MODEL #ORS-738-MG

How to Install

1. Attach one end of the rod onto the

frame with screws by aligning the

holes on the tab with the holes on the

band ring..

2. Attach other end of rod to top

distributor box. Secure it with washer

and hex nut.

3. Place the metal plate over top

distributor box and secure with

washer and nut. Place the cap over

the hex nut.

4. Determine correct length of stem

needed for hanging height.

5. Slip the wire through the stems and

connect them togetther.Screw one en

of the stem assembly onto the xture

body and the other end onto the

swivel on the canopy.

6. Attach mounting plate to the

outletbox using box screws. Connect

the xture wires to the supply wires.

7. Mount the xture to the outlet box

with ball nuts.

8. Unscrew the candle sleeve from the

socket, Gently insert the crystal along

the edge of metal ring onto the bottom

of ring.

9. Screw Candle Sleeve back onto

socket.

10. Install the bulb (Not included) in

accordance with the xture s’

specications. (DO NOT EXCEED

THE MAXIMUM WATTAGE RATING

WARNING:

This product can expose you to Lead

which is known to the State of California to cause canc

and/or birth defects or reproductive harm. For more

information go to www.P65Warnings.ca.gov

CSA841808DAMR1

Ø6"

You will need 8 - Candelabra Bulb

40 Watts Recommended 60 Watts Ma

USE LED BULBS FOR EXTENDED USE

This xture is Dry Rated.

21 1/2"

24 1/8~66 1/8"

Ø38 1/2"

Crystorama.com

OUTLET BOX

Part Number

L I G H T I N G T H E W A Y F O R S I X T Y Y E A R S

CRYST RAMA

PART NUMBER MODEL #ORS-738-MG

CSA841808DAMR1

Part Numbers

A. Mounting Hardware

(3) - Wire connector

(1) - Mounting Plate

(2) - Box Screws

(1) - Grounding Screw

B. (2) - Ball Nuts;XVE733MGBANUT

C. (8) - Crystal; 6-3/4" x H1"Ø

D. (1) - Canopy; 6" x H1";Ø

XVE734MGCAN6IN

E. (1) - 6"Stem; XVE734MGSTEM6IN

F. (3) - 12"Stem; XVE734MGSTEM12IN

G. (1) - Rod;11.7 x 575MM

H. (1) - Top distributor box

I. (1) - Metal plate

J. (1) - Check ring

K. (8) - Candle Sleeve; 1-1/8" x H2"Ø

Hex nut

Tab

Crystorama.com

Insert the crys
