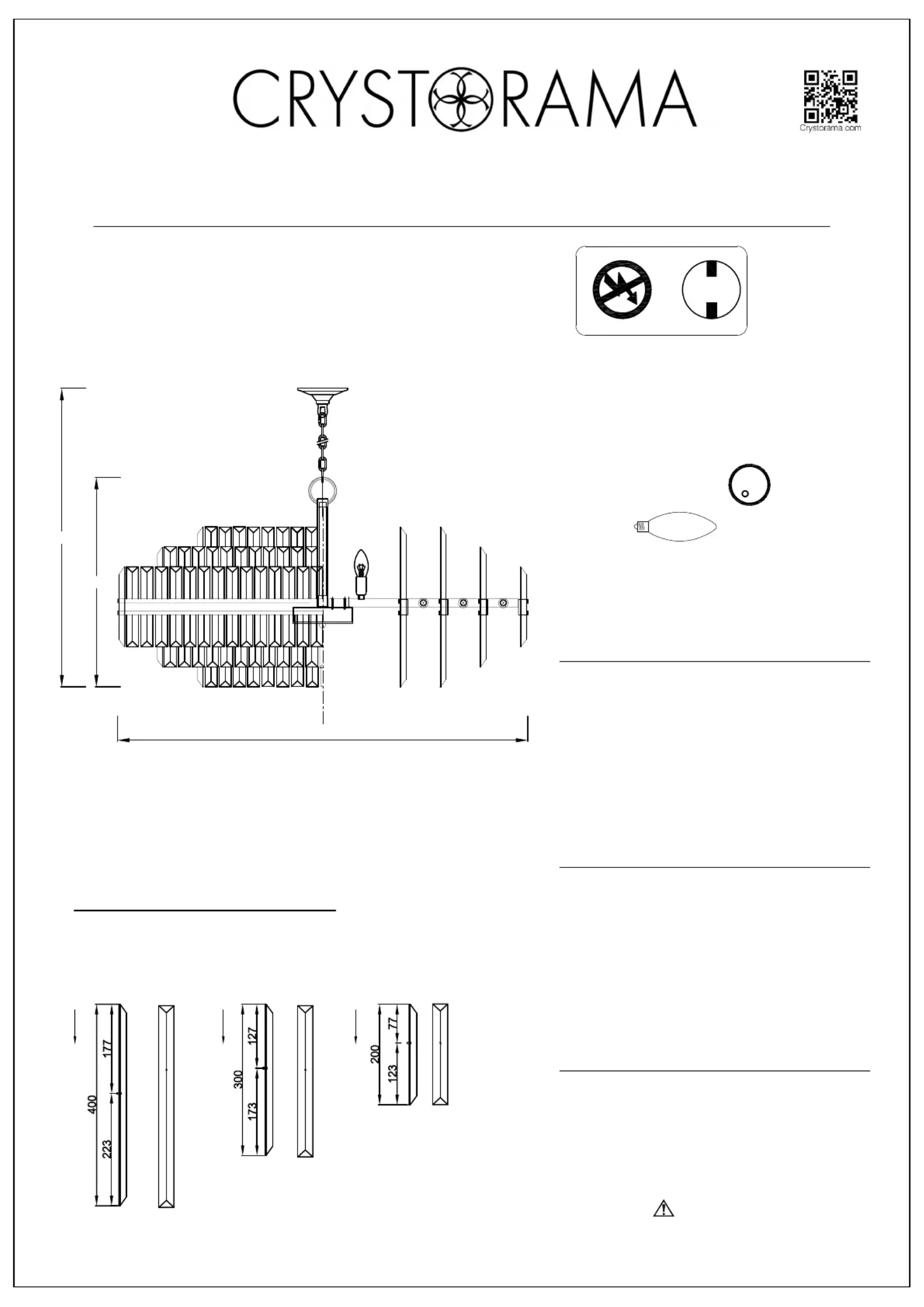

ASSEMBLY INSTRUCTION MODEL #HAY-1409-AG

LIGHTING THE WAY FOR SIXTY YEARS

All electrical components must be

installed by a licensed electrician

in accordance with the National

Electric Code and the appropriate

local electrical codes.

WARNING:

Electrical Danger

Turn Power Off

You will need 32-Candelabra Base Bulb

25 Watts Recommended 25 Watts Max

USE LED BULBS FOR EXTENDED USE

1. Screw the threaded pipe into the coupler and slide the

metal tube over the threaded pipe. Slide check ring over

the top of metal tube and secure with fixture loop.

3. After safety attaching fixture into outlet box, install

bulbs (not included) and proceed to connecting the power.

4. When you begin to dress the fixture, start with crystal

labeled (A).

5. : Apply crystal sets in alphabetical order.IMPORTANT

How to Install

Crystal Sets

WARNING: This product can expose you to Lead,

which is known to the State of California to cause cancer

and/or birth defects or reproductive harm. For more

information go to www.P65Warnings.ca.gov

DETAILED ILLUSTRATION

B. 64Sets.

(1)30x300mm

C. 80Sets. (1)30x200mm

A. 80Sets. (1)30x400mm

This fixture is Dry rated

There is a safety cable supplied with this fixture, as it weighs

over 50lbs. The fixture should be mounted to the ceiling

independent of the outlet box.

Installation of Safety Cable

1. Pass the long threaded pipe on the hickey through the

center of outlet box.Attach it to the ceiling joist and secure

it with nuts.

2. Feed wires and safety cable up through chain and the hole

of screw collar loop. Have the wires and safety cable exit

through the side of hickey.

3. Feed safety cable through the cable lock and coil it around

the hickey twice.Then feed the cable through the lock

again and tighten it with lock screw.

4. Continue to run safety cable through the top of outlet box

and secure it to the ceiling joist.

Short end above frame

40.5"

21"

A A

95.5"

Part Number

PART NUMBER MODEL #HAY-1409-AG

LIGHTING THE WAY FOR SIXTY YEARS

Part Numbers

(1)-Heavy Duty Mounting Hardware

(1)-Canopy; w5"xh1.25" (XFB1407AGCAN5IN)

(1)-Collar Ring

(1)-Collar Loop

(1)-Chain; 72", 6mm (XFB1409AGCHA6MM)

(1)-Fixture Loop

(2)-Wire Connector

(1)-Ground Wire

(1)-Cable Wire

PART BAG : Includes Parts B,D,EⅡ

PART BAG : Includes Parts AⅠ

(1)-Metal Tube; 10", 25MM thickness (XFB1409AGROD10IN)

(1)-Threaded Pipe; 10", 20MM thickness (XFB1409AGSTEM10IN)

L (1)-Check Ring

(1)-Metal Frame
