ASSEMBLY INSTRUCTION MODEL # HWD-7722-AG
LIGHTING THE WAY FOR SIXTY YEARS
WARNING:
Electrical Danger
Turn Power Off
You will need 22- Candelabra Base Bulb
25 Watts recommended 40 Watts Max.
USE LED BULBS FOR EXTENDED USE
All electrical components must be
installed by a licensed electrician
in accordance with the National
Electric Code and the appropriate
local electrical codes
HOW TO INSTALL:
Place the fixture parts on a soft cloth-covered
platform before installation of fixture.
1. Attach the mounting bar onto the outlet box.
2. Decide the desired hanging height and adjust
the chain to the correct length.
6. Raise the fixture up and do the wire connection.
Place the canopy over the mounting bar and
secure with the collar ring.
5. Slide the bobeche and candle sleeve over the
socket.
7. Dress the crystal as illustrated.
Crystorama.com
WARNING:This product can expose you to Lead,
which is known to the State of California to cause cancer
and/or birth defects or reproductive harm.For more
information go to www.p65warnings.ca.gov
The fixture is Damp rated
A
B
C
D
E
G
F
C
120 1/2"
46"
A
A
A
A
C
40"
A. 88 Sets. (1)14mm + (1)63mm crystal
Crystal Sets
B. 24 Sets. (39)14mm crystal
C. 18 Sets. (1)Square + (1)14mm + (1)63mm crystal
D. 6 Sets. (15)14mm crystal
E. 40 Sets. (1)32mm + (2)30mm + (1)28mm + (1)24mm + (1)20mm + (1)18mm + (1)16mm + (2)14mm + (1)12mm
F. 12 Sets. (14)14mm crystal
G. 1 Sets. (4)14mm + (1)40mm ball
3. Screw the stem into the coupling on top of the
fixture body kit and then place the
center tubing, check ring, top ring, and
metal spacer, in that order, over it.
Secure them with the fixture loop.
4. Screw the bottom stem into the coupling
on the bottom of the fixture body kit.
Place the metal spacer and bottom ring
over it and secure with the finial.

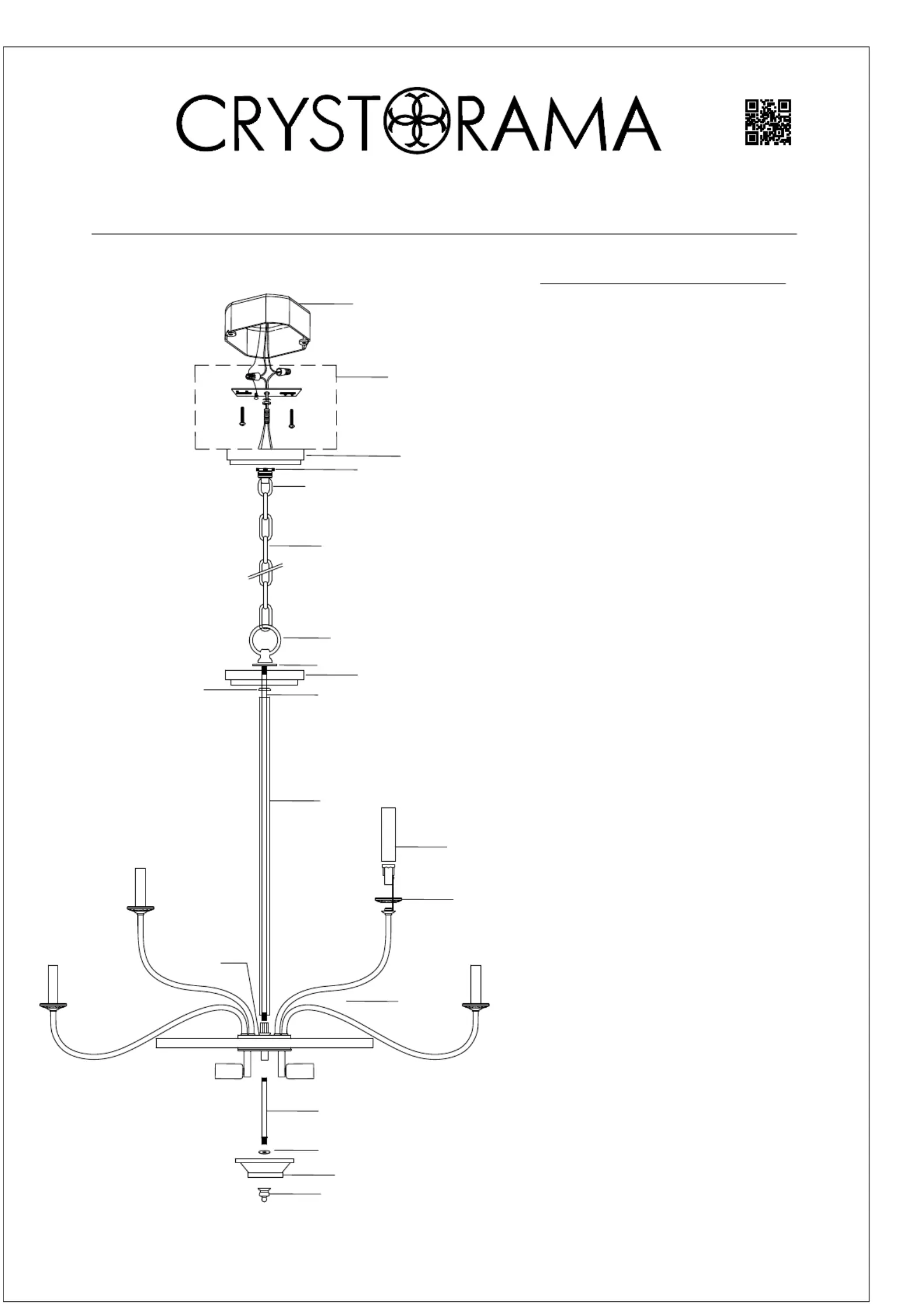

PART NUMBER MODEL# HWD-7722-AG
LIGHTING THE WAY FOR SIXTY YEARS
Part Number
Part Numbers
Crystorama.com
B. (1)-Canopy (W5"xH1")-XSN7709AGCAN5IN
C. (1)-Collar Ring
E. (1)-Chain (4mmx72")-XSN7709AGCHA4MM
D. (1)-Collar Loop
F. (1)-Fixture Loop
G.(2)-Metal Spacer
H. (1)-Top Ring ; Ø5 5/8 ", H1",
18 holes on upper layer,
24 holes on bottom layer.
-XSN7722AGTOPRING
J. (1)-Stem ; H29 1/8"-XSN7722AGSTEM29.125IN
K. (1)-Center Tubing ; H29"
L. (18)-Metal Candle Sleeve; Ø7/8", H4 1/8"
-XSN7709AGCDL4.125IN
M.(18)-Crystal Bobeche ; Ø2 3/8",H3/8";
23mm center hole.
-XSN7709BOB2.375IN
N. (1)-Fixture Body Kit
Coupling x2.
Distributor Box ; Ø4 3/4" x1.
10" Arms x6.
17 1/2" Arms x12.
Center Ring ; Ø20 1/2" x1.
24 holes on upper edge,
40 holes on bottom edge.
Inner Socket x4.
O. (1)-Bottom Stem ; H6 1/2"
-XSN7722AGSTEM6.5IN
P. (1)-Bottom Ring ; Ø5 1/4 ", H1 1/2 "
40 holes on the upper edge of the upper layer.
18 holes on the bottom edge of the upper layer.
10 holes on the bottom layer.
-XSN7722AGBOTRING
Q. (1)-Finial-XSN7709AGFIN
A. (1)-Mounting hardware
Wire Connector × 2.
Mounting Bar × 1.
Mounting Screw × 2.
Washer × 1.
Nut × 1.
Threaded Nipple × 1.
I. (2)-Check Ring
A
Outlet Box
B
C
D
E
F
GH
K
L
M
N
O
P
IJ
G
Q
I
