Side 1/16
SY-300H
HDMI to HDMI Scaler with Audio Embedding
& De-Embedding
OPERATION MANUAL
4
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
Never spill liquid of any kind on or into this product.
Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
Do not attach the power supply cabling to building surfaces.
Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sucient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
v1.00 06/06/2017 First release
5
CONTENTS
1. Introduction 6 ...........................................
2. Applications 6 ...........................................
3. Package Contents 6 ..................................
4. System Requirements 6 ...........................
5. Features 7 ..................................................
6. Operation Controls and Functions 8 .......
6.1 Front Panel 8 ...................................................
6.2 Rear Panel 9 .....................................................
6.3 OSD Menu 10 ..................................................
7. Connection Diagram 12 ..........................
8. Specications 13 ......................................
8.1 Supporting Timing Chart 14 ......................
9. Acronyms 15 .............................................
6
1. INTRODUCTION
This is a compact yet versatile HDMI to HDMI Scaler Box. It accepts HDMI
input with a separate Toslink or analog audio and scale it to HDMI output
(at a number of selectable resolutions) with additional Toslink and analog
audio output.
This Scaler Box has a comprehensive OSD menu that allows user to
select a variety of output resolutions and adjust for best picture quality.
It is ideal for using between incompatible HDMI source and display by
changing picture resolution and frame rate of HDMI source to match the
native resolution of the HDMI display.
2. APPLICATIONS
Displaying HDMI contents on to HDMI display
Household HDMI signal enlargement on to HDTV and audio
equipment
Lecture room/Showroom/Meeting room/Classroom signal display
3. PACKAGE CONTENTS
1 × HDMI to HDMI Scaler
1 × 5 V/2.6 A DC Power Adaptor
Operation Manual
4. SYSTEM REQUIREMENTS
Input source equipment such as DVD/Blu-ray player and output display
with HDMI input jack and audio amplier.
7
5. FEATURES
HDMI, HDCP and DVI compliant
Supports full range of PC resolution from VGA ~ WUXGA (RB) and HD
resolution from 480i~1080p
Automatically detect the factory setting of the connected display
and output the corresponding resolution and refresh rate, when the
NATIVE output is selected
Supports 50/60Hz frame rate conversion
Supports 3-D motion video adaptive, 3-D de-interlacing, and 3:2/2:2
pull-down detection and recovery
Provides output picture adjustment on contrast, brightness, hue,
saturation, sharpness, RGB (colour tone) level and aspect ratio size
Supports stereo LPCM analog/digital audio input and stereo LPCM
analog/digital output by selecting among the audio input sources in
the OSD menu and simultaneously output to HDMI, Optical and phone
jack
8
6. OPERATION CONTROLS AND FUNCTIONS

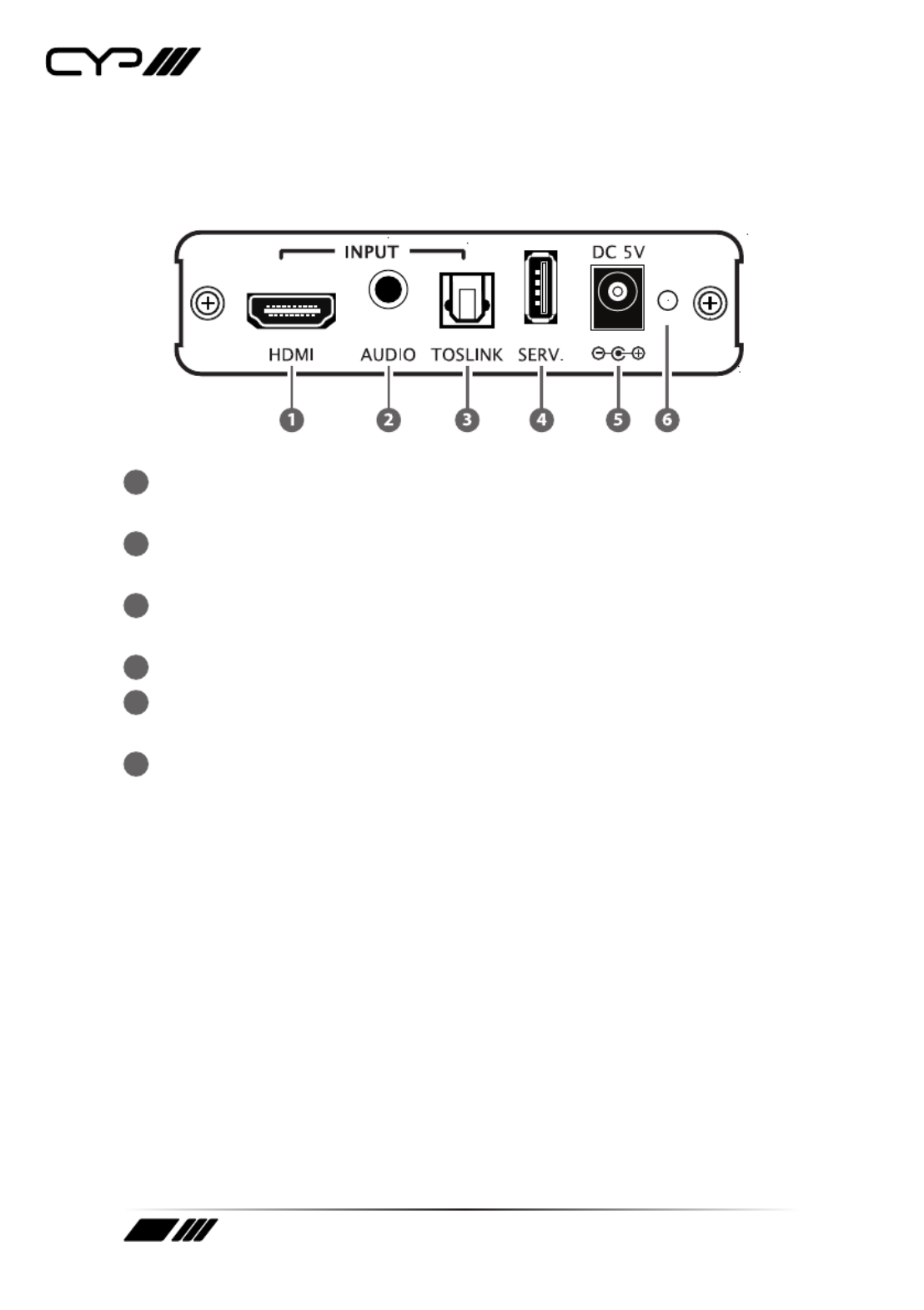

6.1 Front Panel
1 HDMI INPUT: Connect from source equipment such as PS3/Blu-ray
player with HDMI cable.
2 AUDIO INUPT: Connect from the audio source equipment such as PC/
Laptop with 3.5mm phone jack for analog audio signal input.
3 TOSLINK INPUT: Connect from the audio source equipment such as
DVD/Blu-ray player with optical cable for digital audio signal input.
4 SERV.: This port is reserved for rmware update only.
5 Plug the 5V DC power supply into the unit and connect the DC 5V:
adaptor to an AC outlet.
6 Power LED: This LED will illuminate once the device is connected with
power supply.
9

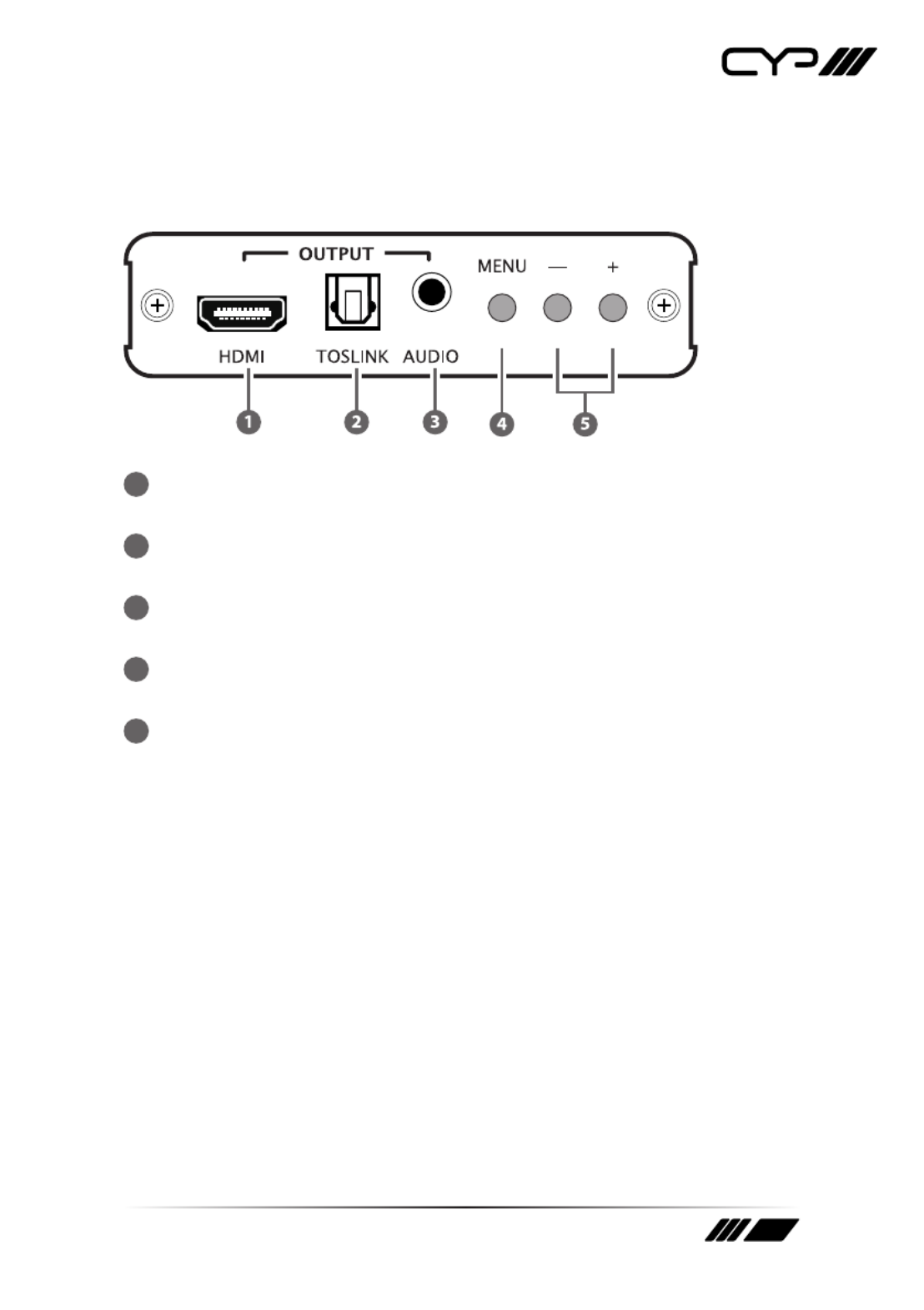

6.2 Rear Panel
1 HDMI OUTPUT: This slot is to connect with HDMI TV/Monitor for
output image display.
2 TOSLINK OUTPUT: Connect to an amplier or active speaker with
optical cable for audio output.
3 AUDIO OUTPUT: Connect to an amplier or active speaker with
3.5mm phone jack for audio output.
4 Press this button to enter into the OSD menu and press it MENU:
again to enter into the selection.
5 Press these buttons to +/- button:
a. move up/down the OSD selection,
b. to adjust the value,
Under normal operation (outside of OSD selection)
c. Press “-“ together with “MENU” to switch output resolution to
720P@60 instantly,
d. Press “+” together with “MENU” to switch output resolution to
XGA@60 (1024×768) instantly
e. Press both “+” together with “-“ to set the device back to factory
reset setting.
10
6.3 OSD Menu
Main Menu 1st layer 2ND layer
PICTURE SETTING CONTRAST 0~100 (50)
BRIGHTNESS 0~100 (50)
EXIT
FINETUNE HUE 0~100 (50)
SATURATION 0~100 (50)
SHARPNESS 0~100 (50)
NR OFF/LOW/MIDDLE/HIGH (OFF)
EXIT
COLOR SETTING RED 0~100 (50)
GREEN 0~100 (50)
BLUE 0~100 (50)
EXIT
OUTPUT SETTING SIZE FULL/OVERSCAN/UNDERSCAN/
LETTER BOX/ PANSCAN/ASPECT
(FULL)
RESOLUTION 640×480@60 / 800×600@60 /
1024×768@60 / 1280×1024@60
/1400×1050@60 /
1600×1200@60 /
1280×800@60 / 1440×900@60
/1680×1050@60 /
1920×1200@60RB / 1600×900
/ 480P / 576P / 720P@50/
720P@60 / 1080I@50 /
1080I@60 / 1080P@50 /
1080P@60
MIRROR ON/OFF
EXIT
11
Main Menu 1st layer 2ND layer
AUDIO SETTING DELAY OFF/40MS/110MS/150MS (OFF)
INPUT EMBEDDED/ANALOG/OPTICAL
(EMBEDDED)
SOUND ON/MUTE (ON)
EXIT
OSD SETTING H-POSITION 0~100 (10)
V-POSITION 0~100 (90)
TIMER 0~100 (50)
BACKGROUND 0~100 (50)
DISPLAY INFO/ON/OFF (INFO)
EXIT
FACTORY RESET
INFORMATION
EXIT
12

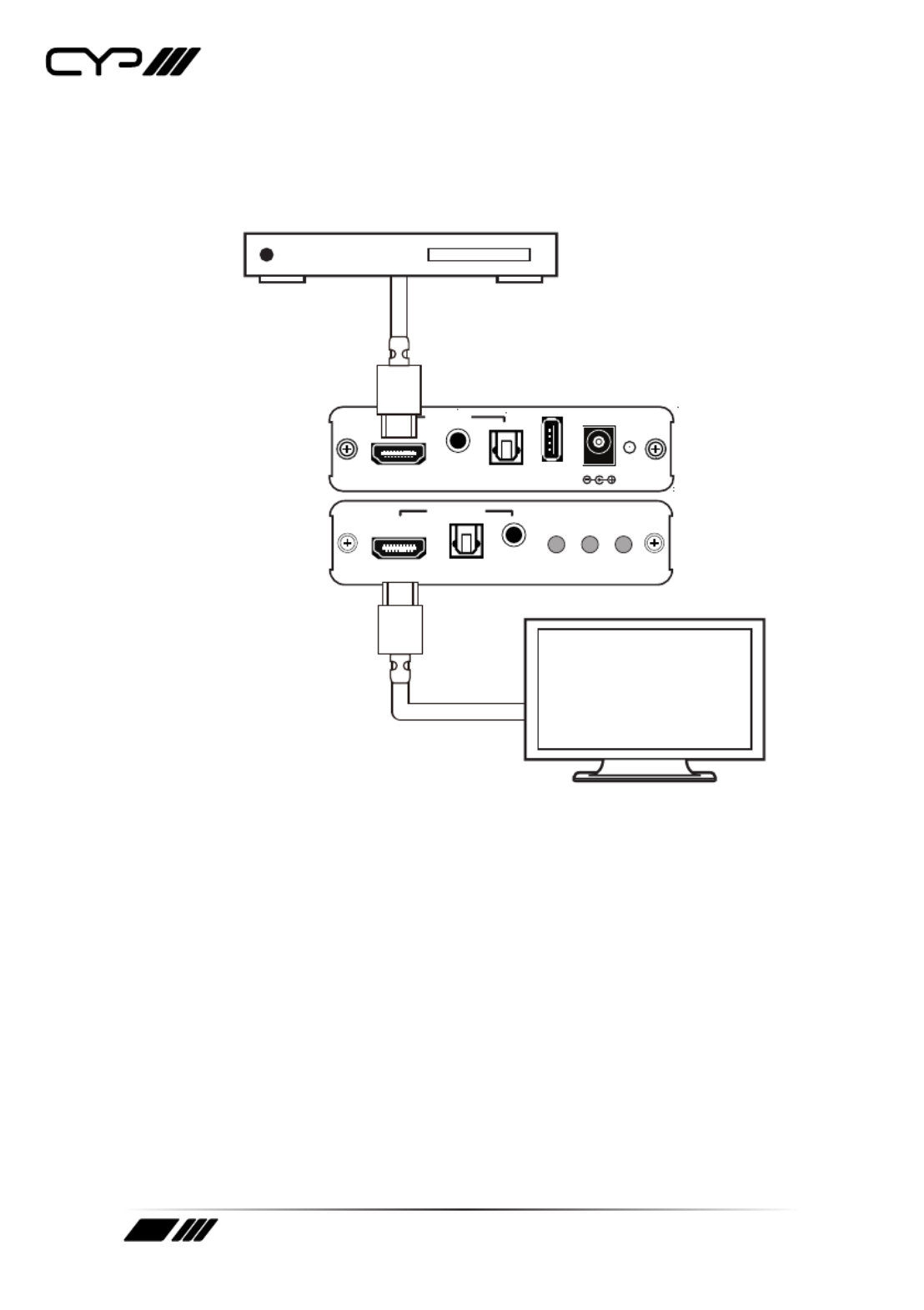

7. CONNECTION DIAGRAM
HDMI AUDIO TOSLINK SERV.
INPUT DC 5V
HDMI AUDIO
MENU +
-
TOSLINK
OUTPUT
HDMI TV
HDMI to HDMI
Scaler Box
DVD
HDMI Cable
HDMI Cable
13
8. SPECIFICATIONS
Video Bandwidth 225MHz / 6.75Gbps
Input ports 1 × HDMI, 1 × 3.5mm Phone Jack,
1 × TOSLINK (Optical), 1 × USB (service only)
Output ports 1× HDMI, 1 × TOSLINK (Optical),
1 × 3.5mm Phone Jack
HDMI output Resolution Up to 1080p & WUXGA@60 (RB)
Audio Sampling Rate Up to 48 kHz / TOSLINK & HDMI
ESD Protection Human body model:
±8kV (air-gap discharge)
±6kV (contact discharge)
Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL
certied)
Dimensions (mm) 102 (W) × 147 (D) × 25(H)/Jack Excluded
102 (W) × 155.75 (D) × 25(H)/Jack Included
Weight (g) 338
Chassis Material Aluminum
Silkscreen Color Black
Operating Temperature 0˚C ~ 40˚C / 32 ˚F ~ 104 ˚F
Storage Temperature −20˚C ~ 60˚C / −4 ˚F ~ 140 ˚F
Relative Humidity 20 ~ 90% RH (non-condensing)
Power Consumption 5.5W
14
8.1 Supporting Timing Chart
INPUT OUTPUT
640×480@60/72/75/85  @60
800×600@56/60/72/75/85  @60
1024×768@60/70/75/85  @60
1280×1024@60/75/85  @60
1400×1050@60  
1600×1200@60  
1280×800@60  
1440×900@60  
1600×900@60RB  
1680×1050@60  @60
1920×1200@60RB  
480i/576i
480p/576p  
720p@50/60  
1080i@50/60  
1080p@50/60  
15
9. ACRONYMS
ACRONYM COMPLETE TERM
HDMI High-Denition Multimedia Interface
WUXGA (RB) Widescreen Ultra Extended Graphics Array (Reduce
blanking)
