Instruction Book for

DASNAP SCREEN

The Da-Lite Difference.

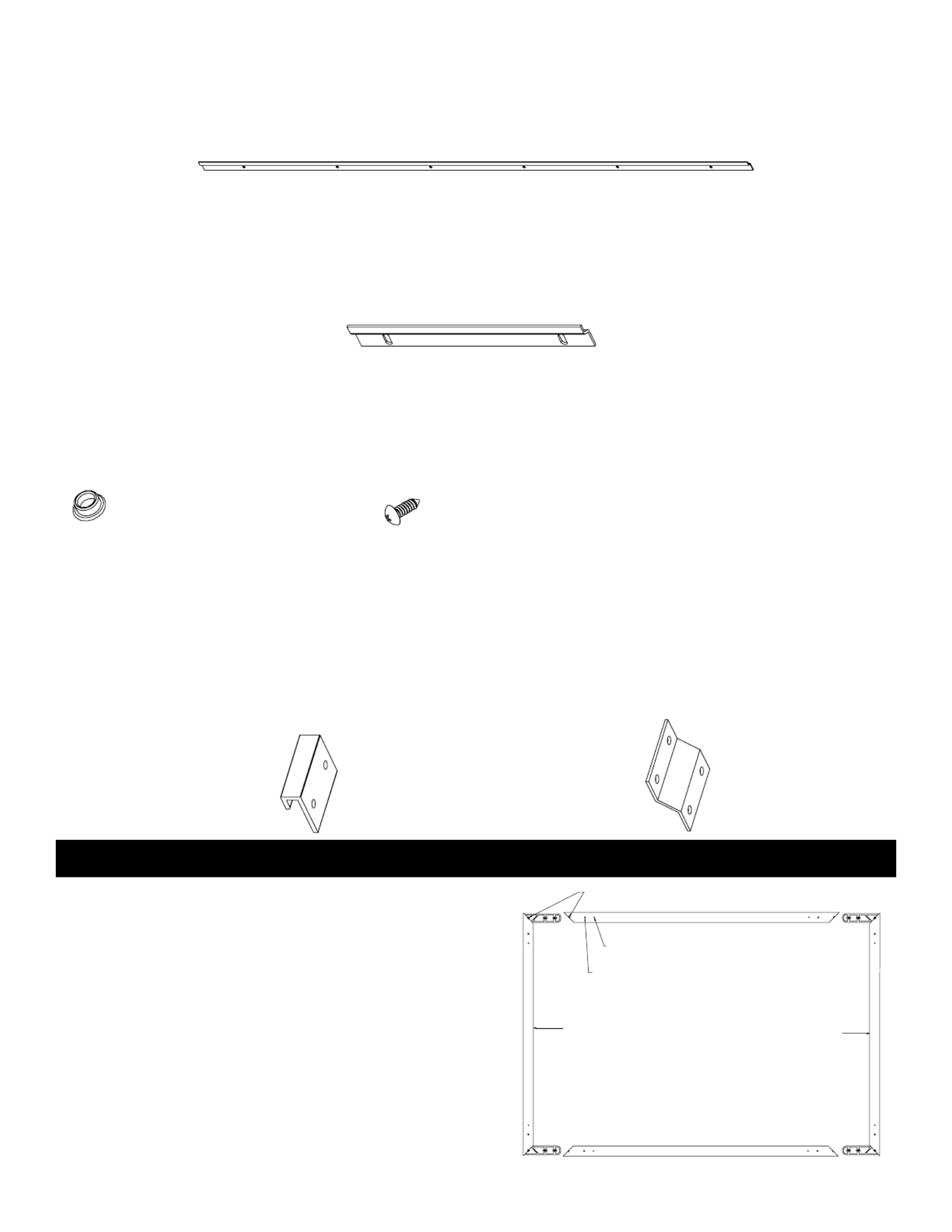

1. Unpack the frame parts from the carton. DO NOT

unroll the screen surface at this time.

2. Slide the frame pieces together at corners. (Note:

Frame assembly holes may not appear to fit properly

at the corners until all fasteners have been attached.

Once fasteners are attached, the frame corners will

be drawn in for a proper fit.) Secure frame pieces

with #10 screws provided. Do not tighten screws

until all are started, then tighten. See Figure 1.

NOTE: The frame pieces are labeled “top” and “bottom”.

Be sure the frame pieces are assembled according to the

labels. This will ensure the snap pattern on the frame and

screen surface will match.

FRAME ASSEMBLY

FIGURE 1. REAR VIEW

SNaP STuD

SIDE

#10 BLaCK SCREW

SIDE

TOP

BOTTOM

SNaP STuD

LARGE WALL BRACKET (47" LONG)

Quantities vary by screen size:

Screens 80" and smaller viewing width = 1

Screens over 80" to 96" viewing width = 2 QUANTITY INCLUDED __________

Screens over 96" viewing width = 3

Installation screws not included

SMALL WALL BRACKET (8" LONG)

Quantity of 1. Only for screens

80" and smaller viewing width QUANTITY INCLUDED __________

Installation screws not included

SNAP STUD

QUANTITY INCLUDED ________

#10 SCREW

QUANTITY INCLUDED ________

FRAME BRACKET

Quantities vary by screen size

Screens 80" and smaller viewing width = 3

Screens over 80" to 96" viewing width = 4

Screens over 96" viewing width = 6

QUANTITY INCLUDED ________________________________

HIGH POWER® FRAME BRACKET

Screens with High Power® viewing surface quantity = 2

Screens with 2-piece side frame rails quantity = 2

Screens 10' to 16' viewing width = 2

QUANTITY INCLUDED ________________________________

USE INSTALLATION

METHOD NUMBER __________
