INSTRUCTION BOOK FOR

Deluxe Model B®

Installation Setting Up Your Screen

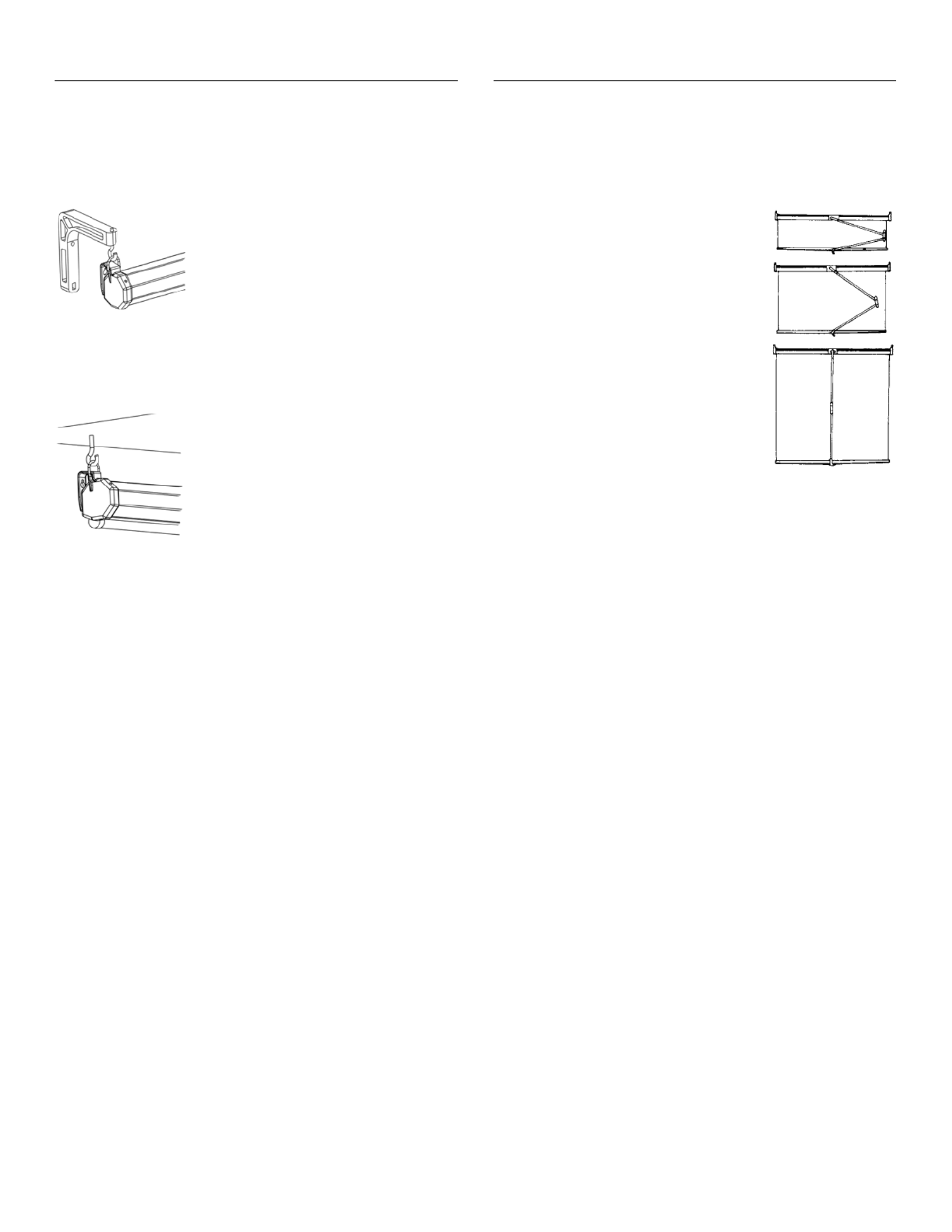

These illustrations (all rear views for simpliication) show how

easy the Deluxe Model B Screen is to operate.

1. Remove plastic protective wrap from handle and tension arm.

2. To start unrolling the picture surface,

pull down on cord pull knob. Then

with hand resting on the handle, pull

screen down.

3. The automatic tension arm moves into

position in a precision-like manner.

4. When surface is down, a simple press

of contour-shaped handle locks it into

position… ready for the show!

5. To re-roll picture surface–press irmly

downward and counter-clockwise on lat

handle to release lock. Permit surface to

re-roll rapidly into case. Control upward

movement by lightly holding handle or

cord pull knob.

PROTECT YOUR SCREEN by keeping it rolled in its case when

not in use. Always examine both front and back of surface before

re-rolling into case to make certain screen is free of dust, dirt or

other foreign matter. Use a very soft duster to gently remove

any foreign particles.

The Deluxe Model B must be suspended from the ceiling or used

with extension type wall brackets to allow room for the

Automatic Tensionizer.

For Wall Mounting

Special extension wall brackets such

as Da-Lite’s No. 6, No. 11 or No. 23

brackets must be used if screen is

to be wall mounted. Check with your

dealer to determine which best its

your needs.

Brackets should be fastened

securely to a solid surface such as a

wooden reinforcement board and

not in the plaster only. Rarely will

wall studs be found to support both

ends of a screen. Various types of

fasteners are available from local

hardware stores.

For Ceiling Suspension

If the screen is to be ceiling

mounted, two screw hooks should

be placed in a beam or other solid

surface. For drop ceilings, Da-Lite’s

TBar Clips may be purchased.

Produkt Specifikationer

Mærke:	Da-Lite
Kategori:	Projektionsskærm
Model:	Deluxe Model B 71350
Vægt:	- g
Produktfarve:	Hvid
Naturligt aspektforhold:	16:9
Monteringstype:	Loft
Betragtningsvinkel:	60 °
Synlig skærmbredde (W):	2340 mm
Synlig skærmhøjde (H):	1320 mm
Samlet skærmstørrelse (højde x bredde):	- cm
Diagonal:	106 "
Skærmforstærkning:	1
Format:	HDTV
Sort fald:	63.5 mm
Boks L1:	2520 mm
Farve på etui:	Hvid
