Side 1/8

INSTRUCTION BOOK FOR

Horizon Electrol®

1. Install screen by raising unit into position between joists at one

end only. Install one lag screw in each mounting bracket.

2. Level unit lengthwise with a carpenter’s level and plumb level.

Secure opposite end.

3. Detach access panel by removing screws (Figure 1).

CAUTION! Do not seal in until screen has been secured in

position and properly tested for satisfactory operation.

ATTENTION! Ne ixez pas l'écran jusqu'à ce qu'il ait été

correctement mis en place et qu'il fonctionne

convenablement.

4. Remove the two screws holding the splitter junction box (Figure 2).

5. Unwrap the supplied 25 ft. RJ14 cord. Plug one end into a QEYE

port on the primary splitter (see wiring diagram).

6. Run the 25 ft. RJ14 card to the back of the wall keypad and plug

into the RJ receptacle.

7. Remove the two screws holding the junction box cover plate.

Install the electrical hookup (see wiring diagram).

NOTE: Must be installed in accordance with the requirements of

the Local Building Codes, the Canadian Electrical Code (CEC),

CAN/CSA C22.1 and the National Electric Code (NEC), NFPA 70.

8. After the electrical connections are completed, replace the

junction box cover plate.

9. Carefully remove tape strips securing picture surface around roller.

CAUTION! Do not cut tape on fabric with knife or any sharp

tool. Pull orange string.

ATTENTION! Ne coupez pas le ruban adhésif sur la toile avec

un couteau ou un outil tranchant. Tirez sur le cordon orange.

10. Carefully remove wood boards securing mask surface to case.

11. Test installation by carefully running picture surface and mask

surfaces up and down several times. Be prepared to stop the

screen. IMPORTANT: Read operating instructions before

testing screen.

NOTE: When rolled down, the picture surface should wrap fully

around the roller. No part of the roller should be exposed. Picture

surface and mask surfaces will automatically stop in the down

position.

CAUTION! Excessive continuous operation may cause

overheating. If this happens, the motors will shut of until they

cool to a normal operating temperature. Duty Cycle of screen

is 1 Min. ON / 3 Min Of.

ATTENTION! Le fonctionnement continu et excessif peut

provoquer une surchaufe.Si cela se produit, les moteurs

s'arrêteront jusqu'à qu'ils se soient refroidis à la température

normale de fonctionnement. Le cycle de fonctionnement est

de 1 min. en marche / 3 min. à l'arrêt.

Pre-Installation

Installation

1. Carefully unpack screen and remove outer wrapping

from case.

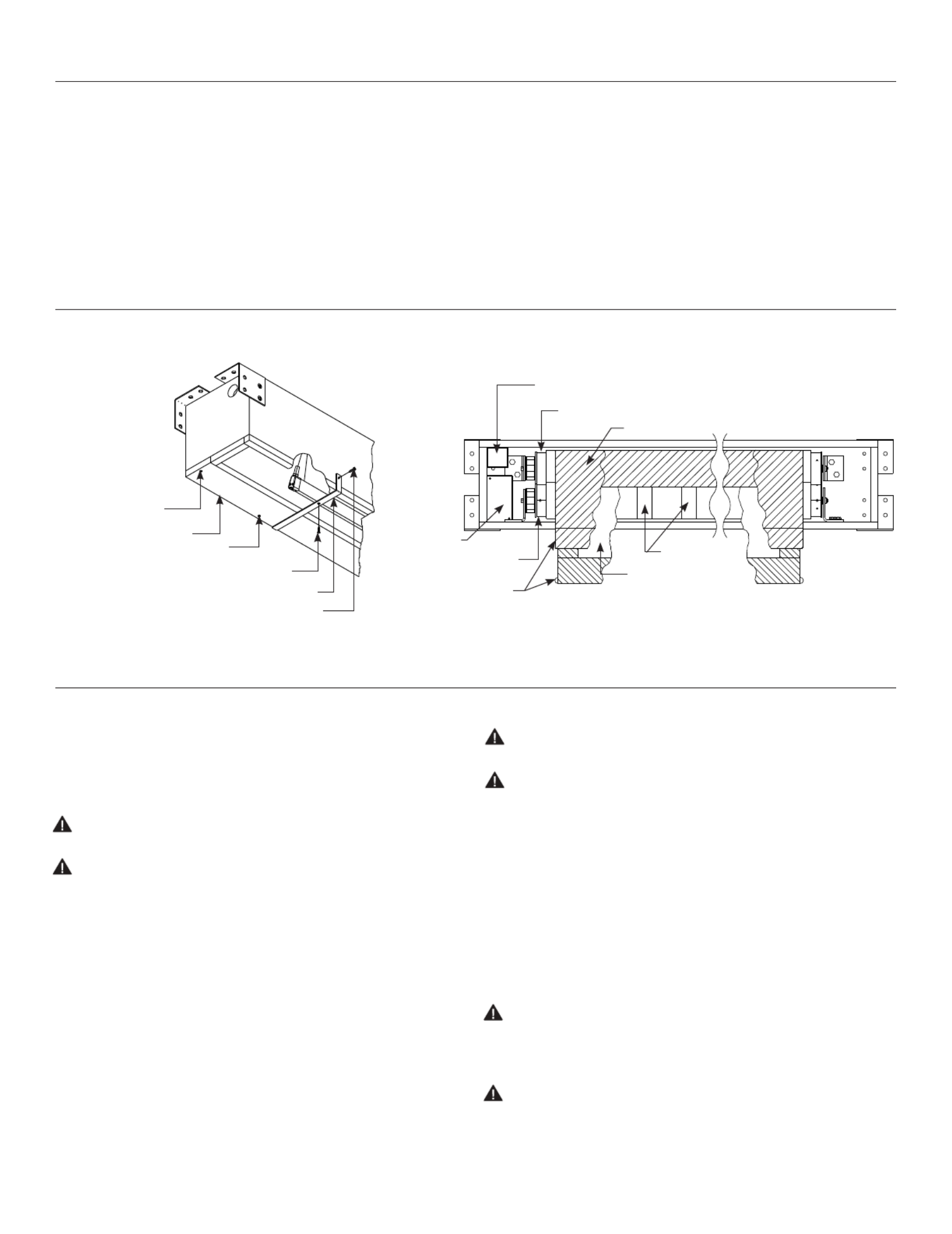

Figure 2

Figure 1

Drywall Screw

Access Panel

Machine Screw

Truss Head Screw

Shipping Bracket

Hex Head Screw

Tape Strips

Picture Surface

Slats

Mask Surface

Mask

Motor

Screen

Motor

Junction Box

Splitter

Junction

Box

2. Make sure to recheck measurements of screen location

before installation.

Important Safety Instructions

When using your video equipment, basic safety precautions should always be followed, including the following:

1. Read and understand all instructions before using.

2. Position the cord so that it will not be tripped over, pulled, or

contact hot surfaces.

3. If an extension cord is necessary, a cord with a current rating at

least equal to that of the appliance should be used. Cords rated

for less amperage than the appliance may overheat.

4. To reduce the risk of electric shock, do not disassemble this

appliance. Contact an authorized service dealer when repair

work is required. Incorrect reassembly can cause electric shock

when the appliance is used subsequently.

5. The use of an accessory attachment not recommended by the

manufacturer may cause a risk of ire, electric shock, or injury to

persons.

Save These Instructions
