Instruction Book for

LARGE COSMOPOLITAN® ELECTROL®

The Da-Lite Difference.

DA-LITE SCREEN COMPANY LLC

3100 North Detroit Street

Post Office Box 137

Warsaw, IN 46581-0137 USA

P 800-622-3737 / 574-267-8101

F 877-325-4832 / 574-267-7804

www.da-lite.com

e-mail: info@da-lite.com

Carefully unpack screen and remove outer wrapping from case.

Remove the black tape and rubber bands from the slat bar after the

case has been installed.

The Large Cosmopolitan® Electrol® comes with brackets to allow for

wall mount or ceiling mount installations. Procedures for each

method are as follows:

Wall Mount

1. The wall mount bracket should be fastened to wall studs or

some reinforcement within the wall. Concrete or brick walls

require special fasteners and anchors.

2. The wall bracket has holes spaced at 16" and 24" to align with

most wall studs.

3. The bracket must be level and plumb.

4. Keep in mind you will need at least 2-3/4" between the ceiling

and the top of the wall mount bracket to be able to position

the case on the bracket.

5. Mount the screen case on the wall bracket as shown in

figure 1. Be sure the case is fully seated on the bracket.

Tighten the stop screws against the wall bracket.

Ceiling Mount

1. Be sure the ceiling has adequate reinforcement to attach the

screen brackets.

2. Attach the ceiling brackets to the wall mount bracket using

the supplied 5/16" x 3/4" bolts, washers and nuts.

3. Position the ceiling bracket assembly on the ceiling and

attach with 5/16" bolts (not supplied). The bolts should be

long enough to pass through the drywall or ceiling tile and

penetrate at least 1-1/2" into the reinforcement in the ceiling.

4. Mount the screen on the wall bracket as shown in figure 2.

Be sure the case is fully seated on the bracket. Tighten the

stop screws against the wall bracket.

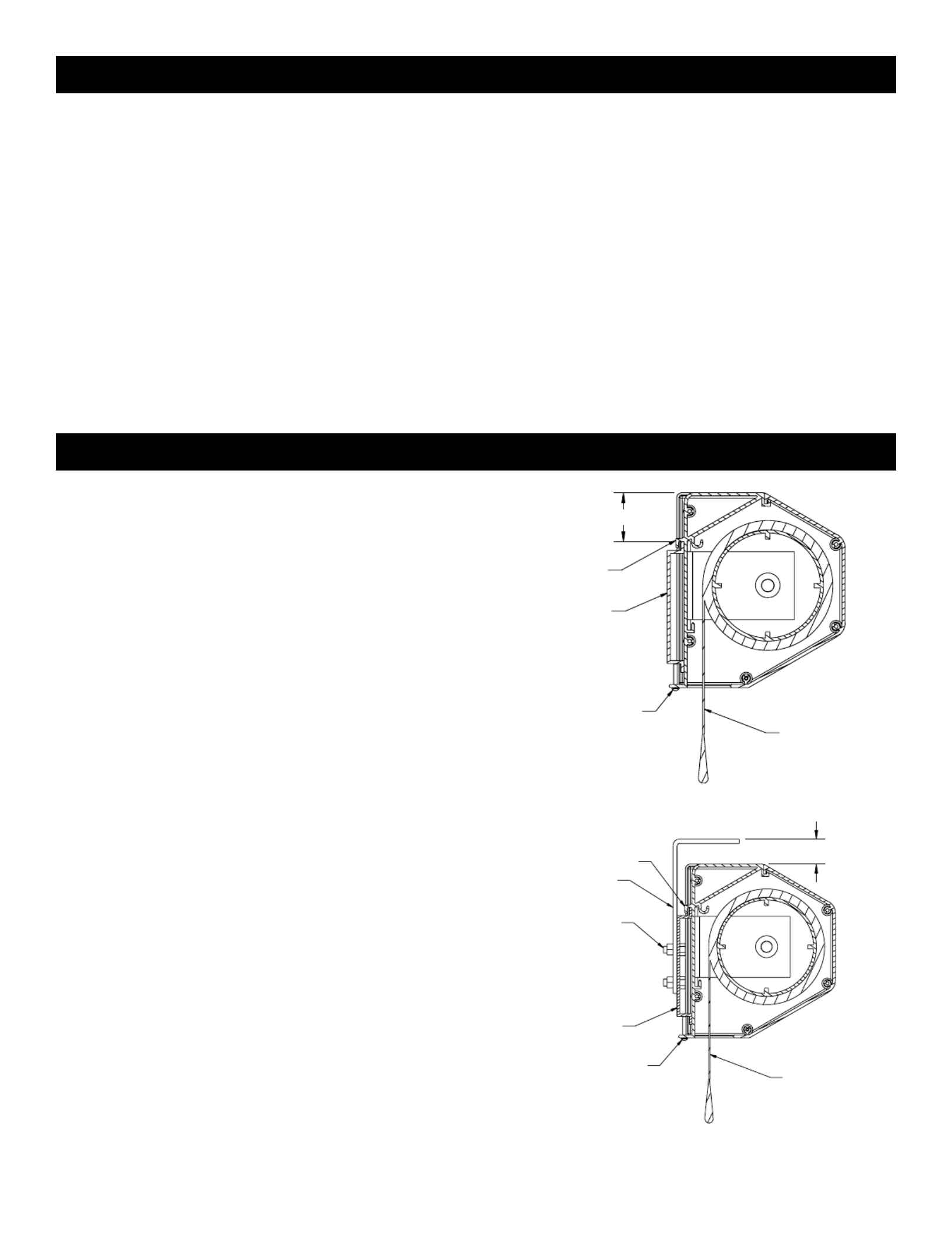

INSTALLATION

CASE HOOK

VIEWING SURFACE

(AUDIENCE SIDE)

FIGURE 2

FIGURE 1

VIEWING SURFACE

(AUDIENCE SIDE)

CASE HOOK

WALL

MOUNT

BRACKET

STOP SCREW

CEILING

MOUNT

BRACKET

5/16x3/4" BOLT,

NUT AND

LOCK WASHER

WALL MOUNT

BRACKET

STOP SCREW

1-1/8"

IMPORTANT SAFETY INSTRUCTIONS

When using your video equipment, basic safety precautions should always be followed, including the following:

1. Read and understand all instructions before using.

2. To reduce the risk of electric shock, do not disassemble this appliance. Contact an authorized service dealer when

repair work is required. Incorrect reassembly can cause electric shock when the appliance is used subsequently.

3. The use of an accessory attachment not recommended by the manufacturer may cause a risk of fire, electric shock,

or injury to persons.

SAVE THESE INSTRUCTIONS
