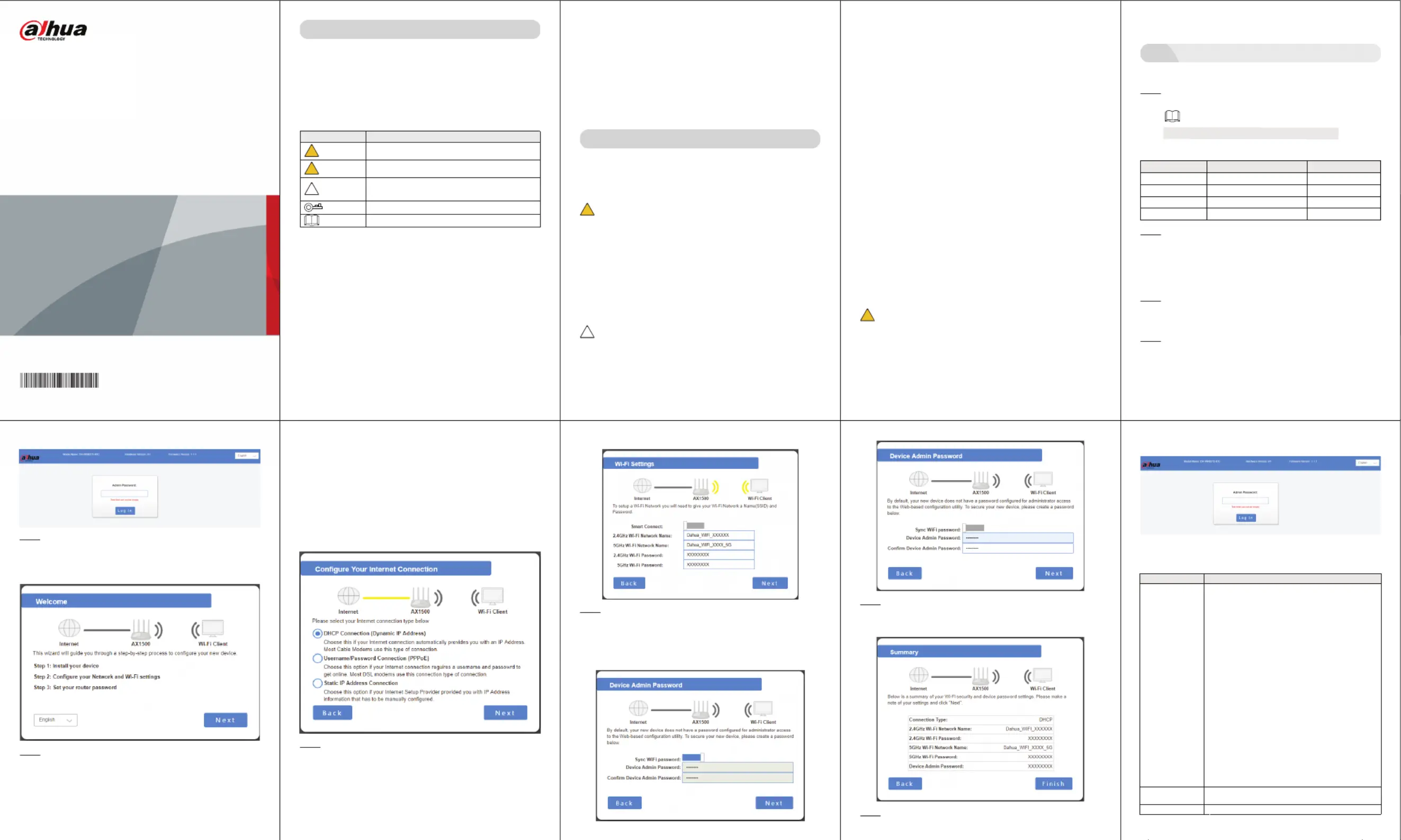

AX1500 Wi-Fi6 Wireless Router

User's Manual

2E202A60911-01

ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. V1.0.0

Foreword

General

This manual introduces the installation, functions and operations of the

AX1500 Wifi6 Wireless Router (hereinafter referred to as "the Device").

Read carefully before using the device, and keep the manual safe for future

reference.

Do not connect the device to two or more kinds of power supplies, to

avoid damage to the device.

●

The device is a class I electrical appliance. Make sure that the power

supply of the device is connected to a power socket with protective

earthing.

●

The device must be grounded by a copper wire with a cross-sectional

area of 2.5 mm2 and a ground resistance no more than 4 Ω.

●

Voltage stabilizer and lightning surge protector are optional depending on

the actual power supply on site and the ambient environment.

●

To ensure heat dissipation, the gap between the device and the

surrounding area should not be less than 10 cm on the sides and 10 cm

on top of the device.

●

When installing the device, make sure that the power plug and appliance

coupler can be easily reached to cut off power.

●

Outdoor models of the device must be securely installed on poles or

brackets that are perpendicular to the ground. Make sure the entire

surface of the device and all its related components are covered with

anti-oxidation coating (such as rust preventive paint), and that the

installation site and height of the device meet the requirements of the

plan.

●

Do not disassemble the device without professional instruction.

●

Operate the device within the rated range of power input and output.

●

Make sure that the power supply is correct before use.

●

Make sure the device is powered off before disassembling wires to avoid

personal injury.

Install outdoor models of the device on top of buildings where there is

little to no direct sunlight to avoid the device becoming overheated. Make

sure to take all necessary measures to protect the device.

●

Face the side with the Ethernet port downwards, and arrange the wires in

a downward direction when installing outdoor models of the device.

●

WARNING

Operation Requirements

Figure 1-4 Wifi settings

Figure 1-5 Wifi settings

Step 6

Enter the webpage, configure the admin Device Admin Password

password according to the prompts. When is Sync WiFi password

enabled, the is automatically Device Admin Password

synchronized to be consistent with the Wi-Fi password. When Sync

WiFi password is disabled, you need to configure the password.

After configuration, click .Next

Figure 1-6 Summary

Step 7 Enter the webpage, check , Summary Connection Type Wi-Fi

Network Name, Wi-Fi Password Finish, and then click .

Step 8 Search for new Wi-Fi name and input password. After the connection,

input "192.168.1.110" to access the device management page.

Table 1-2 Indicator and button

Safety Instructions

The following signal words might appear in the manual.

●

The manual is for reference only. Slight differences might be found

between the manual and the product.

●

We are not liable for losses incurred due to operating the product in ways

that are not in compliance with the manual.

●

The manual will be updated according to the latest laws and regulations

of related jurisdictions. For detailed information, see the paper user’s

manual, use our CD-ROM, scan the QR code or visit our official website.

The manual is for reference only. Slight differences might be found

between the electronic version and the paper version.

●

All designs and software are subject to change without prior written

notice. Product updates might result in some differences appearing

between the actual product and the manual. Please contact customer

service for the latest program and supplementary documentation.

●

There might be errors in the print or deviations in the description of the

functions, operations and technical data. If there is any doubt or dispute,

About the Manual

DANGER

WARNING

CAUTION

NOTE

Signal Words Meaning

Indicates a high potential hazard which, if not avoided, will result

in death or serious injury.

Indicates a medium or low potential hazard which, if not avoided,

could result in slight or moderate injury.

Indicates a potential risk which, if not avoided, could result in

property damage, data loss, reductions in performance, or

unpredictable results.

Provides methods to help you solve a problem or save time.

Provides additional information as a supplement to the text.

TIPS

Figure 1-7 Log in

1.3 Indicator Description

●

Do not unplug the power cord on the side of the device while the adapter

is powered on.

Operation Guide

1.1 Preparations

Step 1 Check if the package is missing or damaged, and contact after-sale

personnel if there is.

Step 2

Connect the broadband access line to the WAN port of the device

and plug the DC power plug into the DC interface of the device. After

powering on, the indicator light is solid red for 10 seconds and then

flashes green, blue and red alternately. The system flashes green

after it starts normally.

Packing list might differ depending on actual products.

Table 1-1 Packing list

No. Name Quantity

1 Router 1

2 Power adapter 1

3 User's manual 1

4 Network cable 1

1.2 Configuring Router

Step 2 Open the browser, input "192.168.1.110" and press the Enter key to

enter the device management webpage. Input the , Admin Password

and then click . Log In

Step 1 Search for wifi signal with phones or laptops, and then connect the

wifi. The name is "Dahua_WIFI_XXXXXX" or

"Dahua_WIFI_XXXXXX_5G" (XXXXXX is the last six digits of the

MAC address of the device), and the defaulted wifi has no password.

Step 3 When logging in to the webpage for the first time, the device will pop

up the setup wizard. You can switch the language according to the

page prompts, and then click after the configuration is Next

completed.

●

If you do not need any settings to access the Internet, select

DHCP Connection.

Step 4 Enter the webpage and Configure Your Internet Connection

change the connection type as required. After configuration, click

Next DHCP Connection .Internet connection type includes

(Dynamic IP Address) Username/Password Connection ,

(PPPoE) Static IP Address Connection, and .

Figure 1-2 Setup wizard

●

If you need to enter the account and password to access the

Internet, select , click , and input broadband account PPPoE Next

and broadband password.

●

If you cannot acquire IP address automatically, consult the

network administrator or broadband operator, select Static IP

Address Connection Next, and then click , and enter the IP

address, subnet mask, gateway address, preferred DNS address,

and alternate DNS address as prompted on the page.

This manual uses as a example.DHCP Connection

Figure 1-3 Internet connection

Step 5 Enter the webpage, configure wifi network name and Wi-Fi Settings

password. When is disabled, the network names of Smart Connect

2.4 GHz and 5 GHz need to be different. After configuration, click

Next.

Indicator and port

Description

Indicator

●

During Startup:

◇

Power indicator: Flashes green.

◇

5G indicator: Off and solid green.

◇

2.4G indicator: Off.

◇

Internet indicator: Off.

◇

LAN indicaotr: Off.

◇

WPS indicaotr: Off.

●

After startup:

◇

Power indicator: Flashes green.

◇

5G indicator: Solid green when 5G is enabled, and

off when disabled.

◇

2.4G indicator: Solid green when 2.4G is enabled,

and off when disabled.

◇

Internet indicator: Solid green when network is

connected, flashes when data is transmitted, and off

when disconnected.

◇

LAN indicaotr: Solid green when at least one device is

LAN port of the router, and off when no device is LAN

port of the router.

◇

WPS indicaotr: Stops flashing when WPS is enabled

and successfully connected to end devices. Stops

flashing in 120 seconds when WPS is not connected

to end

devices. Off when the WPS is disabled.

Reset button

Restore to the default settings. Press and hold for 10

seconds to restore and restart automatically.

WPS button

Press for 1 second to enable the WPS function.

we reserve the right of final explanation.

Important Safeguards and Warnings

Strictly comply with the local electrical safety code and standards. Make

sure the ambient voltage is stable and meets the power supply

requirements of the device.

●

Personnel working at heights must take all necessary measures to

ensure personal safety including wearing a helmet and safety belts.

●

Do not leave outdoor models of the device hanging in the air or facing

outwards when installing onto poles that are on top of buildings.

●

Do not place the device in a place exposed to sunlight or near heat

sources.

●

Put the device in a well-ventilated place, and do not block its ventilation.

●

Use an adapter or cabinet power supply provided by the manufacturer.

●

This section introduces content covering the proper handling of the device,

hazard prevention, and prevention of property damage. Read carefully

before using the device, and comply with the guidelines when using it.

Installation Requirements

Do not connect the power adapter to the device while the adapter is

powered on.

●

WARNING

●

Upgrade the reader software or try other mainstream reader software if

the manual (in PDF format) cannot be opened.

●

All trademarks, registered trademarks and company names in the

manual are properties of their respective owners.

●

Please visit our website, contact the supplier or customer service if any

problems occur while using the device.

●

If there is any uncertainty or controversy, we reserve the right of final

explanation.

Figure 1-1 Log in
