INSTALLATION MANUAL
BDD500B250
High efficiency filter chamber
Installation manual
1
BDD500B250
High efficiency filter chamber
The original documentation is written in English. All other languages
are translations.
Before installation
Leave the installation kit inside its packaging until you reach the
installation site.
Refer to the installation manual of the indoor unit for items not
described in this manual.
Combination table
Accessories
Preparation before installation
Provide a sufficient space for servicing of High efficiency filter or Long
life filter (on either side).

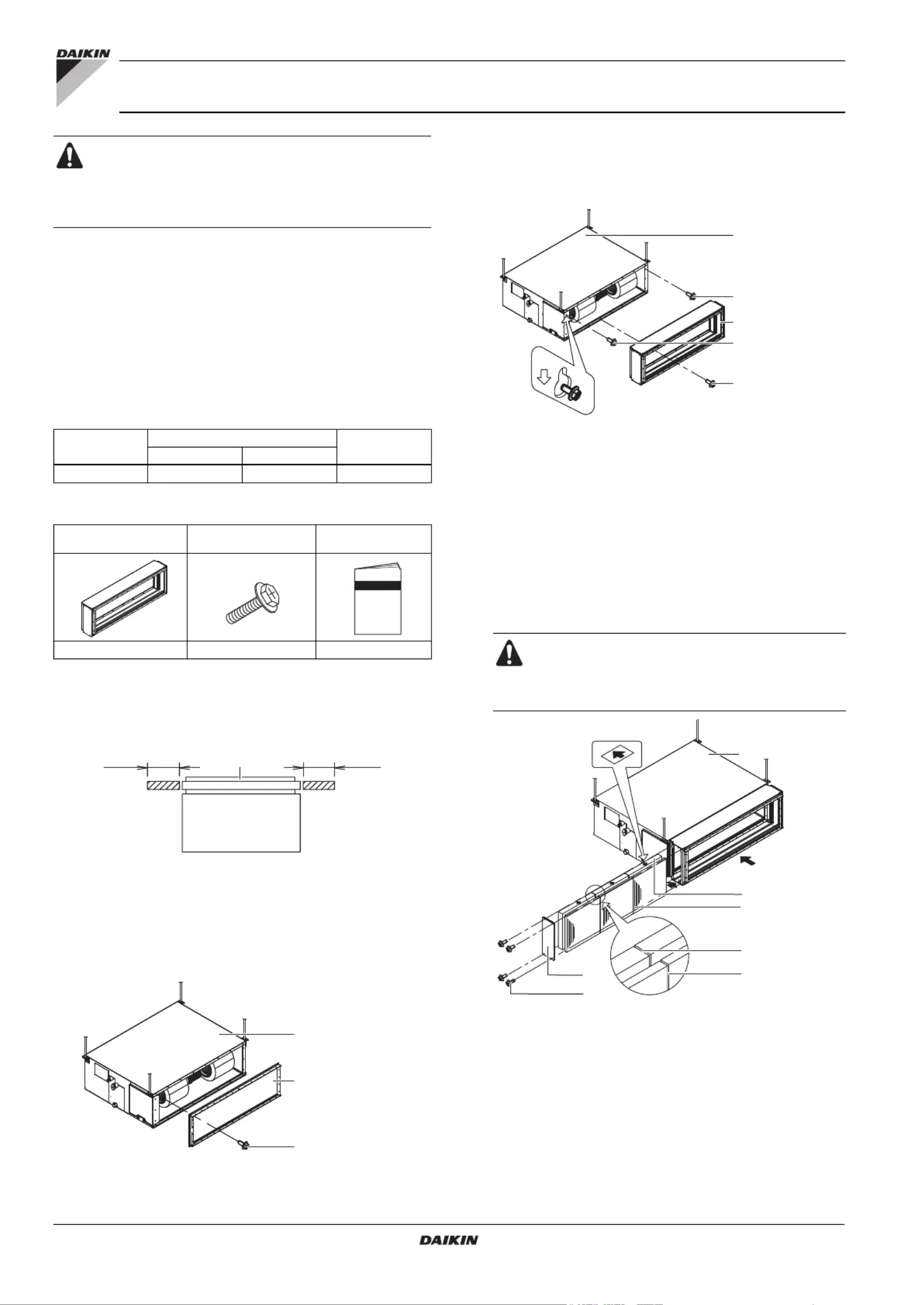

Installation of the filter chamber
1Remove the suction side duct flange from the indoor unit.
2Install the filter chamber to the suction side of the indoor unit.
Pre-tighten 2 screws (accessory) on the indoor unit.
Adjust the filter chamber position and tighten all the filter
chamber inside screws (accessory).
Air filter installation
Prepare the filter (sold separately).
1Remove the filter cover.
2Insert the filter (composed of 3 parts).
3Re-install the filter cover
BDD500B250
High efficiency filter chamber
Installation manual
Read this manual carefully before installation and
follow the instructions contained in it. Do not throw it
away. Keep it for future reference.
"High efficiency filter" or "Long life filter" are NOT part
of this installation kit (sold separately).
High efficiency
filter chamber
Long life filter
65% 90%
BDD500B250 BAFM503A250 BAFH504A250 BAFL502A250
High efficiency filter
chamber
Screws
M5×12
Installation manual
1× 22× 1×
aIndoor unit
bFilter chamber
aIndoor unit
bSuction side duct flange
cFlange screw (example)


(mm)
b
a
a
b
c
aIndoor unit
bPre-tighten screw
cFilter chamber
dInside screw (example)
Make sure arrows on the High efficiency filter
correspond with air flow direction.
Make sure all 3 parts of filter are properly connected
by hook-and-loop fastener tape.
aIndoor unit
bAir flow direction
cHigh efficiency filter (sold separately)
dLong life filter (sold separately)
eHook-and-loop fastener tape connection
fFilter cover
gScrew for filter cover
a
b
c
d
b
e
b
d
a
e
c
f
g
