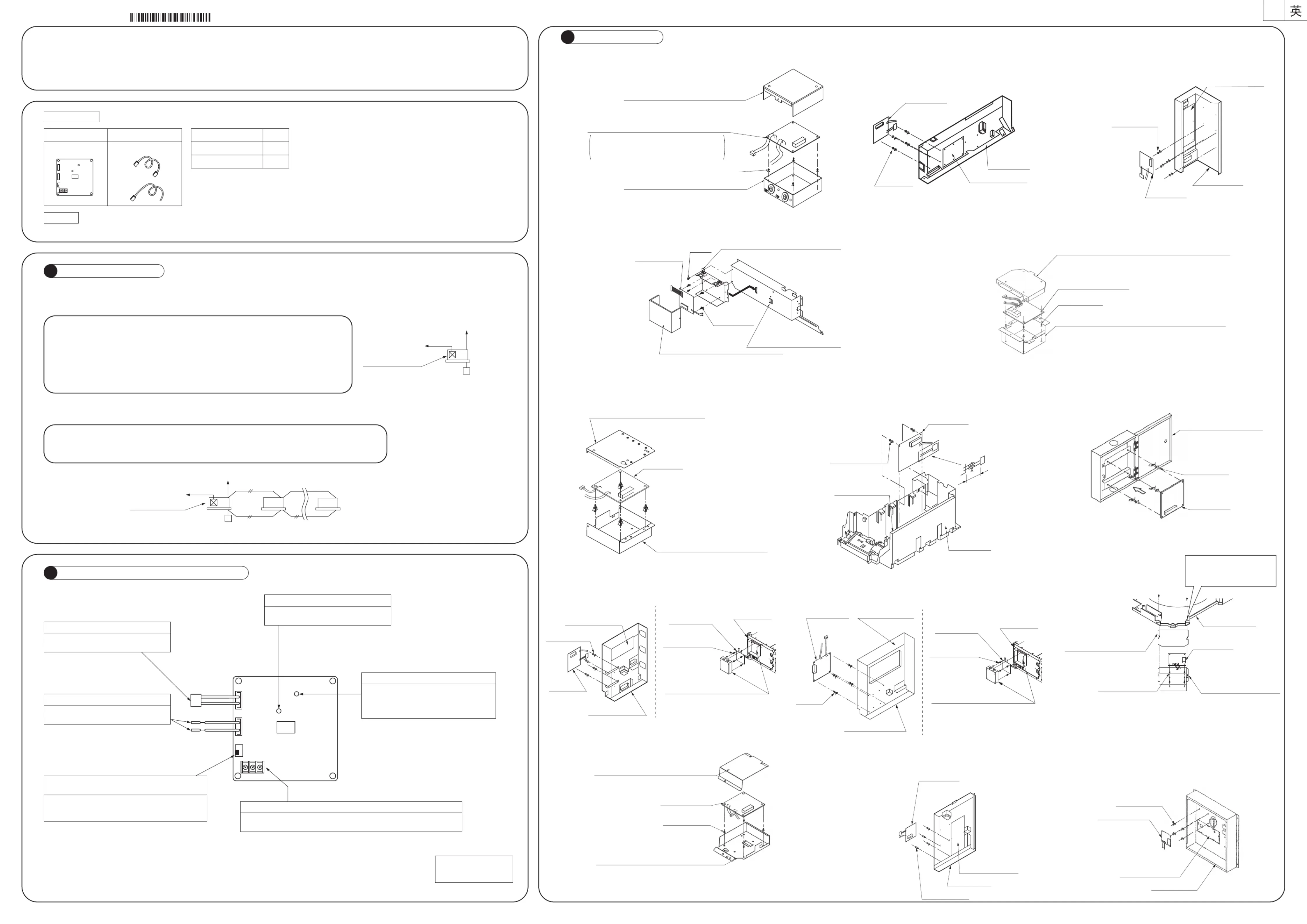

Side 1/2
x 1
(1)
(2)
x 1 each
To central control monitor
Adapter
To outdoor unit
Indoor unit
Remote controller
To outdoor unit
Adapter
Installation box for adapter PCB
KRP4A(A)95 (Optional accessory)
PCB support
Adapter
Screw
(BRP7A52)
Lid of installation box
KRP4A(A)95 (Optional accessory)
Control box (reverse side)
NOTE: Installation box for adapter PCB is required
to install the adapter.
PCB support
Indoor unit PCB
Adapter
(BRP7A51)
Clamp as shown in the
drawing below.
Approx. 150
* If left unclamped,
the unit may
malfunction.
Control box
Control box
PCB support
Indoor unit PCB
Adapter
(BRP7A51)
Lid of installation box
KRP1D93A (Optional accessory)
Adapter
(BRP7A52)
PCB support
Installation box for adapter PCB
KRP1D93A (Optional accessory)
See installation
manual of KRP4A96
(Optional accessory).
PCB support
Indoor unit PCB
Control box
Adapter
(BRP7A51)
Lid of installation box
KRP1B(A)101 • KRP1BB101 •
KRP1BC101 (Optional accessory)
KRP1B(A)101 • KRP1BB101 •
KRP1BC101 (Optional accessory)
Adapter
PCB support
Installation box for adapter PCB
NOTE: Installation box for adapter PCB is required to install the adapter.
Adapter
(BRP7A51)
PCB
support
Indoor unit PCB
Control box
BC
X1A
X2A
B1 B2
SERVICE MONITOR (HAP: Green)
This lamp flashes while the CPU is
operating normally.
POWER SUPPLY CONNECTOR
TRANSMISSION WIRING (P1, P2)
To P1 and P2 on indoor unit
terminal board
CHANGEOVER SWITCH (SS1) (Factory set :
VOLT.)
Set to “NON VOLT” when using a voltage free
normally-open contact on the remote control
input terminal board (XIM).
REMOTE CONTROL INPUT TERMINAL BOARD (X1M)
Connects control input from the remote control (central control
monitor, timer, etc.).
ERROR MONITOR (H1P: Red)
This lamp lights up when trouble
occurs in electrical wiring or setting
switches. Remote control is disabled.
(This LED is off in normal operation.)
For details, see
ELECTRIC WIRING
on the rear side.
Indoor unit PCB
PCB support
Control box
Adapter
(BRP7A51)
Lid of installation box
KRP1D(A)98 • KRP1H98(A) (Optional accessory)
PCB support
Adapter (BRP7A53)
Installation box for adapter PCB
KRP1D(A)98 • KRP1H98(A) (Optional accessory)
Installation box for adapter PCB
Installation box for
adapter PCB
KRP1C96 (Optional accessory)
Adapter
(BRP7A51)
KRP1C96 (Optional accessory)
NOTE: Installation box for adapter PCB is required
to install the adapter.
Installation box for
adapter PCB
KRP4AA93 • KRP4B93
(Optional accessory)
PCB support
Adapter
(BRP7A51)
Installation box
for adapter PCB
KRP1B(A)97 • KRP1C97
(Optional accessory)
Installation box
for adapter PCB
KRP1B(A)97 • KRP1C97
(Optional accessory)
Adapter
(BRP7A53)
PCB support
NOTE: Installation box for adapter PCB is required
to install the adapter.
PCB support
Adapter
(BRP7A51)
Indoor unit PCB
Control box
*This is rear-mounting
work with the bell
mouth removed from
the indoor unit.
Open a hole in the recess
and tighten the parts with a
screw. (2 locations)
Bell mouth for
indoor unit
NOTE: Installation box is necessary for second adapter.
Refer to the option list or the catalogue.
¢¢Wall mounted unit (VRV + Sky Air)²²
To connector on indoor unit PCB
(SKY AIR···X35A, VRV···X18A/X35A)
NOTE: Installation box for adapter PCB is
required to install the adapter.
NOTE: Installation box for adapter PCB is
required to install the adapter.
4-way (600 x 600): ........... BRP7A53
Vertical duct, Slim duct: ... BRP7A54
MSP Duct: ....................... BRP7A51
Indoor unit
Adapter
(BRP7A51)
PCB support
Installation box for
adapter PCB
KRP1B(A)101, KRP1BC101
(Optional accessory)
PCB
support
Adapter
(BRP7A51)
Indoor unit PCB
Control box
Indoor unit
Adapter
(BRP7A51)
PCB support
Installation box for
adapter PCB
KRP1B(A)101, KRP1BC101
(Optional accessory)
En.
1P368481-1B
Daikin Air Conditioner
Digital inputs adapter
Installation manual BRP7A51
• • • 52 53 54
Accessories Check if the following accessories are included in the kit.
NOTES
PCB support
Clamp
Installation manual
x 4
x 3
x 8
z Kits vary according to applicable models.
z A special adapter fixing plate and box are required for some models, refer to the option list or catalogue.
Adapter
Relay harness
1SYSTEM OUTLINE
2NAMES OF PARTS AND FUNCTION
This kit enables remote control (ON/OFF control) and can be used with the following systems though it cannot be used in conjunction
with other optional controllers for centralized control.
1. Individual control (Each indoor unit is controlled individually.)
2. Group control (Multiple indoor units are controlled as a group.)
This system requires the following parts.
z Adapter ........................................
BRP7A51, 52, 53 or 54
z Remote controller ........................ BRC1H* / BRC1E*
(For operation control)
(Ex.) When individually controlling 8 FHYC71F units
BRP7A51 x 8 kits
BRC1H* x 8 kits
This system requires the following parts.
z Adapter ............................................................ BRP7A51, 52, 53 or 54
z Remote controller (For operation control) ........
BRC1H* / BRC1E*
3INSTALLATION
¢¢Ceiling mounted cassette units: 4-way (600 x 600)²²
¢¢Concealed ceiling units (duct units): VRV Slim Duct, MSP Duct²²
¢¢Floor standing units (VRV): Vertical Duct²²
¢¢Concealed ceiling units (duct units): Sky Air MSP Duct²²
¢¢Ceiling mounted cassette units: Round flow (800 x 800)²²¢¢ ²²Floor standing unit (Sky Air)
1P368481-1B
¢¢ ²² ¢¢Ceiling mounted corner cassette Floor standing units (VRV): Concealed²²
¢¢Floor standing units (VRV): Free-standing²²
¢¢Concealed ceiling units (duct units): VRV MSP Duct²²
¢¢Concealed ceiling units (duct units):
VRV High ESP class 50~125²²
¢¢Ceiling suspended units: 1-way blow Concealed ceiling units (duct units): ²² ¢¢
VRV High ESP class 200 + 250²²
¢¢Wall mounted unit (Sky Air)²²¢¢Ceiling mounted cassette units: 2-way blow²²
¢¢Ceiling suspended unit: 4-way blow²²
