Installation manual
Low sound enclosure
English
Installationsanleitung
Schallschutzgehäuse
Deutsch
Manuel d'installation
Enceinte à réduction sonore
Français
Installatiehandleiding
Geluidsarme behuizing
Nederlands
Manual de instalación
Pantalla de aislamiento acústico
Español
Manuale di installazione
Involucro di insonorizzazione
Italiano
Εγχειρίδιο εγκατάστασης
Περίβλημα χαμηλού θορύβου
Ελληνικά
Manual de instalação
Isolamento sonoro
Portugues
Руководство по установке
Звукоизоляционный кожух
русский
Montaj kılavuzu
Düşük ses muhafazası
Türkçe
Installation manual
Low sound enclosure
EKLN140A1
Table of contents
Installation manual
2
EKLN140A1
Low sound enclosure
4P650154-1A – 2021.04
Table of contents
1
About the documentation 2
1.1
About this document.................................................................. 2
2
About the box 2
2.1
Parts .......................................................................................... 2
2.2
Accessories ............................................................................... 2
3
About the unit and options 3
3.1
Possible combinations............................................................... 3
3.2
Possible options ........................................................................ 3
4
Unit installation 3
4.1
Preparing the installation site .................................................... 4
4.2
About fitting the enclosure......................................................... 4
4.2.1
About installing the base frame................................... 4
4.2.2
About installing the support frame .............................. 4
4.2.3
About installing the outdoor unit.................................. 5
4.3
Wiring ........................................................................................ 6
4.3.1
To prepare the wiring .................................................. 6
4.3.2
To position the wiring .................................................. 6
4.4
About fixing the outdoor unit...................................................... 7
4.4.1
To fix the outdoor unit ................................................. 7
4.5
About installing the slats frame ................................................. 7
4.5.1
To install the slats frame ............................................. 7
4.6
About installing the slats............................................................ 7
4.6.1
To install the lower slats.............................................. 7
4.6.2
To install the intermediate slats .................................. 8
4.6.3
To install the upper slats ............................................. 8
4.7
About installing the panels and sealing strips ........................... 9
4.7.1
To install the top panel................................................ 9
4.7.2
To install the side panels and sealing strips ............... 9
5
Configuration 9
6
Maintenance 10
1
About the documentation
1.1
About this document
Target audience
Authorised installers
Documentation set
This document is part of a documentation set. The complete set
consists of:
▪ Option installation manual:
▪ Installation instructions
▪ Format: Paper (in the box of the option)
Latest revisions of the supplied documentation may be available on
the regional Daikin website or via your dealer.
The original documentation is written in English. All other languages
are translations.
Technical engineering data
▪ A subset of the latest technical data is available on the regional
Daikin website (publicly accessible).
▪ The full set of latest technical data is available on the Daikin
Business Portal (authentication required).
2 About the box
NOTICE
Before installation, check the packaging and parts for
damage. Make sure that the shipment is complete.
2.1
Parts
The box contains the following parts:
▪ Base frame profile, front (1×)
▪ Base frame profile, rear (1×)
▪ Base frame profile, left (1×)
▪ Base frame profile, right (1×)
▪ Support beam, front (1×)
▪ Support beam, rear (1×)
▪ Support partition, upper (1×)
▪ Support partition, lower (1×)
▪ Support frame sealing pad (1×)
▪ Vertical support, left (2×)
▪ Vertical support, right (2×)
▪ Lower slat (2×)
▪ Intermediate slat (8×)
▪ Upper slat (2×)
▪ Top panel (1×)
▪ Side panel, left (1×)
▪ Side panel, right (1×)
▪ Sealing strips

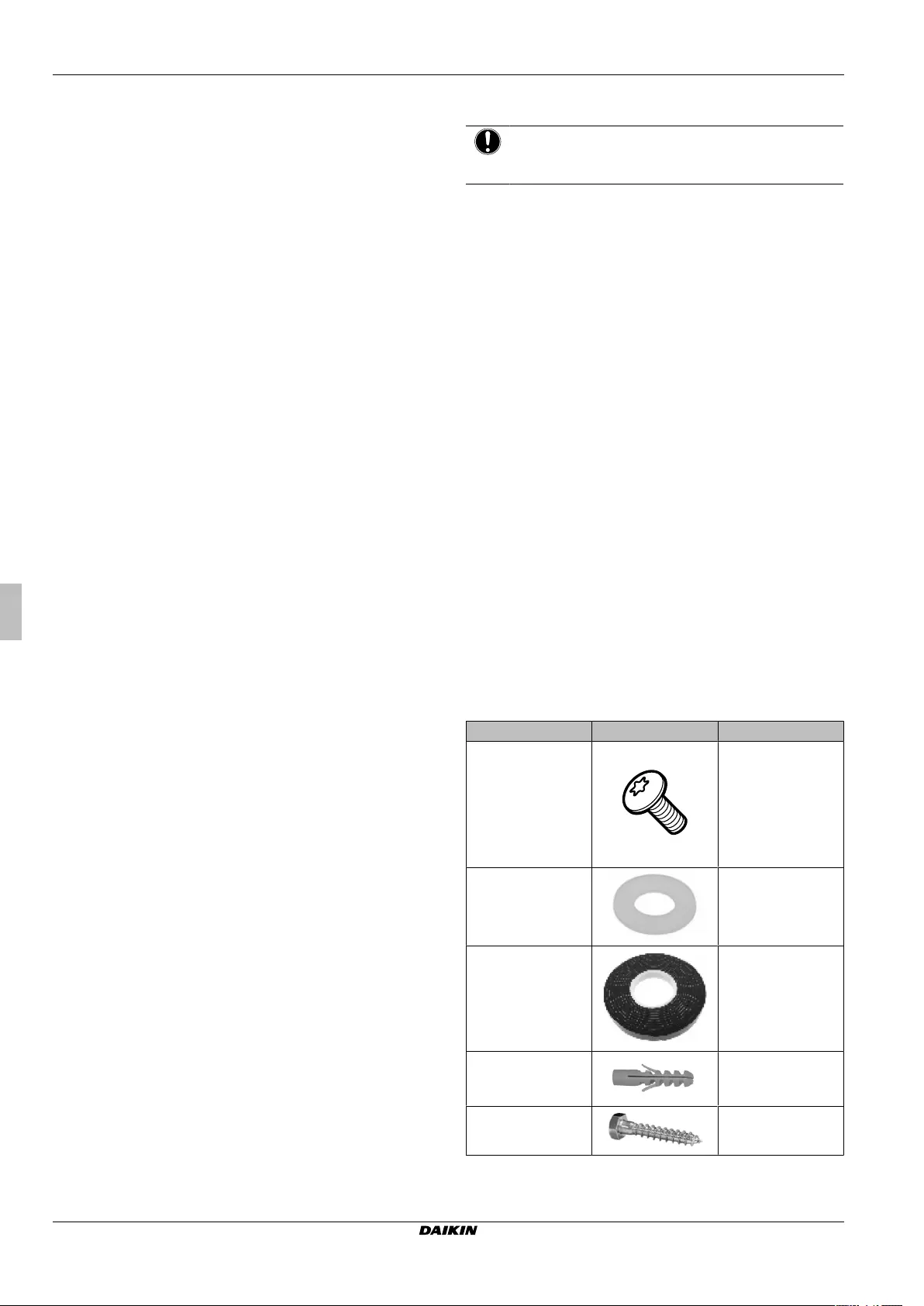

2.2
Accessories
The box contains the following accessories:
Accessories
(a)
Illustration Description
A
Torx screw M5×20
B
Washer M5 nylon
DIN 125‑1A
C Sealing tape 20mm
D
Nylon plug 8×40
E Lag screw 6×50
