Side 1/12

Installation manual

Daikin room air conditioner English

Installation manual

Daikin room air conditioner

CTXA15A2V1BW

FTXA20A2V1BW

FTXA25A2V1BW

FTXA35A2V1BW

FTXA42A2V1BW

FTXA50A2V1BW

CTXA15(A)(B)2V1BS

FTXA20(A)(B)2V1BS

FTXA25(A)(B)2V1BS

FTXA35(A)(B)2V1BS

FTXA42(A)(B)2V1BS

FTXA50(A)(B)2V1BS

CTXA15(A)(B)2V1BT

FTXA20(A)(B)2V1BT

FTXA25(A)(B)2V1BT

FTXA35(A)(B)2V1BT

FTXA42(A)(B)2V1BT

FTXA50(A)(B)2V1BT

CTXA15B2V1BB

FTXA20B2V1BB

FTXA25B2V1BB

FTXA35B2V1BB

FTXA42B2V1BB

FTXA50B2V1BB

Table of Contents

Installation manual

CTXA15+FTXA25~50(A)(B)2V1B(W)(S)(T)(B)

Daikin room air conditioner

3P482320-7P – 2019.10

Table of Contents

1 About the documentation 2

1.1 About this document.................................................................. 2

2 About the box 2

2.1 Indoor unit ................................................................................. 2

2.1.1 To remove the accessories from the indoor unit......... 2

3 About the unit 3

3.1 System layout............................................................................ 3

3.2 Operation range ........................................................................ 3

3.3 About the wireless LAN adapter................................................ 3

3.3.1 Precautions when using the wireless adapter............. 3

3.3.2 Basic parameters ........................................................ 3

4 Preparation 3

4.1 Preparing the installation site .................................................... 3

4.1.1 Installation site requirements of the indoor unit .......... 3

5 Installation 4

5.1 Opening the indoor unit ............................................................. 4

5.1.1 To open the front panel............................................... 4

5.1.2 To close the front panel .............................................. 4

5.1.3 To remove the front panel........................................... 4

5.1.4 To open the service cover........................................... 4

5.1.5 To remove the front grille............................................ 4

5.1.6 To re-install the front grille .......................................... 5

5.1.7 To remove the electrical wiring box cover................... 5

5.2 Installing the indoor unit ............................................................ 5

5.2.1 To install the mounting plate....................................... 5

5.2.2 To drill a wall hole ....................................................... 6

5.2.3 To remove the pipe port cover.................................... 6

5.2.4 To provide drainage.................................................... 7

5.3 Connecting the refrigerant piping .............................................. 7

5.3.1 To connect the refrigerant piping to the indoor unit .... 7

5.4 Connecting the electrical wiring................................................. 7

5.4.1 To connect the electrical wiring on the indoor unit...... 8

5.4.2 To connect optional accessories (wired user

interface, central user interface, etc.).......................... 8

5.5 Finishing the indoor unit installation .......................................... 8

5.5.1 To insulate the drain piping, refrigerant piping and

interconnection cable .................................................. 8

5.5.2 To pass the pipes through the wall hole ..................... 9

5.5.3 To fix the unit on the mounting plate........................... 9

6 Commissioning 9

6.1 Checklist before commissioning................................................ 9

6.2 To perform a test run................................................................. 9

6.2.1 To perform a test run using the user interface............ 10

7 Technical data 10

7.1 Wiring diagram .......................................................................... 10

7.1.1 Unified wiring diagram legend..................................... 10

1 About the documentation

1.1 About this document

INFORMATION

Make sure that the user has the printed documentation and

ask him/her to keep it for future reference.

Target audience

Authorised installers

INFORMATION

This appliance is intended to be used by expert or trained

users in shops, in light industry, and on farms, or for

commercial and household use by lay persons.

Documentation set

This document is part of a documentation set. The complete set

consists of:

▪General safety precautions:

▪ Safety instructions that you MUST read before installing

▪ Format: Paper (in the box of the indoor unit)

▪Indoor unit installation manual:

▪ Installation instructions

▪ Format: Paper (in the box of the indoor unit)

▪Installer reference guide:

▪ Preparation of the installation, good practices, reference data,…

▪ Format: Digital files on http://www.daikineurope.com/support-

and-manuals/product-information/

Latest revisions of the supplied documentation may be available on

the regional Daikin website or via your dealer.

The original documentation is written in English. All other languages

are translations.

Technical engineering data

▪ A of the latest technical data is available on the regionalsubset

Daikin website (publicly accessible).

▪ The of latest technical data is available on the Daikinfull set

Business Portal (authentication required).

2 About the box

2.1 Indoor unit

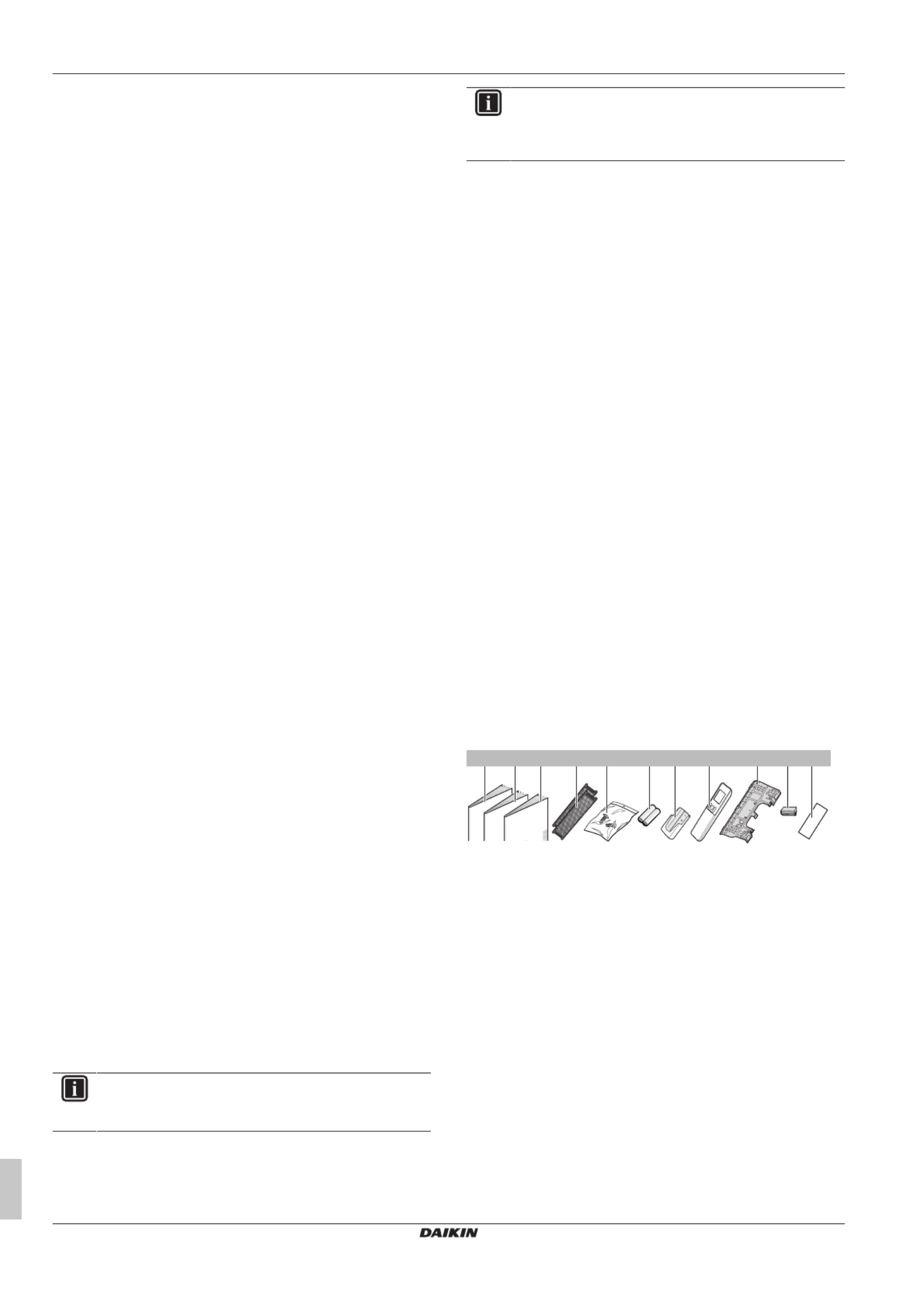

2.1.1 To remove the accessories from the

indoor unit

1×2× 2× 2×1× 1× 1×1× 1× 1×

edba c f g

2×

j kh i

aInstallation manual

bOperation manual

cGeneral safety precautions

dTitanium apatite deodorizing filter and silver particle filter

(Ag-ion filter)

eIndoor unit fixing screw (M4×12L). Refer to "5.5.3To fix the

unit on the mounting plate"[49].

fDry battery AAA.LR03 (alkaline) for user interface

gUser interface holder

hUser interface

iMounting plate

jScrew cover

kSpare SSID sticker with release paper (attached to the

unit)

▪ Do NOT throw away the spare sticker. KeepSpare SSID sticker.

it in a safe place in case it is needed in future (e.g. in case the

front grille was replaced attach it to the new front grille).

Produkt Specifikationer

Mærke:	Daikin
Kategori:	Klimaanlæg
Model:	FTXA25AW
Type:	Klimaanlæg indendørs enhed
Brugervejledning:	Ja
Produktfarve:	Hvid
Wi-Fi:	Ja
Strømforbrug (standby):	0.5 W
Inverter-teknologi:	Ja
Klimaanlæg funktioner:	Circulation,Cooling,Dehumidifying,Fan,Heating,Ventilating
Kølekapacitet (maks.):	10900 BUT/t
Kølekapacitet i watt (nominel):	2500 W
Kølekapacitet i watt (maks.):	3200 W
Opvarmingskapacitet i watt (maks.):	4700 W
Energiforbrug pr. time (køling):	- kWh
Energiforbrug pr. time (opvarmning):	- kWh
Årligt energiforbrug (køling):	101 kWh
Fjernbetjening inkluderet:	Ja
Fjernbetjent:	Ja
Luftfilter:	Ja
Kølemedium:	R32
Komfortabel søvntilstand:	Ja
Sæsonbestemt effektivitetsvurdering (køling) (SEER):	8.74
Sæsonbestemt virkningsgrad (opvarmning) (SCOP) (Gennemsnitlig fyringssæson):	5.15
Køling energieffektivitet (EER, W/W):	4.46
Opvarming energieffektivitet (COP, W/W):	5
Kølekapacitet i watt (min.):	1300 W
Varmekapacitet i watt (nominel) (Varmere fyringssæsonen):	2800 W
Varme kapacitet i watt (nominel) (Gennemsnitlig fyringssæson):	- W
Varmekapacitet i watt (nominel) (Koldere fyringssæsonen):	- W
Opvarmningskapacitet i watt (min.):	1300 W
Energieffektivitetsklasse (køling):	A+++
Energiforbrug (opvarmning) (Varmere fyringssæson):	A+++
Energiforbrug (opvarmning) (Gennemsnitlig fyringssæson):	A+++
Årligt energiforbrug (opvarmning) (Varmere fyringssæsonen):	418 kWh
Årligt energiforbrug (opvarmning) (Gennemsnitlig fyringssæson):	666 kWh
Årligt energiforbrug (opvarmning) (Koldere fyringssæsonen):	- kWh
Designbelastning (køling):	2.5 kW
Design belastning (opvarmning) (Varmere fyringssæsonen):	- kW
Designbelastning (opvarmning) (Gennemsnitlig fyringssæson):	2.8 kW
Design belastning (opvarmning) (Koldere fyringssæsonen):	- kW
Indendørs enhedstype:	Kan monteres på væggen
Støjniveau for indendørs enhed (høj hastighed):	57 dB
Antal indendørs enheder:	1
Støjniveau for udendørs enhed:	- dB
Sæsonbestemt virkningsgrad (opvarmning) (Anvendelsesområde) (Varmere fyringssæsonen):	6.26
Opvarmningskapacitet (maks.):	16000 BUT/t
Strømforbrug (køling) (maks.):	780 W
Strømforbrug (opvarmning) (maks.):	1220 W
Opvarmingskapacitet (min.):	4400 BUT/t
Energiforbrug (opvarmning) (Koldere fyringssæson):	A+++
Kølekapacitet (min.):	4400 BUT/t
Nuværende (køling):	2.6 A
Nuværende (opvarmning):	2.6 A
Strømforbrug (køling) (min.):	270 W
Strømforbrug (opvarmning) (min.):	250 W
