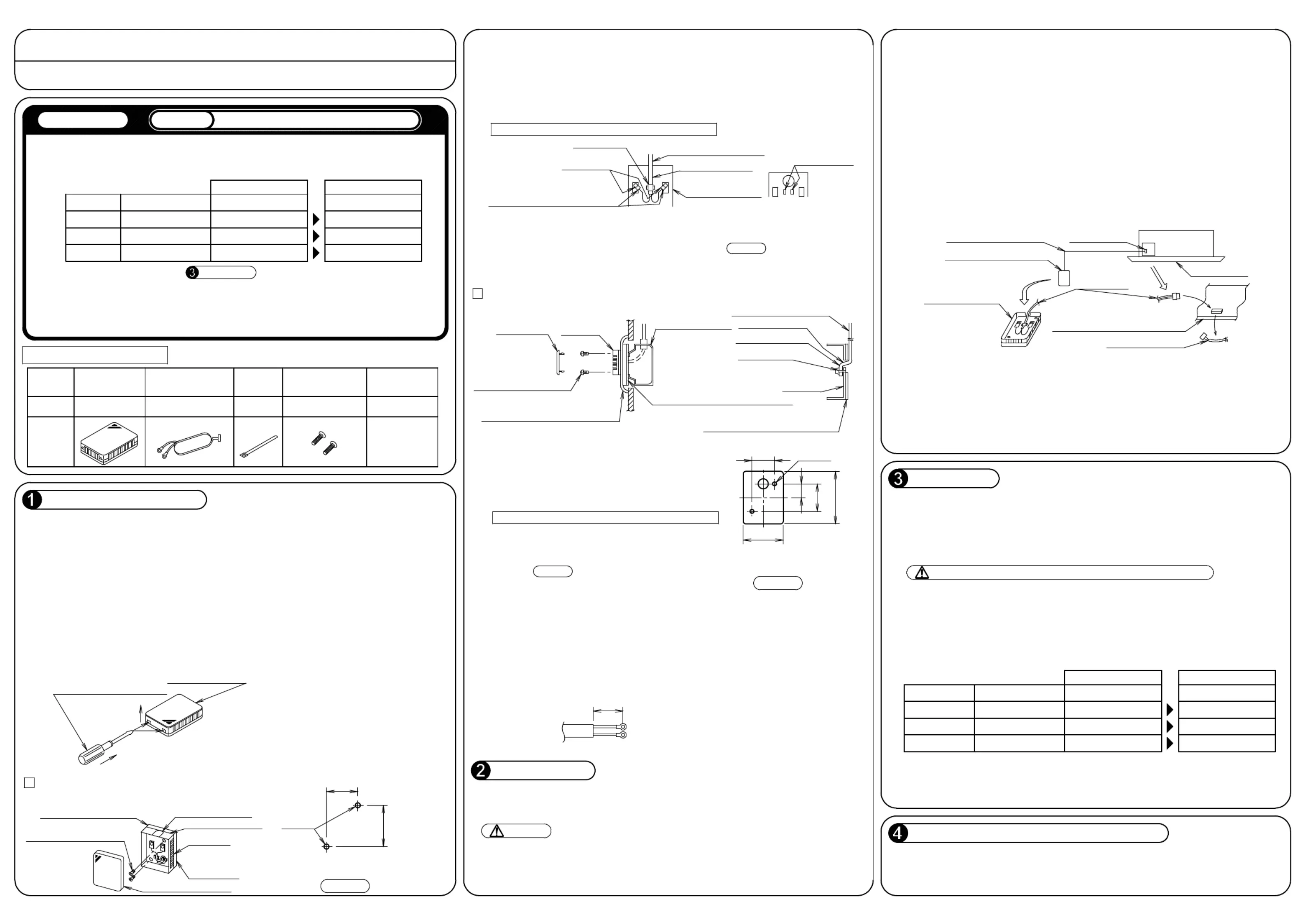

Side 1/1

3P528641-1C

KRCS01-6B 3P528641-1C

DAIKIN Air Conditioners

Be sure to read this installation manual before conducting the installation

of this product. Installation must be conducted according to this manual.

Installation Manual

Remote

Caution

● Case of installing to Skyair, make sure the set to local settings after mounted

remote sensor.

Depending on the model, it may not be necessary to change the settings.

Local setting for case of SkyairIMPORTANT

Mode No. FIRST CODE No. SECOND CODE No.

Changed

Default

15 (25) 10 02 01

● Make sure the no errors be sure to operation test after local setting.

Notes) If you install remote sensor on model that has comfortable eco-dry control

function or dehumidification cooling function by humidity detection, these

functions will not work.

Accessories description

Name

Shape

Quantity

Clamp

Check it the following accessories are attached to this product.

Sensor box

Extension cable

(2-core, 12m)

Mounting screw

(M4×16)

・ Installation

manual

Other

1 pc. 1 pc. 1 pc.2 pcs. 2 pcs.

Mounting the Sensor box

(1) Selection of mounting location.

Sensor box (1) have thermistor for temperature detection built-in.

Select the mounting location taking the following cautions into account.

1. Where the average temperature of an air conditioned room can be detected.

2. Where it is not exposed to the direct sunlight.

3. Where it is not influenced by other heat sources.

4. Where it is not exposed to the direct discharge air from the air conditioner.

5. Where it is not exposed to the outdoor air infiltrated into the room by opening

the door.

(2) Mounting

● Remove the cover of the sensor box (1).

Insert a flat blade screw driver into the

sensor box (1) concave part (2 locations).

Remove the cover pushing up the hook

to the cover of the sensor box (1).

Do not push the nail powerfully with a narrow flat blade

screw driver, because you may break off the hook.

about 6mm width

flat blade screw driver

Sensor box (1)

● Break open the knockout hole in the sensor box (1) with a nipper or a similar

tool. Pass the extension cable (2) through the hole and fasten the wires to the

terminals with screws.

● To avoid tensile force on the terminals, pass the attached clamp (3) through

the holes shown in the below right figure and tighten the extension cable (2)

with the attached clamp (3) at the sheathed part.

(The knot must come to the box inside.)

● When wiring the extension cable (2), the air holes of sensor box (1) will not be

blocked.

● When the extension cable is longer than necessary, cut it to the appropriate

length, peel the insulation, attach the ring type crimp style terminal for M3

(field supplied) and carry out the wiring. The length of insulation to be peeled

off is as shown below.

(Work carefully so that the connector side may not be cut.)

For M3

RING TYPE CRIMP STYLE TERMINAL

(field supplied)

Wiring method

1. When wiring to the indoor unit PCB, remove the existing sensor from

PCB (X16A).

2. Extension cable (2) connect to PCB (X16A).

3. Lay and clamp the extension cable (2) inside the indoor unit switch box

just like the low voltage wire (remote controller wiring).

When doing this work, keep a certain distance between the high voltage

wiring and the low voltage wiring to avoid error of sensor.

Provide protection of the existing cable for sensor without touching indoor

unit PCB.

4. Fit the sensor box cover into the sensor box (1).

After the sensor is installed and the wiring is completed, conduct cooling and

heating operation in order to make sure of detecting temperature accurately

(not to be uncooled or unheated).

Local setting

Thermal insulation

material

Knockout hole

for cable

Air hole

Released

paper

Sensor box (1)

Sensor box cover

Mounting screw (4)

Clamp hole

Sheathed part

Sensor box (1)

Clamp (3)

(knot)

Extension cable (2)

Fasten the terminals with

care to prevent the wires

from touching each other.

Switch box

(for single unit)

(field supplied)

Sensor

box cover

Mounting screw (4)

Sensor

box (1)

Metal plate

(for single unit without hole)

(field supplied)

Mounting frame which

matches with the switch box

(field supplied)

Extension cable (2)

Through hole

Sheathed part

Clamp (3)

(knot)

Sensor

box (1)

Thermal insulation material

When mounting on the wall

For embedded wiring

Figure 1

Wall surface mounting holes

：(unit mm)

2-M4

Figure 2

Holes to be tapped in the

metal plate on site (unit: mm)

2-M4

(70)

(120)

● Pass the extension cable (2) through the sensor

box (1) cable hole and carry out the wiring.

● Pass the attached clamp (3) through the clamp

holes and tighten the extension cable (2) at the

sheathed part as shown in the upper right figure.

Please cut excess clamp for base after fixing.

● Tap M4 screw holes in the metal plate

(field supplied) as shown in the right drawing

and mount the switch box on the metal plate.

Refer to .

Figure 2

Sheathed part

Connector

connectionExtension cable (2)

Terminal connection

Sensor box (1)

Extension

cable (2)

1. Remove

2. Connect

Existing sensor

Indoor unit

Printed circuit board (PCB)

Operation test after mounting the sensor

● Case of installing to Skyair, make sure the set to local settings after mounted

remote sensor.

Depending on the model, it may not be necessary to change the settings.

● Make sure the completing all work of indoor and outdoor unit.

● Make sure the closing switch box cover of indoor unit, casing for outdoor unit

and cover for piping.

Set the local setting by remote controller after turn on.

Connect the extension cable (2) connector side to the indoor unit PCB

(printed circuit board) For connection to the indoor unit, follow the procedure

shown below.

Mode No.

Changed

15 (25) 10 02 01

(Notes)

● Local setting set by changing three of “Mode No.”, “FIRST CODE No.”,

“SECOND CODE No.”.

● Setting procedure and operating method refer to installing manual attach to

remote controller.

Notes) “Mode No.” setting be done to group together.

Case of each indoor units setting or setting confirmation,

set to number in ( ) of “Mode No.”.

X16A

Please cut excess clamp for base after fixing.

● Screw the sensor box (1) to the wall surface with mounting screw (4)

(M4×16, 2 places).

Wall surface mounting holes dimension refer to .

If the sensor box cannot be screwed to wall surface, tear off the released

paper and mount it on the wall surface.

Figure 1

Terminal

Sensor

SECOND CODE No.

(1) (2) (3) (4)

2. When wiring the extension cable (2), do not pass where the extension

cable (2) may be affected by the power line or noise.

3. Make sure to securely connect the connectors.

Defective connection may result in incorrect detection of room temperature

or malfunction.

4. Do not splice wires.

5. Lay and clamp the extension cable (2) inside the indoor unit switch box just

like the low voltage line (cord for remote controller).

And do not pass where the extension cable inside the indoor unit switch

box may be affected by the power line (cord for the indoor unit and the

other electric line).

FIRST CODE No. SECOND CODE No.

Default

SECOND CODE No.

Caution

1. Make sure to turn off the power supply before starting the wiring work and

do not turn on until all the work is completed.

Read also the installation manual and the wiring diagram of the indoor unit

when carrying out the work.

Setting detail be refer to .

Local setting

15 (25) 10 01 no need

15 (25) 10 --

15 (25) 10 01 no need

no need

15 (25) 10 -- no need

●After changed to settings, Turn off and turn on again.
