Side 1/2

Owner’s

Manual

DECLARATION OF CONFORMITY

Manufacturer’s Name: dbx Professional Products

Manufacturer’s Address: 8760 S. Sandy Parkway

Sandy, Utah 84070, U.S.A.

declares that the product:

Product name: dB10

Product option: None

conforms to the following Product Speciﬁcations:

Safety IEC 60065 (7th ed. 2001) Not

applicable, SELV Device

EMC EN 55013 (2001+A1)

Not applicable, all passive components

EN 55020 (1998)

Not applicable, all passive components

Supplementary Information:

The product herewith complies with the requirements of

the Low Voltage Directive 73/23/EEC and the EMC Directive

89/336/EEC as amended by Directive 93/68/EEC.

Director of Engineering - dbx

8760 S. Sandy Parkway

Sandy, Utah 84070, U.S.A.

Date: February 21, 2008

European

Contact: Your local dbx Sales and Service Ofﬁce or

Harman Music Group

8760 South Sandy Parkway

Sandy, Utah, 84070 U.S.A.

Ph: (801) 566-8800

Fax: (801) 568-7583

Warning

For your protection, please read the following:

Important Safety Instructions

Read these instructions.

Keep these instructions.

Heed all warnings.

Do not use this apparatus near water.

Clean only with dry cloth.

Do not block any ventilation openings. Install in ac-

cordance with the manufacturer’s instructions.

Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including

ampliﬁers) that produce heat.

Protect the power cord from being walked on or

pinched particularly at plugs, convenience receptacles,

and the point where they exit from the apparatus.

Unplug this apparatus during lightning storms or when

unused for long periods of time.

No user serviceable parts inside. Refer all servicing to

qualiﬁed service personnel. Servicing is required when

the apparatus has been damaged in any way, such as

power-supply cord or plug is damaged, liquid has been

spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does

not operate normally, or has been dropped.

WARNING: To reduce the risk of ﬁre or electric shock,

do not expose this apparatus to rain or moisture.

Refer to labels on the unit, including bottom cover, or

other markings and pertinent information.

10.

11.

12.

Introduction

Congratulations on your purchase of the dB10 Passive Direct Box. The dB10 offers all

the beneﬁts of a premium-quality Direct Box while preserving the sonic integrity and

true characteristics of the signal source with its custom dbx mu-metal-shielded audio

transformer, and high-quality Neutrik

® connectors. The dB10 includes a pad switch for

instrument, line and even speaker level signals. And you can even take more control of

your sound by utilizing the polarity invert switch to set the phase relationship between

the direct and mic’d sound.

The dB10 Features

Premium Performance

Rugged Design

Stackable Chassis with

Durable Rubber Foot

Gold-plated Neutrik® XLR Connector

Premium Chrome Toggle Switches

Hi-Z ¼" Input Jack

Parallel ¼" Thru Jack

Transformer Isolated

Premium Shielded Custom dbx Transformer

•

Balanced XLR Lo-Z Output

3-Way 0/20/40 dB Pad Switch

Flat/High-Cut Filter Switch

Output Polarity Invert Switch

Ground Lift Switch

•

Front Panel

INPUT THRU

PAD

0dB

20dB

40dB

1 2 3

Rear Panel

FLATGND

LIFT INVERT

NORMAL

FILTERPOLARITYPIN 1

OUTPUT

1 2 3 4

8760 South Sandy Parkway • Sandy, Utah 84070

Phone: (801) 568-7660 • Fax (801) 568-7662

Int’l Fax: (801) 568-7583

E-mail us at: customer@dbxpro.com

or visit us on the web at: www.dbxpro.com

Printed 3/2008

dB10 Owner’s Manual 18-XXXX-A

18-0555-A

dB10

PASSIVE DIRECT BOX

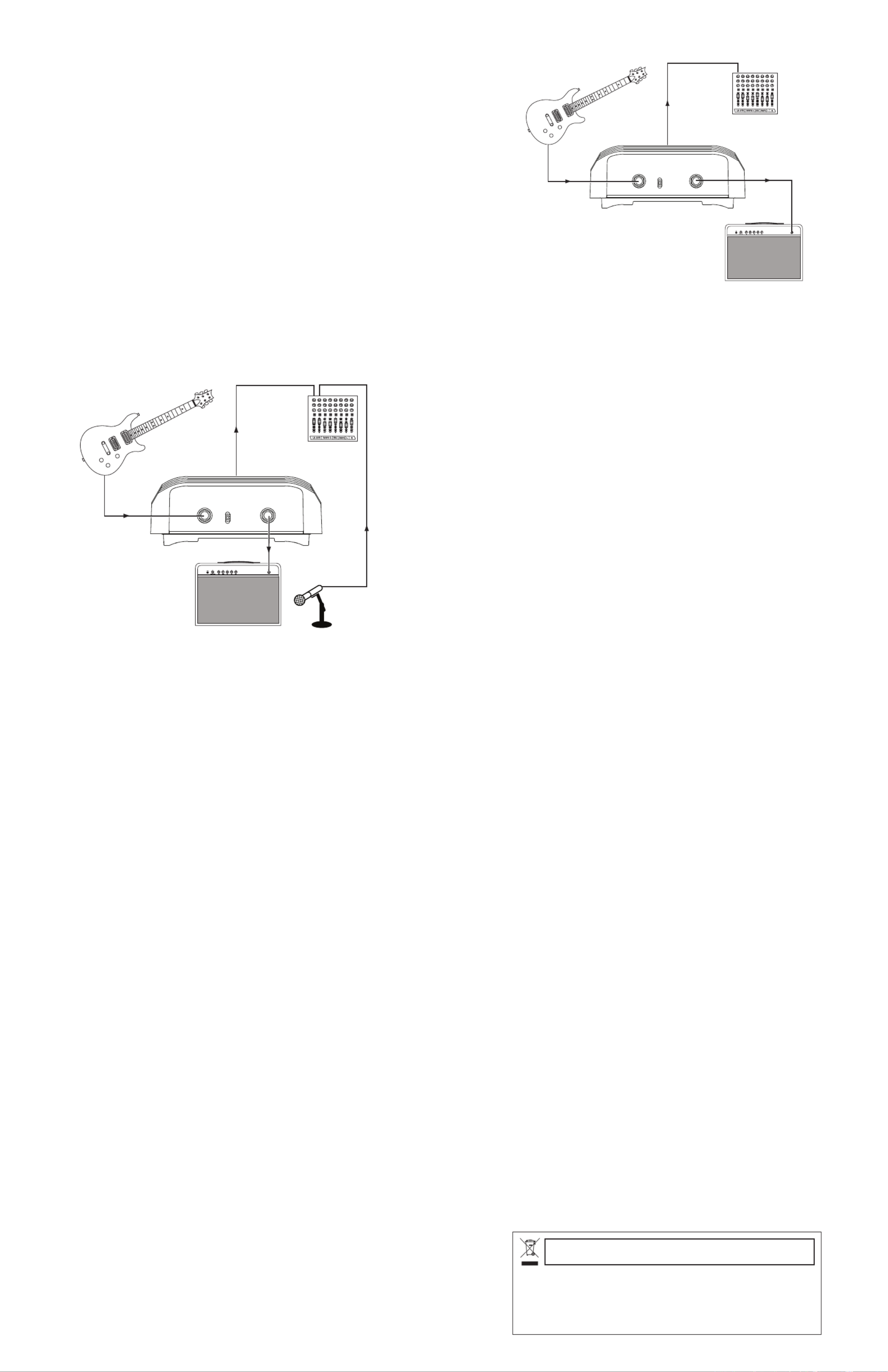

Front Panel

INPUT

Connect your signal source to this 1/4” unbalanced TS connector.

PAD

Select a 0dB, 20dB, or 40dB pad with this switch. Allows connection to a wide range of

input signal levels.

THRU

Connect your onstage ampliﬁer here (optional). This 1/4” unbalanced TS connector is directly

connected to the Input jack.

Rear Panel

PIN 1 (LIFT/GND)

By switching to the LIFT position, the internal connection to the output pin 1 is removed,

isolating the dB10’s grounding system from the rest of the system. This eliminates many

“hum” or “buzz” problems due to ground loops.

OUTPUT

Connect this balanced XLR connector to an XLR input on your mixer.

POLARITY (INVERT/NORMAL)

When in the INVERT position, this switch swaps pin 2 and pin 3 of the XLR jack, making pin

3 hot.

FILTER ( / FLAT)

When in the “ ” (ﬁlter) position (and the PAD switch is set to 40 dB), this switch applies

a high cut ﬁlter to roll off high frequencies (commonly used in conjunction with the 40 dB

pad on an ampliﬁer output signal to roughly duplicate the sound of a mic’d speaker).
