Definitive Technology

BIPOLAR SUPERTOWER

OWNER’S MANUAL

BP-8000 SuperTower

Series:

BP-8080ST, BP-8060ST, BP-8040ST, BP-8020ST

Thank you for choosing the Definitive Technology Bipolar SuperTower Loudspeaker

System. The Bipolar ST is a unique speaker which features Forward-Focused Bipolar

array technology and a built-in powered subwoofer. This extraordinary speaker is truly

state-of-the-art in music and home theater loudspeaker technology and performance.

You have chosen wisely

Our engineers have spent many years in developing this product. In order to ensure

that you experience the finest performance possible, we encourage you to take a

moment to fully read this owner’s manual and familiarize yourself with the proper

installation and set-up procedures for your Bipolar ST speakers.

www.DefinitiveTech.com

CAUTION: Important Safety Instructions

WARNING: DO NOT OPERATE SPEAKER WITHOUT

STABILIZER FEET INSTALLED

Accessories included in your Bipolar ST box:

1. Stabilizer Feet: Qty (4) BP-8080ST, BP-8060ST, and BP-8040ST; Qty (2) BP-8020ST

2. Philips Head Screws: Qty (8) BP-8080ST, BP-8060ST, and BP-8040ST;

Qty (4) BP-8020ST

3. Carpet Spikes: Qty (4) all models

4. Hard Floor Glides: Qty (4) all models

Accessory Installation

Power Supply

1. The fuse and power disconnect device are located on the back of the speaker.

2. The disconnect device is the power cord, detachable at either the speaker

or the wall.

Unpacking Your BP-8000 Super T

ower

Please Inspect For Shipping Damage

Each loudspeaker leaves our plant in perfect condition. Any visible or concealed

damage most likely occurred in handling after it left our plant and should be

reported to your Definitive dealer or the delivery company that delivered your

loudspeaker. Please unpack your system carefully. Save all cartons and packing

materials in case you move or need to ship your system. Record the serial number

found on the back of the Bipolar 8000ST speaker.

Positioning the Speakers in Your Room

Your new Bipolar speakers are very flexible in terms of positioning and placement.

o optimize their per

for

mance, please follow these simple guidelines. Although the

following recommendations will usually yield the best results, all rooms and listen-

ing setsups are different,

so do not be afraid to

experiment with the

speaker placement.

Whatever sounds best to

you is correct.

Figur

e 2 –

Positioning Bipolar

ST as Left/Right

Main Speakers

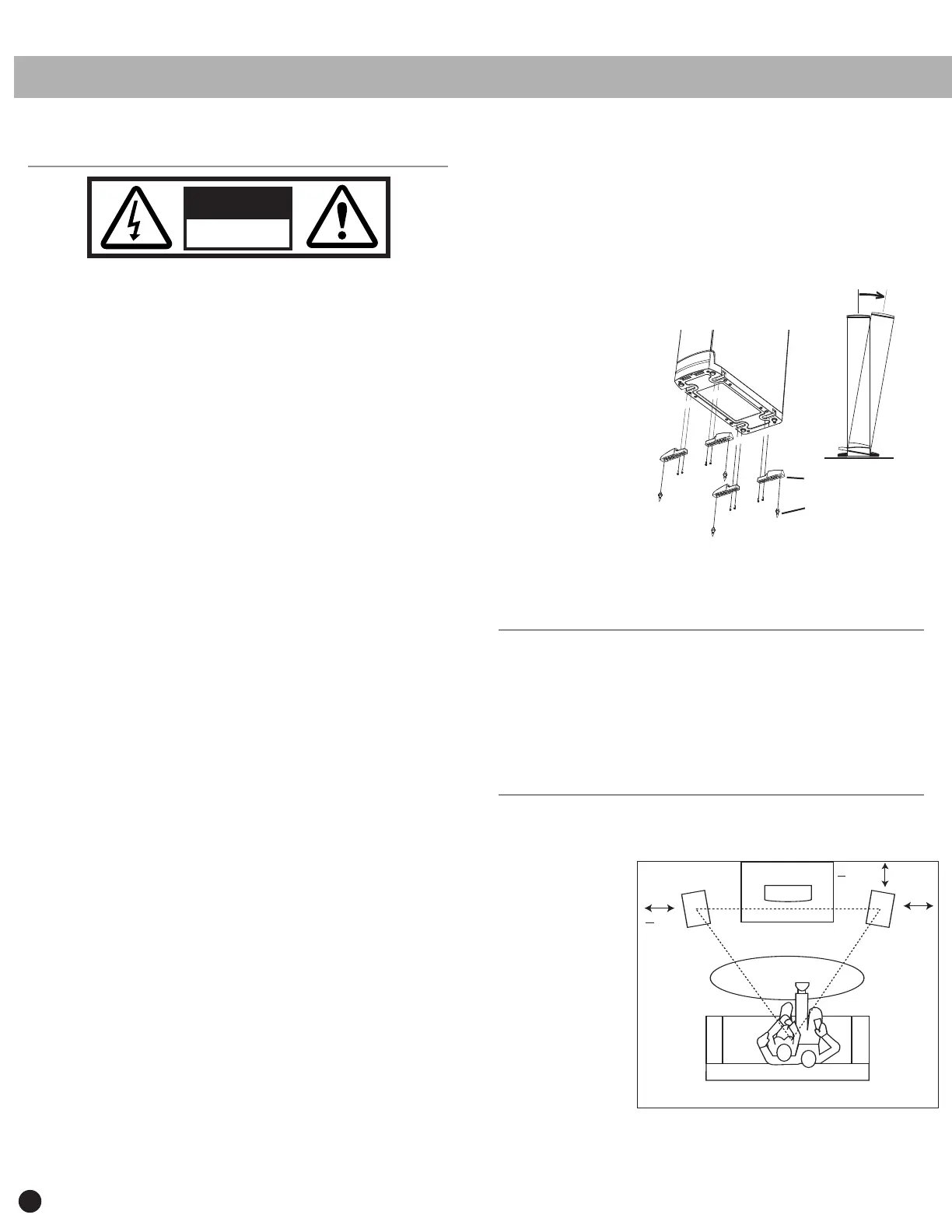

Set up the speakers and

listening position in an

equilateral triangle as

illustrated. You will also

get good results if the

listeners ar

e a bit farther away. For example, if line A and C are each 10' long then

line B would be between 7' and 8' long.

Definitive Technology

Safety Precautions

CAUTION! To reduce the risk of electric shock and fire, do not remove the

cover or back plate of this device. There are no user serviceable parts inside.

Please refer all servicing to licensed service technicians. Avis: Risque de choc

electricque, ne pas ouvrir.

CAUTION! The international symbol of a lightning bolt inside a triangle is

intended to alert the user to uninsulated “dangerous voltage” within the

device’s enclosure. The international symbol of an exclamation point inside

a triangle is intended to alert the user to the presence of important operat-

ing, maintenance and servicing information in the manual accompanying

the device.

CAUTION! To prevent electrical shock, match wide blade of plug to wide

slot, fully insert. Attention: Pour eviter les chocs electriques, introduire la

lame la plus large de la fiche dans la borne correspondante de la prise et

pousser jusqu'au fond.

CAUTION! To reduce the risk of electrical shock, do not expose this equip-

ment to rain or moisture.

1. Read Instructions—All safety and operating instructions should be read

before operating the device.

2. Retain Instructions—The safety and operating instructions should be

retained for future reference.

3. Heed Warnings—All warnings on the device and in the operating

instructions should be adhered to.

4. Follow Instructions—All operating and safety instructions should be

followed.

5. Water & Moisture—The device should never be used in, on or near

water for risk of fatal shock.

6. Carts & Stands—The device should only be used on carts or stands rec-

ommended by the manufacturer.

7. Wall & Ceiling Mounting—The device should be mounted on a wall or

ceiling only as recommended by the manufacturer.

8. Ventilation—The device should always be located in such a way that it

maintains proper ventilation.

It should never be placed in a built-in installation or anywhere that

may impede the flow of air through its heat sink.

9. Heat—Never locate the device near heat sources such as radiators, floor

registers, stoves or other heat-generating devices.

10. Power Supply—The device should only be connected to a power supply

of the type described in the operating instructions or as marked on the

device.

11. Power Cord Protection—Power cables should be routed so they are not

likely to be stepped on or crushed by items placed on them or against

them. Special attention should be paid to areas where the plug enters a

socket or fused strip and where the cord exits the device.

12. Cleaning—The device should be cleaned in accordance with manufac-

turer’s instructions.

13. Periods Of Non-Use—The device should be unplugged when not being

used for extended periods.

14. Dangerous Entry—Care should be taken that no foreign objects or

liquids fall or are spilled inside the device.

15. Damage Requiring Service—The device should be serviced by licensed

technicians when:

• The plug or power supply cord has been damaged.

• Objects have fallen on or liquid has spilled inside the device.

• The device has been exposed to moisture.

• The device does not appear to be operating properly or exhibits a

marked change in performance.

• The device has been dropped or the cabinet becomes damaged.

16. Service—The device should always be serviced by licensed technicians.

Only replacement parts specified by the manufacturer should be used.

The use of unauthorized substitutions may result in fire, shock, or other

hazards.

BIPOLAR SUPERTOWER

OWNER’S MANUAL

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Figure 1 – Stabilizer Feet

*Definitive Technology is

not responsible for damage

to floors caused by misuse

of the provided accessories.

Stabilizer Feet and Screws

Optional Carpet Spikes

4”

(10 cm)

6”

(30 cm)

6”

(30 cm)
