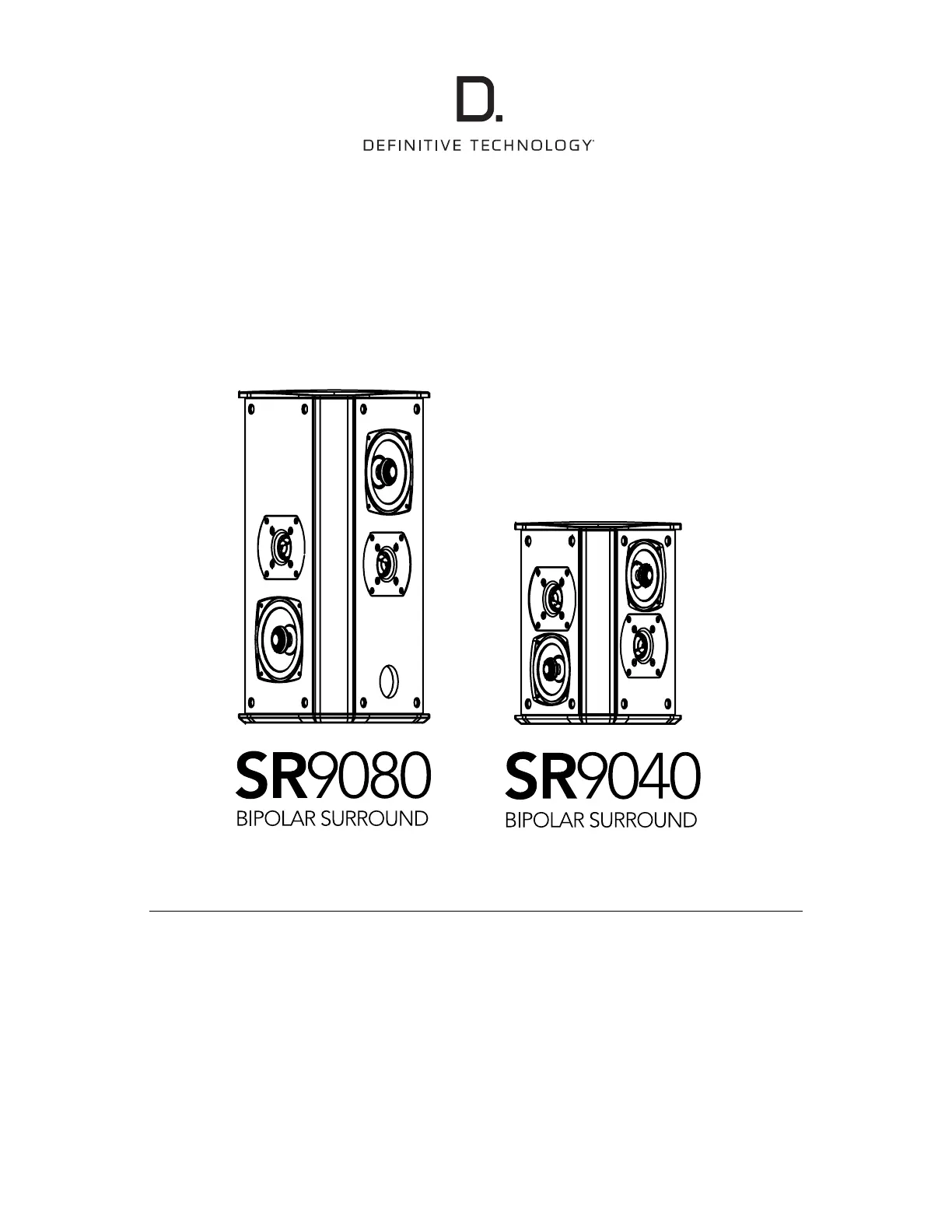

OWNER’S MANUAL
BP9000 Bipolar Surround Speakers:
SR9080BP, SR9040BP
Thank you for choosing the Definitive Technology BP9000 Bipolar Surround Speakers. These compact,
high-quality bipolar speakers are intended primarily for use as a rear or side speakers. In addition, they can
also be used as front “effects” speakers in multichannel DSP systems. The lifelike soundfield and flexible
placement make this speaker an excellent addition to any room.
Our engineers have spent many years in developing this product. In order to ensure that you experience
the finest performance possible, we encourage you to take a moment to fully read this owner’s manual and
familiarize yourself with the proper installation and setup procedures for your SR surround speakers.
owner’s manual
2
www.definitivetechnology.com
SR9080BP | SR9040BP
RECEIVER/
AM PLIFIER
1
2
For use as rear surround
speakers, position the speakers
approximately 6’ (2 m) high and
6’ (2 m) apart directly behind
the listening area.
For use as side surround
speakers, position the speakers
approximately 6’ (2 m) high
and directly beside or 1-2’
(30-60 cm) behind the
listening area.
Positioning Your BP9000
Surround Speakers
FIGURE 1 – REAR AND SIDE SURROUND PLACEMENT
VERY IMPORTANT:
Do not use your receiver’s auto setup function!!!
The bipolar nature of this speaker will often confuse
the receiver’s auto setup.
Dolby Digital and DTS multi-channel systems have critical channel
balance and speaker setup procedures which must be followed
if the system is to perform properly. Consult your receiver’s or
processor’s manual to learn how to access your system setup menus.
Set speaker setup to “small” and crossover to 80Hz for the
SR9080BP and 100Hz for the SR9040BP.
Troubleshooting
If you experience any difficulties with your BP Series loudspeakers,
try the suggestions below. If you still have problems, contact your
Definitive Technology Authorized Dealer for assistance.
1. Audible distortion when the speakers are playing at loud levels
is caused by driving (turning up) your receiver or amplifier louder
than it or the speakers are capable of playing. Most receivers and
amplifiers put out their full-rated power well before the volume
control is turned all the way up, so the position of the volume
control is a poor indicator of its power limit. If your speakers
distort when you play them loud, turn the volume down!
2. If you experience a lack of bass, it is likely that one speaker is out
of phase with the other and needs to be rewired paying closer
attention to connect positive to positive and negative to negative
on both channels. Most speaker wire has some indicator (such as
color-coding, ribbing or writing) on one of the two conductors
to help you maintain consistency. It is essential to connect both
speakers to the amplifier in the same way (in phase).
3. Make sure all your system interconnects are solidly in place.
4. Check that no foreign objects or liquid has entered the
speaker cabinet.
Connecting Your Loudspeakers
FIGURE 2 – WIRING AND POLARITY
+
-
Strip 1/4” (6mm) wire. Identify markings on wire and
assign +/-.
1. Unscrew binding post and
insert wire.
2. Tighten until wire is secure.
Ensure that the speaker is
always connected to the
receiver or amplifier + to +
and – to –.
FIGURE 3 – CONNECTING SPEAKER TO AMPLIFIER
Speaker Setup
Small,
SR9080BP Crossover at 80Hz
SR9040BP Crossover at 100Hz
Receiver/Amplifier
Speaker Outputs
L R CS RS LS
