Unpacking Your Mythos Nine Speakers

Please Inspect For Shipping Damage

Each loudspeaker leaves our plant in perfect condition. Any visible or concealed

damage most likely occurred in handling after it left our plant and should be reported

at once to your Definitive dealer or the delivery company that delivered your

loudspeaker. Please unpack your system carefully. Save all cartons and packing

materials in case you move or need to ship your system. Record the serial number

found on the back of the Mythos Nine in the appropriate place on the product

registration card, answer all questions and send it in.

VERY IMPORTANT: Accessories

Various parts and accessories that you will need to use your Mythos Nine are in the

carton but are easy to overlook. Open both ends of the shipping carton. Carefully

examine the contents of the shipping carton and packing material to find the plastic

bags with accessories.

Specifications

Mythos Nine

Dimensions: 28" long x 5.4" wide x 4.13" deep (711mm l x 137mm w x 105mm d)

(speaker only, not including bracket)

Weight: 13 lbs. (6 kG)

Sensitivity: 90 dB

Frequency Response: 38 Hz – 30 kHz

Nominal Impedance: 8 ohms

Driver Complement: Two each 41⁄2" (11.4cm) BDSS High output drivers pressure coupled to

two 41⁄2" x 8" (11.4cm x 20.3cm) Low Bass Radiators, One 1" (25mm)

ferro-magnetic fluid damped Pure Aluminum dome tweeter.

Specifications subject to change without notice.

Definitive Technology

MYTHOS NINE

OWNER’S MANUAL

Mythos Nine Loudspeakers

Thank You

Thank you for choosing the Definitive Technology Mythos Nine Loudspeaker

System. Our engineers have spent many years in developing this product. In order

to ensure that you experience the finest performance possible, we encourage you

to take a moment to fully read this owner’s manual and familiarize yourself with

the proper installation and set-up procedures for your Mythos Nine speakers.

Definitive Technology

MYTHOS NINE

OWNER’S MANUAL

2. Make sure the location you have selected for wall-mounting

does not conceal behind-wall electrical wiring or plumbing.

3. The supplied cardboard mounting template is double-sided; one

side is for horizontal orientation and the other is for vertical

mounting. Be sure to face the correct side toward you. Hold the

cardboard template (included) in the intended location. Make

sure the speaker clears the ceiling, adjacent walls, corners, beams,

lighting fixtures and door/window frames. Leave at least

11⁄2" (38 mm) above or to the side of the speaker location to

allow the speaker to slide onto the bracket.

4. Make sure the center of the template is

centered with the TV screen’s center points.

5. When mounting the speaker horizontally

use a bubble level to make sure the template

is level. When mounting the speaker

vertically, use a plumb line to find perfect

vertical. If the TV is off-level or off plumb,

the speaker will look better if it is off-level

or plumb in exactly the same way as the TV.

6. Use push pins to secure the template to the wall.

Wall Mounting the Mythos Nine

• We recommend that wall mounting of speakers be performed

by professional installers or by those appropriately skilled in the

use of power tools and the knowledge of building codes and

structural issues.

• We recommend that you determine a suitable location for

your speaker installation, and that you complete all wiring

(especially “hidden” in-wall wiring) before mounting

brackets to your walls.

• Mythos Brackets are not suitable for ceiling mounting.

The Mythos Nine loudspeaker comes with a wall mounting bracket and

template that makes secure mounting a breeze. Follow these directions

for installing the wall mounting bracket.

1. Two

1⁄4"–20 screws have been factory installed on the back of

the speaker. Gently hand-turn the screws to make sure they are

in as far as they can go. Do not force them beyond the “stop”

point. The screws cannot screw all the way into the speaker and

should protrude as shown in the illustration.

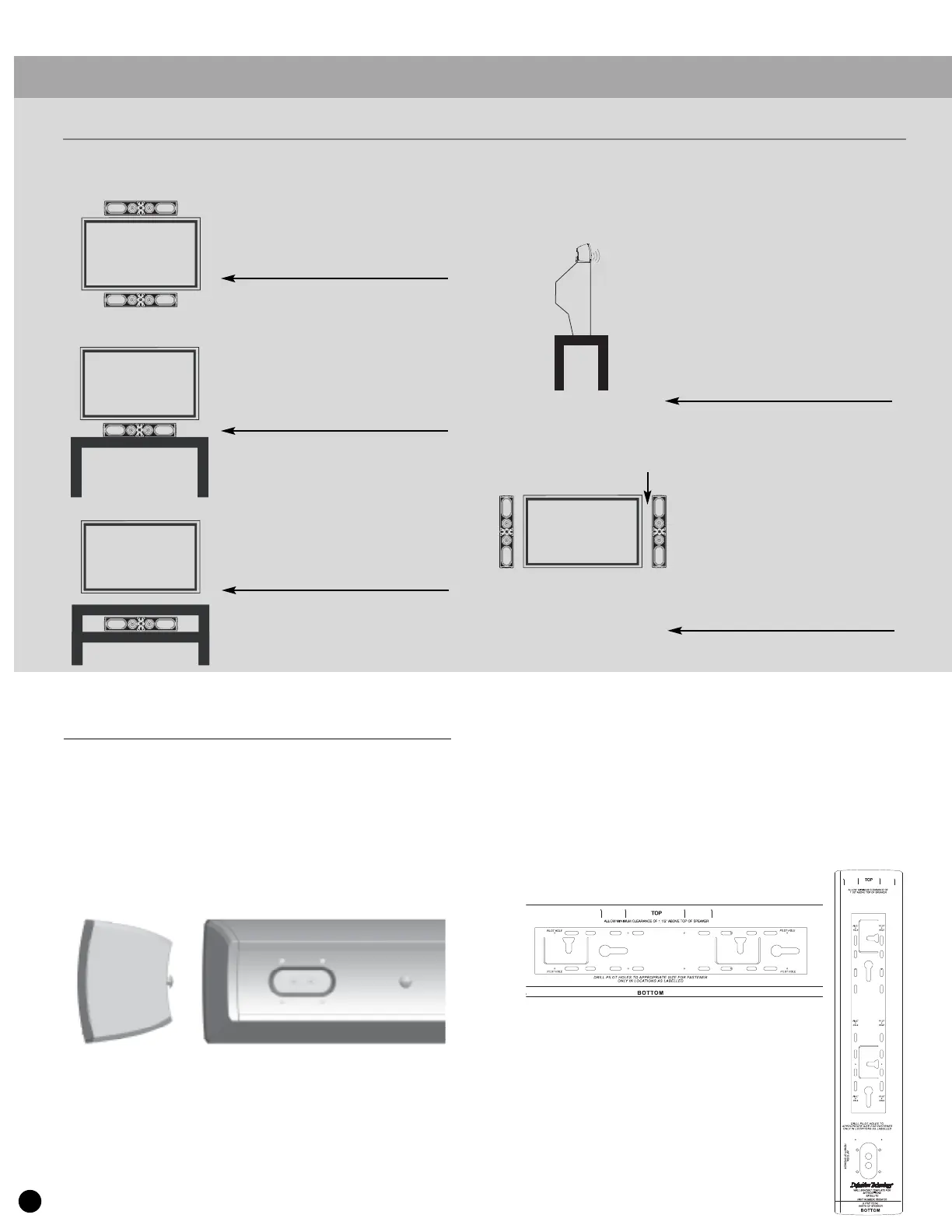

Positioning the Mythos Nine

The Mythos Nine may be used vertically as a L&R main or surround

speaker or oriented horizontally and used as a center channel loudspeaker.

When used as a center speaker the

Mythos Nine may be mounted on the

wall above or below the video screen.

It may be placed on a table or shelf

in front of the TV.

If placed on a shelf under a TV, adjust the

leveling feet (screwed all the way in) to

aim the speaker up towards the listeners.

The Mythos Nine may be placed directly

on top of TVs that have at least 5-inches

(13 cm) of flat surface on top. Do not

place the speaker on top of any surface

that is not large or stable enough to

securely support the speaker. If the

speaker seems at all unstable or “tipsy”

place the speaker somewhere else. The

warranty does not cover damage caused

by falls due to improper positioning of

the speaker. If the speaker is above seated

listener height, extend the leveling foot

to point the speaker downward

(See Using the Leveling Foot on page 3).

When used as L&R main or surround

speaker the Nine must be wall-

mounted flanking the screen as

illustrated. Allow at least 3 inches

(75 mm) between the edge of the

video screen and the nearest edge of

the speaker. If you need a speaker

that can be shelf-mounted, please

contact your Definitive Technology

retailer. Definitive offers other

models of Mythos Series speakers

that have shelf-mount stands.

PILOT HOLE

Even if you intend to place the Mythos Nine on a TV or shelf, you must attach the wall-mount bracket to the speaker. See Using the Leveling Foot on page 3.

3”

(75 mm)
