OWNER’S MANUAL

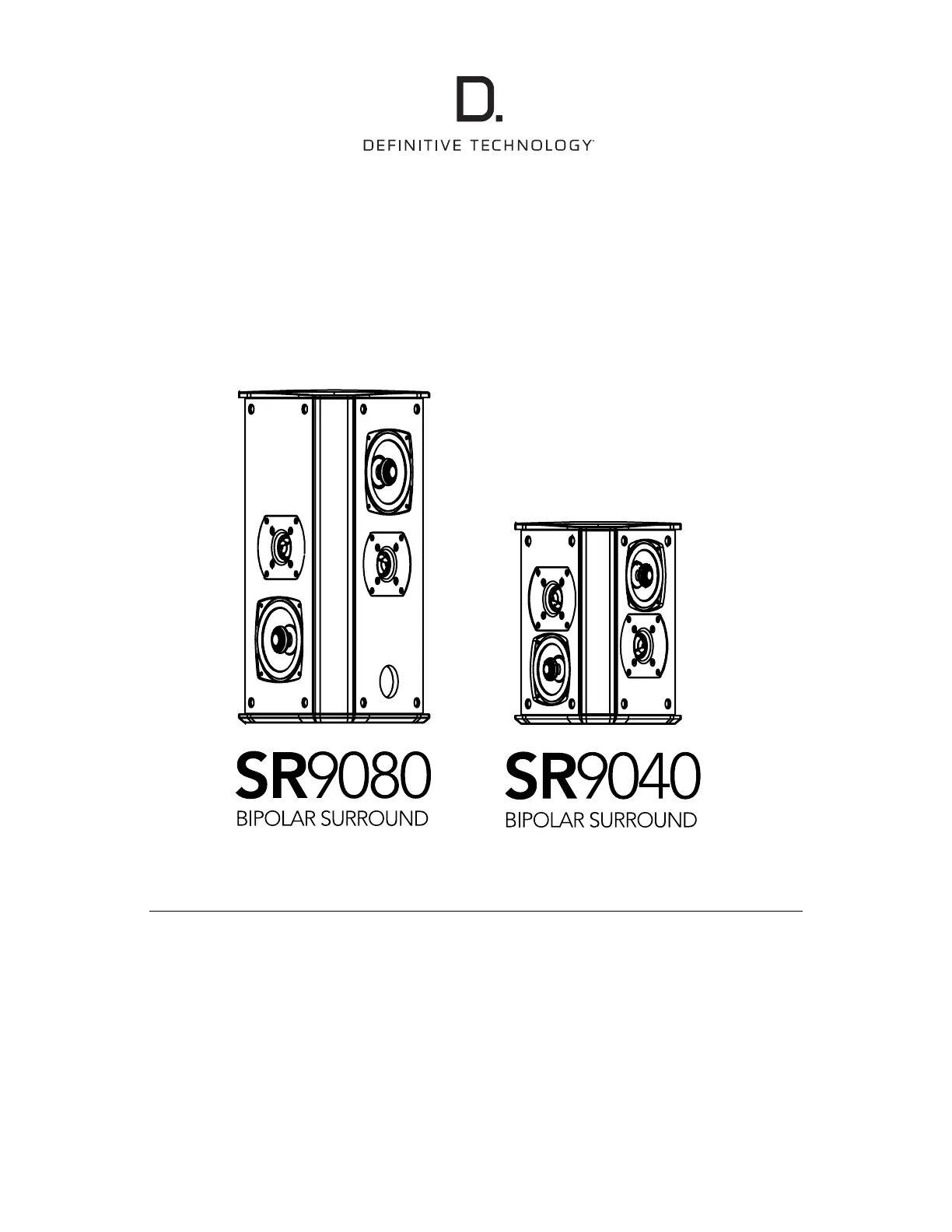

BP9000 Bipolar Surround Speakers:

SR9080BP, SR9040BP

Thank you for choosing the Deﬁnitive Technology BP9000 Bipolar Surround Speakers. These compact,

high-quality bipolar speakers are intended primarily for use as a rear or side speakers. In addition, they can

also be used as front “effects” speakers in multichannel DSP systems. The lifelike soundﬁeld and ﬂexible

placement make this speaker an excellent addition to any room.

Our engineers have spent many years in developing this product. In order to ensure that you experience

the ﬁnest performance possible, we encourage you to take a moment to fully read this owner’s manual and

familiarize yourself with the proper installation and setup procedures for your SR surround speakers.

owner’s manual

www.definitivetechnology.com

SR9080BP | SR9040BP

RECEIVER/

AM PLIFIER

Receiver/Amplifier

For use as rear surround

speakers, position the speakers

approximately 6’ (2 m) high and

6’ (2 m) apart directly behind

the listening area.

For use as side surround

speakers, position the speakers

approximately 6’ (2 m) high

and directly beside or 1-2’

(30-60 cm) behind the

listening area.

Positioning Your BP9000

Surround Speakers

FIGURE 1 – REAR AND SIDE SURROUND PLACEMENT

VERY IMPORTANT:

Do not use your receiver’s auto setup function!!!

The bipolar nature of this speaker will often confuse

the receiver’s auto setup.

Dolby Digital and DTS multi-channel systems have critical channel

balance and speaker setup procedures which must be followed

if the system is to perform properly. Consult your receiver’s or

processor’s manual to learn how to access your system setup menus.

Set speaker setup to “small” and crossover to 80Hz for the

SR9080BP and 100Hz for the SR9040BP.

Troubleshooting

If you experience any difﬁculties with your BP Series loudspeakers,

try the suggestions below. If you still have problems, contact your

Deﬁnitive Technology Authorized Dealer for assistance.

1. Audible distortion when the speakers are playing at loud levels

is caused by driving (turning up) your receiver or ampliﬁer louder

than it or the speakers are capable of playing. Most receivers and

ampliﬁers put out their full-rated power well before the volume

control is turned all the way up, so the position of the volume

control is a poor indicator of its power limit. If your speakers

distort when you play them loud, turn the volume down!

2. If you experience a lack of bass, it is likely that one speaker is out

of phase with the other and needs to be rewired paying closer

attention to connect positive to positive and negative to negative

on both channels. Most speaker wire has some indicator (such as

color-coding, ribbing or writing) on one of the two conductors

to help you maintain consistency. It is essential to connect both

speakers to the ampliﬁer in the same way (in phase).

3. Make sure all your system interconnects are solidly in place.

4. Check that no foreign objects or liquid has entered the

speaker cabinet.

Connecting Your Loudspeakers

FIGURE 2 – WIRING AND POLARITY

Strip 1/4” (6mm) wire. Identify markings on wire and

assign +/-.

1. Unscrew binding post and

insert wire.

2. Tighten until wire is secure.

Ensure that the speaker is

always connected to the

receiver or amplifier + to +

and – to –.

FIGURE 3 – CONNECTING SPEAKER TO AMPLIFIER

Speaker Setup

Small,

SR9080BP Crossover at 80Hz

SR9040BP Crossover at 100Hz

Receiver/Amplifier

Speaker Outputs

L R CS RS LS
