Side 1/73

Use the instructions in this quick start to help you connect the Dell PowerConnect

J-Series J-SRX240 Services Gateway to your network. For details, see the J-SRX240

Services Gateway Hardware Guide at http://support.dell.com/manuals. (Regulatory

model number SRX240)

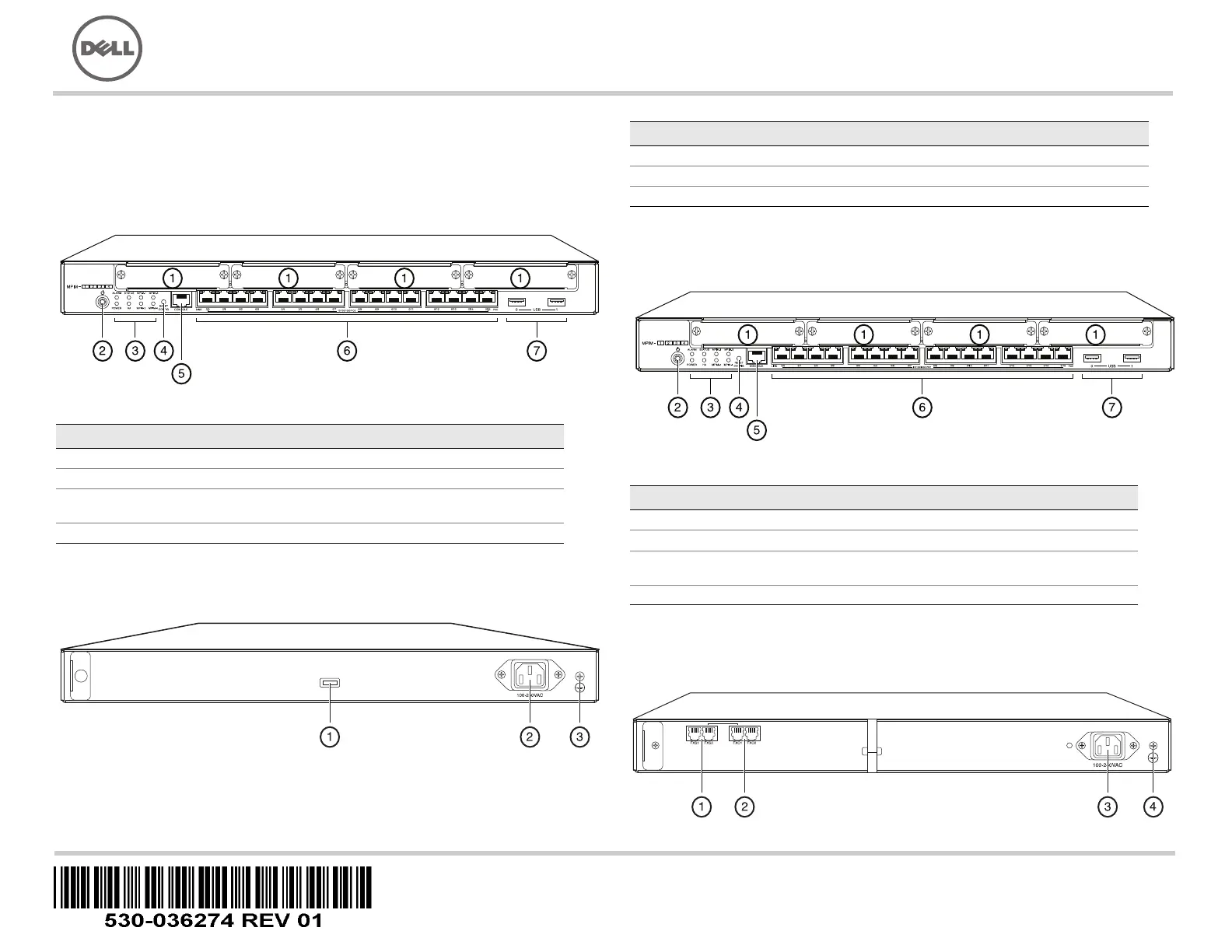

J-SRX240 Services Gateway (J-SRX240B, J-SRX240H) Front Panel

J-SRX240 Services Gateway (J-SRX240B, J-SRX240H, J-SRX240H-POE)

Back Panel

J-SRX240 Services Gateway with Integrated Convergence Services

(J-SRX240H-POE, J-SRX240H-P-MGW) Front Panel

J-SRX240 Services Gateway with Integrated Convergence Services

(J-SRX240H-P-MGW) Back Panel

Callout Description Callout Description

1 Mini-PIM slots 5 Console port

2 Power button 6 Gigabit Ethernet (0/0 to 0/15)

3 LEDs (ALARM, POWER,

STATUS, HA, mPIM)

7 USB ports

4 Reset Config button

Callout Description

1 Cable tie holder

2 Power supply input

3 Grounding point

Callout Description Callout Description

1 Mini-PIM slots 5 Console port

2 Power button 6 Gigabit Ethernet (0/0 to 0/15)

3 LEDs (ALARM, POWER,

STATUS, HA, mPIM)

7 USB ports

4 Reset Config button

037518

Dell PowerConnect J-Series J-SRX240 Services Gateway

Quick Start

Page 2

J-SRX240 Services Gateway Models

The following four models of J-SRX240 Services Gateway are available:

NOTE:

On the J-SRX240H-PoE and J-SRX240H-P-MGW models, Power over Ethernet

(PoE) of 150 watts is supported across all 16 ports (ge-0/0/0 to ge-0/0/15).

Connecting and Configuring the J-SRX240 Services Gateway

Use the instructions below to connect and set up any model of the J-SRX240 Services

Gateway to protect your network. Refer to the LEDs on the front panel of the device to

help you determine the status of the device.

Part 1: Connect the Services Gateway to Earth Ground

1. Obtain a grounding cable—14 AWG single-strand, 4 A—with a ring-type,

vinyl-insulated TV14-6R lug or equivalent attached by a licensed electrician.

2. Connect the grounding cable to a proper earth ground.

3. Place the grounding cable lug over the grounding point on the upper rear of the

chassis, and secure the lug with one 6-32 UNC screw.

Part 2: Connect the Power Cable to the Device

Connect the power cable to the device and a power source. We recommend using a

surge protector. Note the following indications:

 POWER LED (green): The device is receiving power.

 STATUS LED (green): The device is operating normally.

 ALARM LED (amber): The device is operating normally, and may glow amber as a

rescue configuration has not been set. This is not a panic condition.

 mPIM LED (off): The Mini-Physical Interface Module (Mini-PIM) is not present or is

not detected by the device. If this LED is green and steadily on, it indicates that the

Mini-PIM is functioning normally.

NOTE:

After a rescue configuration has been set, an amber ALARM LED indicates a

minor alarm, and a solid red ALARM LED indicates that a major problem exists on the

services gateway.

NOTE:

You must allow the device between 5 and 7 minutes to boot up after you have

powered it on. Wait until the STATUS LED is solid green before proceeding to the next

part.

Part 3: Connect the Management Device

Connect the management device to the services gateway using either of the following

methods:

 Connect an RJ-45 cable (Ethernet cable) from any one port between ge-0/0/1 and

ge-0/0/15 on the front panel to the Ethernet port on the management device

(workstation or laptop).

We recommend this connection method. If you are using this method to connect,

proceed with Part 4.

 Connect an RJ-45 cable (Ethernet cable) from the port labeled CONSOLE to the

supplied DB-9 adapter, which then connects to the serial port on the management

device. (Serial port settings: 9600 8-N-1.)

If you are using this method to connect, proceed with the CLI configuration

instructions available in the Branch SRX Series Services Gateways Golden

Configurations at http://www.juniper.net/us/en/local/pdf/app-notes/3500153-en.pdf.

See the illustration below for details on connecting a management interface:

Callout Description

1 FXS voice port

2 FXO voice port

3 Power supply input

4 Grounding point

Device DDR Memory Power over Ethernet Voice Support

J-SRX240B 512 MB No No

J-SRX240H 1 GB No No

J-SRX240H-POE 1 GB Yes No

J-SRX240H-P-MGW 1 GB Yes Yes
