Barcode
Magstripe
Programming Manual
Decoder & Scanner
1
Getting Started ............................................................ 2
Setup Procedures ....................................................... 3
Setup Flow Chart .........................................................4
Group 0 : Interface Selection................................ 5
Group 1 : Device Selection for keyboard
Interface.............................................6-7
Group 2 : Inter-character Delay.............................8
Group 3 : Language for Keyboard Interface... 9-10
Group 4 : Terminator......................................11-12
Group 5 : Scan Mode.....................................13-14
Group 6 : Preamble and Postamble.....................15
.....................
.......................
.............................2
....................
......................................
....................................
............................................
..............................................
..............................................
.....................................
....................................
................................................
................................
...............................................
....................................
................................................
.........................................
..............................
.................................
......................
.................... 3
..........................
....................4
.....................
..............................
..................................................
.........
.....................
Group 7 : RS-232 Parameters... 16-18
Group 8 : Code 39 / Code 32... 19-20
Group 9-1 : Interleaved 2 of 5... 1
Group 9-2 : Industrial 2 of 5 / IATA... 22
Group 9-3 : Matrix 2 of 5. 23
Group 9-4 : China Postage. 24
Group 10 : Code 128. 25
Group 11 : Code 11. 26
Group 12 : Code 93. 27
Group 13 : MSI-PLESSY. 28
Group 14 : Codabar/NW7. 29
Group 15 : Code 4. 30
Group 16-1 : EAN-13/JAN-13. 31
Group 16-2 : UPC-A . 32
Group 16-3 : EAN-8/JAN-8. 33
Group 16-4 : UPC-E. 34
Group 16-5 : ISBN/ISSN. 35
Group 17 : General Parameter. 36
Group 18 : Code ID Setting. 37
Group 19 : Wand Type Parameters. 38
Group 20-1 : Magnetic Parameters. 9-40
Group 20-2 : Magnetic Parameters. 41
Group 21 : Function Key Emulation. 2
Function Code for PC XT/AT. 43-44
Table-Hex : Hexadecimal. 45
ASCII Table. 46
Hexadecimal-Decimal Conversion Table. 47
Pin Assignments .................. 48-50
CONTENTS
2
Getting Started
Installing Keyboard Wedge Scanner
To install a keyboard wedge scanner, follow the steps
listed below:
1) Make sure that the scanner has the correct Y (U)-
cable for the system (a PC or terminal)
2) Turn off the power of the system
3) Unplug the keyboard from the system
4) Connect the Y (U)- cable to the system and
keyboard
5) Turn on the power of the system
6) If the indicator LED lights up and the buzzer
sounds, the scanner is ready for reading
Installing a RS-232 Interface Scanner
To install a RS-232 interface scanner, the host device
should have a RS-232 port to receive data from the
scanner, follow the steps listed below:
1) Make sure that the scanner has the right connector
for the RS-232 port of the host device
2) Make sure that there is a power supply to the
scanner (if necessary)
3) Connect the cable to the RS-232 port of the device
4) If the indicator LED lights up and the buzzer
sounds, the scanner is ready for reading
Note: The installation and setting up procedures of a
USB interface scanner are the same as those of
a keyboard wedge scanner.
3
Setup Procedures
1) Locate a group that contains the parameters to be
changed.
2) Scan the "Enter Group #" label. The scanner will
sound beeps indicate that setup is in progress
3) Scan the label representing the parameter to be
changed
4) Scan the "Exit" to end the group currently selected,
the scanner will sound beeps
5) Repeat the procedure for other groups including the
parameters to be changed
Example 1:
Set the operating mode to "Continuous mode"
1) Scan "Enter Group 5"
2) Scan "Continuous/Trigger off"
3) Scan "Exit"
Example 2
Assign Preamble string as "#", and postamble string as
"END"
1) Scan "Enter Group 6"
2) Scan Preamble
3) Scan "#" from "Full ASCII Table and Table-Hex."
4) Scan "Confirm" Label in Table-Hex
5) Scan "Postamble"
6) Scan "E", "N", "D" from "Full ASCII Table and
Table Hex" consecutively
7) Scan "Confirm" Label in Table-Hex.
8) Scan Exit
4
ENTER GROUP

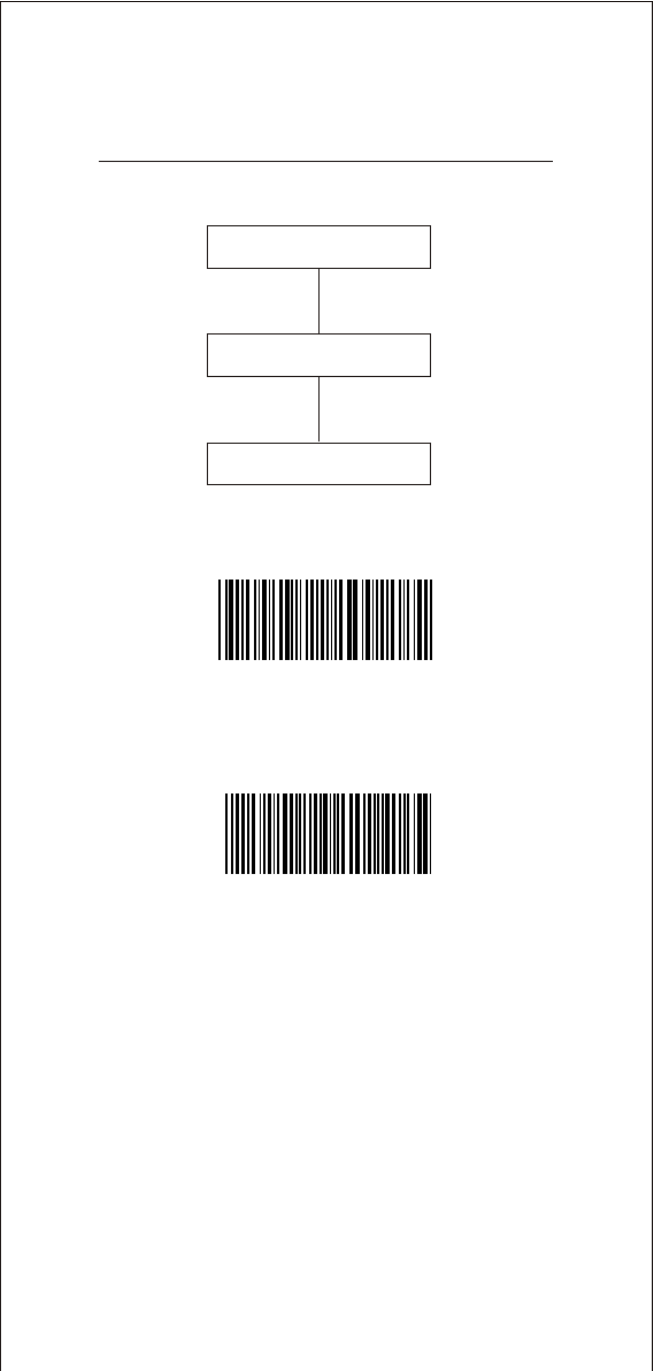

Setup Flow Chart
SELECT ITEMS
EXIT
Set All Defaults
Show Version
Note: (*) denotes default setting options marked by ( )
only available upon request.are
5
Group 0: Interface Selection
KEYBOARD
ENTER GROUP
EXIT
RS-232
(WAND)
(OCIA)
(DTMF)
Reserved 2
Resered 3
Reserved 4
Note: The interface is pre-set at factory according to the
model of the device.
6
Group 1: Device Selection for Keyboard Interface
PC/AT, PS/2 50,60,70,80(*)
PC/XT
PS/2 25, 30
(NEC 9801)
(IBM 5550)
(PS 55)
(NEC N5520)
(ACER 7300)
(KW105D/
CT-700A/WANG 5120)
(WANG 5425)
(MAC_SE)
(LC-6533)
ENTER GROUP
EXIT
Note: Options marked by ( ) are only available upon request.
7

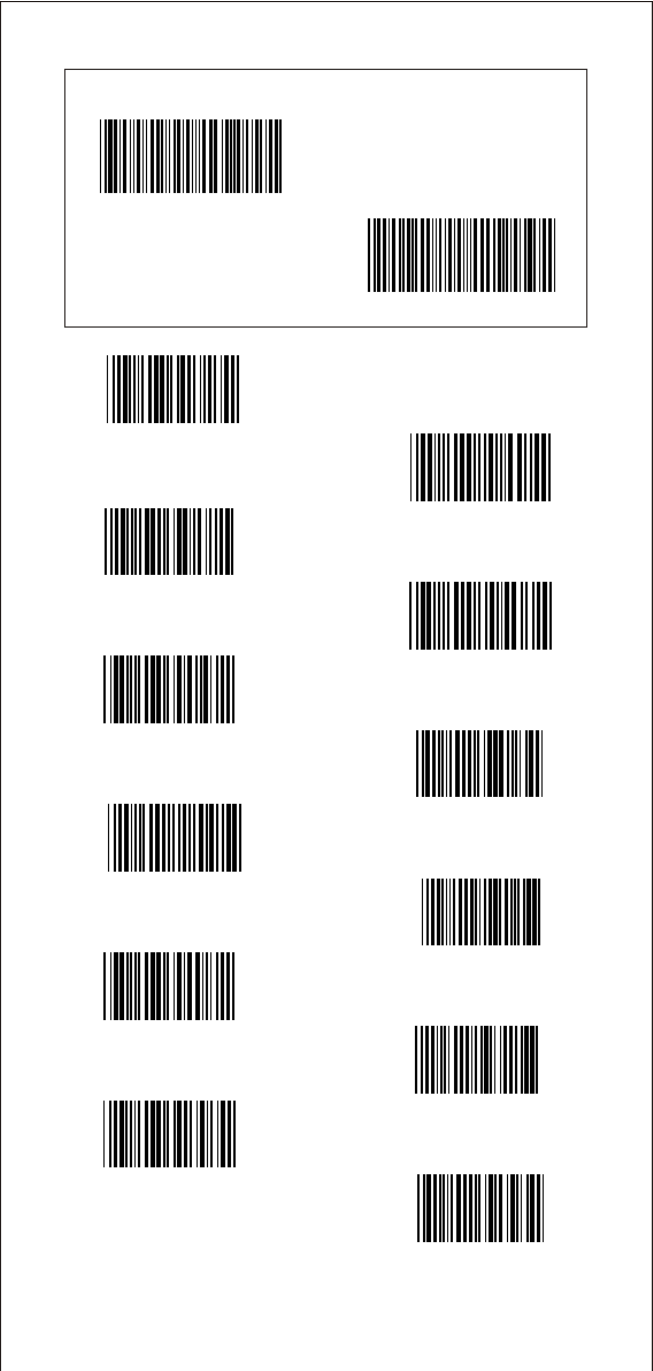

Group 1: Device Selection for Keyboard Interface
ENTER GROUP
EXIT
(IBM3196, 3197, 3476, 3477)
Reserved 8
Reserved R
IBM3197
IBM3477
Reserved 6
Reserved Q
9Reserved
Reserved T
IBM 3476
5Reserved
7Reserved
8

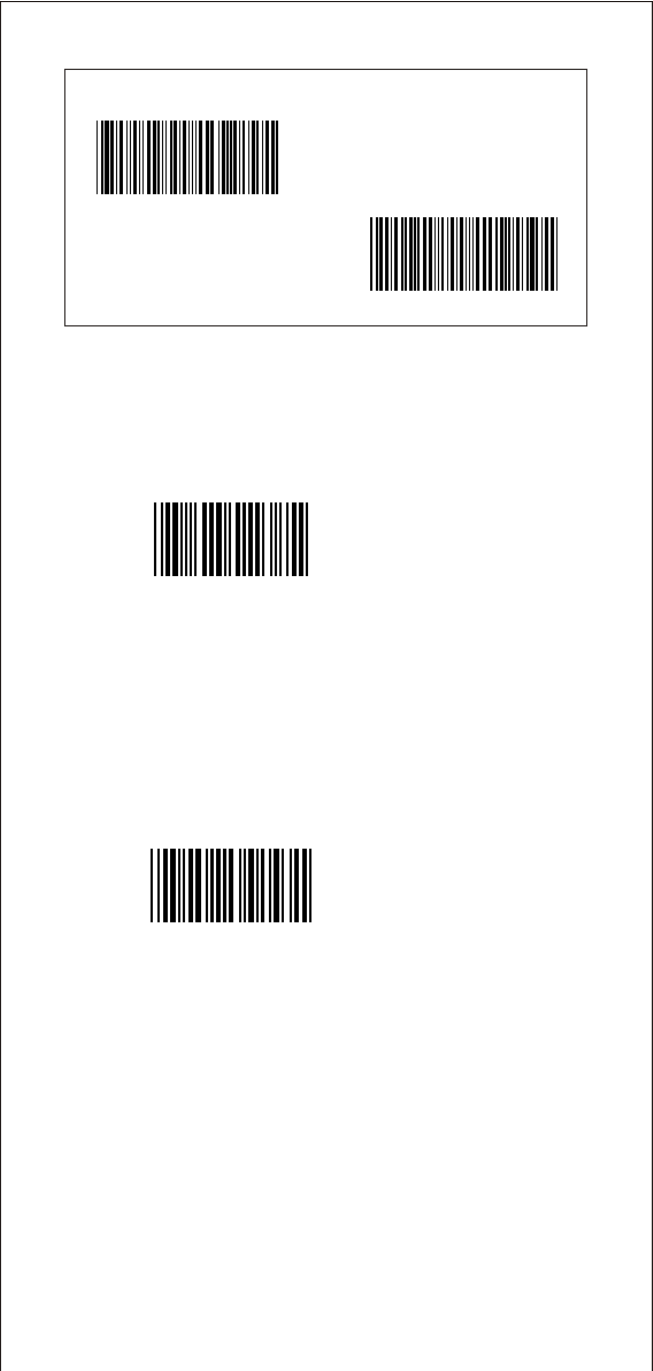

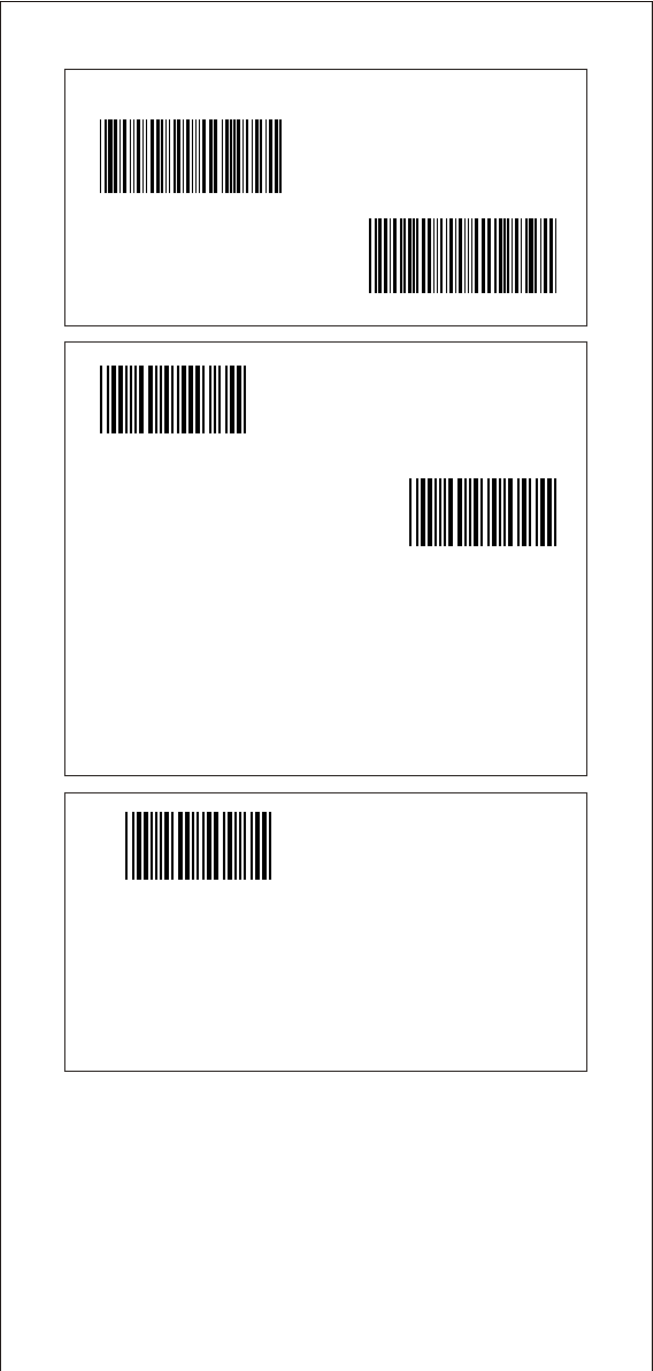

Group 2: Intercharacter Delay
ENTER GROUP
Start Keyboard Setting
Scan Enter Group 2 Label -- >
Scan Start Keyboard (or RS-232) Setting Label -->
Scan two digits labels in Table-Hex -->
Scan Exit Label
Start RS-232 Setting
Keyboard Default Value: 05
RS-232 Default Value : 00
EXIT
9

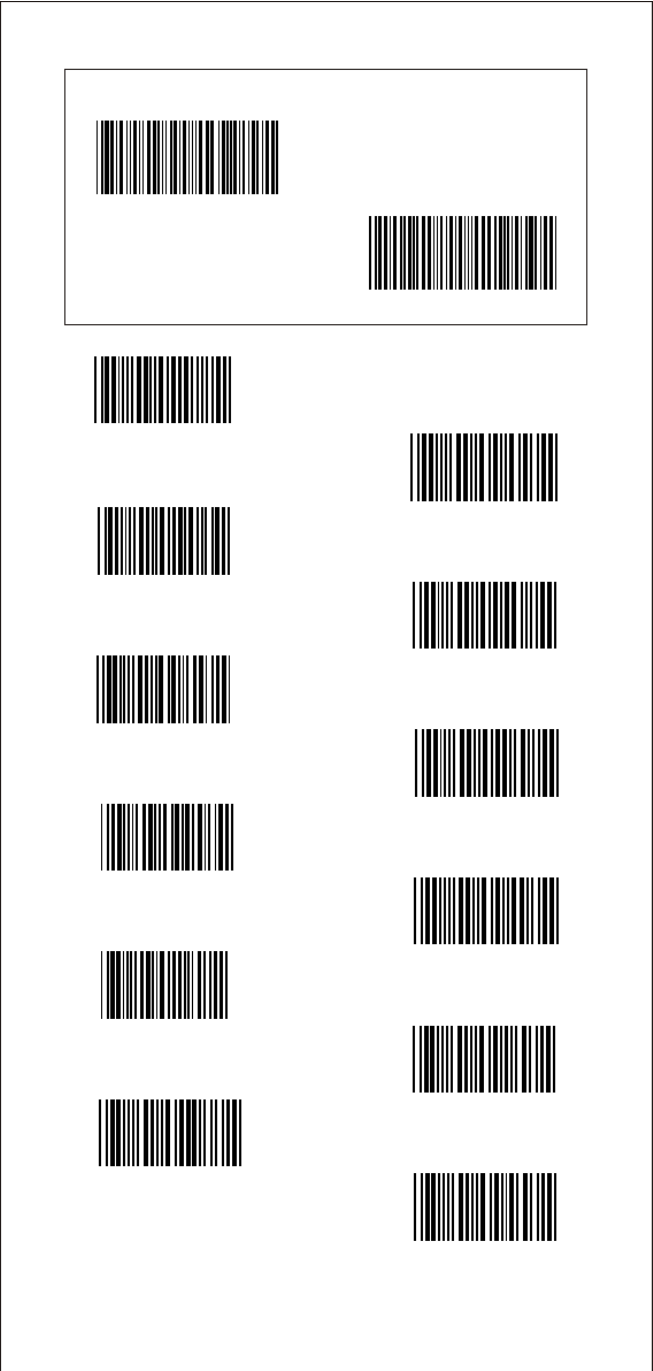

Group 3: Language for Keyboard Interface
ENTER GROUP
U.S. (*)
ENGLAND
FRANCE
GERMANY
ITALY
BELGIUM
SWEDEN/FINLAND
SPANISH
DENMARK
PORTUGAL
SWISS
NORWAY
EXIT
10

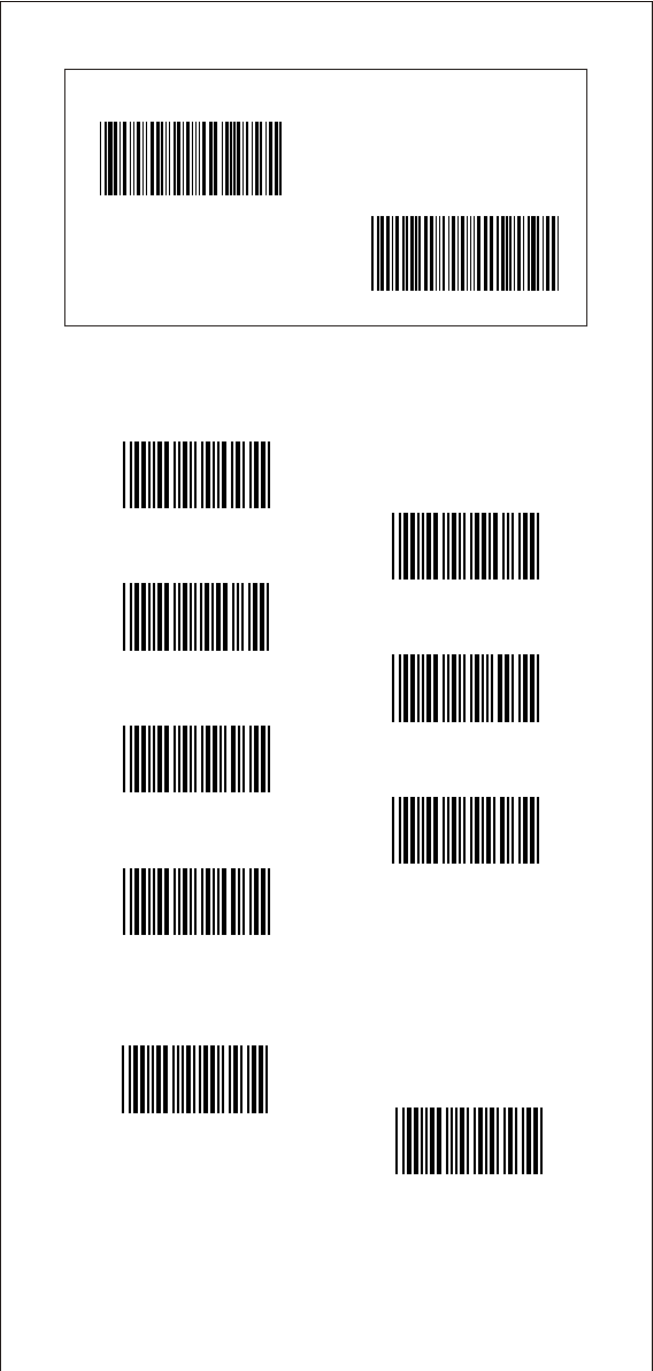

Group 3: Language for Keyboard Interface
ENTER GROUP
CANADA
HOLLAND
POLAND
LATIN
JAPAN
1Reserved
2Reserved
3Reserved
(IBM THINK-PAD FOR JAPAN)
(PANASONIC CF-
FOR JAPAN) II
EXIT
Note: Options marked by ( ) are only available upon request.
11

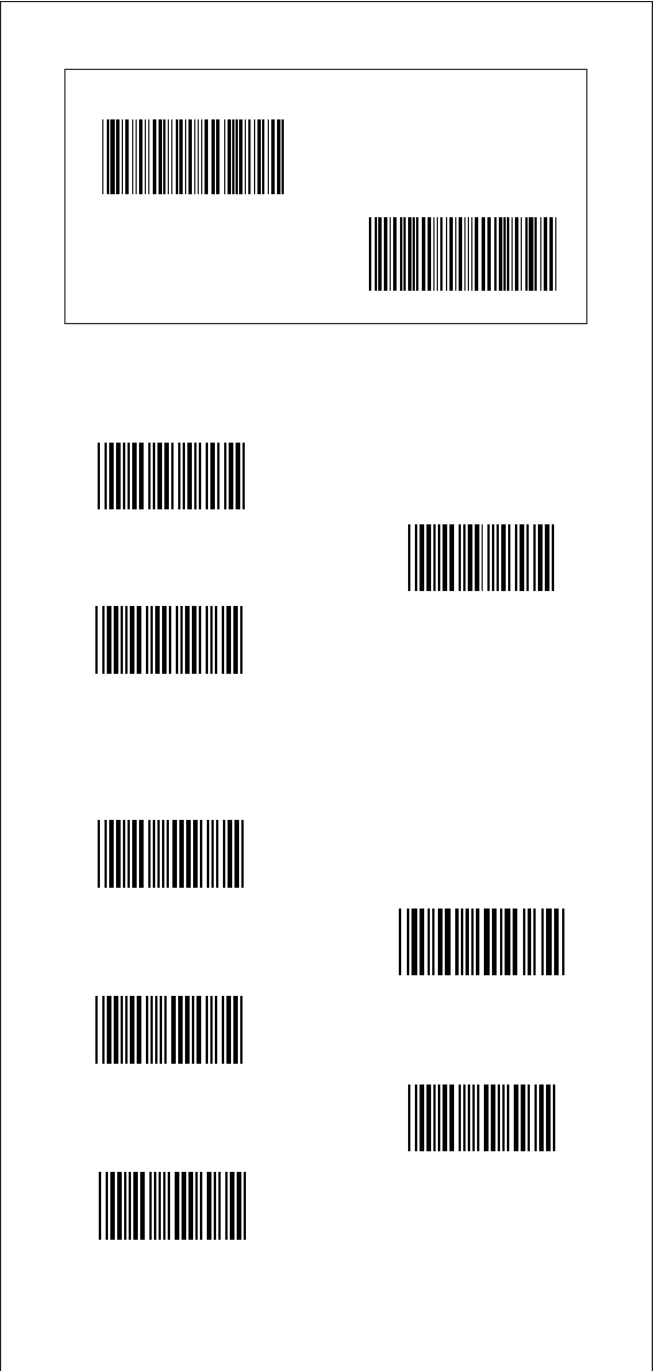

Group 4: Terminator
KEYBOARD
ENTER GROUP
NONE
CR
(*)
SPACE
TAB
ESC
CTRL-C
EXEC
EXIT
12
Group 4: Terminator
RS-232
ENTER GROUP
EXIT
NONE
CR (*)
CR/LF
LF
SPACE
TAB
ESC
CTRL-C
STX..ETX
XON.. XOFF
EOT
13

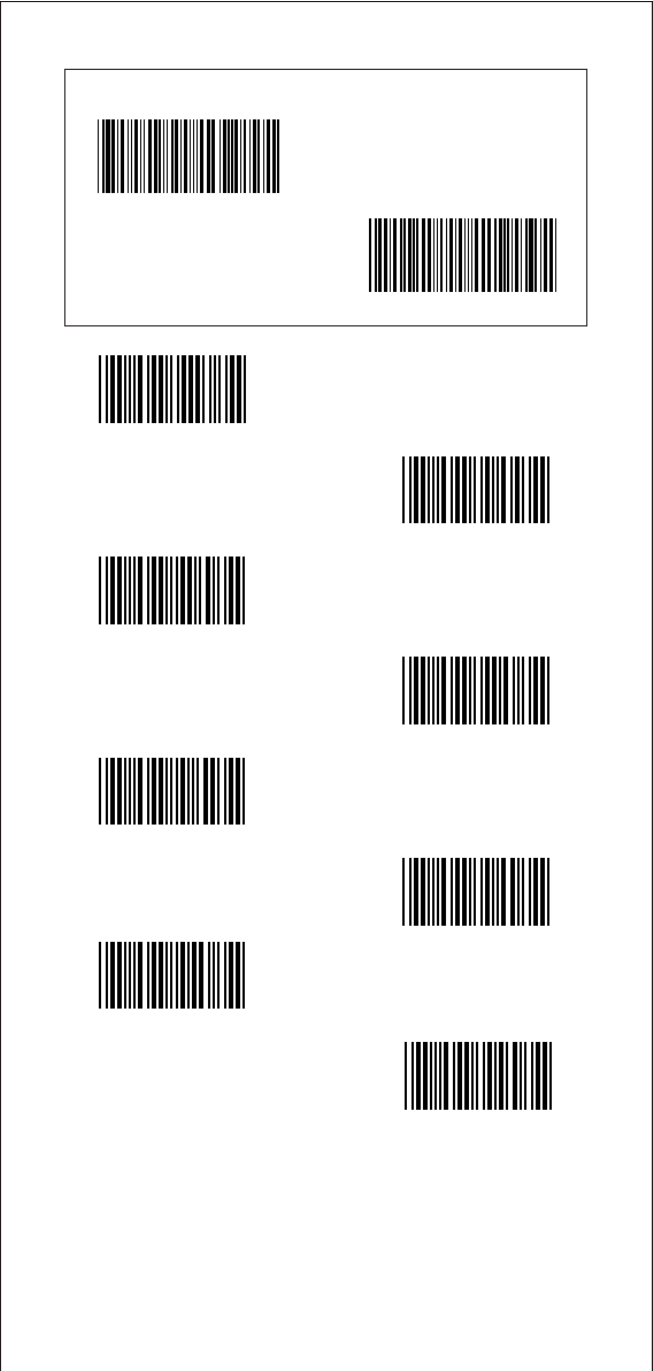

Group 5: Scan Mode
ENTER GROUP
EXIT
1: Trigger On/Off
2: Trigger On/
Good Read Off (*)
3: Trigger On/
Good Read Off/
Delay Timeout = ?
4: Continuous/
Trigger Off
5: Continuous/
LED Always on
6: Continuous/
No Trigger
7: Continuous/
Testing
8: Continuous/
Trigger Off/
Delay Timeout = ?
Delay Timeout Setting:
Scan Enter Group 5 Label -->
Scan 3 or 8 Label -->
Scan Confirm Label in Table-Hex
Scan Exit Label
Scan two digit labels in Table-Hex -->
-->
Note: Scan mode setting is only available for CCD/LASER
type scanner. Setting wand type scanner to this mode
will cause the scanner to break down.
14

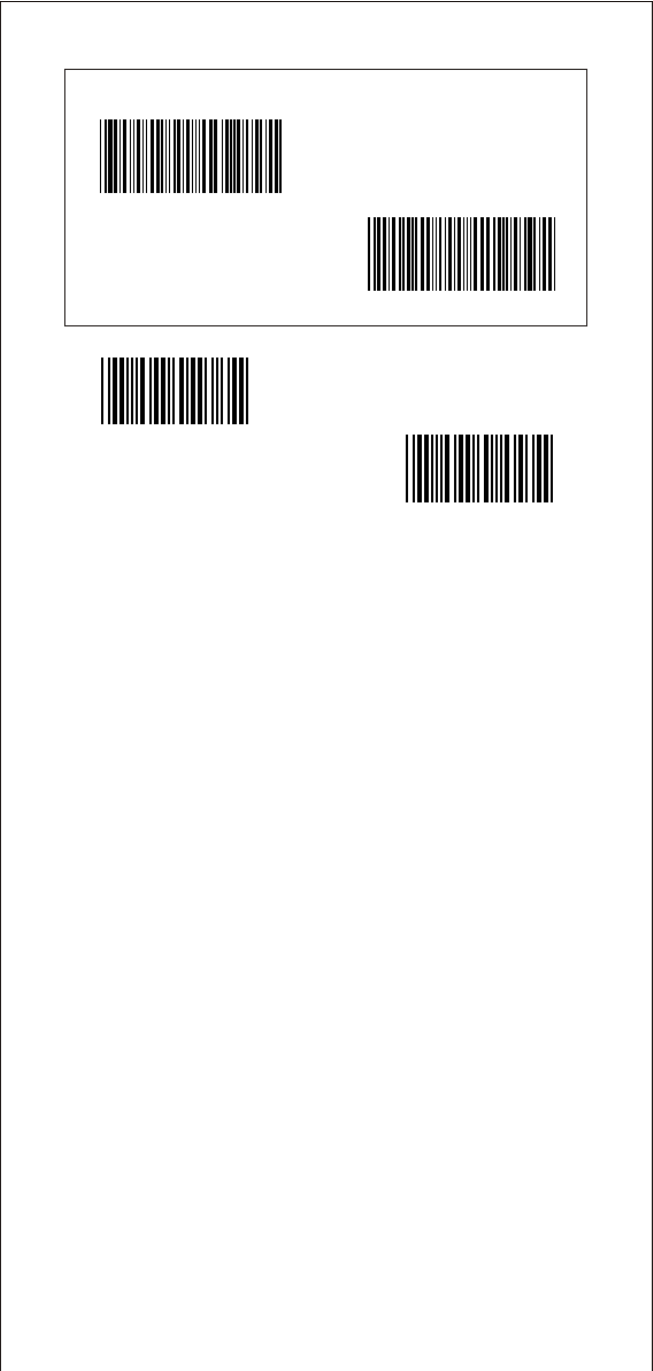

Group 5: Scan Mode
ENTER GROUP
EXIT
FLASH OFF(*)
FLASH ON
Note: Scan mode setting is only available for
Laser type scanner.CCD/
Preamble
Postamble
Preamble & Postamble Setting:
Scan Enter Group 6 Label -->
Scan Preamble or Postamble Label -->
Refer to ASCII Table(page 46), scan two digits in Table-Hex
(Page 45)
Representing one character, maximum 10 characters can be
accepted. -->
Scan Confirm Label in Table-Hex (Page 45)
Scan Exit Label
15
Group 6: Preamble and Postamble
ENTER GROUP
Clear
EXIT
Clear Preamble & Postamble :
Scan Enter Group 6 Label -->
Scan Preamble or Postamble Label -->
Scan Clear Label-->
Scan Exit Label
16
Group 7: RS-232 Parameters
Baud Rate
Data Bit
EXIT
BIT 7
BIT 8 (*)
ENTER GROUP
1200
4800
19200
600
2400
9600(*)
38400
17
Group 7: RS-232 Parameters
Parity :
Handshaking:
EXIT
NONE (*)
ODD
EVEN
NONE (*)
XON/XOFF
Scanner Ready
Data Ready
ACK/NAK
ENTER GROUP
19
Group 8: CODE 39 / CODE 32
EXIT
Standard (*)
Full ASCII
Transmit Start/End Character
Code 39
Disable (*)
Enable
Transmit Check Character
Verify Checksum
ENTER GROUP
Enable (*)
Disable
Enable (*)
Disable
Enable
Disable (*)
20
Group 8: CODE 39 / CODE 32
EXIT
Verify Normal (*)
Verify Strick
Disable CODE 32
ENTER GROUP
Enable CODE 32 (*)
21
Group 9-1: Interleaved 2 OF 5
EXIT
Transmit Check Character
Disable
Enable (*)
Verify Checksum
Disable (*)
Enable
Length Define
Min: 4
Max: 48
Barcode Length Setting:
Scan Enter Group 9-1 Label -->
Scan Length Define Label -->
Scan Four Digit Labels in Table Hex (Page 45) -->
Scan Confirm Label in Table-Hex -->
Scan Exit Label
User Define
3 Sets Available
User Define Length Setting:
Scan Enter Group 9-1 Label
Scan User Define Label-->
Scan Six Digit Labels in Table Hex
(Only 3 sets of length can be defined)
Scan Confirm Label in Table Hex -->
Scan Exit Label
ENTER GROUP
Disable
Enable (*)
22

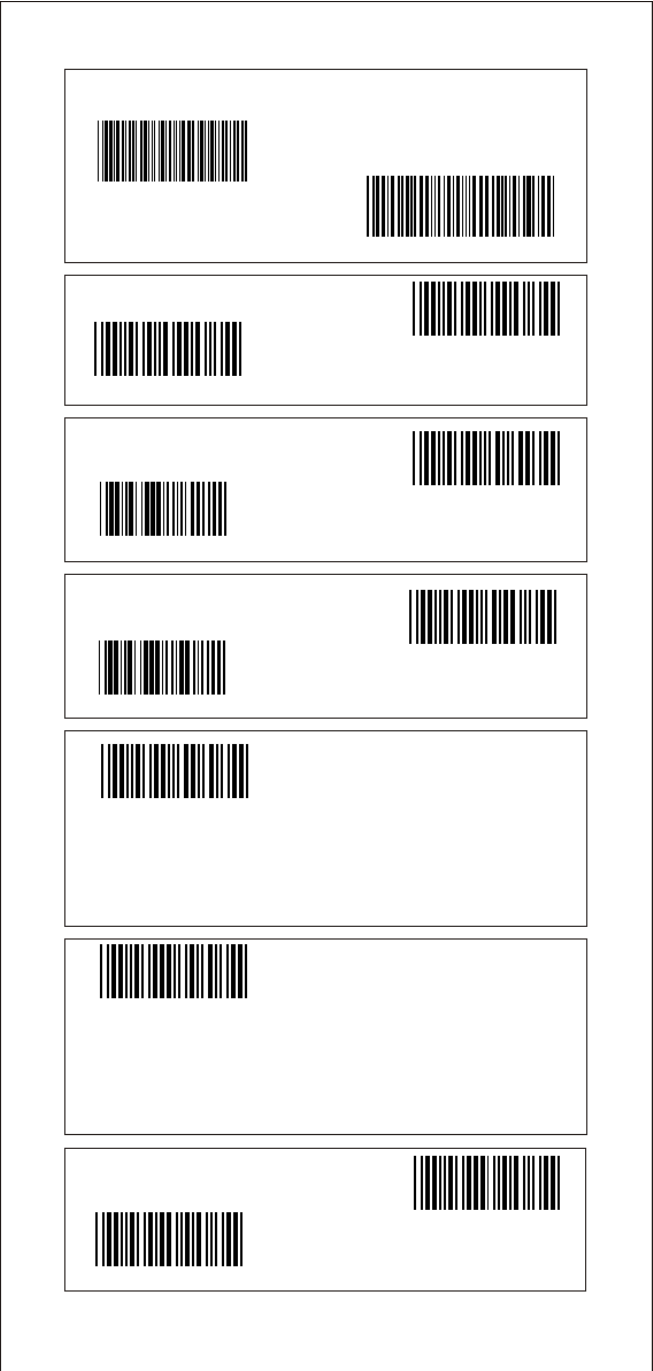

Group 9-2: Industrial 2 OF 5 / IATA
EXIT
Transmit Check Character
Verify Checksum
IATA
Disable
Disable (*)
Enable (*)
Enable
ENTER GROUP
Length Define
Min: 2
Max: 24
Barcode Length Setting:
Scan Enter Group 9-2 Label -->
Scan Length Define Label -->
Scan Four Digit Labels in Table Hex (Page 45) -->
Scan Confirm Label in Table-Hex -->
Scan Exit Label
User Define
3 Sets Available
User Define Length Setting:
Scan Enter Group 9-2 Label
Scan User Define Label-->
Scan Six Digit Labels in Table Hex
(Only 3 sets of length can be defined)
Scan Confirm Label in Table Hex -->
Scan Exit Label
Disable
Enable (*)
Disable (*)
Enable
23

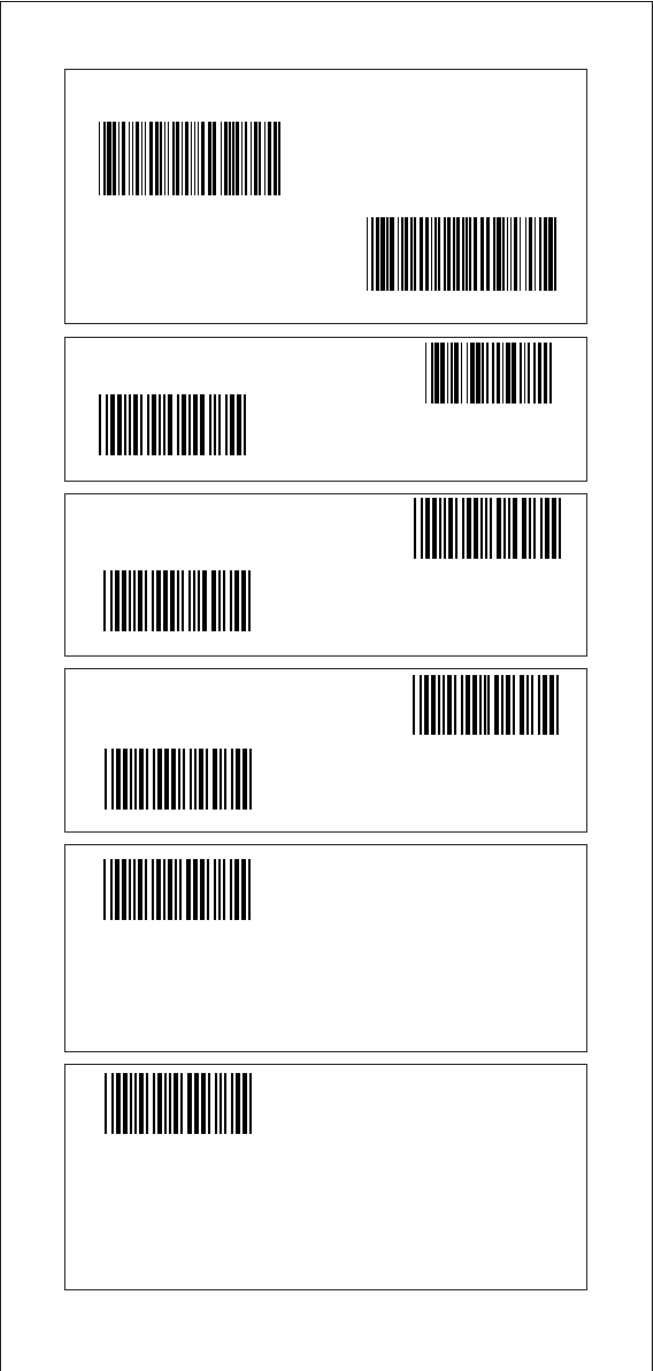

Group 9-3: Matrix 2 OF 5
EXIT
Transmit Check Character
Verify Checksum
Length Define
Min: 2
Max: 40
Barcode Length Setting:
Scan Enter Group 9-3 Label -->
Scan Length Define Label -->
Scan Four Digit Labels in Table Hex (Page 45) -->
Scan Confirm Label in Table-Hex -->
Scan Exit Label
User Define
3 Sets Available
User Define Length Setting:
Scan Enter Group 9-3 Label
Scan User Define Label-->
Scan Six Digit Labels in Table Hex
(Only 3 sets of length can be defined)
Scan Confirm Label in Table Hex -->
Scan Exit Label
ENTER GROUP
Disable
Enable (*)
Disable
Enable (*)
Disable (*)
Enable
24

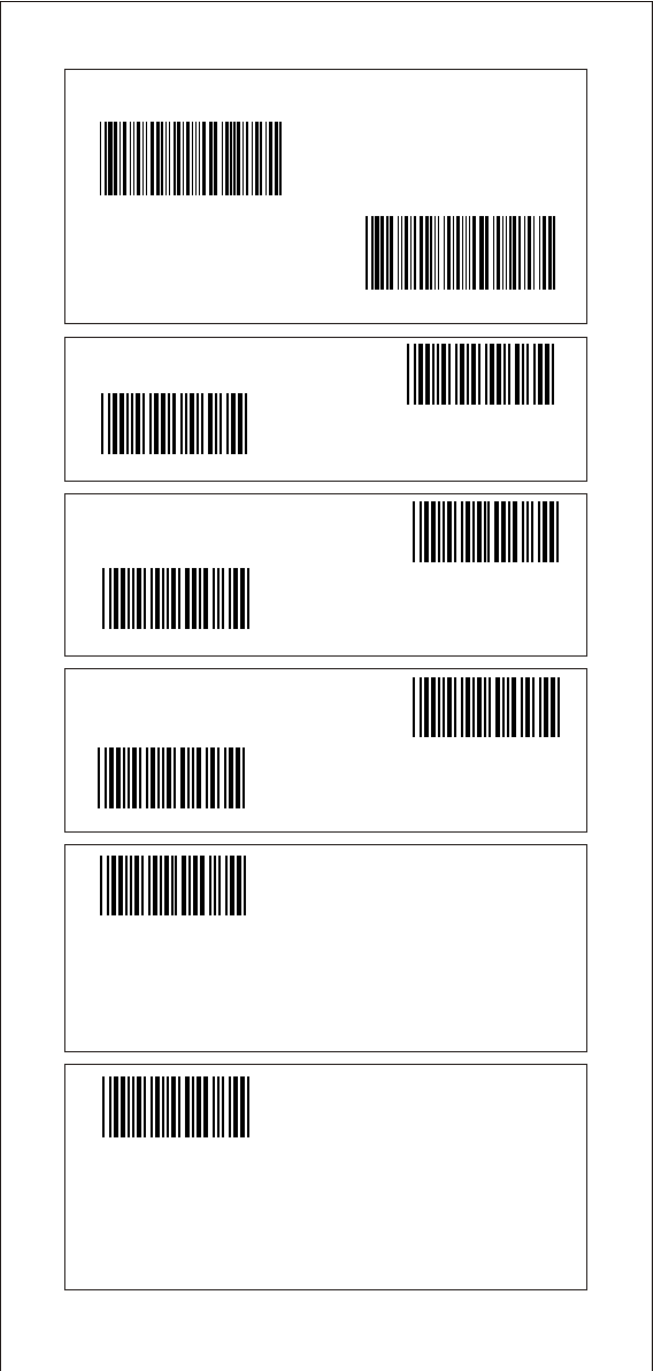

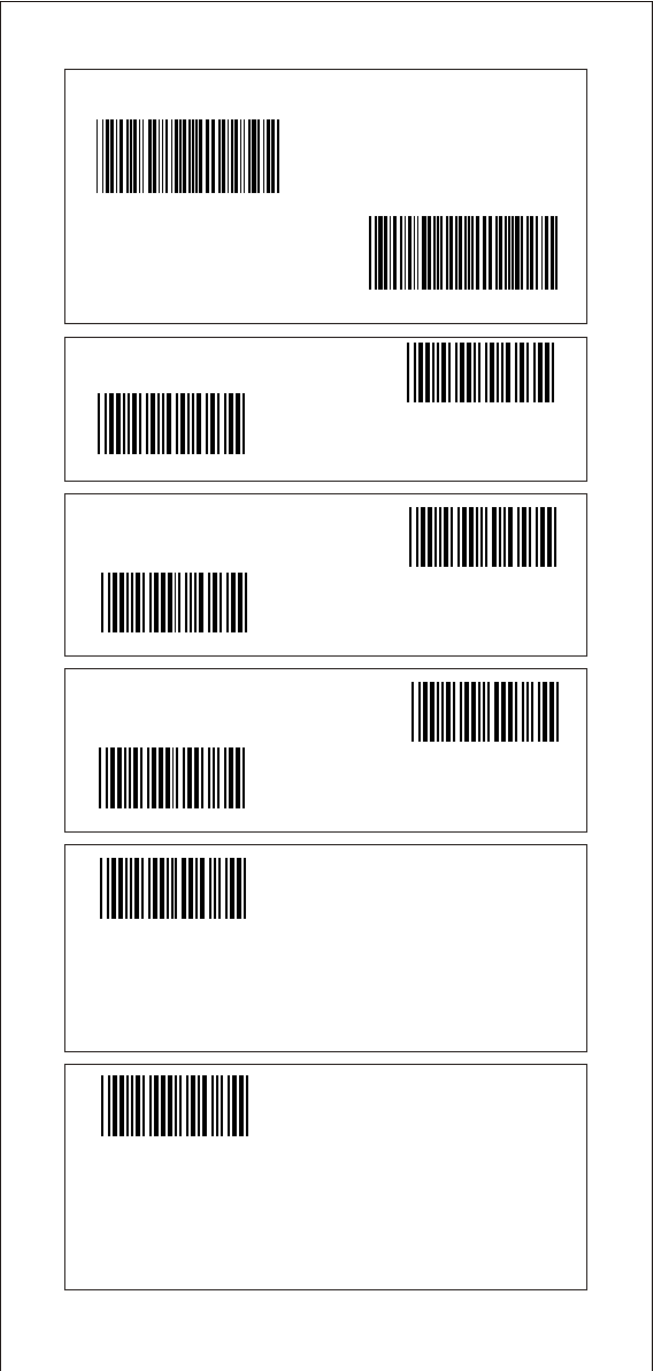

Group 9-4: CHINA POSTAGE
EXIT
Transmit Check Character
Verify Checksum
Length Define
Min: 2
Max: 40
Barcode Length Setting:
Scan Enter Group 9-4 Label -->
Scan Length Define Label -->
Scan Four Digit Labels in Table Hex (Page 45) -->
Scan Confirm Label in Table-Hex -->
Scan Exit Label
User Define
3 Sets Available
User Define Length Setting:
Scan Enter Group 9-4 Label
Scan User Define Label-->
Scan Six Digit Labels in Table Hex
(Only 3 sets of length can be defined)
Scan Confirm Label in Table Hex -->
Scan Exit Label
ENTER GROUP
Disable
Enable (*)
Disable
Enable (*)
Disable (*)
Enable
26
Group 11: CODE 11
EXIT
Enable/Disable Checkdigit
Number of Check Character
Transmit Check Character
Two (*)
One
ENTER GROUP
Enable (*)
Disable
Enable (*)
Disable
Enable (*)
Disable
27
Group 12: Code 93
EXIT
ENTER GROUP
Verify Checkdigit
Disable
Enable (*)
Enable (*)
Disable
29

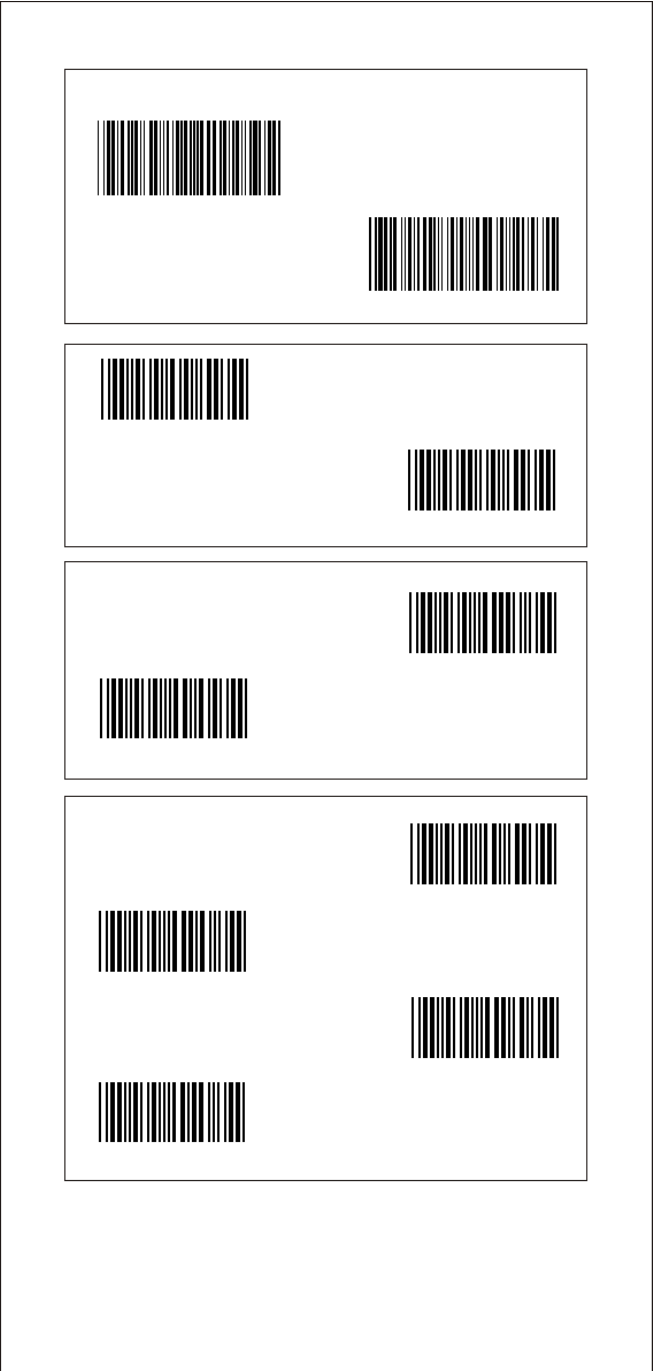

Group 14: CODABAR / NW7
EXIT
Disable
Disable (*)
Enable (*)
Enable
ABCD/ABCD
ABCD/TN*E
abcd/abcd (*)
abcd/tn*e
ENTER GROUP
Transmit Start/End Character
Start/End Transmit Type
32
Group 16-2: UPC-A
EXIT
ENTER GROUP
Disable
Enable (*)
Disable (*)
Disable
Disable (*)
Enable
Enable (*)
Enable
ADD-ON 2/5
Transmit Check Character
Truncate Leading Digit
UPC-A Convert to EAN-13
Enable
Disable (*)
33

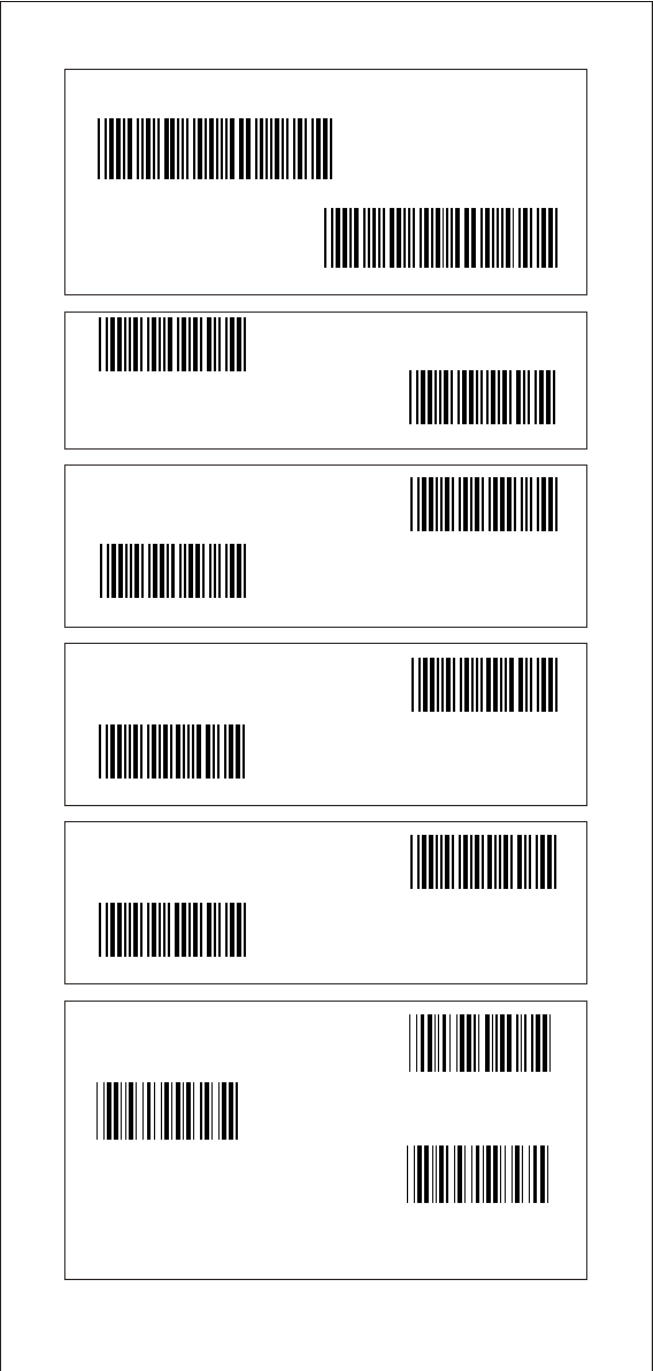

Group 16-3: EAN-8/JAN-8
EXIT
ENTER GROUP
Disable
Enable (*)
Disable (*)
Disable
Disable (*)
Disable (*)
Enable
Enable (*)
Enable
Enable 1
(add zeros in the front
of barcode) Enable 2
(add zeros in the middle
of barcode)
ADD-ON 2/5
Transmit Check Character
Truncate Leading Digit
EAN-8 Convert to EAN-13
Produkt Specifikationer
| Mærke: | Deltaco |
| Kategori: | Stregkodelæser |
| Model: | DUR-801 |
| Vægt: | 140 g |
| Produktfarve: | Grå |
| Bluetooth: | Ingen |
| Opbevaringstemperatur (T-T): | -20 - 65 °C |
| Relativ luftfugtighed ved drift (H-H): | 5 - 95 % |
| Driftstemperatur (T-T): | 0 - 50 °C |
| Skærm: | Ingen |
| Husmateriale: | Plast |
| Dimensioner (BxDxH): | 157.5 x 106.9 x 79.1 mm |
| Kabler inkluderet: | LAN (RJ-45), Phone (RJ-11), RS-232, USB |
| Indgangsspænding: | 5 V |
| Standard grænseflader: | RJ-45, RJ-11 |
| Bølgelængde: | 670 nm |
| Strømforbrug: | 90 mA |
| Maksimal driftstilstand: | 0.38 m |
| Indbygget processer: | Intel 80C31 |
| Maksimal skanningsbredde: | 380 mm |
| Læsehastighed (maks.): | 33 læs/sek. |
| Tilt læsningsvinkel: | 0 - 50 ° |
| Pitch læsningsvinkel: | 0 - 65 ° |
| Lysniveauer (direkte sollys): | 3000 - 8000 Lux |
| Afkodningsstandarder: | Code 39, Full ASCII Code 39, UPC/EAN/JAN, \nCODABAR, Interleaved 2/5, Code 128, Code 11, \nCode 93, MSI/PLESSEY, Code 4 |
| Antal taster: | 1 taster |
| Scanneropløsning: | 0.127 mm |
Har du brug for hjælp?
Hvis du har brug for hjælp til Deltaco DUR-801 stil et spørgsmål nedenfor, og andre brugere vil svare dig
Stregkodelæser Deltaco Manualer
23 Juli 2024
2 Marts 2024
6 November 2022
Stregkodelæser Manualer
- Code Corporation
- IFM
- EC Line
- Code
- QUIO
- Baracoda
- Adesso
- Metapace
- Datamax-O'neil
- DeLOCK
- Cypress
- Argox
- Psion
- Manhattan
- IC Intracom
Nyeste Stregkodelæser Manualer
15 August 2025
14 August 2025
14 August 2025
12 August 2025
7 August 2025
5 August 2025
5 August 2025
5 August 2025
5 August 2025
5 August 2025
