DCN690
20V Max* Cordless Framing Nailer
Cloueur pour charpente sans fil 20V max*
Clavadora inalámbrica de 20 V max*
INSTRUCTION MANUAL
GUIDE D’UTILISATION
MANUAL DE INSTRUCCIONES
INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO Y PÓLIZA
DE GARANTÍA. LÉASE ESTE INSTRUCTIVO ADVERTENCIA:
ANTES DE USAR EL PRODUCTO.
Questions? Visit www.DEWALT.com
Before returning this product call
1-800-4-DEWALT
IF YOU SHOULD EXPERIENCE A PROBLEM WITH YOUR DEWALT
PURCHASE,
CALL 1-800-4 DEWALT
IN MOST CASES, A DEWALT REPRESENTATIVE CAN RESOLVE
YOUR PROBLEM OVER THE PHONE.
IF YOU HAVE A SUGGESTION OR COMMENT, GIVE US A CALL.
YOUR FEEDBACK IS VITAL TO THE SUCCESS OF DEWALT’S
QUALITY IMPROVEMENT PROGRAM.
English
2

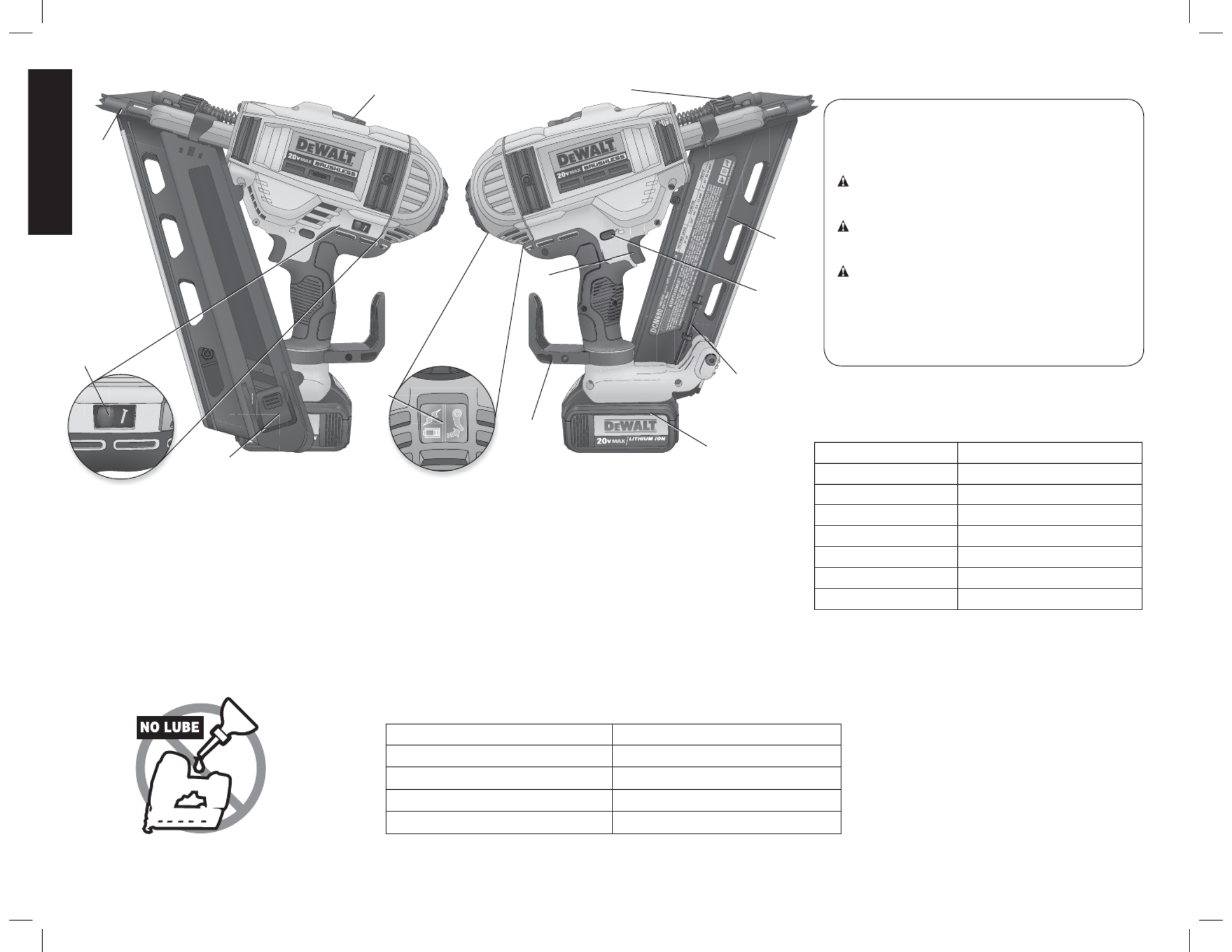

A. Trigger
B. Trigger lock-off
C. Depth adjustment wheel
D. Low battery & jam/stall
indicator light
E. Stall release lever
F. Contact trip
G. Magazine
H. Pusher latch
I. Bump/sequential
selector switch
J. Rotating rafter/belt hook
K. On-board hex wrench
L. Battery Pack
NAIL SPECIFICATIONS
Clipped Head
Nail Lengths 2"– 3-1/2" (50 mm – 90 mm)
Shank Diameters .113"–.131" (2.8 mm – 3.3 mm)
Nail Stick Angles 30˚– 34˚
Shank Types Smooth and Ring
Defi nitions: Safety Guidelines
The definitions below describe the level of severity for
each signal word. Please read the manual and pay
attention to these symbols.
DANGER: Indicates an imminently hazardous
situation which, if not avoided, will result in death
or serious injury.
WARNING: Indicates a potentially hazardous
situation which, if not avoided, result in could death
or serious injury.
CAUTION: Indicates a potentially hazardous
situation which, if not avoided, result in may minor
or moderate injury.
NOTICE: Indicates a practice not related to
personal injury which, if not avoided, may result in
property damage.
JTOOL SPECIFICATIONS
Firing Mode Selective: Bump or Sequential
Voltage 20
Height 13.5" (346 mm)
Width 4" (104 mm)
Length 13.25" (335 mm)
Weight 7.80 lbs. (3.538 kg)
Magazine Angle 33˚
Loading Capacity Up to 55 nails
G
K
E
A
F
FIG. 1
H
B
C
I
D
L
