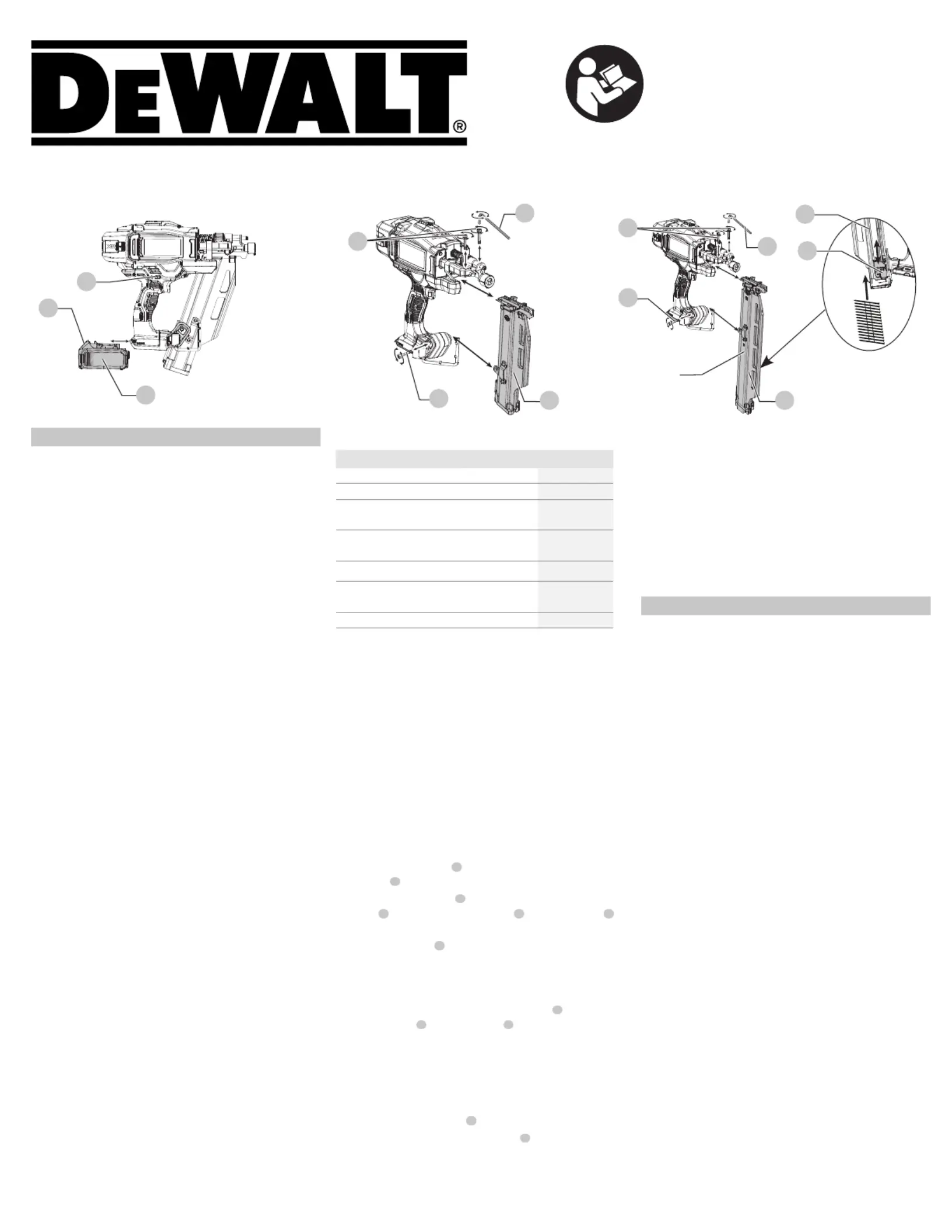

Fig.A Fig.B Fig.C

WARNING: To reduce the risk of injury, read the

instructionmanual.

AVERTISSEMENT : afin de réduire le risque de blessures, lire

le mode d’emploi del’outil.

ADVERTENCIA: Para reducir el riesgo de lesiones, lea el

manual deinstrucciones.

DZN920, DZN930 Extended Magazine / Magasin tendu / Cartucho ExtendidoÉ

ENGLISH

Definitions: Safety Alert Symbols and Words

This instruction manual uses the following safety alert symbols

and words to alert you to hazardous situations and your risk of

personal injury or propertydamage.



DANGER: Indicates an imminently hazardous

situation which, if not avoided, result in will death or

seriousinjury.



WARNING: Indicates a potentially hazardous situation

which, if not avoided, result in could death or

seriousinjury.



CAUTION: Indicates a potentially hazardous situation

which, if not avoided, result in may minor or

moderateinjury.



(Used without word) Indicates a safety relatedmessage.

NOTICE: Indicates a practice not related to

personal injury which, if not avoided, may result in

propertydamage.

IMPORTANT SAFETY INSTRUCTIONS



WARNING: When using this attachment, basic safety

precautions should always be followed including

thefollowing:

• Read all the instructions before using theproduct.

• To reduce the risk of injury, close supervision is

necessary when a product is used nearchildren.

• Always assume that the tool contains fasteners. Careless

handling of the nailer can result in unexpected ﬁring of

fasteners and personalinjury.

• Do not point the tool towards yourself or anyone

nearby. Unexpected triggering will discharge the fastener

causing aninjury.

• Disconnect the tool from the power source when the

fastener jams in the tool. While removing a jammed fastener,

the nailer may be accidentally activated if it is pluggedin.

• Keep hands and body parts away from the discharge

area of the tool. While in use NEVER grasp the tool by the

magazine or canister, a mis‑driven nail can exit the nose

causing injury.

• Always wear safetyglasses.

• Always wear earprotection.

• Only use fasteners of the type specified in theDCN920,

DCN930 manual.

• Do not disassemble or block any parts of the fastener driving

tool such as the contacttrip.

SAVE THESE INSTRUCTIONS

Specifications

DZN920 DZN930

Magazine angle 21° 30°

Fasteners

length in.

(mm)

2–3.5

(50–90)

2–3.5

(50–90)

shank diameter in.

(mm)

0.113 0.148–

(2.8 3.8)–

0.113 0.131–

(2.8 3.3)–

angle 21° 30–34°

head geometry full round clipped or

offset round

collation type plastic paper

ASSEMBLY AND ADJUSTMENTS



WARNING: To reduce the risk of serious personal

injury, turn unit off and disconnect it from power

source before making any adjustments or removing/

installing attachments or accessories. An accidental

start‑up can causeinjury.

Removing and Replacing the Magazine

(Fig. A, B, C)



WARNING: For your own safety, read the tool instruction

manual before using any accessory. Failure to heed

these warnings may result in personal injury and serious

damage to the tool and the accessory.

1. Remove battery pack

1 from tool and engage trigger safety

lock‑off

3

2. Using the hex wrench

7

provided, loosen the two hex

bolts

5

at the top of themagazine

4

and the hex bolt

6

on the foot of the tool.

3. Lift the magazine

4

away from the nailer.

4. Remove jammed/bent nail, using pliers if necessary. Clear

out any debris in the nail channel ifrequired.

5. Install the extended magazine into position under the nose of

the tool. Insert and tighten the two hex bolts

5

at the top of

themagazine

4

and the hex bolt

6

on the foot of the tool.

6. Reinsert batterypack.

NOTE: The tool will disable itself and not reset until the

battery pack has been removed andreinserted.

7. Reinsert nails into magazine (refer to Loading theTool

section in the DCN920, DCN930 instruction manual).

8. Release the pusher latch

8

9. Disengage the trigger safety lock‑off

3

when ready to

continuenailing.

10. If nails become jammed in the nosepiece frequently, have

the tool serviced by an authorized D

eWALT servicecenter.

MAINTENANCE



WARNING: To reduce the risk of serious personal

injury, turn unit off and disconnect it from power

source before making any adjustments or removing/

installing attachments or accessories. An accidental

start‑up can causeinjury.

Storage

• Store in a dry, covered location above freezing temperature.

STOREINDOORS.

DZN920

DZN930

Définitions : Symboles et mots liés aux alertes

de sécurité

Ce guide d’utilisation comporte les symboles et les mots

suivants liés aux alertes de sécurité pour vous avertir des

situations dangereuses et de votre risque d’avoir des blessures

corporelles ou des dommages matériels.



DANGER: Indique une situation dangereuse imminente

qui, si elle n’est pas évitée, causera la mort ou une

blessure grave.



AVERTISSEMENT: Indique une situation potentiellement

dangereuse qui, si elle n’est pas évitée, causer pourrait la

mort ou une blessure grave.



ATTENTION: Indique une situation potentiellement

dangereuse qui, si elle n’est pas évitée, peut une causer

blessure mineure ou modérée.



(Utilisé sans mention) Indique un message lié à lasécurité.

REMARQUE: indique une pratique n'entraînant aucun

risque de blessures mais qui, si elle n'est pas évitée, peut

entraîner des dommagesmatériels.

CONSIGNES DE SÉCURITÉ IMPORTANTES



AVERTISSEMENT: Lorsque vous utilisez cet appareil, des

précautions de sécurité élémentaires devraient toujours

être prises, notamment les suivantes:

• Lisez toutes les instructions avant d’utiliser le produit.

• Afin de réduire le risque de blessures, une surveillance

est nécessaire lorsqu’un produit est utilisé près

desenfants.

• Tenez toujours pour acquis que l’outil contient des

agrafes. Une manipulation imprudente de la cloueuse peut

entraîner un tir inattendu de clous et une blessure corporelle.

• Ne pas pointer l’outil vers vous ou toute personne à

proximité. Un déclenchement inattendu déchargera un clou

causant une blessure.

• Débranchez l’outil de la source d’alimentation lorsque

l’agrafe bloque dans l’outil. Lorsque vous retirez une

FRANÇAIS
