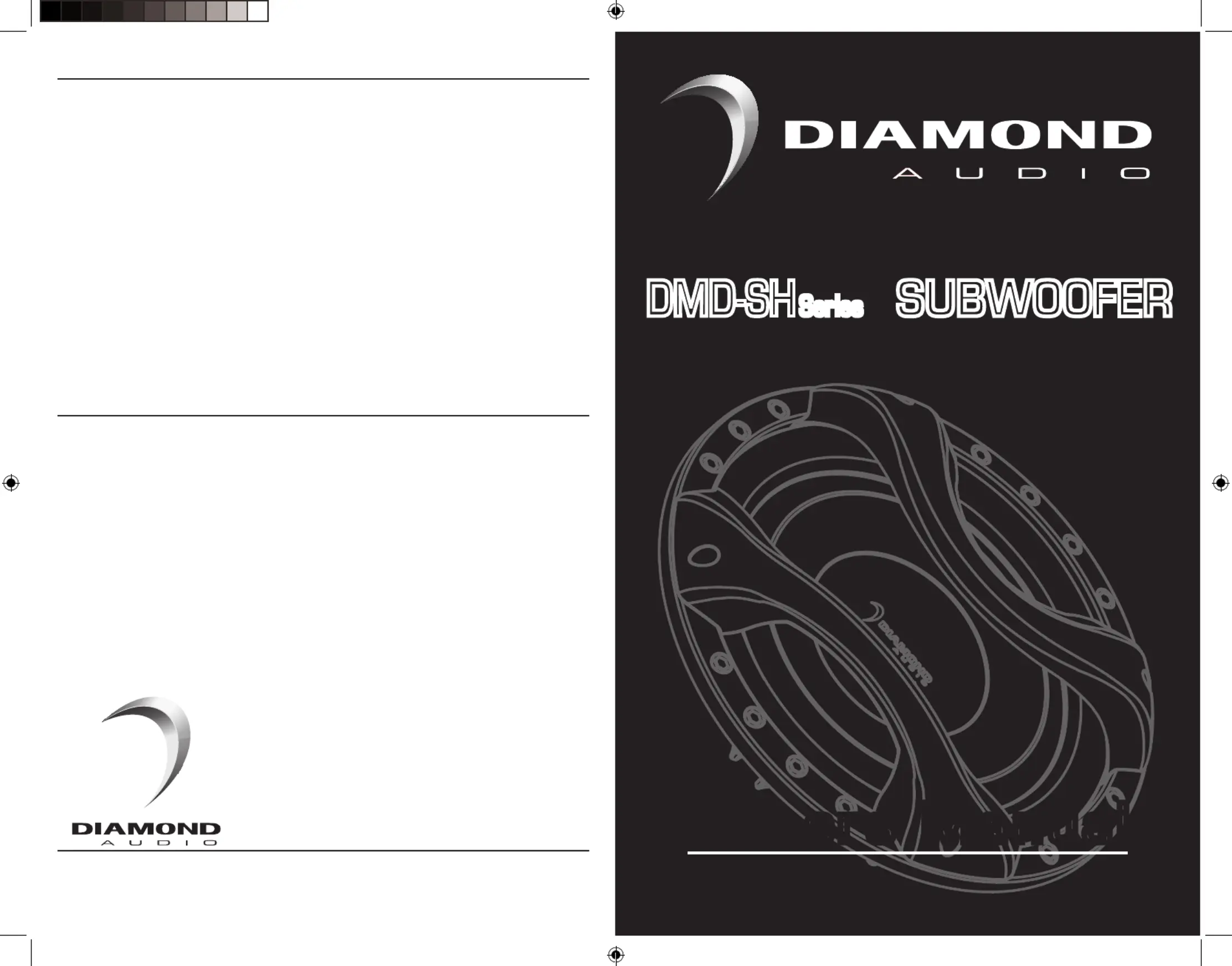

Owners Manual

DMD102SH/DMD104SH/DMD122SH/DMD124SH

(a division of CV & DA Holdings, lnc.)

DMD-SH Woofer Manual 2017.indd Spread 1 of 2 - Pages(4, 1)

LIMITED SPEAKER WARRANTY S TEMENTTA

Diamond Audio (a division of CV & DA Holdings, lnc.) warrants this product to be free from defects in material and workmanship for a period of

one (1) year from the original date of purchase provided it was purchased from an authorized DAT retailer within the United States. However,

if this product was installed by the authorized DA retailer, the warranty period will be extended to two (2) years.

THIS WARRANTY IS NO TRANSFERABLE AND APPLIES ONLT Y TO THE ORIGINAL PURCHASER OF THIS PRODUCT IN ITS

ORIGINAL INSTALLATION. Original purchaser must reside in the United States and be able to provide proof of purchase and installation with

the sales receipt from the authorized DAT retailer and completion of online regoistration that sold and installed the product.

Should a manufacturing defect occur during above said warranty period, DA will replace or repair the defective product with a product of the

same or equivalent value and performance.

Damage or failure caused by any of the following is not covered under this warranty policy: negligence, improper use, abuse, product

modification, unauthorized repair attempts, accident, acts of God, misrepresentations by DA retailers, and improper/inadequate packaging

during return shipping.

Warranty is void if serial numbers have been removed, altered or defaced.

HOW TO OBTAIN WARRANTY SERVICE

In the event a DA product should require service, you should visit the authorized DA retailer you purchased the product from and they can

expedite your claim. All claims must fall into the guidelines listed above and be accompanied by a copy of the original sales and installation

receipt from that authorized DA retailer.

Product returned for warranty service must be freight-prepaid, properly packaged and clearly marked with the Return Authorization (RA)

number issued by DA. Any product returned to DAT that is improperly packaged, does not have a RA number clearly marked on the

package, or never received a RA number may be refused upon delivery. DA does not assume responsibility for lost or misdirected product.

Repair or replacement under this warranty is the exclusive remedy of the consumer. DA shall not be liable for any incidental or

consequential damages for breach of any expressed or implied warranty on this product. Some states do not allow the exclusion or limitation

of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may

not apply to you. This warranty gives you specific legal rights and you may also have other rights that may vary from state to state.

Customers outside the United States should contact their local sales office to obtain information on pricing, exchange unit availability,

instructions, service and warranty/non-warranty replacement or repair.

Diamond Audio

1225 E.7th ST

LOS ANGELES,CA 90021

Tel: 213-261-4161

Fax: 213-947-4767

Web: diamondaudio.com

Facebook.com/diamondaudio

Service/Tech Support:

213-261-4161

Tech Support Email

techsupport@diamondaudio.com

Series

SUBWOOFER

Series

SUBWOOFER

Owners Manual

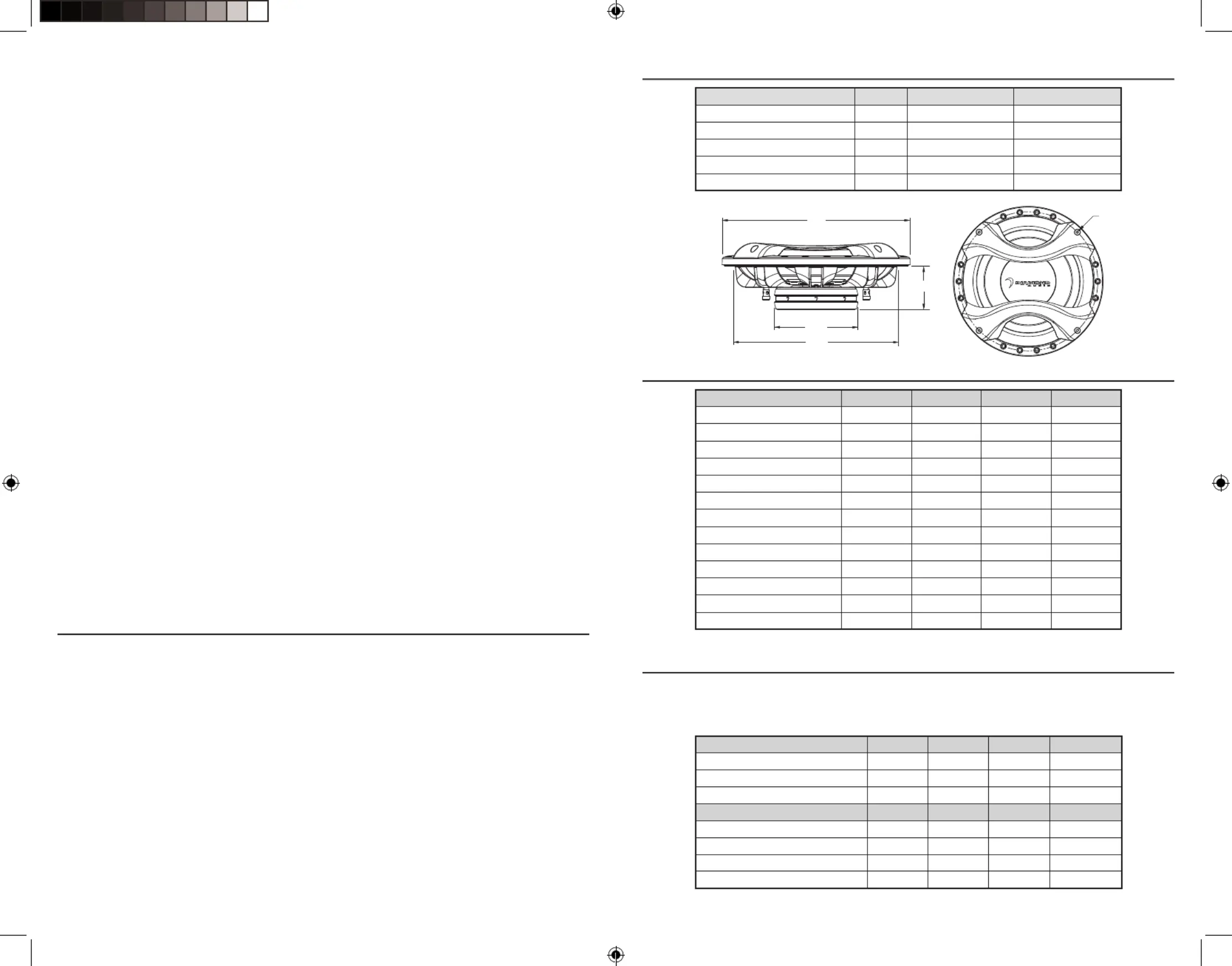

FEATURES

PHYSICAL DIMENSIONS

THIELE/SMALL PARAMETERS

ENCLOSURES

The enclosures below are offered as a suggestion only. Assistance from an authorized Diamond

Audio retailer is recommended. All volumes are gross internal, driver and vent displacement has

UnitDimension DMD122SH / DMD124SH

Total Diameter (A)

in. (mm)

3.00 (76.0)

11.06 (281.0)

12.83 (326.0)

DMD102SH / DMD104SH

5.69 (144.5)

3.00 (76.0)

10.00 (254.0)

9.13 (232.0)

10.87 (276.0)

Mounting Diameter (B)

Hole Diameter (C)

Mounting Depth (D)

Magnet Diameter (E)

Parameter (unit)

SPL (dB)

Qms

Qes

Qts

Fs (Hz)

Vas (L)

Cms (mm/N)

Mms (g)

Sd (m

)

BL (T*M)

Xmax (mm)

Pwr (W) NOM/MAX

DMD102SH

85.8

3.40

9.0

0.71

0.66

48.0

15.4

0.084

130.5

0.0359

13.7

7.9

250/500

DMD104SH

85.2

6.0

8.0

0.85

0.77

48.5

15.8

0.086

125.0

0.0359

16.4

8.8

250/500

DMD122SH

87.5

3.40

9.0

0.84

0.77

46.0

30.7

0.074

161.0

0.0539

13.7

7.9

300/600

DMD124SH

86.8

6.0

9.0

1.02

0.91

46.5

31.0

0.075

156.0

0.0539

16.4

8.8

300/600

Re (Ω) [series]

DMD122SHdelaeS

Vb (ft

0.75)

58 / .91CTQ/)zH( 3F

300)W( eP

Vented

Vb (ft

1.50)

43 / 37)zH( 3F/bF

4.3” x 10”]htgnel x .aid[ ).ni( troP

300

DMD104SH

0.45

60 / .88

250

1.00

44 / 37

3.54” x 10”

250

DMD102SH

0.45

64 / .78

250

1.00

44 / 38

3.54” x 10”

250

DMD124SH

0.75

55 / 1.00

300

1.50

43 / 37

4.3” x 10”

300)W( eP

been accounted for. The use of a 30hz sub-sonic filter is recommended.

About the Diamond Audio Experience:

Congratulations, you have just purchased the finest mobile audio products on the market to date.

At Diamond Audio, our products represent the latest advances in acoustic technology in sound

reproduction for your vehicle. Diamond Audio products are designed, developed, and engineered

using the latest innovative materials and components to provide the finest sound reproduction

possible. Every Diamond Audio product has been Klippel verified and tested to ensure the best

sounding and most reliable product on the market, if installed properly, Diamond Audio products

will provide many years of the ultimate listening experience.

Please note that prolonged exposure to sound pressure levels in excess of 100dB can cause

permanent hearing loss. Using Diamond Audio products can exceed that level so please exercise

restraint in its operation in order to preserve your ability to enjoy its high fidelity sound for many

years to come.

Diamond Audio recommends our products be professionally installed by an authorized Diamond

Audio dealer to achieve the best possible system recommendation and installation. This will

ensure a true Diamond Audio listening experience and sound you would expect from Diamond

Audio products. In doing this you will extend your warranty from one year to two years.

Go ahead, Hear the Music

11.89 (302.0)

5.69 (144.5)

(a division of CV & DA Holdings, lnc.)

DMD-SH Woofer Manual 2017.indd Spread 2 of 2 - Pages(2, 3)

(C)

(B)

(E)

(D)

(A)

• Aluminium heatsink dustcap and high strength paper cone

• Die Cast shallow frame for slim mount

• Oversized push terminals

• Black spider with woven tinsel leads

• Black ABS wrap around mounting gasket

• Vented pole for cooler operation

• Klippel Optimized motor and suspension symmetry
