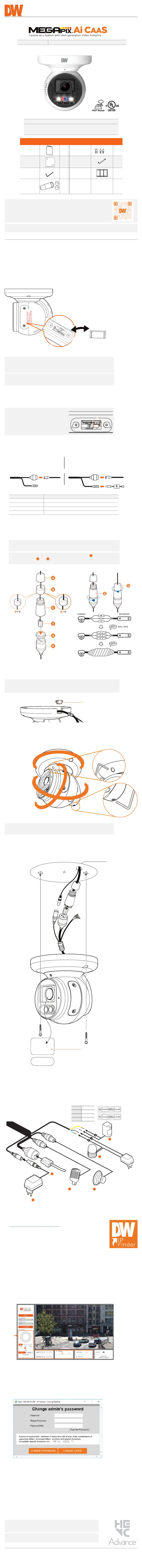

Side 1/1

Speciﬁcations and pricing are subject to change without notice.

Rev: 11/24

Tel: +1 (866) 446-3595 / (813) 888-9555

Technical Support Hours: 9:00AM – 8:00PM EST, Monday through Friday

digital-watchdog.com

NOTE: Please see the full product manual for web viewer

setup, functions and camera settings options.

NOTE: This products is covered by one or more claims of the HEVC

Patents listed at patentlist.accessadvance.com.

Quick Start Guide

Attention: This document is intended to serve as a quick reference for the initial set-up. It is recommended

that the user read the entire instruction manual for complete and proper installation and usage.

NOTE: Download all your support materials and tools in one place

1. Go to: http://www.digital-watchdog.com/resources

2. Search your product by entering the part number in the ‘Search by Product’ search

bar. Results for applicable part numbers will populate automatically based on the

part number you enter.

3. Click ‘Search’. All supported materials, including manuals

and quick start guide (QSGs) will appear in the results.

WHAT’S IN THE BOX

Quick Setup

and Download

Guide

Screws and

Plastic

Anchors – 2pcs

1 set

Mounting

Template

Star Wrench

(T10)

Hexagonal

wrench 2.0

Moisture Absorber

(Recommended)

3 sets

Waterproof Cap

and Rubber

Rings (Black:

ø0.15” (ø4mm),

White: ø0.19”

(ø5mm))

1 set

Default Login Information: admin | admin

When logging into the camera for the ﬁrst time, you must set up

a new password. You can set the new password using the

DW® IP Finder™ software or directly from the camera’s browser menu.

DWC-XSTD05MFCx 5MP turret IP camera with Ai, x= storage size

STEP 1 – PREPARING TO MOUNT THE CAMERA

Resetting the camera: Use the tip of a

paper clip or a pencil and press the reset

button for ﬁve (5) seconds to initiate

a camera-wide reset of all the settings,

including network settings.

1. Install the Dessicant Pack (moisture absorber):

• Remove the Dessicant Pack from its shipping packaging.

• Open the camera’s control panel on the side of the camera using the star

wrench included with the camera.

• Remove the Dessicant Pack used for shipping and place the new Dessicant

Pack in the location shown in the illustration below.

• Close the camera control panel tightly. When closing the control panel,

ensure no cables are caught or disconnected.

NOTE: The camera will generate enough heat to dry moisture during

operation. In cases where the camera can experience a

moisture issue, keep the moisture absorber in the camera. The

moisture absorber has an approximately 6-month life cycle.

WARNING: Install the moisture absorber when mounting the camera

to prevent image performance issues and damage to the

camera.

2. Mark and drill the necessary holes in the wall or ceiling using the mounting

template sheet or the camera itself.

STEP 2 – POWERING THE CAMERA

Power information

Power requirements

DC12V, PoE IEEE 802.3at Class4 (Adapter not included)

Power consumption

12V DC: 12W, 1A, PoE: 15.8W, 330mA

Maximum distance

328' (100m)

Connector

RJ45

Pass the wires through and make all necessary connections.

Use a PoE Injector (required. Sold

separately) to connect data and

power to the camera using a single

Ethernet cable.

Use a non-PoE Switch to connect

data using an Ethernet cable and

use a power adapter to power the

camera.

NOTE: Cables with 4.5mm to 5.5mm thickness should use the black ø ø

rubber ring. Cables over 5.5mm in thickness should use the white ø

rubber ring.

The waterproof cap set comes with two rubber rings. Use the rubber ring best

sized for your network cable’s diameter.

WATERPROOF CAP INSTALLATION

NOTE: To ensure moisture seal, make sure the o-ring

is in place

between

and

. In extreme environments use of an outdoor

rated sealer is recommended.

STEP 3 – INSTALLING THE CAMERA

1. Secure the camera to the mounting surface using the included screws.

NOTE: Remove the rubber plug on the side of the camera’s base and use

the gap as a cable guide to prevent cables from getting caught

between the camera and the mounting surface.

Rubber plug

2. Loosen the pan and tilt screw on the camera’s neck using the hexagonal wrench to adjust the

camera’s view and position. Loosen the rotation screw at the base of the camera to adjust the

camera's rotation.

Panning 360°

Rotation 360°

Tilting 87°

NOTE: When setting up the camera for the ﬁrst time, use the CALIBRATE

button on the camera’s web GUI to auto calibrate the camera’s lens

before operation.

3. Remove the protective ﬁlm from the lens cover. Softly wipe the lens cover

with lens tissue or a microﬁber cloth with ethanol to remove any dust or

smudges left from the installation process.

Mounting template

Protective ﬁlm

DIN (+)

WHITE

DIN (-) YELLOW

DOUT (-) SKY BLUE

DOUT (+)

GRAY + DOT

Alarm In

Alarm Out

Audio In

Power

Network

Audio Out

STEP 4 – CABLING

Use the diagram below to connect power, network and external devices such

as audio input and output, alarm and sensors to the camera.

STEP 5 – DW® IP FINDER™

1. Download and install the DW IP Finder from the DW website at:

http://www.digital-watchdog.com

2. Open the DW IP Finder and click ‘Scan Devices’ to ﬁnd the camera

on the network.

3. A password must be set when connecting to the camera for the ﬁrst

time.

a. Check the box next to the camera.

b. Click “Bulk Password Assign” on the left.

c. Enter admin/admin for the current username and password. Enter a new username and

password to the right.

Password must have at least eight (8) characters and at least four (4) combinations of

uppercase and lowercase letters, numbers and special characters. Passwords cannot

contain the user ID.

d. Click “change” to apply all changes.

STEP 6 – WEB VIEWER

The GUI display may dier by camera models.

1. Find the camera using the DW IP Finder.

2. Double-click on the camera’s view in the results table.

3. Press the ‘View Camera Website’.

4. Enter the camera’s username and password you setup in the DW IP

Finder.

If you did not setup a new username and password, a message will

direct you to setup a new password for the camera to view the video.
