DL-HD70 Installation Guide

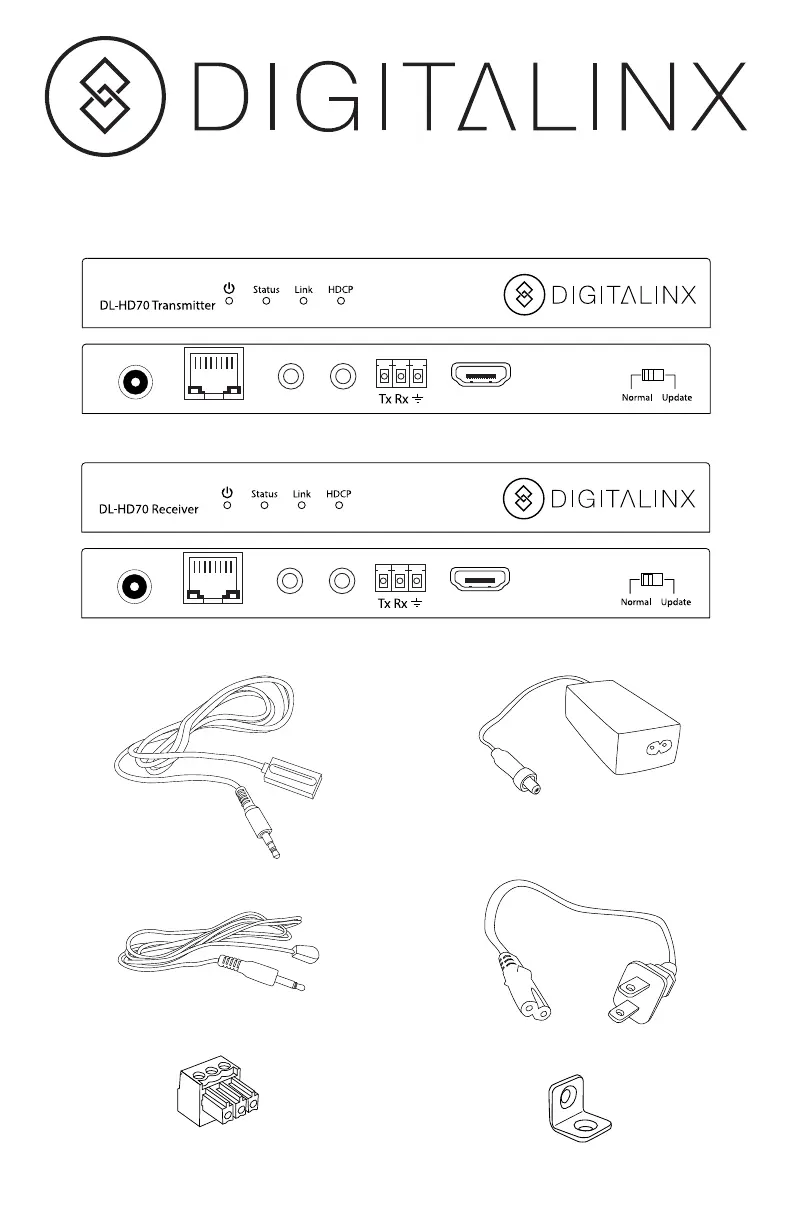

Included Accessories:
IR Receiver (IR eye) - 2 ea
IR Transmitter (IR emitter) - 2 ea
Power Supply with
locking connector
US Power Cable
3-pole Terminal Block - 2 ea
(attached to the extenders)
Mounting brackets with screws - 4 ea
The DigitaLinx DL-HD70 HDBaseT extender set transmits HDMI (1080p, 4Kx2K
(UHD) & 3D) including HDCP 2.2, bidirectional IR, and RS232 up to 70 meters away
using a single Category 6 twisted pair cable.
Built-in surge protection and diagnostic LEDs ensure hassle-free and robust
installations. Flexible power design allows the units to be powered at either the
TX or RX end, and only one power supply is required. The 18 volt power supply is
secured with a screw-on connector to prevent the power from being accidentally
disconnected.
The DL-HD70 is sold only as a set. The individual transmitter and receiver are not
compatible with other HDBaseT devices due to proprietary PoE circuitry.
TIA/EIA-568B
Orange/White
Orange
Green/White
Blue
Blue/White
Green
Brown/White
Brown
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Pin 7
Pin 8
1 8

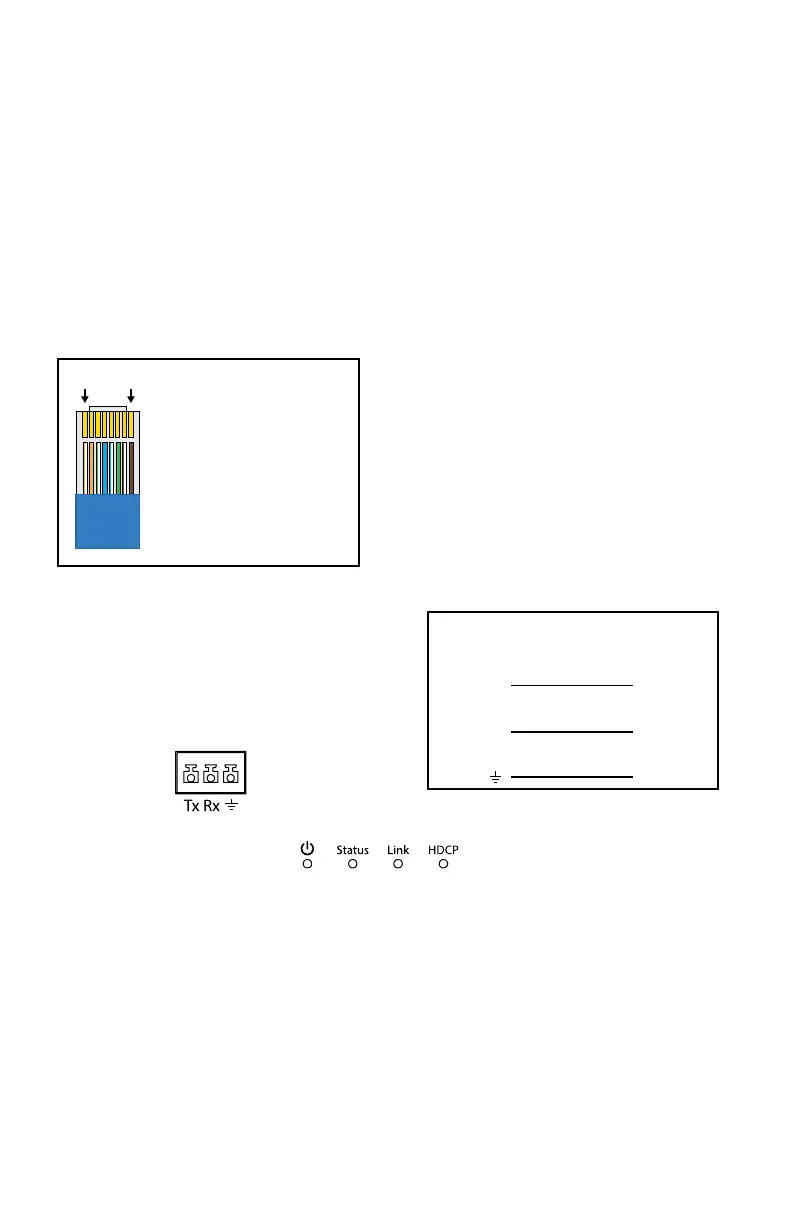

Twisted Pair Wiring
Use TIA/EIA-568B wiring for Category
6 connection between send and
receive units.
Tx
RXD
GND
Rx
TXD
DL-HD70-TX or
DL-HD70-RX
Controller or
Device
RS232 Wiring
Connect the controller or device RXD
signal to Tx on the DL-HD70 extender.
Connect the controller or device TXD
signal to Rx on the DL-HD70 extender.
Diagnostic LEDs:
The DL-HD70 provides four blue LEDs to indicate the current operating status and to
assist troubleshooting an installation.
Power: Solid, the DL-HD70 extender is receiving power from the power supply or from the
remote extender via Category 6 cabling.
Status: Flashes once per second, the HDBaseT processor is running.
Link: Solid, the two DL-HD70 extenders are communicating via Category 6 cabling.
HDCP: Solid, HDCP signal is present in the HDMI stream. Flashes quickly, no HDCP signal
is present in the HDMI stream.
Mode Switch:
The mode switch is used when updating rmware in the extender. A separate document
will provide usage instructions once a new rmware update is available.
