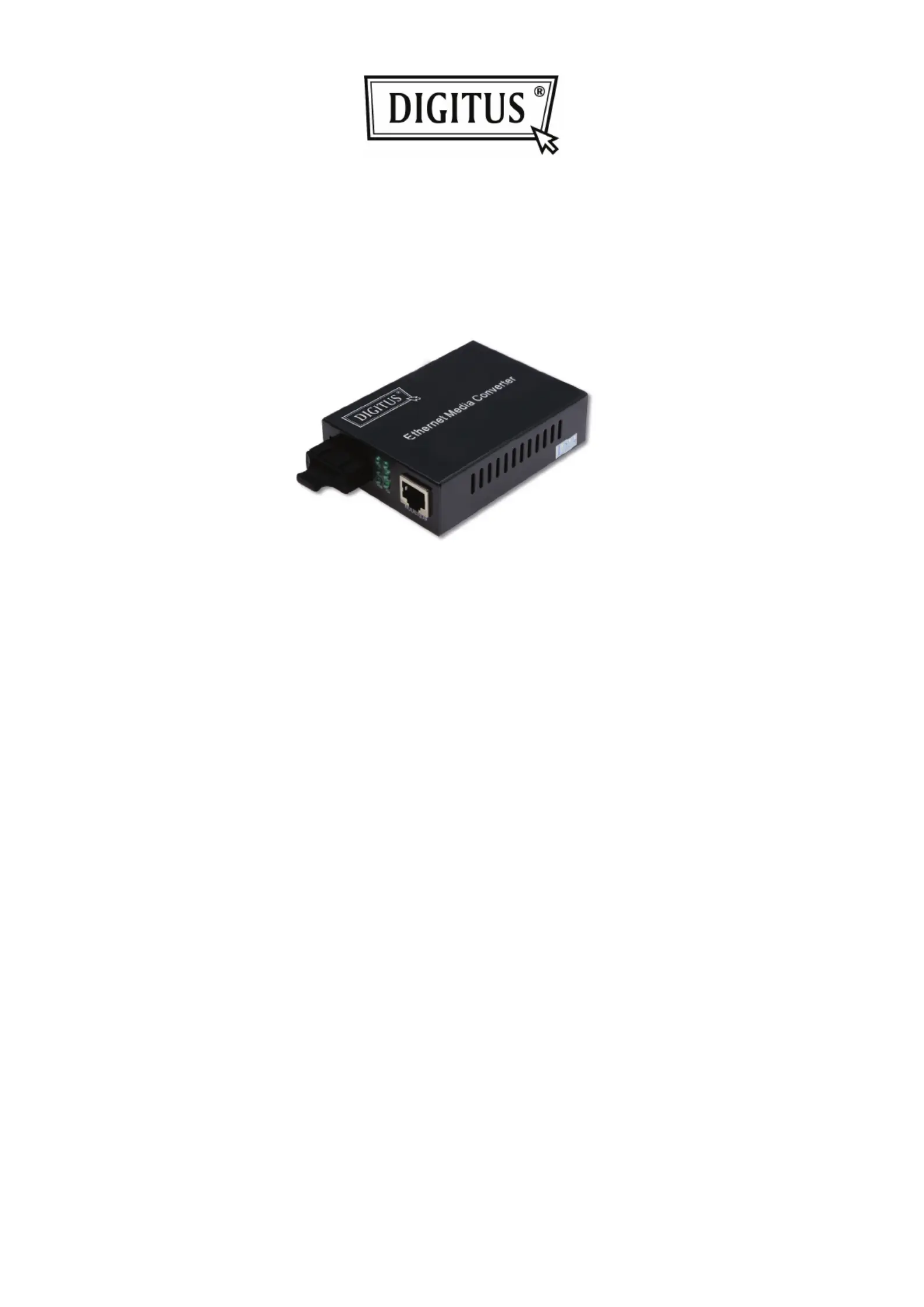

Gigabit Fiber Ethernet Converter
10/100/1000Base-T/TX to 1000Base-SX/LX
User’s Manual
Overview
Gigabit fiber media converter is a 10/100/1000 auto negotiating media converter. The copper port
auto negotiates the connected device’s speed and duplex mode: 10/100/1000Mbps half duplex;
distance is Multi-mode 0.5 or 2km and single-mode 10/20/40/60km or 80km.
Installation
1. Interface
RJ-45 interface
The transmission media adopts CAT5 twisted-pair with typical length of 100 meter.
It features the function of automatically identifying the through line and cross wire
Fiber interface
Fiber interface is of duplex mode type, including two interfaces, namely TX and RX. When the
two sets of optical transceiver are interfaced or connected to switch with fiber interface, the
fiber is in cross connection, namely "TX-RX", "RX-TX" (direct butting for single optical fiber).
2. Connection
The network device (work station, hub or switch is connected to RJ-45 ) with RJ-45 interface
jack of the media converter through twisted-pair. The fiber device is connected to fiber
interface of the media converter. Then switch on. The corresponding LED is on for correct
connection. (See the table below for the LED indicator lamp)

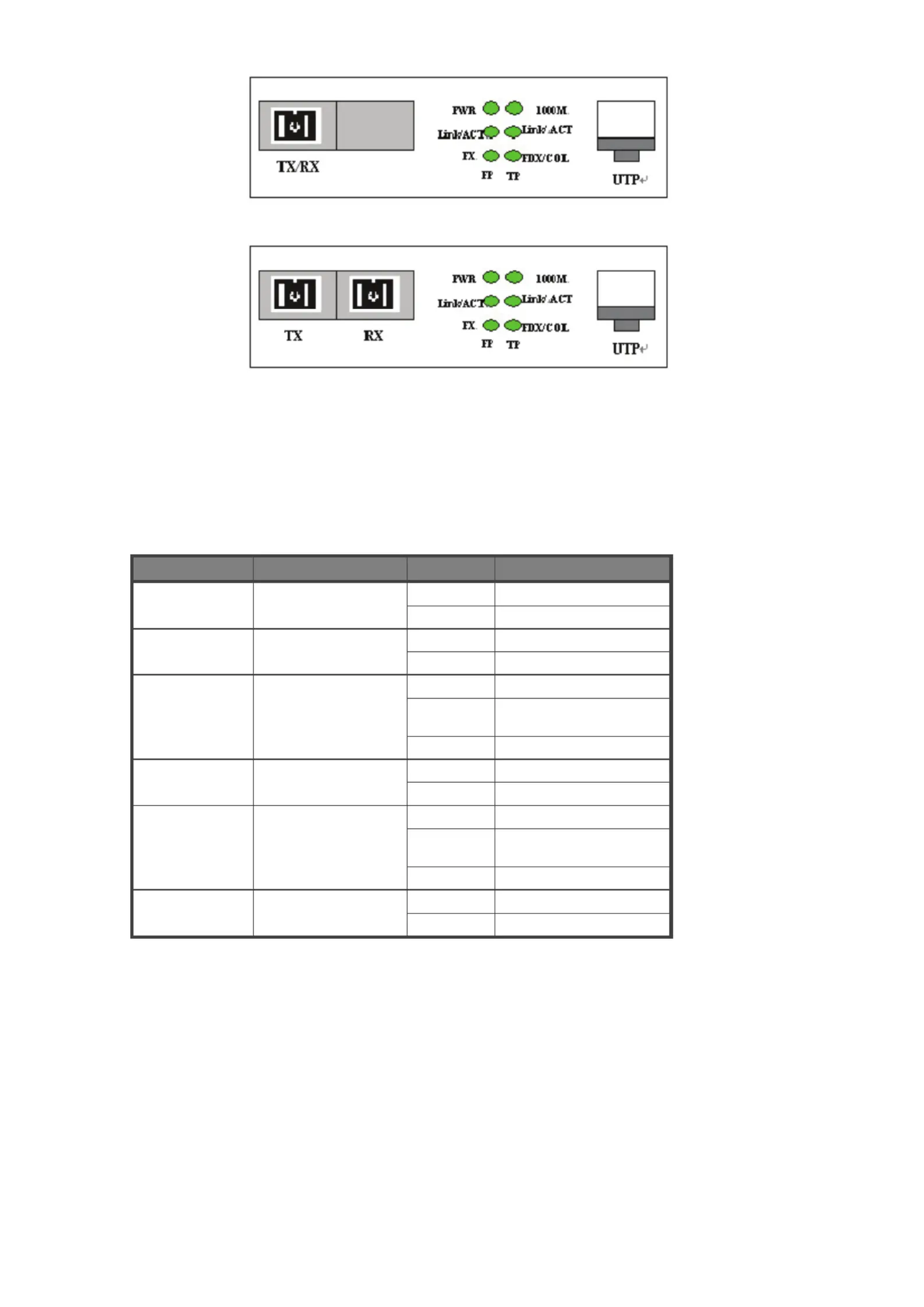

Table 1 : Front panel for single fiber media converter
Table 2 : Front panel for dual fiber media converter
Explanation for LED indicator
LED indicator serve as device monitoring and trouble display.
The following is the explanation for each LED indicator lamp.
LED Status Function Describing
PWR Power LED
ON Power is ON.
OFF Power is Fail.
FX
Fiber port signal
detect LED
ON Laser is receiving.
OFF No laser input.
FX-LINK/ACT
Fiber port link/action
status LED
ON Fiber link is ok.
Blink
Data is been received
or transmitted.
OFF Fiber link is fail.
1000M UTP port speed LED
ON 1000M speed
OFF 100M speed
TX-LINK/ACT
UTP port link/action
status LED
ON Link is ok.
Blink
Data is been received
or transmitted.
OFF Fiber link is fail.
FDX/COL UTP port duplex LED
ON Full duplex
OFF Half Duplex
