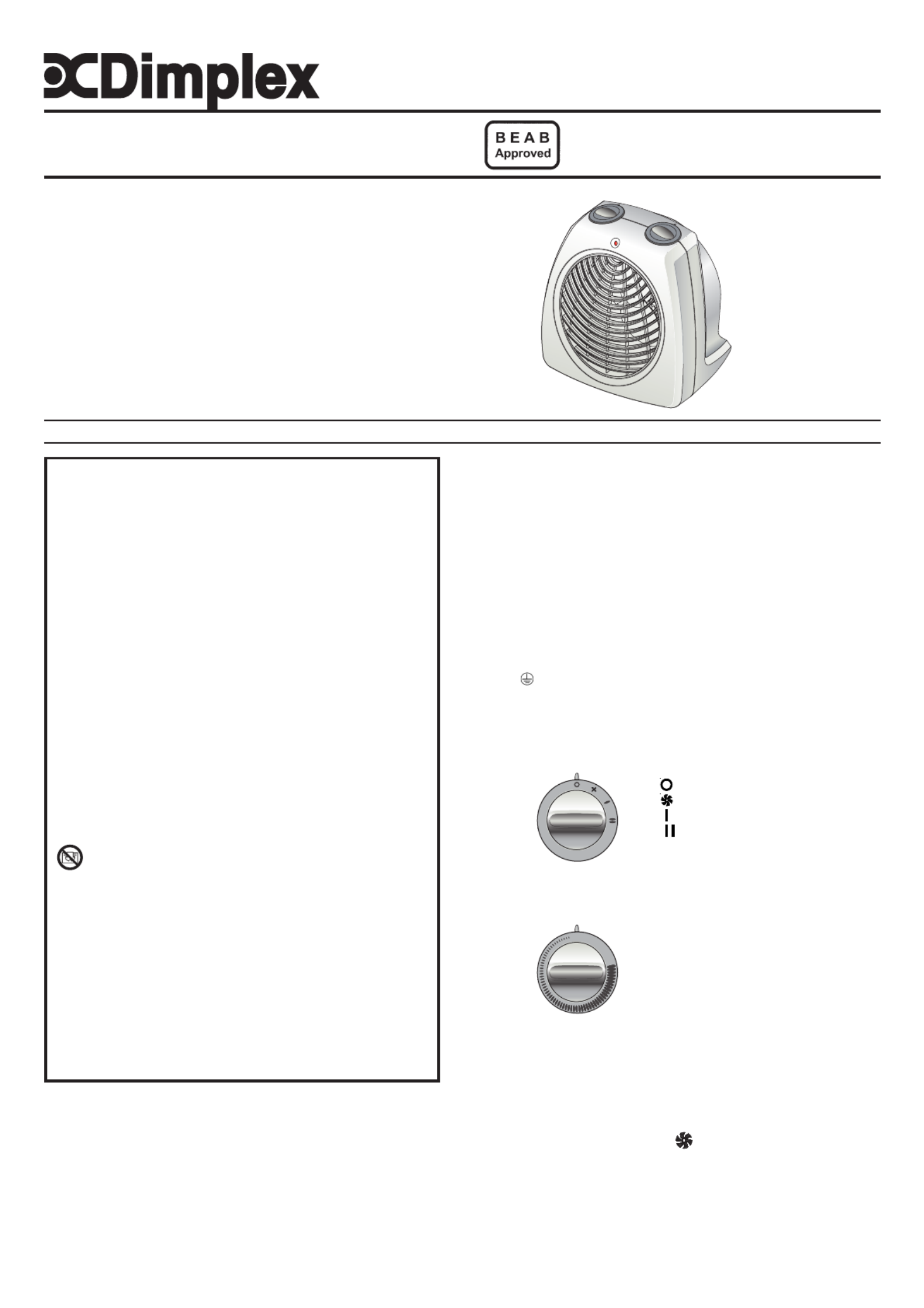

Side 1/4

Fan Heaters

Model(s) : DXUF20T & DXUF30T

Installation and Operating Instructions

Dimensions

(millimetres)

08/35113/0 Issue 0

Electrical connection

This heater must be used on an A.C.~ supply only and the voltage

marked on the heater must correspond to the supply voltage. This heater

is fitted with a plug incorporating a 13 amp fuse. When replacing the

fuse, a 13 amp fuse approved by ASTA to BS 1362 must be used.

If the plug is not suitable for the socket outlets in your home, the plug

must be cut off and an appropriate one fitted. A plug cut off from a

mains lead will give a shock hazard if inserted into a 13 amp socket

elsewhere in the house. To avoid this, it should be disposed of

immediately.

Using the Heater

Thermostat Control - see Fig. 3

The heat output is controlled by the

thermostat, according to the room

temperature.

Turn the thermostat knob fully clockwise

to maximum setting initially. When the

room is warm enough, reduce the setting

slowly until the heater just clicks off.

The heater will now cycle on and off to maintain your selected room

temperature. An audible click may be heard when the thermostat

operates - this is normal.

Note : If the heater does not come on when the thermostat is at a low

setting, this is normally because the room is warmer than the thermostat

setting and is not a fault.

* When the heat control is set to ‘ ‘ for cool blow, set the thermostat

control to maximum.

Position ‘*‘ will turn the heater on and off to maintain a temperature of

approximately 5°C.

- OFF

- Cool Blow*

- Half heat

- Full heat

Heat Control - see Fig. 2

(IP20)

H W D

236 242 175

Model(s) Specification

DXUF20T 2.0kW Thermostat & Switch

DXUF30T 3.0kW Thermostat & Switch

Fig. 2

Fig. 3

(see Fig. 3)

Fig. 1

(see Fig. 2)

IMPORTANT SAFETY ADVICE

READ THESE INSTRUCTIONS BEFORE USE.

DO NOT use the heater on deep pile carpets or the long hair

type of rugs, or less than 750mm (30") away from any

overhanging surface. Keep combustible materials such as

drapes and other furnishings clear from the front, sides

and rear of the heater. Do not use heater to dry your laundry.

DO NOT use the heater in the immediate surroundings of a

bath, a shower or a swimming pool.

DO NOT place the heater directly below a fixed socket outlet.

The socket-outlet must be accessible at all times to enable

the mains plug to be disconnected as quickly as possible.

DO NOT COVER or obstruct the air inlet and outlet openings

in any way.

The heater must be on a flat stable surface when in use.

DO NOT operate the heater with the mains lead overhanging

the front outlet grille.

NEVER leave the heater unattended when it is used by or

near the aged, infirm person’s or children.

The heater carries the Warning symbol indicating that

it must not be covered.

The instruction leaflet belongs to the appliance and must

be kept in a safe place. If changing owners, the leaflet

must be surrendered to the new owner.

IMPORTANT – If the mains lead of this appliance is damaged,

it must be replaced by the manufacturer or its service

agent or a similarly qualified person in order to avoid a

hazard.

WARNING: In order to avoid a hazard due to inadvertent

resetting of the thermal cut-out, this appliance must not be

supplied through an external switching device, such as a

timer, or connected to a circuit that is regularly switched on

and off by the utility.

IMPORTANT : THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE

NOTE: The fuse cover of a non-rewirable plug must be refitted when

changing the fuse. Should the cover become lost, the plug must not be

used until the correct replacement fuse cover is obtained from your

supplier or by contacting our customer helpline.

IMPORTANT : The wires in this mains lead are coloured in accordance

with the following code :

BLUE : NEUTRAL

BROWN : LIVE

As the colours of the wires in the mains lead may not correspond with

the coloured markings in your plug, proceed as follows :

Connect the BROWN wire to the terminal marked ‘L’ or coloured RED.

Connect the BLUE wire to the terminal marked ‘N’ or coloured BLACK.

Note : ‘L’ or ‘N’ must not be connected to the EARTH terminal marked

‘ .E’ or or coloured GREEN or GREEN AND YELLOW

If in doubt, consult your electrician.

Produkt Specifikationer

Mærke:	Dimplex
Kategori:	Varmeapparat
Model:	DXUF20T
Kode for international beskyttelse (IP):	IP20
Type:	Blæser med elektrisk områdevarmer
Overophedningsbeskyttelse:	Ja
Sommerventilation:	Ja
Justerbar termostat:	Ja
Varmeevne:	2000 W
Varmestrøm (min.):	- W
Bredde:	247 mm
Dybde:	184 mm
Højde:	238 mm
Vægt:	1400 g
Placeringsmuligheder:	Bord
Produktfarve:	Grå
Kontroltype:	Dreje
Indikatorlampe:	Ja
Frostsikring:	Ja
Bærbar:	Ja
