Original Instructions

Version 1 – January 2024

1. Product Introduction

2. Health and Safety Information

Stock No. 20114

Part No. RP-3

Pump type Rotary vane

Flow Rate 600ml/revolution

Adaptor Collar Size: 2" BSP

Nett Weight 3kg

1.2 Specication

1.1 Intended Use

This heavy-duty pump is designed for pumping low viscosity uids such as oils, anti-freeze, add-blue, diesel & other

uids which are non-corrosive. The pump is supplied with a 2” BSP adaptor suitable for most 205litre drums.

Any other application beyond the conditions established for use will be considered misuse. Draper Tools accepts no

responsibility for improper use of this product.

Important: Read all the Health and Safety instructions before assembling, operating or maintaining this product.

Non-compliance with these instructions may result in injury or damage to the user or the product.

• DO NOT modify the pump and only use for its intended purpose.

• The pump is designed specically for the transfer of low viscosity and non-corrosive uids from reservoirs, tanks

and drums. Always refer to the Safety Data Sheets for the substances being used before use.

• Maintain the pump in good condition and when replacing any parts only use spare parts recommended by Draper.

• Keep children and unauthorised persons away from the working area.

• Always wear protective gloves during operation and wash hands after use.

• DO NOT use the pump as a handle to move the uid drum.

• Always clear up any spillages to avoid creating dangerous surfaces and environmental pollution.

20114

R OTA RY

PUMP

Version 1: January 2024

First release

Contact Details

Draper Tools

Draper Tools Limited

Hursley Road

Chandler’s Ford

Eastleigh

Hampshire

SO53 1YF

Website: drapertools.com

Email: sales@drapertools.com

Product Helpline: +44 (0) 23 8049 4344

Telephone Sales Desk: +44 (0) 23 8049 4333

General Enquiries: +44 (0) 23 8026 6355

Please contact the Draper Tools Product Helpline for

enquiries regarding spare parts, servicing, repairs and

replacement options.

3. Product Overview 5. Operating The Pump

6. Maintenance

7. Warranty

4. Preparing the Pump

Carefully remove the product from the

packaging and examine it for any

signs of damage that may have

occurred during shipment. If any

part is damaged or missing, do not

attempt to use the product. Please

contact the Draper Helpline;

contact details can be found at

the back of this manual.

Please visit drapertools.com for

our full range of accessories

and consumables

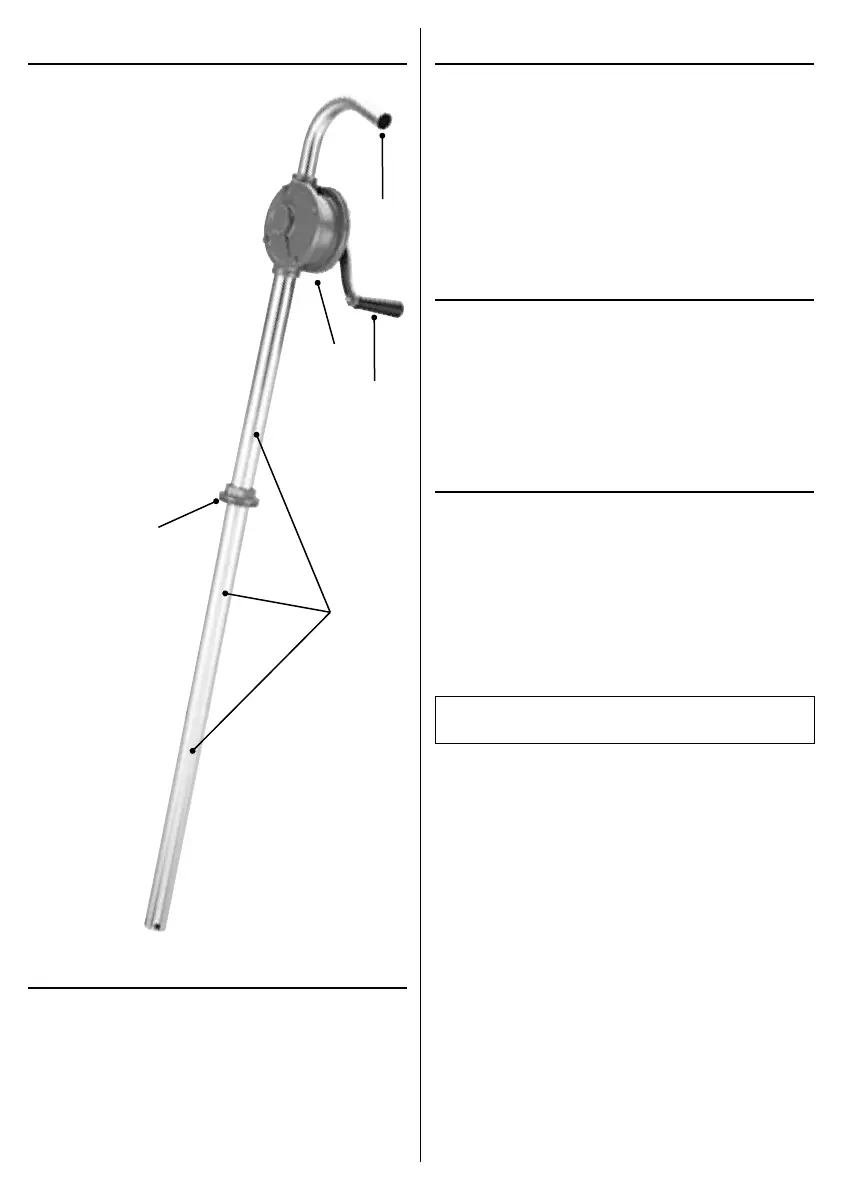

1. Discharge Spout

2. Pump Body

3. Crank Arm

4. 2” BSP Connector

5. 3 × Extension Tubes

Delta International

Delta International BV

Oude Graaf 8

6002 NL

Weert

Netherlands

4.1 Assembly

• Attach the spout (1) to the top of the pump body (2).

• Fit the crank handle (3) and secure with the handle

bolt supplied.

• Connect the extension tubes (5) together and then

attach to the bottom of the pump body.

5.1 Using the Pump

• Insert the bottom extension tube into the drum.

• Then slide the BSP connector (4) down and use the

thumb screw to secure the pump to the drum.

• Before starting to use the pump check that the handle

is secure.

• Keep the pump clean and well maintained.

• To prevent the components from becoming clogged,

protect from damp, dust and debris.

• Store in a safe, dry, childproof location.

Visit drapertools.com/warranty for full details.

(1)

(2)

(3)

(5)

(4)
