Side 1/5

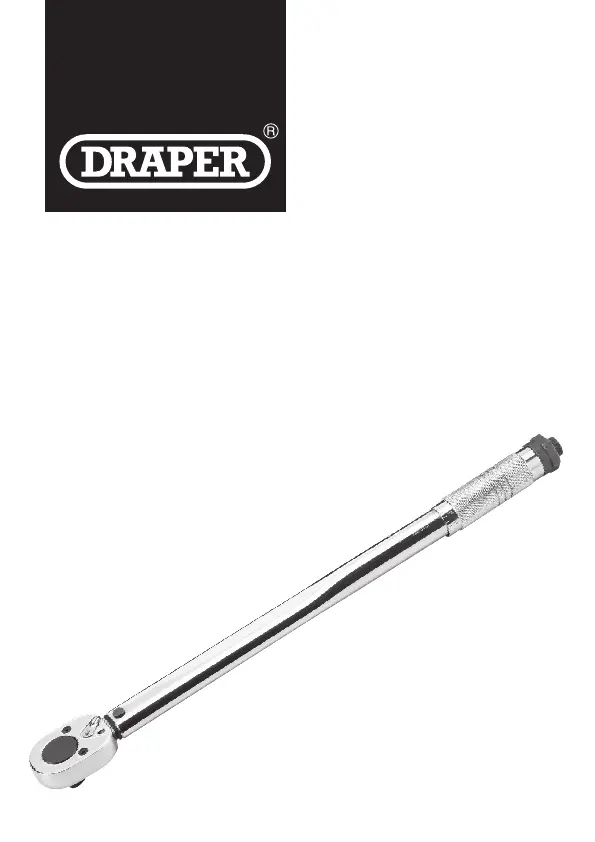

78639, 78641, 78642
EN
Original Instructions
Version 2 – April 2023
TORQUE
WRENCH
1. Scope
This tool has been designed to tighten screws, bolts and other xings to the
required torque. Any other application beyond the conditions established for use
will be considered misuse. Draper Tools accepts no responsibility for improper
use of this product.
Important: This torque wrench is a precision tool. It must NOT be used to pry or
loosen nuts, bolts or xings; to separate materials; as a substitute for ratchet
spanners; or as a breaker bar. Use in such a way will invalidate your warranty.
DO NOT use these tools to torque left-handed threads.
Part of our core range, this product is suitable for use by enthusiasts and
tradespersons alike.
Read this manual in full before attempting to use this product and retain it for
later use. Always use the latest version of the manual.
2. Specication
Stock No. 78639 78641 78642
Part No. BTW BTW BTW
Drive size: 1/4" 3/8” 1/2”
Torque range: 5–25Nm 20–110Nm 30–210Nm
3. NotesonUse
Important: Read this section in full BEFORE attempting to use this tool.
Failure to follow these instructions may result in damage to the tool or cause it to
require recalibration.
Important: ALWAYS read the manufacturer’s instructions for the recommended
torque settings. Incorrect torque settings can result in serious damage or injury
when the workpiece is used.
• Before rst use, or after extended periods of disuse, ensure that the torque
wrench is correctly lubricated:
 − Set the micrometer to its maximum torque settings and then slowly reduce
it to its minimum setting.
 − Operate the wrench several times at a low torque setting.
• Before rst use, test the torque wrench on non-critical xings to familiarise
yourself with the responses that indicate the congured torque is reached.
Important: Some responses may be less noticeable at lower torques.
• ALWAYS select the correct size and type of socket for use with the fastening.
• NEVER set the micrometer beyond its maximum or minimum settings as this
may damage the internal spring and distort the calibration.
• ALWAYS return the torque wrenches to their minimum settings when not
in use.
 − Failure to do this will weaken the internal spring and distort the calibration
of the tool.
 − Damage caused to the tool in this way is not covered by your warranty.
• Observe all standard safety precautions and good practices when in a
workshop environment.
• Inspect the product before every use for cracked, corroded or broken parts.
WARNING! DO NOT use this product if it is damaged in any way.
Contact Draper Tools for repair and replacement options.
• Use this product only for its intended purpose and do not modify it in any way.
Reaching the Set Torque
The torque wrench exhibits the following responses when the correct torque has
been reached:
• Audible: The tool will “click”.
• Tangible: The handle will “break away” from the xing.
• Visible: The handle will be seen to “break away” from the xing.
Important: These responses may be less perceptible at lower torques.
CAUTION! Once this has occurred, DO NOT continue to rotate the
torque wrench as this will deliver an incorrect torque and may damage
thexing.
8. Warranty
Should the tool develop a fault, return the complete tool to your nearest
distributor or contact Draper Tools directly. Proof of purchase must be provided.
If, upon inspection, it is found that the fault occurring is due to defective
materials or workmanship, repairs will be carried out free of charge. This warranty
covers parts and labour for the lifetime of the product. However, if the tools are
hired out, the warranty period is 90 days from the date of purchase.
This warranty does not apply to any consumable parts, batteries or normal wear
and tear, nor does it cover any damage caused by misuse, careless or unsafe
handling, alterations, accidents, or repairs attempted or made by any personnel
other than the authorised Draper Tools repair agent.
Visit drapertools.com/warranty for full details.
9. ExplanationofSymbols
Read the instruction manual
30
Nm
MIN
Minimum Nm
Please visit drapertools.com/manuals for the latest version for this manual.
210Nm
MAX
Maximum Nm
1/2"
SQ DR
Square Drive
Delta International
Delta International BV
Oude Graaf 8
6002 NL
Weert
Netherlands
Draper Tools
Draper Tools Limited
Hursley Road, Chandler’s Ford
Eastleigh, Hampshire, SO53 1YF UK
Website: drapertools.com
Email: sales@drapertools.com
Product Helpline: +44 (0) 23 8049 4344
Telephone Sales Desk: +44 (0) 23 8049 4333
General Enquiries: +44 (0) 23 8026 6355
GeneralFax: +44 (0) 23 8026 0784
© Published by Draper Tools Limited
