Verify TV Plug Fit
IMPORTANT SAFETY INSTRUCTIONS
PLEASE READ ENTIRE MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS
CAUTION: Avoid potential personal injuries and property damage!
●Please read through these instructions completely to be sure you’re comfortable with this easy install process.
●Do not use this product for any purpose not explicitly specified by manufacturer.
●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
of this product, contact The Echogear Pros at www.echogear.com.
Grab Your Tools
Tape Measure
This product conforms to and should be properly grounded in compliance with requirements of the current National
Electrical Code or codes administered by local authorities.
All electrical products may present a possible shock or fire hazard if improperly installed or used. This product may bear the
mark of a Nationally Recognized Testing Laboratory and should be installed in conformance with current local and/or the
National Electrical Code.
WARNING:
RISK OF FIRE AND SHOCK. Do not connect the modules
01
or
02
to any other circuits or outlets.
CAUTION: RISK OF FIRE AND SHOCK. ONLY intended for use on 15 ampere branch circuits.
Do not install power supply cord
03
within wall cavity.
Pencil Phillips Screwdriver
Paint (optional)
Surfaces are paintable
to match your decor
Electric Drill
WARNING: DON'T FEED TO CHILDREN
—
This product contains
small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts
are missing or damaged, do not return the damaged item to your dealer; contact
Customer Service. Never use damaged parts!
MAX
1 ⅛ in. (29 mm)
BEFORE DRILLING ANY HOLES:
Make sure your TV plug fits in the
upper module
01
.
Verify Wall Compatibility
Milestone AV Technologies and its aliated corporations and subsidiaries (collectively, “Milestone”), intend to make this manual accurate and complete.
However, Milestone makes no claim that the information contained herein covers all details, conditions, or variations. Nor does it provide for every
possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without
notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein.
Milestone assumes no responsibility for accuracy, completeness or suciency of the information contained in this document.
©2018 Milestone AV Technologies. All rights reserved. ECHOGEAR is a Milestone brand. ECHOGEAR and the ECHOGEAR logo are trademarks of Milestone.
Milestone Global Headquarters 6436 City West Parkway; Eden Prairie, MN 55344 USA
STEP 1
v
Upper Module
Driver Bit
(hole saw)
Hole Saw
3 in.
Lower Module
Power Cord
03
04
05
02
01
Assemble
Hole Saw
a
b
Drill Holes
Make Some HOLES
TIP: Drill the top hole
BEHIND your TV.
05
04
04
01
Maximum Distance: 6 feet
Maximum
Height:
5 feet
1022064 06/18
#YourGearUpgraded
Model EGAV-CMIWP1

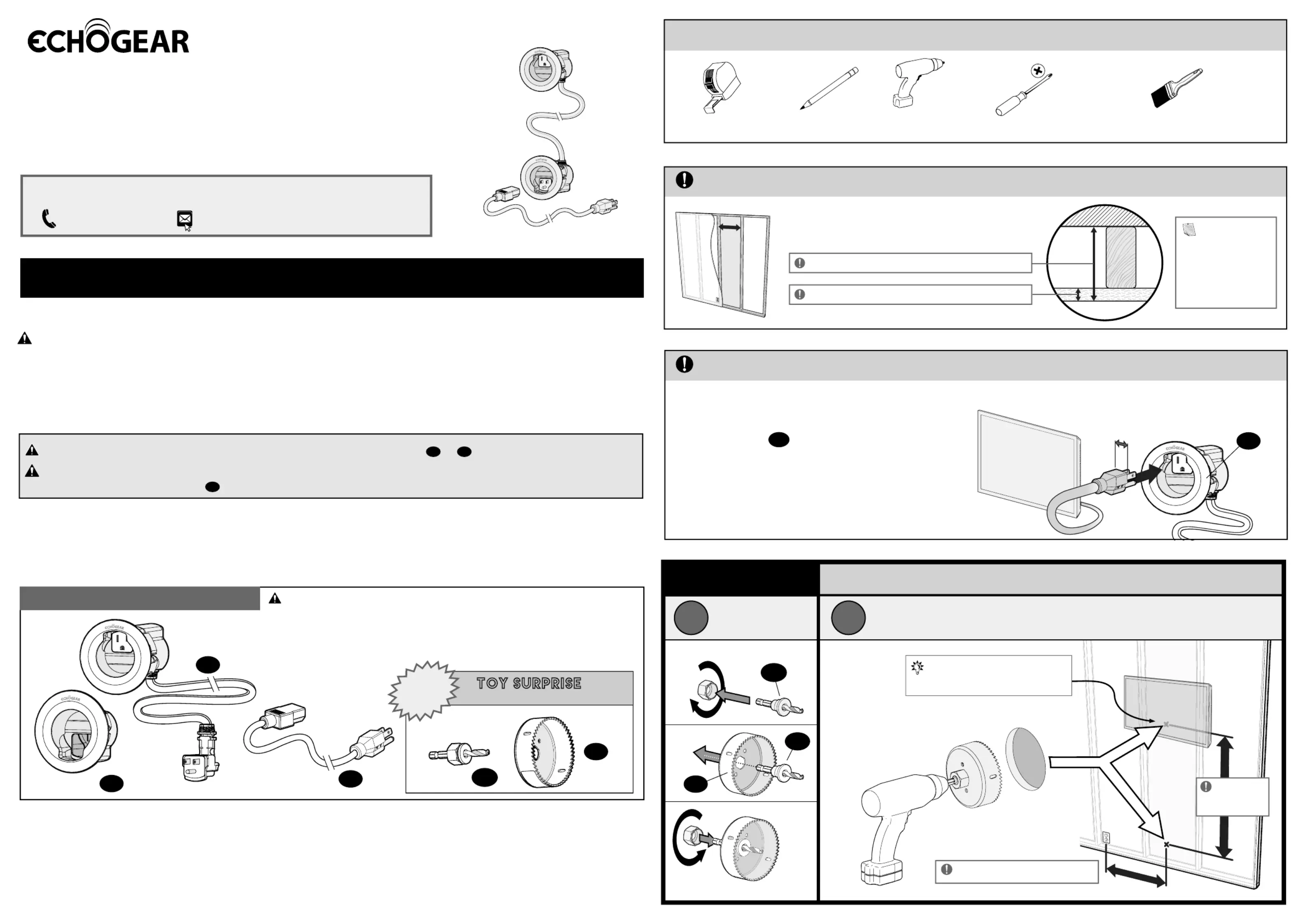

OWNERS GUIDE
IN-WALL Power + Cable
Management KIT
Confuzzled? Call the ECHOGEAR Pros:
1-855-428-2490 helpmehelpyou@ECHOGEAR.com
Yea, the boring stuff ... but read it, so you don’t jack things up!
"Phil wants his
tools back"
TOY S U R P R I S E
Inside Every Box
FREE
WHAT’S IN THE BOX
“apologies, to
all the Jacks
in the world”
This Cable Kit is designed to fit
into both interior and exterior walls
constructed with:
Minimum Space into Wall: 3 in.
Minimum Drywall Thickness: 1/2 in.
NOTE: Walls
with blown-in
type insulation
may require
removal of some
insulation inside
the cavity.
Drywall
Stud
Back Wall
“size DOES matter”
“Wanna show o your hard work?
Share a picture of your completed
project with #YourGearUpgraded.
Who knows, it might not be
as bad as you thought”

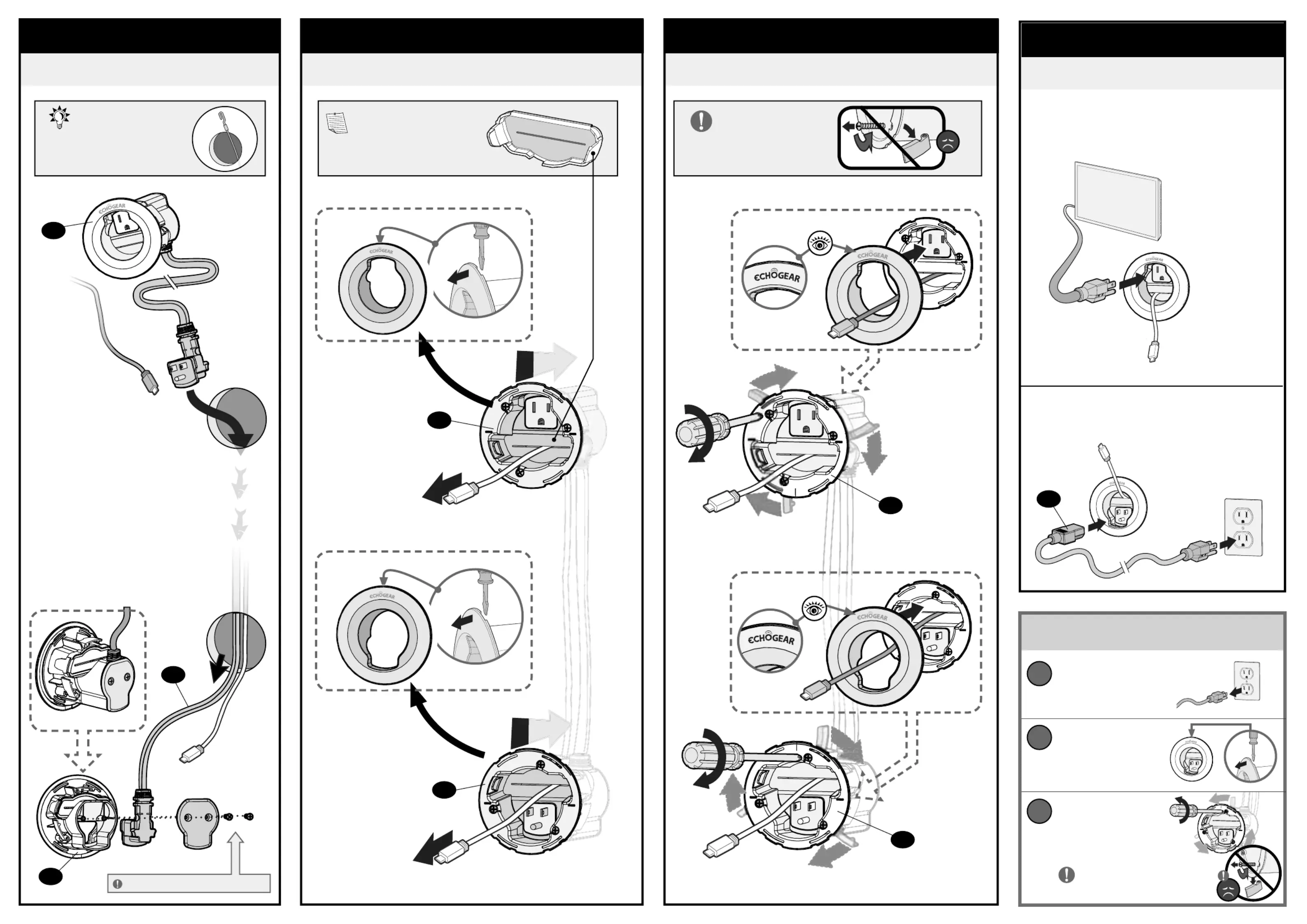

STEP 4
Power Up
insert moduleS in Wall Secure Modules
STEP 3 STEP 4STEP 2
Route Cables
REMOVAL
TV Plug
Standard Outlet
a
c
TV and Accessories
Power Cord
b
Remove
trim plate
Turn screws
to remove
module
Loosen ONLY enough
to remove module.
Unplug
power cords
Low Voltage Cable(s)
Low Voltage Cable(s)
DO NOT over tighten screws
“Plug in and
grab a beverage
... you’re done!”
NOTE: The gaskets
can be removed for
larger cables.
DO NOT loosen
the screws
TIP: Use a fish
tape, to pull the
cables through
the wall.
Replace
Trim Plate
Replace
Trim Plate
Remove
Trim
Plate
Remove
Trim
Plate
02
01
02
01
01
01
03
02
Low Voltage
Cable(s)
[if needed]
3X
3X
