EK-UAK2 / EK-UAK4

2/4 ports USB KVM Switches

KVM Switching Client Software for Windows

User-definable Hotkeys

Independent/Simultaneous Audio & PC Switching

Auto scan Delay Time Programmable

Introduction

The EK-UAK2 / EK-UAK4 is a 2 / 4 ports Slim Palmtop

USB KVM Switch with optional audio and microphone

switching function. It allows you to access, control, boot

and reboot multiple USB-enabled computers. The

independent audio/mic switching function allows an

uninterrupted audio experience on a same connected

computer even when you switch to another computer.

Out-of-the-box Installation

Step 1. Insert the companion CD ROM into your CD drive,

and the installer program will be run, click the “USB Series

Utility Setup” then click “Click To Setup Utility” the

programs will be start… (or you can find it with the Explorer

and double-click its software icon to start installation).

Complete the software installation on each of the

computers to be connected to the KVM Switch.

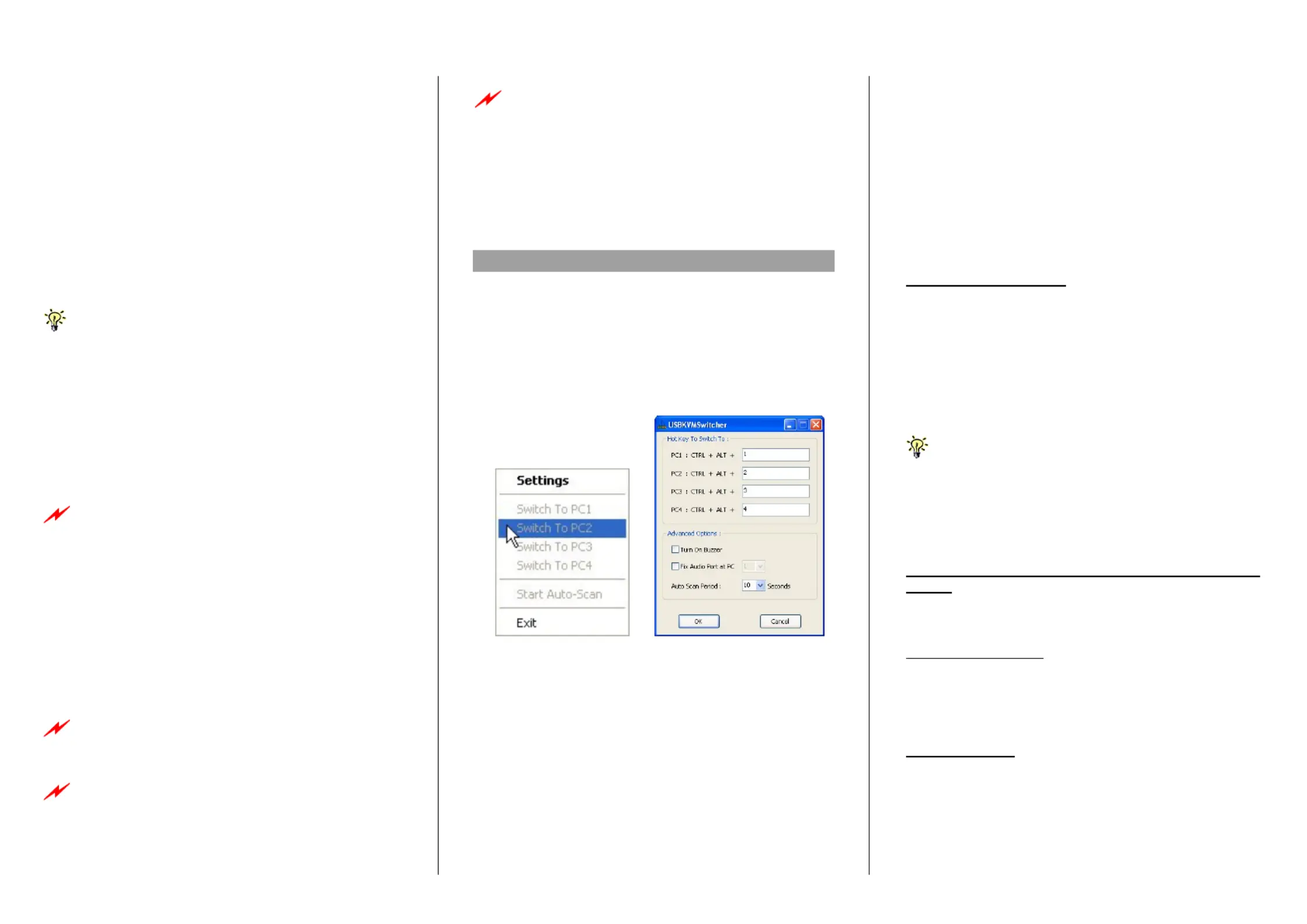

After the installation is completed, you will see a KVM

Switcher icon on the system tray of your window desktop.

Just right click to evoke the operation menu and double-

click to evoke configuration box. For operation details of the

KVM Switcher software, please refer to the “Operation

Quick Reference.

: No live connection detected

: Current active PC channel is on port 1

: Current active PC channel is on port 2

The KVM Switcher Software supports only the Windows

operating system on PC platforms. For other OS platforms such as

Linux , you can still use the keyboard hotkey - ScrLk + ScrLK - to

switch PC. However, this switching hotkey is not available on non-

PC platform such as MacOS. When connected to a Mac machine,

use the face-panel button to switch port.

Step 2. Connect the shared USB keyboard, mouse,

monitor, speaker/headphone and microphone each to its

port on your KVM Switch.

Step 3. Connect each KVM PC port to a computer, using

the slim 3-in-1 KVM combo cable and the audio/mic cable.

After you have connected the KVM and computers properly,

Now you can operate the KVM Switch immediately.

Some older computers with USB interface might need to

manually enable the USB option in the BIOS settings before

you can use any USB devices. If your USB interface does not

work, please check the USB option status in the BIOS.

If you use Windows 95/98/SE and has not yet installed a USB

mouse on your computer, there might be an error message

telling you that mouse is not detected and prompting you to

decide whether to ignore the same message in the future,

and yet you found there is no mouse movement to disable

this message….So it is suggested that you should installed

your USB mouse on your computer first, before connecting it

to this KVM Switch.

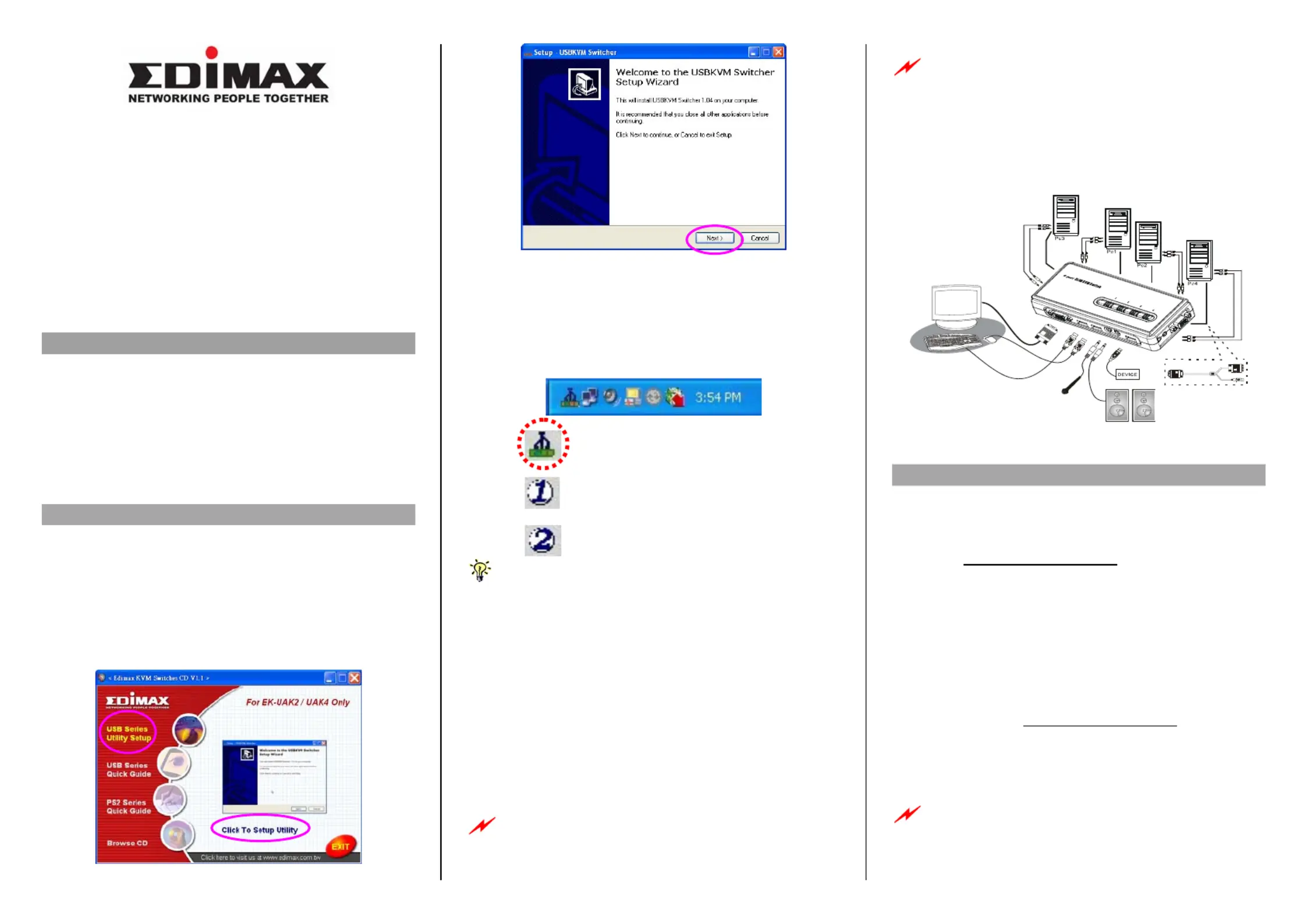

EK-UAK4 Configuration Diagram

Easy Operation

There are two methods to control your KVM Switch for PC

switching: using the face-panel push buttons or a hotkey

sequence. For audio/mic switching, use the hotkey

command.

See Quick Reference Sheet

Face-panel buttons

The face-panel buttons allows you a direct control over PC

port switching. Simply press the button to switch PC port.

By default, PC port switching and Audio/Mic port switching

are unbound (either will be switched independently).

Keyboard hotkey

A keyboard hotkey sequence consists of at least three

specific keystrokes:

See Quick Reference Sheet

Hotkey = Ctrl+ Alt

+ [Command key]*

Universal hotkey = ScrLK + ScrLk

* The command key is user-definable via the configuration dialog box

Each keystroke within a hotkey sequence should be pressed

within 2 seconds. Otherwise, the hotkey sequence will not be

validated.
