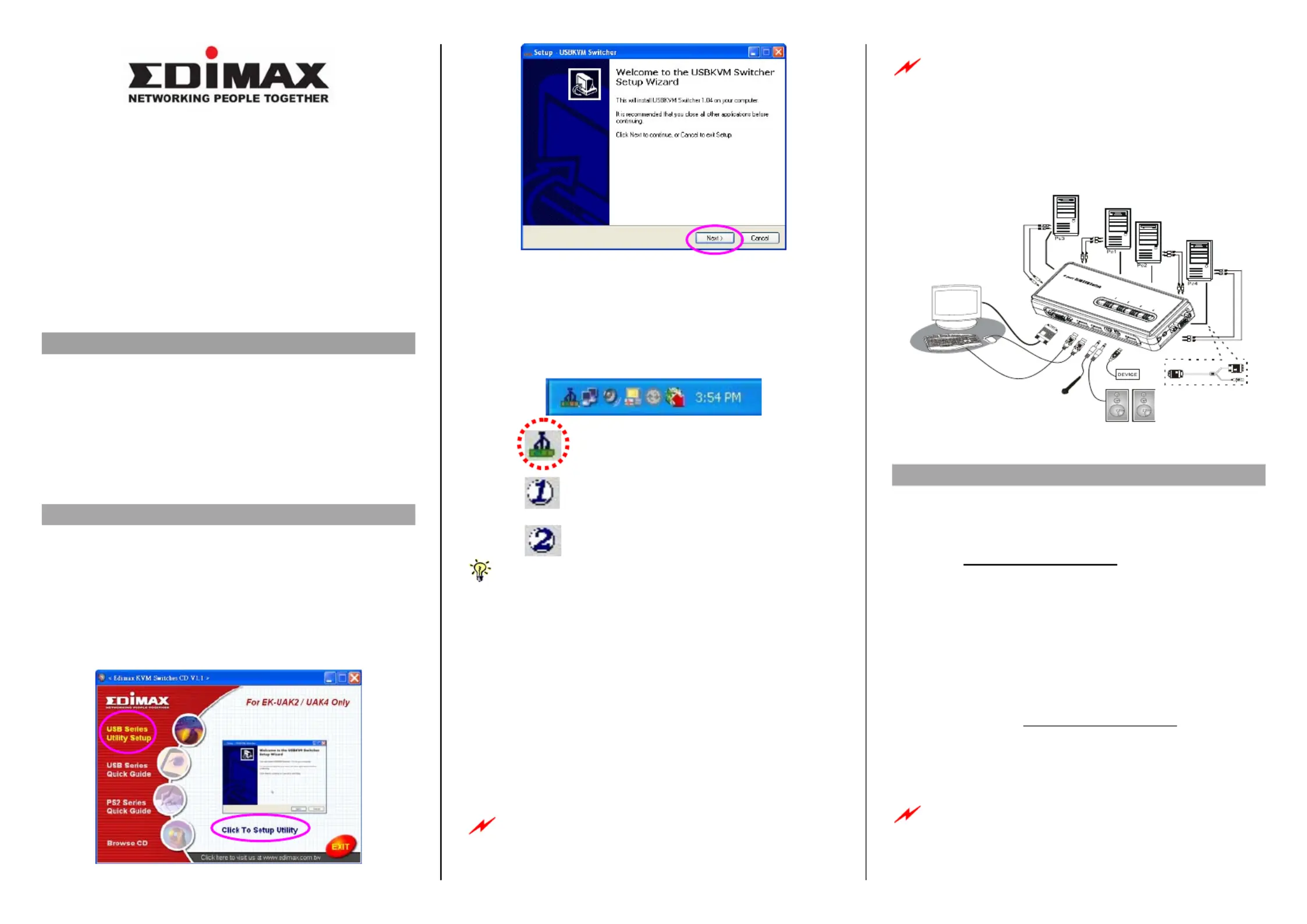

EK-UAK2 / EK-UAK4

2/4 ports USB KVM Switches

KVM Switching Client Software for Windows

User-definable Hotkeys

Independent/Simultaneous Audio & PC Switching

Auto scan Delay Time Programmable

Introduction

The EK-UAK2 / EK-UAK4 is a 2 / 4 ports Slim Palmtop

USB KVM Switch with optional audio and microphone

switching function. It allows you to access, control, boot

and reboot multiple USB-enabled computers. The

independent audio/mic switching function allows an

uninterrupted audio experience on a same connected

computer even when you switch to another computer.

Out-of-the-box Installation

Step 1. Insert the companion CD ROM into your CD drive,

and the installer program will be run, click the “USB Series

Utility Setup” then click “Click To Setup Utility” the

programs will be start… (or you can find it with the Explorer

and double-click its software icon to start installation).

Complete the software installation on each of the

computers to be connected to the KVM Switch.

After the installation is completed, you will see a KVM

Switcher icon on the system tray of your window desktop.

Just right click to evoke the operation menu and double-

click to evoke configuration box. For operation details of the

KVM Switcher software, please refer to the “Operation

Quick Reference.

: No live connection detected

: Current active PC channel is on port 1

: Current active PC channel is on port 2

The KVM Switcher Software supports only the Windows

operating system on PC platforms. For other OS platforms such as

Linux , you can still use the keyboard hotkey - ScrLk + ScrLK - to

switch PC. However, this switching hotkey is not available on non-

PC platform such as MacOS. When connected to a Mac machine,

use the face-panel button to switch port.

Step 2. Connect the shared USB keyboard, mouse,

monitor, speaker/headphone and microphone each to its

port on your KVM Switch.

Step 3. Connect each KVM PC port to a computer, using

the slim 3-in-1 KVM combo cable and the audio/mic cable.

After you have connected the KVM and computers properly,

Now you can operate the KVM Switch immediately.

Some older computers with USB interface might need to

manually enable the USB option in the BIOS settings before

you can use any USB devices. If your USB interface does not

work, please check the USB option status in the BIOS.

If you use Windows 95/98/SE and has not yet installed a USB

mouse on your computer, there might be an error message

telling you that mouse is not detected and prompting you to

decide whether to ignore the same message in the future,

and yet you found there is no mouse movement to disable

this message….So it is suggested that you should installed

your USB mouse on your computer first, before connecting it

to this KVM Switch.

EK-UAK4 Configuration Diagram

Easy Operation

There are two methods to control your KVM Switch for PC

switching: using the face-panel push buttons or a hotkey

sequence. For audio/mic switching, use the hotkey

command.

See Quick Reference Sheet

Face-panel buttons

The face-panel buttons allows you a direct control over PC

port switching. Simply press the button to switch PC port.

By default, PC port switching and Audio/Mic port switching

are unbound (either will be switched independently).

Keyboard hotkey

A keyboard hotkey sequence consists of at least three

specific keystrokes:

See Quick Reference Sheet

Hotkey = Ctrl+ Alt

+ [Command key]*

Universal hotkey = ScrLK + ScrLk

* The command key is user-definable via the configuration dialog box

Each keystroke within a hotkey sequence should be pressed

within 2 seconds. Otherwise, the hotkey sequence will not be

validated.

There are three methods to control your KVM

Switch for PC and Audio/Mic channel selection:

using (1) the face-panel push button, (2) a hotkey

sequence or (3) the KVM Switcher Software.

Face-panel button

The face-panel button allows you a direct control over

KVM switching operation. Simply press the button to

switch to the corresponding PC port (and audio/mic

channel, if binding is enabled). By default, PC port

switching and audio/mic port switching are bound

together.

You can use the face-panel button to switch to an empty

port that is not connected with any computer. Normally, if you

use keyboard hotkeys or the KVM Switcher software, you will not

be able to switch to an empty port.

Keyboard hotkeys

User-definable hotkeys for PC selection:

Hotkey sequence = Ctrl + Alt + [command key]*

* Please refer to next section for keys that are qualified to

be used as a command key

Universal hotkey for PC toggle-switching:

Both the universal hotkey, ScrLk + ScrLk and the

user-definable hotkey, Ctrl + Alt + [command key] WILL

NOT allow you to switch to an empty port that is not

connected with any computer. To force your KVM to

switch to an empty port, just press the face-panel button

to switch.

Universal Hotkey sequence = ScrLk + ScrLk

* For other operating systems on PC such as Linux, you

can still use this special hotkey to facilitate PC switching.

This special hotkey is not available for Mac. HOWEVER,

you can press button to switch in any case.

Each keystroke within a hotkey sequence should be

pressed within 2 seconds. Otherwise, the hotkey sequence will

not be validated.

After perform port switching, you have to wait till the KVM

Switch icon shows forth the target port before you can perform

next switching again. The KVM Switcher icon could be found on

the system tray of your Windows desktop after its installation.

All the hotkeys are only functional after your PCs are

booting into the OS. If you want to switch PC in the

BIOS/preboot stage, press the face-panel button to switch.

KVM Switcher Software (only for Windows platform)

In addition to PC switching, the KVM Switcher Software

also allows you more advanced functions such as

described in the next section….

KVM Switcher Operation Reference

Switch to PC x by Operation Menu

Right-click the KVM Switcher icon to evoke the operation

menu, then select whichever PC that is available for

switching. Once you select a PC channel, it will

immediately switch to that PC. Note that the unconnected

port(s) or the active port will be grayed-out and non-

selectable.

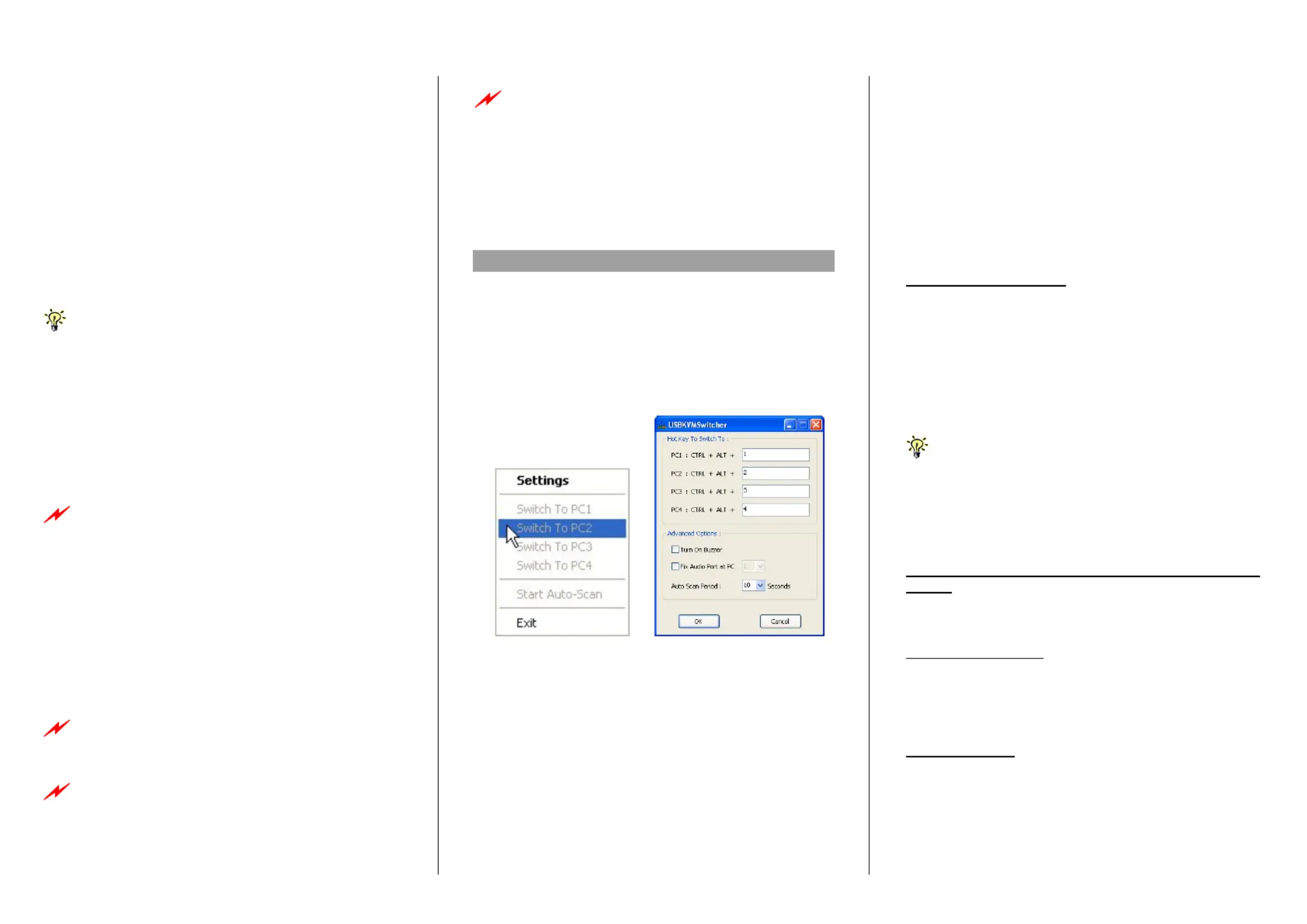

KVM SWITCHER Operation Menu KVM SWITCHER Configuration

Dialog Box

Switch to PC x by Keyboard Hotkeys

Hit the hotkey according to your current hotkey definition:

Hotkey sequence = Ctrl + Alt + [command key]*

* The factory default hotkey setting is Ctrl + Alt + 1/2/3/4 for PC

1/2/3/4. You can also use ScrLk + ScrLk to switch PC.

Start Auto-scan

Right-click the KVM Switcher icon to evoke the operation

menu, then select Start Auto-Scan to activate auto-

scanning.

Stop Auto-scan

(While auto-scanning) right-click the KVM Switcher icon

to evoke the operation menu, then select Stop Auto-Scan

to de-activate auto-scanning. Or you can press any

button on the face-panel to stop Auto-scan.

KVM Switcher configuration

Right-click the KVM Switcher icon and select Settings or

double-click the icon to bring up the configuration dialog

box.

Dene Hotkey commands

You can specify the command key as you like by typing it

in. For example, you can specify the hotkey for switching

to PC 1 as CTRL + ALT + A by typing an A (not case-

sensitive) in the editable field.

Hotkey Sequence = CTRL + ALT + [command key]*

* The command key is user-definable via the configuration

dialog box

Except those control keys such as Alt, Ctrl, Shift, CAPS,

Tab, Esc and those functions keys and edit keys, all other keys

on the keyboard, including those number keys on the number

pad are all qualified to be used as hotkey command key. In

addition to the software KVM Switching by the operation menu

and the user-defined hotkeys, you can always use the universal

hotkey for PC switching – ScrLk + ScrLk

Turn On Buzzer (optional feature, not available on this

model)

This is feature is not available on this model. [Check this

option to turn on the buzzer sound]

Fix Audio Port at PC x

Check this option and then select the PC to fix the

audio/mic channel to the selected PC. Once this option is

checked, the audio/mic channel will be fixed and become

non-switchable.

Auto Scan Period

Select the Auto-scan period from 10 ~ 60 seconds with

an increment of 5 seconds. The Auto-scan period is the

time your KVM Switch will wait to switch to next PC.

Produkt Specifikationer

Mærke:	Edimax
Kategori:	Ikke kategoriseret
Model:	EK-UAK4
Vægt:	191 g
Relativ luftfugtighed ved drift (H-H):	0 - 90 %
Udgange til hovedtelefoner:	1
Driftstemperatur (T-T):	0 - 50 °C
Dimensioner (BxDxH):	96 x 61 x 24 mm
Forbindelsesteknologi:	Ledningsført
Kompatible operativsystemer:	DOS, Win3.X, Win95/98/98SE/ME/XP/2000/NT, Netware, Linux
Antal kontrollerede computere:	4
Tastatur porttype:	USB
Mus porttype:	USB
Video porttype:	VGA
Porte, antal:	4
Antal mikrofon-indgange:	1
Video båndbredde:	350 Hz
